Masport 200ST - 48380 - Sept 2015 - Handle

Name: Masport 200ST - 48380 - Sept 2015 - Handle
SKU: 200st48380handle-group
Price: 0.29 GBP
Availability: InStock

Description

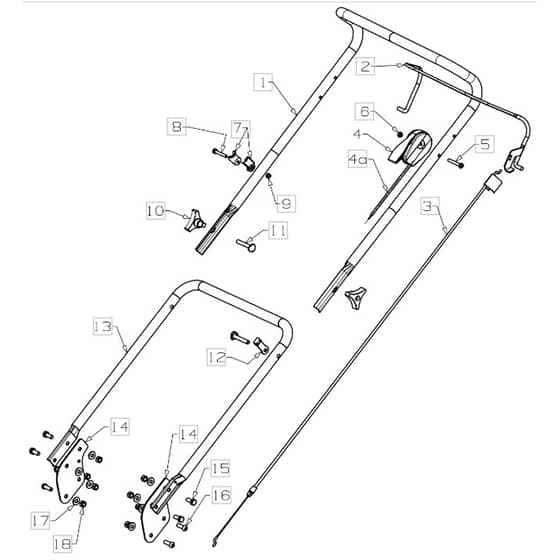

Masport 200ST Petrol Push Rotary Mower - Handle Parts Diagram

Part Number: 48380

Model: 200ST

Engine Model: -

Model Range: Sept 2015

Serial Number: -

	Part No.	Details
1	MP971022 Available to backorder	Handle-Upper Upt OPC	£32.50 £27.08
2	MP981740 Available to backorder	Bail Arm Assy OPC Red	£21.30 £17.75
3	MP581656 Available to backorder	Cable- Engine OPC Push On	£17.54 £14.62
4	MP583458 In stock	(4a) Throttle & Cable Wescon	£21.46 £17.88
5	MP503604 Available to backorder	Screw Set M6 x 45	£0.86 £0.72
6	MP501764 Available to backorder	Nut M6 Hex Nyloc x 6mm thick	£0.35 £0.29
7	MP703856 Available to backorder	Comfort Start Kit	£19.80 £16.50
8	MP503794 Available to backorder	Screw Set M6 x 40	£0.35 £0.29
10	MP574230 In stock	Knob- Plastic M8 Insert	£4.32 £3.60
11	MP574218 Available to backorder	Bolt SPH M8 x 53 x 35	£1.70 £1.42
12	MP581527 Available to backorder	Retainer- Clutch Cable Handle	£0.72 £0.60
13	MP971017 Available to backorder	Handle-Lower “U” OPP Long	£24.16 £20.13
14	MP579689 Available to backorder	Bracket- Flap OPP	£10.04 £8.37
15	MP501597 Available to backorder	Screw Set M8 x 20 Hex	£0.44 £0.37
17	MP501606 Available to backorder	Washer Flat 8 x 19 x 1.6	£0.36 £0.30
18	MP501793 Available to backorder	Nut M8 Hex Nyloc x 8mm thick	£1.86 £1.55
