Masport 200ST - 48380 - Sept 2015 - Deck

Masport 200ST - 48380 - Sept 2015 - Deck
Masport 200ST - 48380 - Sept 2015 - Deck

Description

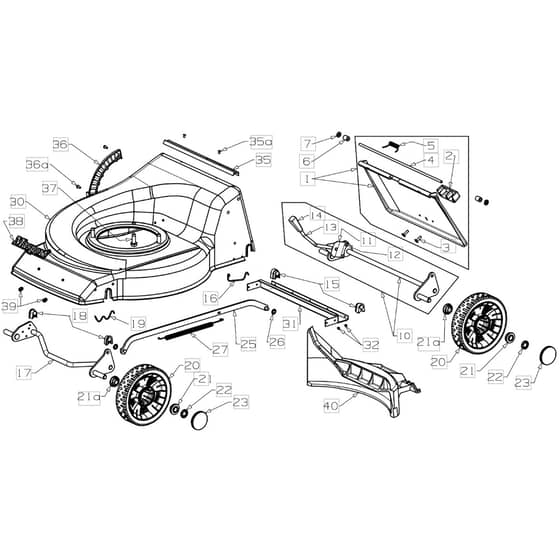

Masport 200ST Petrol Push Rotary Mower - Deck Parts Diagram

Part Number: 48380

Model: 200ST

Engine Model: -

Model Range: Sept 2015

Serial Number: -

Ref. Img. Part No. Details
  1 Flap Assy- Plastic Latched MP764242
Flap Assy- Plastic Latched
Out of stock
£39.08 £32.57

  2 Handle- Flap MP580602
Handle- Flap
Out of stock
£2.82 £2.35

  3 Screw. S.Tapping #12 x 11.16” MP503650
Screw. S.Tapping #12 x 11.16”
Out of stock
£1.14 £0.95

  4 Wire-Flap Pivot 6mm x 377mm MP779732
Wire-Flap Pivot 6mm x 377mm
Out of stock
£9.35 £7.79

  5 Spring-Flap Stl Deck MP581349
Spring-Flap Stl Deck
Out of stock
£2.60 £2.17

  6 Spacer- Flap MP579733
Spacer- Flap
Out of stock
£0.38 £0.32

  7 Clip-Starlock 6mm dia MP503574
Clip-Starlock 6mm dia
Out of stock
£1.54 £1.28

  10 Axle Assy- Rear 18” Fab’ Catch MP767077
Axle Assy- Rear 18” Fab’ Catch
Out of stock
£41.70 £34.75

  11 Spring Leaf MP580649
Spring Leaf
Out of stock
£5.62 £4.68

  12 Rivet- F.HD 3.16 x 27.64 MP503373
Rivet- F.HD 3.16 x 27.64
Out of stock
£0.96 £0.80

  13 Rod- Height Selector (SQ) MP980733
Rod- Height Selector (SQ)
Out of stock
£4.58 £3.82

  14 Knob- Height Lever (SQ) MP580056
Knob- Height Lever (SQ)
Out of stock
£1.14 £0.95

  15 Bush-Pivot Rear Axle MP580668
Bush-Pivot Rear Axle
Out of stock
£0.72 £0.60

  16 Retainer- Axle Rear Stl Deck MP579292
Retainer- Axle Rear Stl Deck
Out of stock
£0.86 £0.72

  17 Axle-Front 175mm MP581269
Axle-Front 175mm
Out of stock
£25.48 £21.23

  18 Bush- Pivot Front Axle MP580030
Bush- Pivot Front Axle
In stock
Was £0.72 £0.60 Special Price £0.56 £0.47

  19 Retainer- Axle Front “W” MP529674
Retainer- Axle Front “W”
Out of stock
£0.54 £0.45

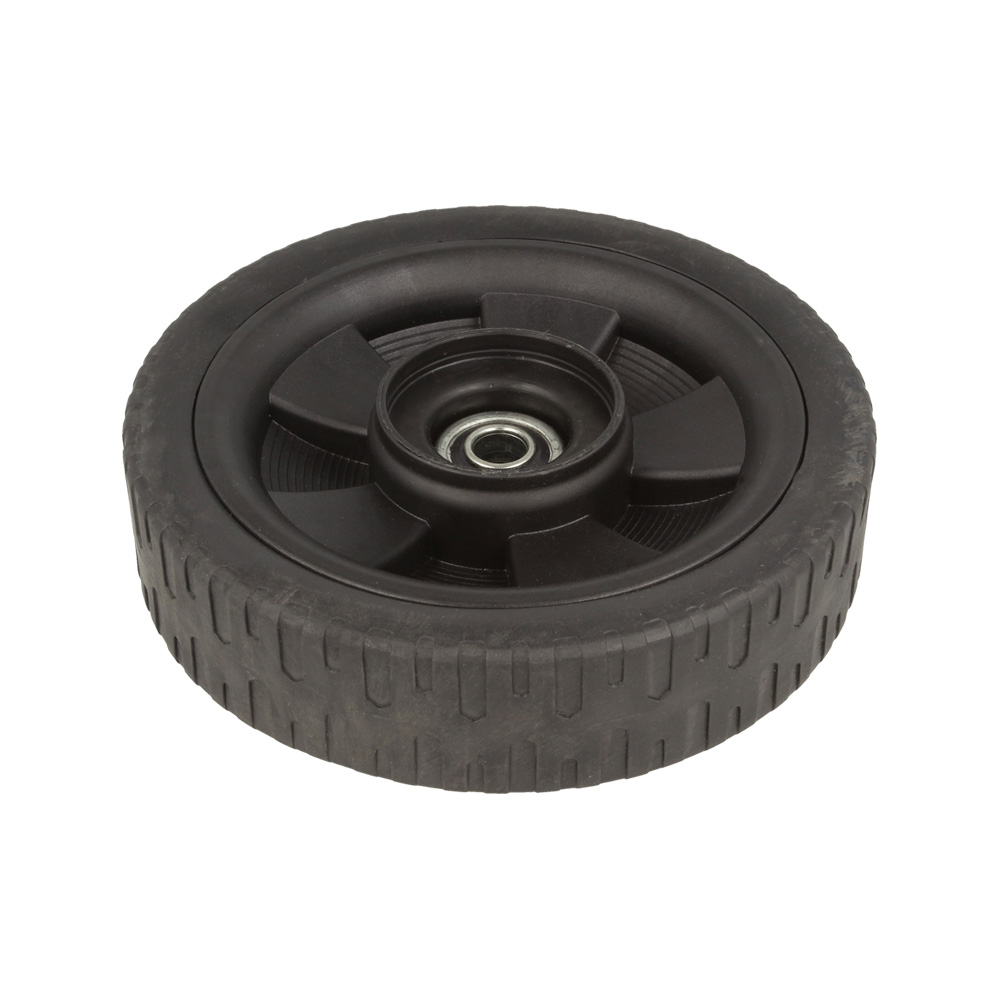

  20 Wheel Assy-175mm Cobra Blk MP579495
Wheel Assy-175mm Cobra Blk
Out of stock
£30.90 £25.75

  21 Bearing Ball MP551212
Bearing Ball
Out of stock
£5.98 £4.98

  21 (21a) Bearing- Wheel MP579694
(21a) Bearing- Wheel
Out of stock
£0.72 £0.60

  22 Clip- Starlock 1.2” MP503236
Clip- Starlock 1.2”
Out of stock
£2.10 £1.75

  23 Hub Cap- Button Spoked Black MP579202
Hub Cap- Button Spoked Black
Out of stock
£0.86 £0.72

  26 Clip- Starlock 5.16” MP501365
Clip- Starlock 5.16”
Out of stock
£0.54 £0.45

  27 Spring- Counter Balance MP581463
Spring- Counter Balance
Out of stock
£7.38 £6.15

  30 Housing- Stl 18” ODS TTNM MP973357
Housing- Stl 18” ODS TTNM
Out of stock
£147.86 £123.22

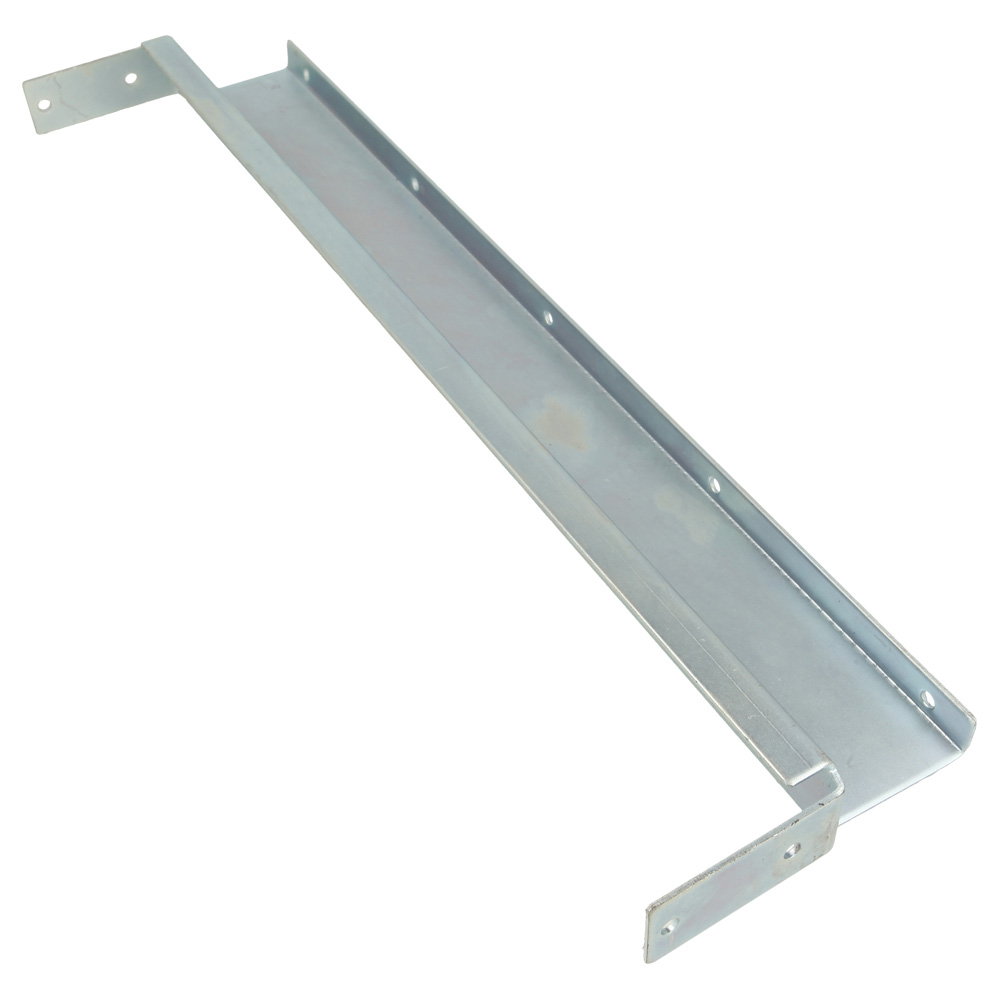

  31 Brace- Rear Stiffener MP583267
Brace- Rear Stiffener
Out of stock
£15.02 £12.52

  35 Dust Seal- Flap MP583151
Dust Seal- Flap
Out of stock
£2.60 £2.17

  36 Quadrant- Height Selector MP580025
Quadrant- Height Selector
Out of stock
£6.42 £5.35

  37 Screw S.Tapping 3.8 x 1-1.8 UNC MP580453
Screw S.Tapping 3.8 x 1-1.8 UNC
Out of stock
£2.32 £1.93

  38 Nameplate- MASPORT MP581240
Nameplate- MASPORT
Out of stock
£7.44 £6.20

  39 Clip- Starlock 5mm dia MP503150
Clip- Starlock 5mm dia
Out of stock
£0.54 £0.45

  40 Insert- Mulching 18 MP583173
Insert- Mulching 18" Stl
Out of stock
£23.96 £19.97


Description

Masport 200ST Petrol Push Rotary Mower - Deck Parts Diagram

Part Number: 48380

Model: 200ST

Engine Model: -

Model Range: Sept 2015

Serial Number: -
