Masport 200ST - 465741 - Sept 2018 - Handle

Masport 200ST - 465741 - Sept 2018 - Handle
Masport 200ST - 465741 - Sept 2018 - Handle

Description

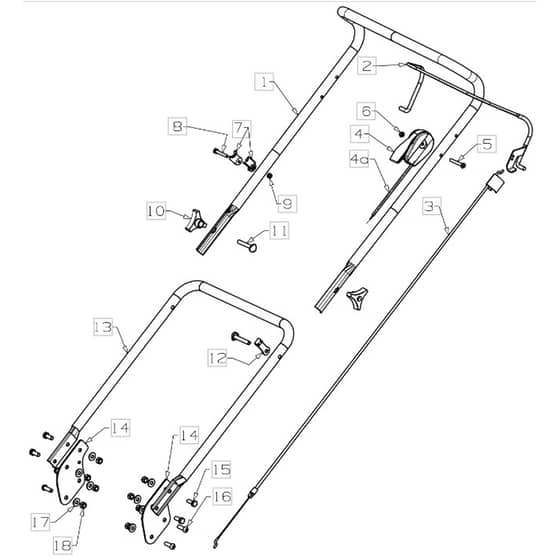

Masport 200ST Petrol Push Rotary Mower - Handle Parts Diagram

Part Number: 465741

Model: 200ST L

Engine Model: -

Model Range: Sept 2018

Serial Number: -

Ref. Img. Part No. Details
  1 Handle-Upper Upt OPC
Handle-Upper Upt OPC
MP971022 Out of stock
Handle-Upper Upt OPC
£33.62 £28.02

  2 Bail Arm Assy OPC Red
Bail Arm Assy OPC Red
MP981740 Out of stock
Bail Arm Assy OPC Red
£21.30 £17.75

  3 Cable- Engine OPC (push on)
Cable- Engine OPC (push on)
MP583395 In stock
Cable- Engine OPC (push on)
£20.22 £16.85

  4 (4a) Throttle & Cable Wescon
(4a) Throttle & Cable Wescon
MP583458 In stock
(4a) Throttle & Cable Wescon
£19.20 £16.00

  5 Screw Set M6 x 45
Screw Set M6 x 45
MP503604 Out of stock
Screw Set M6 x 45
£0.86 £0.72

  6 Nut M6 Hex Nyloc x 6mm thick
Nut M6 Hex Nyloc x 6mm thick
MP501764 Out of stock
Nut M6 Hex Nyloc x 6mm thick
£0.35 £0.29

  7 Comfort Start Kit
Comfort Start Kit
MP703856 Out of stock
Comfort Start Kit
£19.80 £16.50

  8 Screw Set M6 x 40
Screw Set M6 x 40
MP503794 Out of stock
Screw Set M6 x 40
£0.35 £0.29

  10 Knob- Plastic M8 Insert
Knob- Plastic M8 Insert
MP574230 Out of stock
Knob- Plastic M8 Insert
£4.32 £3.60

  11 Bolt SPH M8 x 53 x 35
Bolt SPH M8 x 53 x 35
MP574218 Out of stock
Bolt SPH M8 x 53 x 35
£1.70 £1.42

  12 Retainer- Clutch Cable Handle
Retainer- Clutch Cable Handle
MP581527 Out of stock
Retainer- Clutch Cable Handle
£0.72 £0.60

  13 Handle-Lower “U” OPP Long
Handle-Lower “U” OPP Long
MP971017 Out of stock
Handle-Lower “U” OPP Long
£25.00 £20.83

  14 Bracket- Flap OPP
Bracket- Flap OPP
MP579689 Out of stock
Bracket- Flap OPP
£10.04 £8.37

  15 Screw Set M8 x 20 Hex
Screw Set M8 x 20 Hex
MP501597 Out of stock
Screw Set M8 x 20 Hex
£0.44 £0.37

  17 Washer Flat 8 x 19 x 1.6
Washer Flat 8 x 19 x 1.6
MP501606 Out of stock
Washer Flat 8 x 19 x 1.6
£0.41 £0.34

  18 Nut M8 Hex Nyloc x 8mm thick
Nut M8 Hex Nyloc x 8mm thick
MP501793 Out of stock
Nut M8 Hex Nyloc x 8mm thick
£0.62 £0.52


Description

Masport 200ST Petrol Push Rotary Mower - Handle Parts Diagram

Part Number: 465741

Model: 200ST L

Engine Model: -

Model Range: Sept 2018

Serial Number: -
