Masport 18 - 957942 - Oct 2006 7102311 - Main Assembly

Description

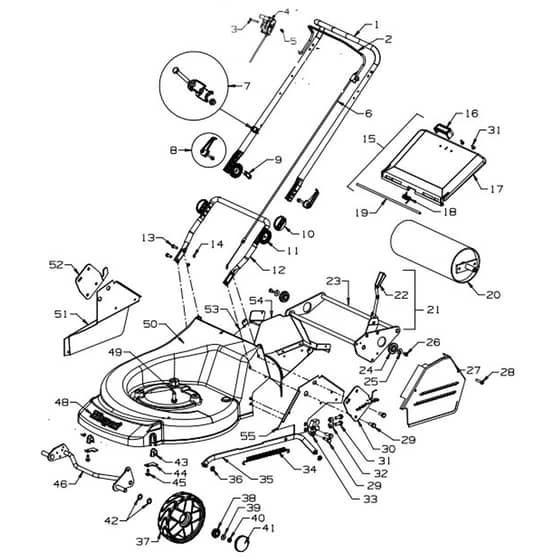

Masport 18 Petrol Rotarola - Main Assembly Parts Diagram

Part Number: 957942

Model: ROTAROLA PUSH

Engine Model: B&S XVS Series 675

Model Range: Oct 2006

Serial Number: 7102311

Be the first to review this product

0 product questions

	Part No.	Details
1	MP781664 Available to backorder	Handle-Upper Upturne	£63.74 £53.12
2	MP981740 Available to backorder	Bail Arm Assy	£21.30 £17.75
3	MP503508 Available to backorder	Screw Pan M6 x 55	£1.14 £0.95

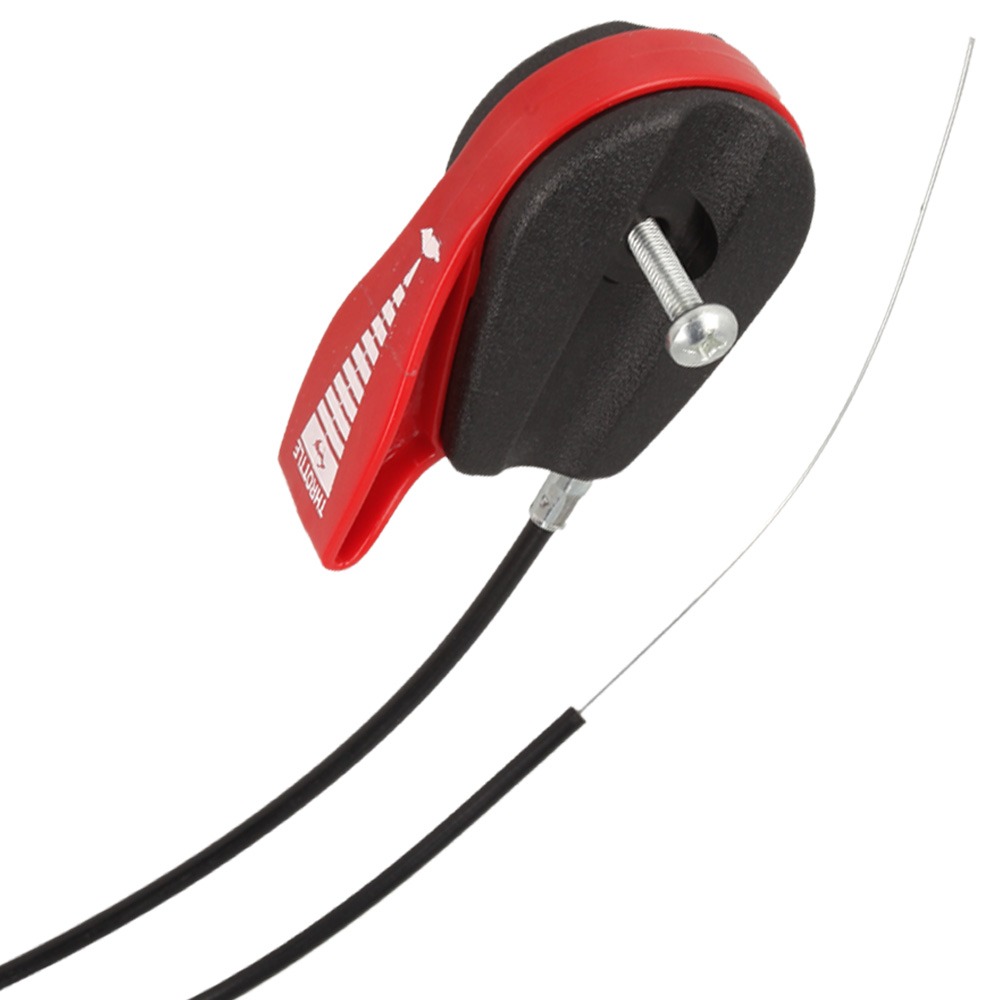

4	MP582506 Available to backorder	Control-Throttle Capro T	£27.24 £22.70
5	MP501764 Available to backorder	Nut Nyloc M6 HEX	£0.35 £0.29
6	MP582523 Available to backorder	Cable-Engine	£17.94 £14.95
7	MP703856 Available to backorder	Comfort Start Assm	£19.80 £16.50
8	MP779755 In stock	Cam Lock Assy	£10.06 £8.38
9	MP581527 Available to backorder	Retainer-Control Cable Handle	£0.72 £0.60
10	MP581660 Available to backorder	Disc - Locking Outer	£6.08 £5.07
11	MP581659 Available to backorder	Disc - Locking Inner	£6.42 £5.35
12	MP981712 Available to backorder	Handle-Lower ”U" Adjustab	£21.70 £18.08
14	MP501793 Available to backorder	Nut Nyloc M8 Hex	£1.86 £1.55
15	MP781153 Available to backorder	Flap Assm - Steel	£52.78 £43.98
16	MP580602 Available to backorder	• Handle-Flap	£2.82 £2.35
18	MP581528 Available to backorder	• Spring-Flap	£2.20 £1.83
19	MP581743 Available to backorder	• Wire-Flap Pivot 347mm x 6mm	£2.98 £2.48
20	MP957246 Available to backorder	Roller Assy-Steel	£163.60 £136.33
22	MP580056 Available to backorder	• Grip-7.9 Dia	£1.14 £0.95
23	MP957240 Available to backorder	Frame Assy-Rear	£59.74 £49.78
26	MP501959 Available to backorder	Screw Set M6 x 12 Hex	£0.38 £0.32
30	MP981644 Available to backorder	Plate-Side LH - Black	£30.54 £25.45
31	MP503650 Available to backorder	Screw S.T M5 x 18	£1.14 £0.95
32	MP557050 Available to backorder	Bracket-Mounting Top	£2.20 £1.83
33	MP557055 Available to backorder	Bracket-Mounting Bottom	£3.70 £3.08
34	MP581463 Available to backorder	Spring-Counter Balance	£6.84 £5.70
35	MP957251 Available to backorder	Rod Assy Connecting	£25.02 £20.85
36	MP501365 Available to backorder	Clip-Starlock 5.16"	£0.46 £0.38
37	MP579196 Available to backorder	Wheel -175mm BB Spoke Sil	£30.90 £25.75
38	MP551212 Available to backorder	• Bearing-Whe	£5.56 £4.63
39	MP501606 Available to backorder	Washer Flat 8 x 19 x 1.6	£0.36 £0.30
40	MP503831 Available to backorder	Nut-Nyloc M8	£0.72 £0.60
41	MP579198 Available to backorder	Button Hub-cap Spoked Silver	£0.86 £0.72
42	MP503301 Available to backorder	Washer. Flat 1.2" x 3.4"	£3.36 £2.80
43	MP580030 In stock	Bush-Pivot Axle	£0.70 £0.58
44	MP980564 Available to backorder	Plate-Retainer Axle	£0.86 £0.72
45	MP501599 Available to backorder	Screw.S.T 1.4" x 5.8"	£1.58 £1.32
46	MP983247 Available to backorder	Axle Assy-Front 175mm	£33.96 £28.30
48	MP569144 Available to backorder	Nameplate - Masport	£9.46 £7.88
49	MP580453 Available to backorder	Screw. S.T 3.8" x 1 1.8" UNC	£2.32 £1.93
51	MP957311 Available to backorder	Cover-Side RH - Silver	£28.40 £23.67
52	MP981643 Available to backorder	Plate-Side RH - Black	£15.98 £13.32
53	MP957273 Available to backorder	Cover-Chute Grass - Black	£17.82 £14.85
54	MP957270 Available to backorder	Ramp Assy-Grass - Black	£74.24 £61.87
