Masport 18 - 957942 - Oct 2006 7102311 - 460mm Quick Cut Blade Assembly

Description

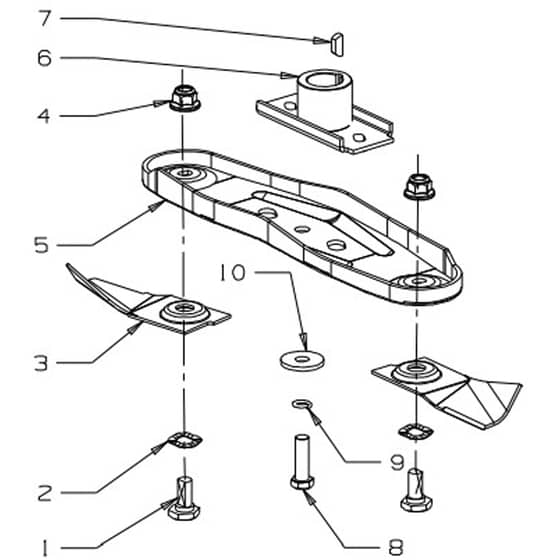

Masport 18 Petrol Rotarola - 460mm Quick Cut Blade Assembly Parts Diagram

Part Number: 957942

Model: ROTAROLA PUSH

Engine Model: B&S XVS Series 675

Model Range: Oct 2006

Serial Number: 7102311

	Part No.	Details
1	MP581707 In stock	• Bolt-Blade	£2.41 £2.01
2	MP580693 In stock	• Washer Wavy	£0.37 £0.31
3	MP780658 Available to backorder	• Blade Quick Cut - 460mm	£17.70 £14.75
4	MP503672 In stock	• Nut Flange Nyloc M10	£0.36 £0.30
5	MP980653 Available to backorder	• Carrier-Blade	£31.19 £25.99
6	MP031640 Available to backorder	Driver Assy Blade - 25mm	£21.84 £18.20
7	MP503363 Available to backorder	Key Woodru	£0.41 £0.34
8	MP581610 In stock	Screw Set NF 3.8" x 1.25	£2.11 £1.76
9	MP500204 Available to backorder	Washer Spring 3.8"	£0.31 £0.26
10	MP503667 Available to backorder	Washer Flat 9.75 x 30 x 3	£1.14 £0.95
