Masport 18 - 457958 - Sept 2018 8307508 - Roller Assembly

Name: Masport 18 - 457958 - Sept 2018 8307508 - Roller Assembly
SKU: 184579588307508roller-group
Price: 0.32 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Masport 18 - 457958 - Sept 2018 8307508 - Roller Assembly

Description

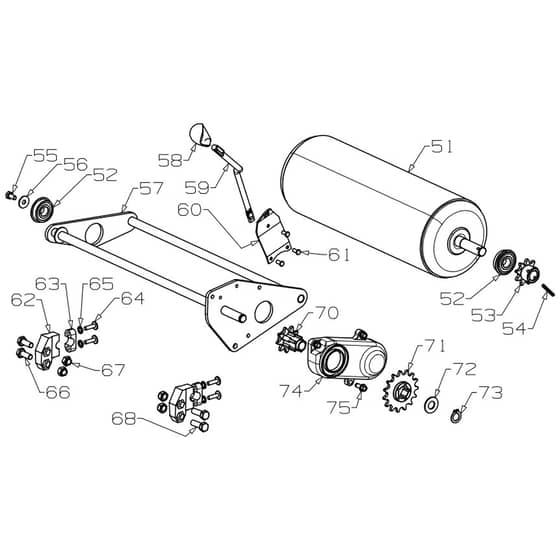

Masport 18 Petrol Rotarola - Roller Assembly Parts Diagram

Part Number: 457958

Model: S18 AL Rotarola SP OPC19

Engine Model: LONCIN 159cc

Model Range: Sept 2018

Serial Number: 8307508

Be the first to review this product

0 product questions

	Part No.	Details
51	MP957276 Available to backorder	Roller Assy- Steel R.R S.P Blk	£181.46 £151.22
52	MP503820 Available to backorder	Brg Ball 15x35x11 6202NR2RS SKF	£23.14 £19.28
53	MP557278 Available to backorder	Sprocket- 9T Driven	£43.26 £36.05
54	MP503042 Available to backorder	Pin Tension 4.0x30	£0.68 £0.57
55	MP501959 Available to backorder	Screw Set M6x12 Hex	£0.38 £0.32
57	MP957254 Available to backorder	Frame Assy Rear 18" SP RR	£79.98 £66.65
58	MP581729 Available to backorder	Knob- Height Lever MSV	£3.12 £2.60
59	MP564355 Available to backorder	Rod- Height Selector R.R	£7.74 £6.45
60	MP573849 Available to backorder	Spring- Leaf 2mm	£6.24 £5.20
61	MP503373 Available to backorder	Rivet- F.HD 3.16"x27.64"	£0.96 £0.80
62	MP557055 Available to backorder	Bracket- Mounting Bottom	£3.70 £3.08
63	MP557050 Available to backorder	Bracket- Mounting Top	£2.20 £1.83
64	MP503650 Available to backorder	Screw S.Tapping #12 x 11.16"	£1.14 £0.95
66	MP501597 Available to backorder	Screw Set M8x20 Hex	£0.44 £0.37
67	MP501793 Available to backorder	Nut M8 Nylock x 8mm Thick	£1.86 £1.55
70	MP957212 Available to backorder	Sprocket Assy- 9 Tooth	£36.02 £30.02
71	MP557307 Available to backorder	Sprocket- Intermediate	£56.16 £46.80
72	MP500858 Available to backorder	Washer Flat 1.2 x 1.0 x .062	£0.44 £0.37
73	MP503293 In stock	Circlip 1.2" Ext	£1.30 £1.08
74	MP557209 In stock	Cover- Chain Rotarola	Was £7.64 £6.37 Special Price £5.27 £4.39
75	MP501599 Available to backorder	Screw S.T 1.4" x 5.8" Hex Whit	£1.58 £1.32
