Masport 18 - 457958 - Sept 2018 8307508 - Gearbox Assembly

Name: Masport 18 - 457958 - Sept 2018 8307508 - Gearbox Assembly
SKU: 184579588307508gearbox-group
Price: 0.27 GBP
Availability: InStock

Part No. 184579588307508gearbox-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Masport 18 - 457958 - Sept 2018 8307508 - Gearbox Assembly

Description

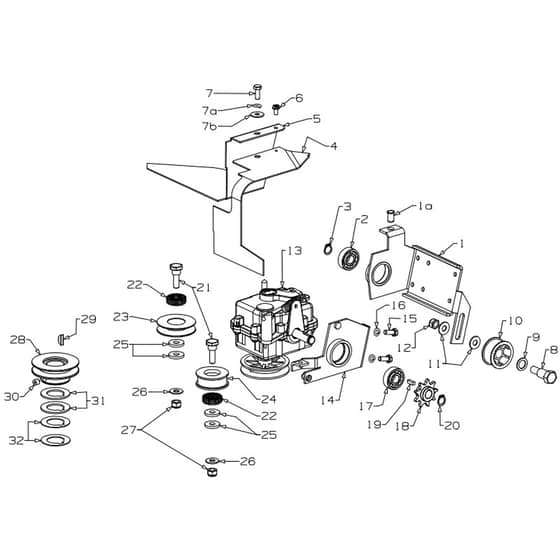

Masport 18 Petrol Rotarola - Gearbox Assembly Parts Diagram

Part Number: 457958

Model: S18 AL Rotarola SP OPC19

Engine Model: LONCIN 159cc

Model Range: Sept 2018

Serial Number: 8307508

	Part No.	Details
1	MP501040 Available to backorder	(1a) Nut M6 Nutsert 9658-0619	£0.72 £0.60
1	MP957279 Available to backorder	Gearbox- Support Assy RH	£27.06 £22.55
2	MP501213 Available to backorder	Brg Ball 12x32x10 6201 2RS SKF	£17.28 £14.40
3	MP503759 In stock	Circlip 12 Ext DIN 471	£0.32 £0.27
6	MP503630 Available to backorder	Screw S.T 10 x .4 Type B	£0.86 £0.72
7	MP503223 Available to backorder	Screw Set M6 x 16 HT 8.8	£1.12 £0.93
8	MP557300 Available to backorder	Stud - Tensioner Pulley	£6.66 £5.55
9	MP503301 Available to backorder	Washer. Flat 1.2 x 3.4 x 18G	£3.23 £2.69
10	MP557067 Available to backorder	Pulley- Tensioner	£6.62 £5.52
11	MP501606 Available to backorder	Washer Flat 8 x 19 x 1.6	£0.37 £0.31
12	MP501793 Available to backorder	Nut M8 Hex Nyloc x 8mm thick	£1.92 £1.60
13	MP557268 In stock	Gearbox- Rotarola	£121.67 £101.39
14	MP757281 Available to backorder	Support Assy- Gearbox LH	£32.34 £26.95
18	MP557306 In stock	Sprocket- 9T G.B Out	£42.91 £35.76
19	MP503873 Available to backorder	Key 4 x 4 x 12	£0.79 £0.66
21	MP557317 Available to backorder	Stud- Idler Pulley	£5.98 £4.98
22	MP503901 In stock	Brg Ball 12x28x8 6001 2RSH SKF	£20.12 £16.77
23	MP557316 Available to backorder	Pulley- V Idler	£26.11 £21.76
24	MP573382 Available to backorder	Pulley- Flat Idler	£21.68 £18.07
25	MP503872 Available to backorder	Washer Flat 8 x 20 x 3.0	£1.74 £1.45
29	MP500636 Available to backorder	Key Woodruff 5.8 x 5.32 x 1.4	£1.40 £1.17
30	MP503386 Available to backorder	Screw Grub M8 x 8	£0.41 £0.34
31	MP569552 Available to backorder	Spacer- Pulley Eng 25 x 42 x 2	£3.40 £2.83
32	MP573024 Available to backorder	Spacer- Pulley Eng 25 x 42 x 1	£0.41 £0.34
