Masport 18 - 457954 - Nov 2016 - Roller Assembly

Masport 18 - 457954 - Nov 2016 - Roller Assembly

Part No. 18457954roller-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Masport 18 - 457954 - Nov 2016 - Roller Assembly

Masport 18 - 457954 - Nov 2016 - Roller Assembly

Description

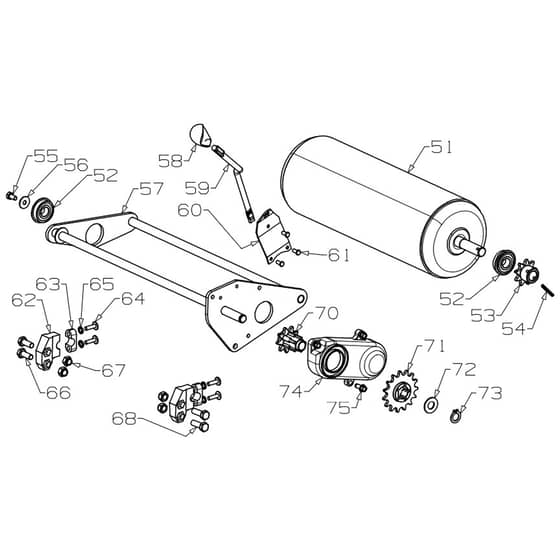

Masport 18 Petrol Rotarola - Roller Assembly Parts Diagram

Part Number: 457954

Model: S18 AL Rotarola SP Instart

Engine Model: B&S Series 675EXi

Model Range: Nov 2016

Serial Number: -

Ref.		Img.	Part No.	Details
	51		MP957276 Available to backorder	Roller Assy Steel 18" RR SP		£168.84 £140.70

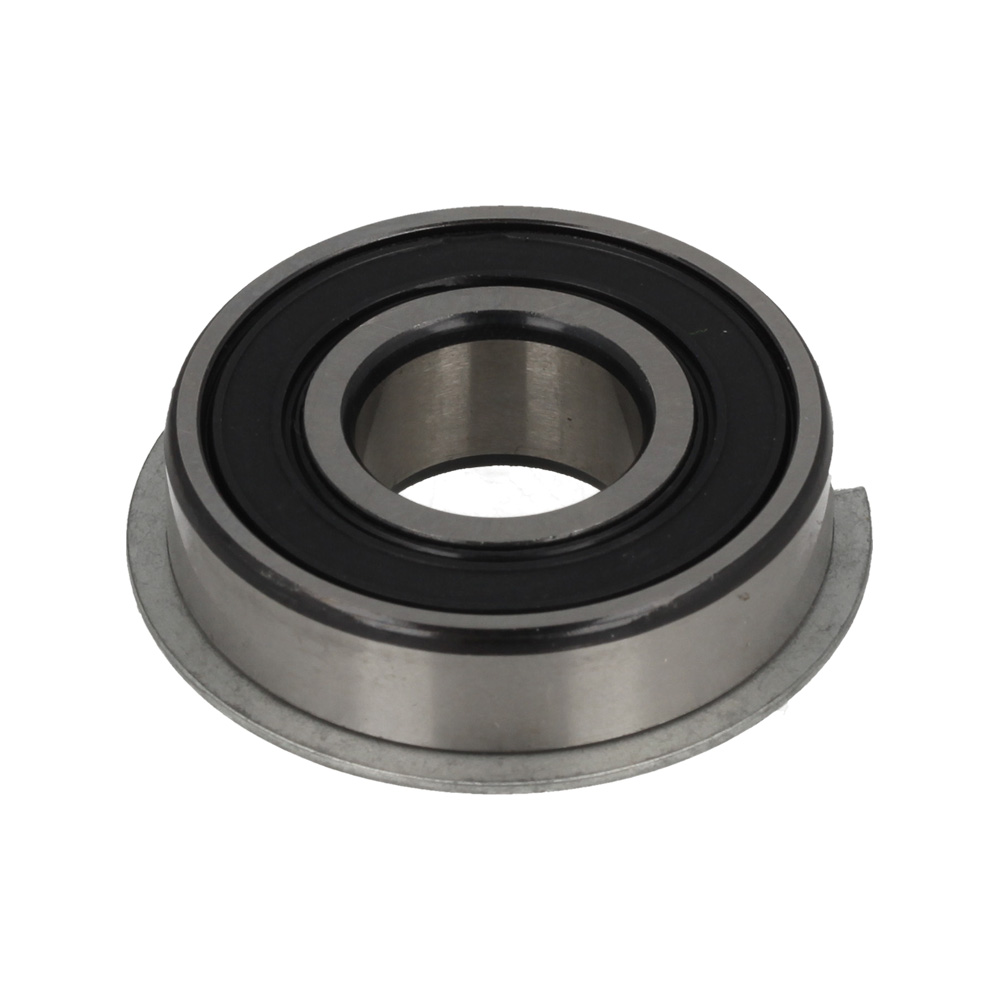

	52		MP503820 In stock	Brg Ball 15x35x11 6202NR2RS		£24.80 £20.67
	53		MP557278 Available to backorder	Sprocket- 9T Driven		£41.63 £34.69

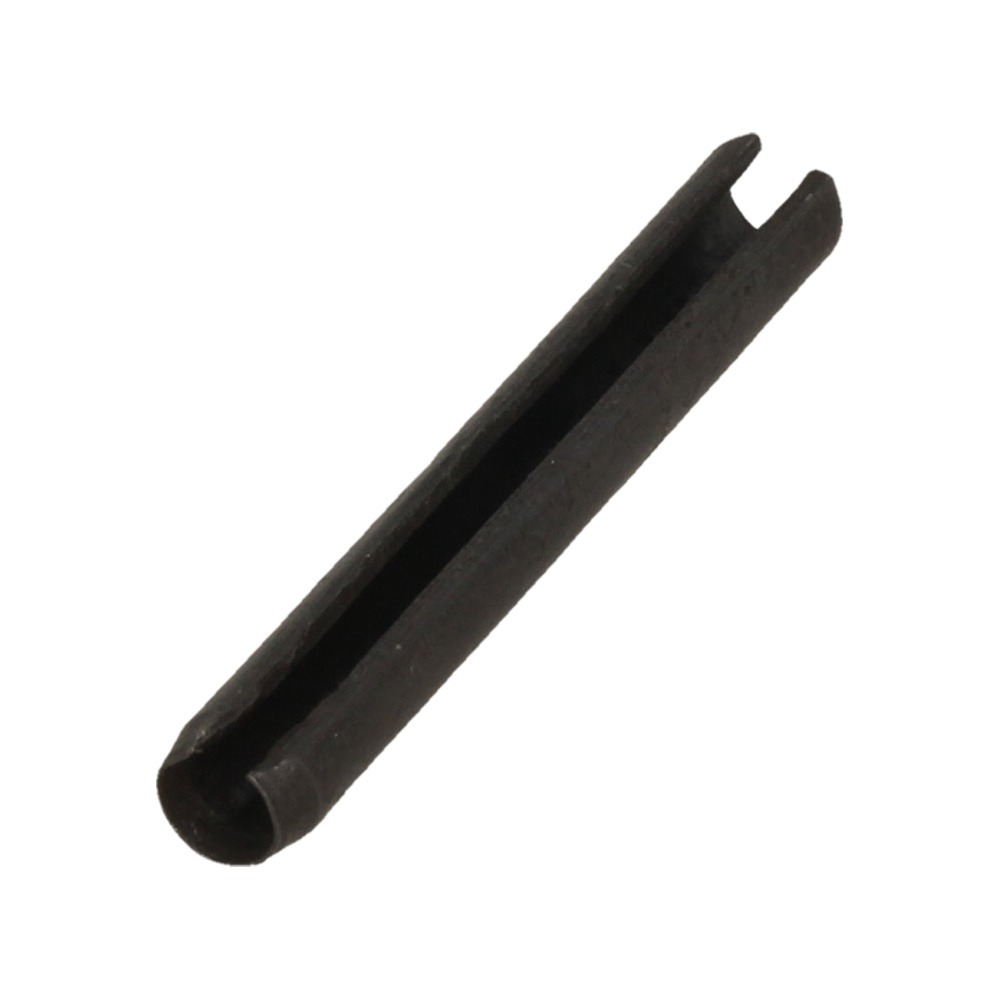

	54		MP503042 Available to backorder	Pin Tension 4.0x30		£0.48 £0.40
	55		MP501959 Available to backorder	Screw Set M6x12 Hex		£0.48 £0.40
	58		MP581729 Available to backorder	Knob- Height Lever MSV		£3.00 £2.50
	59		MP564355 Available to backorder	Rod- Height Selector R.R		£7.46 £6.22

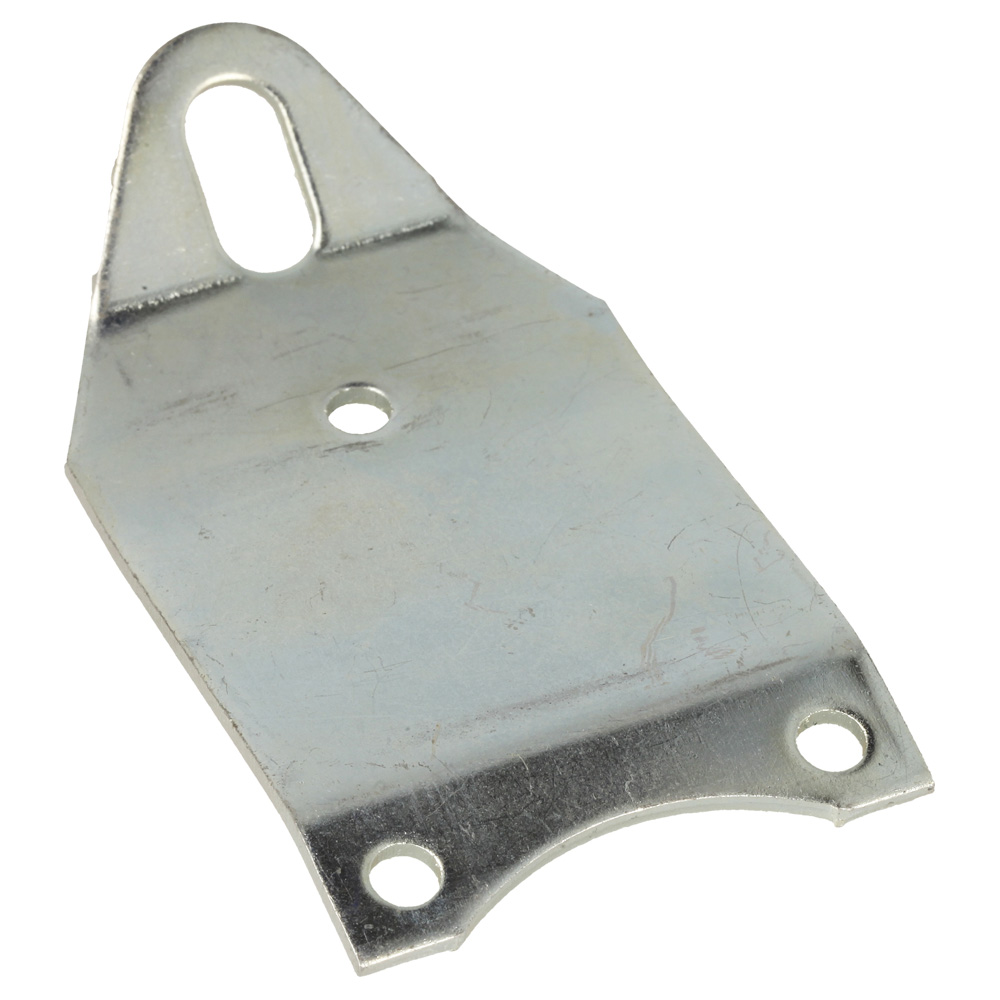

	60		MP573849 Available to backorder	Spring- Leaf 2mm		£7.06 £5.88
	61		MP503373 Available to backorder	Rivet- F.HD 3.16"x27.64"		£0.94 £0.78

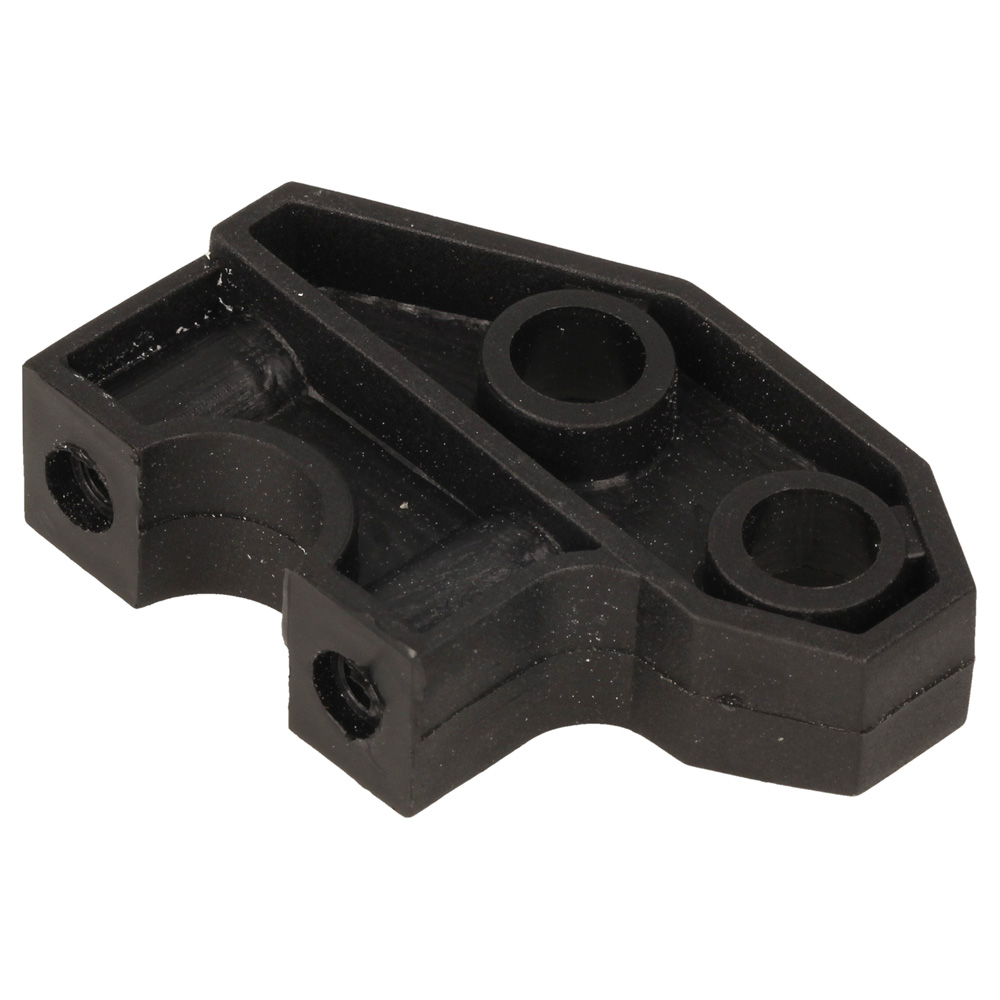

	62		MP557055 Available to backorder	Bracket- Mounting Bottom		£3.83 £3.19

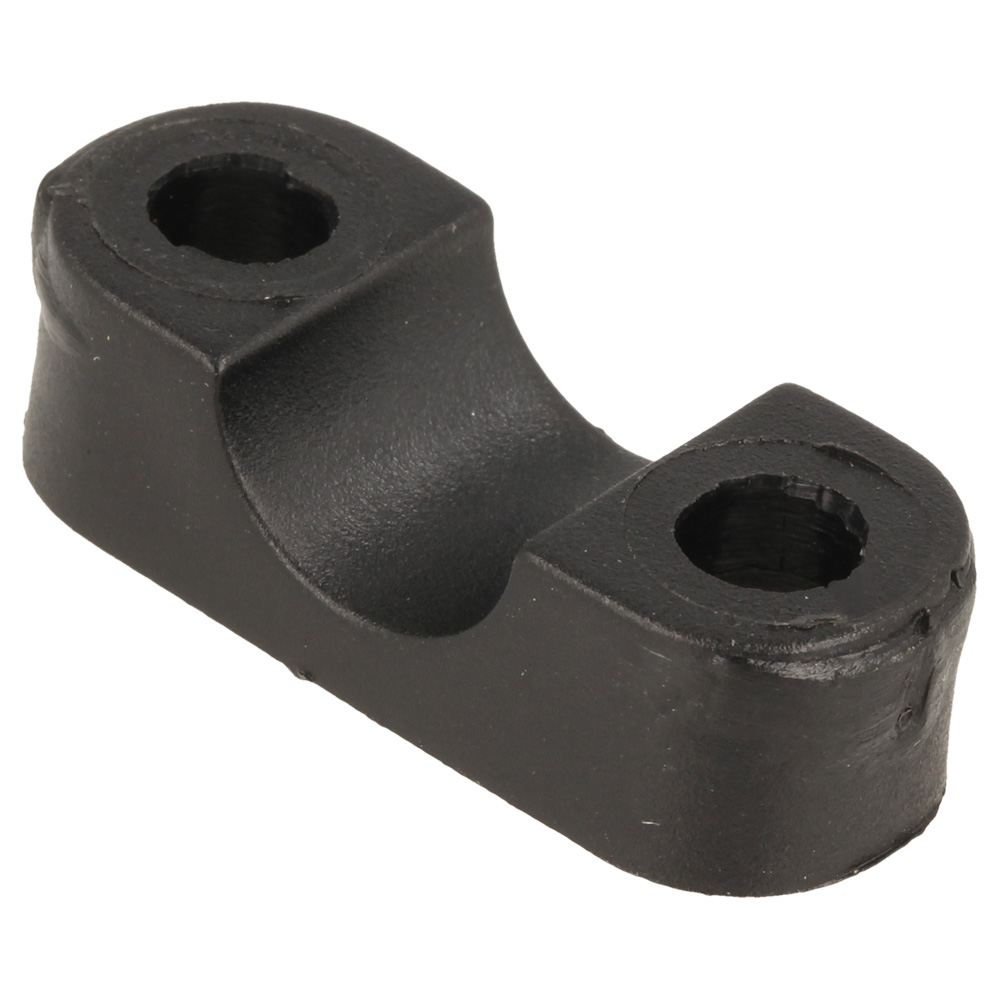

	63		MP557050 Available to backorder	Bracket- Mounting Top		£2.14 £1.78
	64		MP503650 Available to backorder	Screw S.Tapping #12 x 11.16"		£0.86 £0.72
	66		MP501597 Available to backorder	Screw Set M8x20 Hex		£0.41 £0.34
	67		MP501793 Available to backorder	Nut M8 Nylock x 8mm Thick		£1.92 £1.60

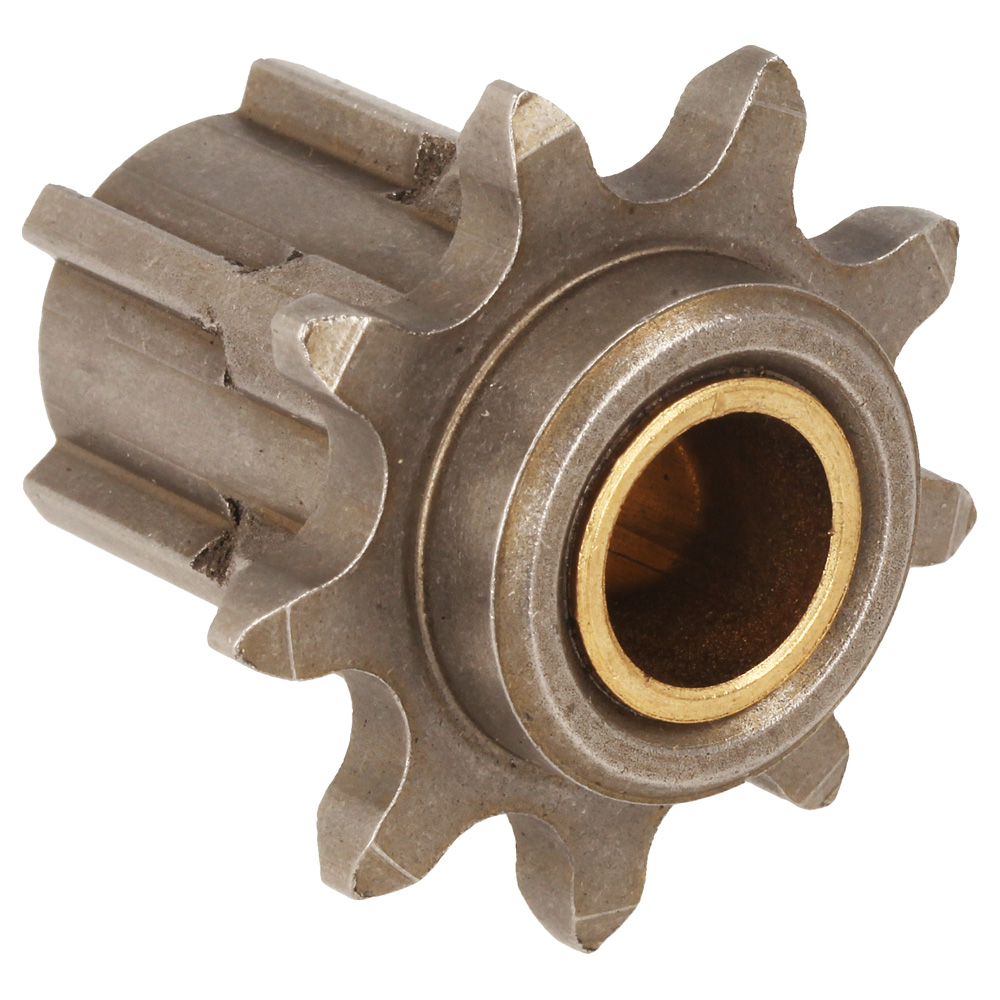

	70		MP957212 Available to backorder	Sprocket Assy- 9 Tooth		£37.26 £31.05

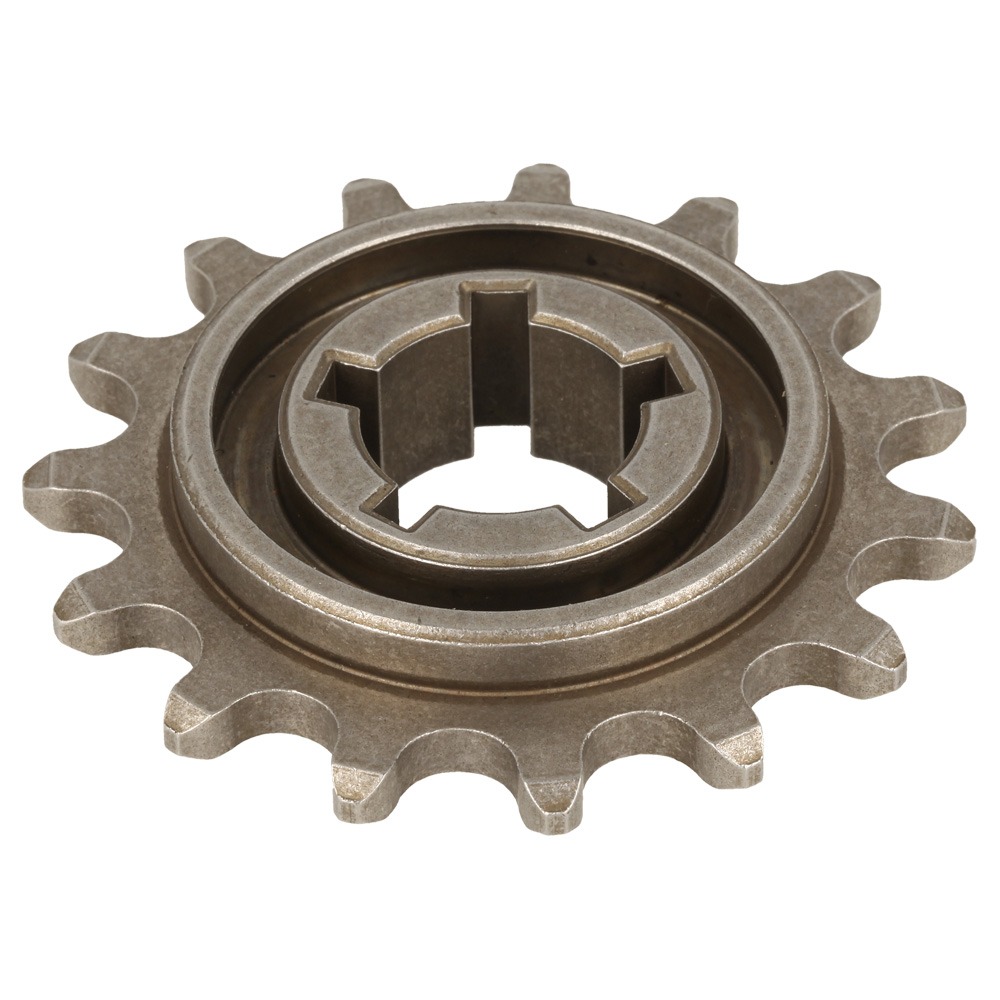

	71		MP557307 Available to backorder	Sprocket- Intermediate		£54.04 £45.03
	72		MP500858 Available to backorder	Washer Flat 1.2 x 1.0 x .062		£0.41 £0.34

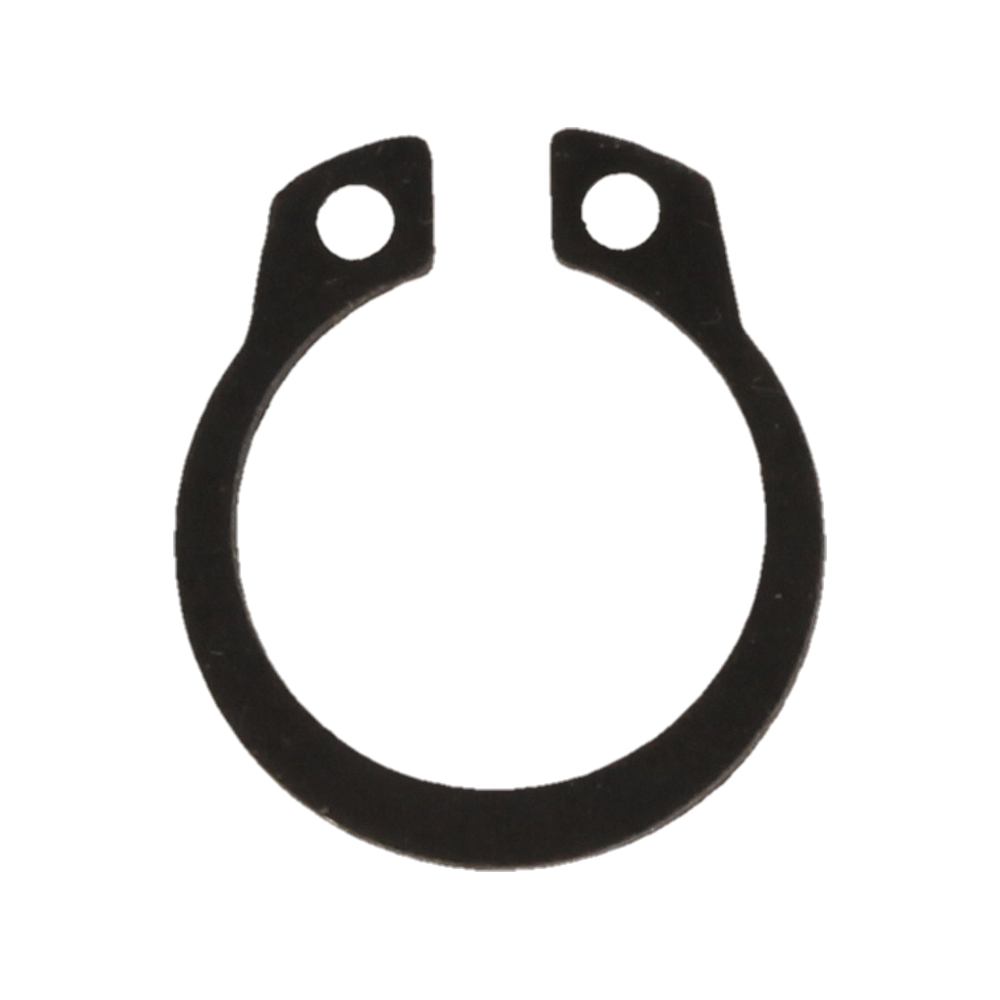

	73		MP503293 In stock	Circlip 1.2" Ext		£1.34 £1.12

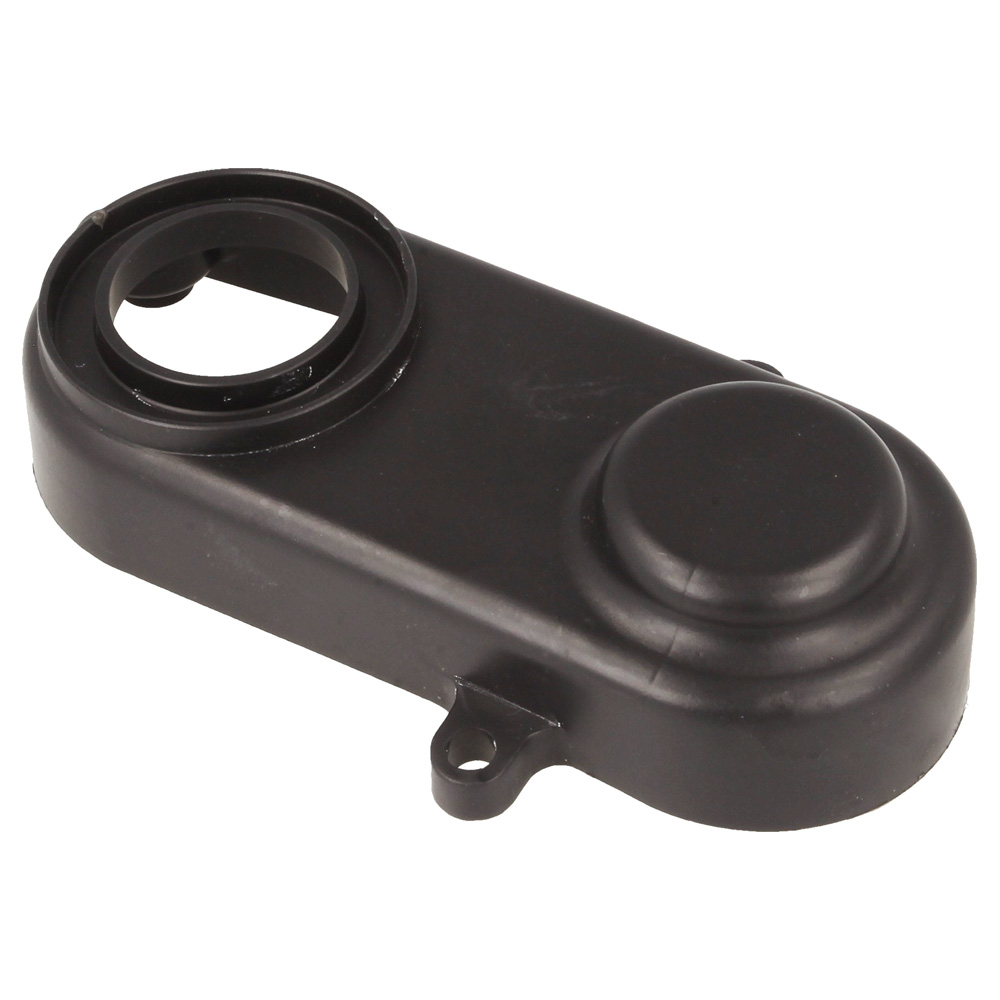

	74		MP557209 In stock	Cover- Chain Rotarola		Was £7.56 £6.30 Special Price £5.27 £4.39
	75		MP503223 Available to backorder	Screw M6 x 16		£1.12 £0.93

Description

Masport 18 Petrol Rotarola - Roller Assembly Parts Diagram

Part Number: 457954

Model: S18 AL Rotarola SP Instart

Engine Model: B&S Series 675EXi

Model Range: Nov 2016

Serial Number: -
