Masport 18 - 457950 - Oct 2015 > 7976596 - Gearbox Assembly

Description

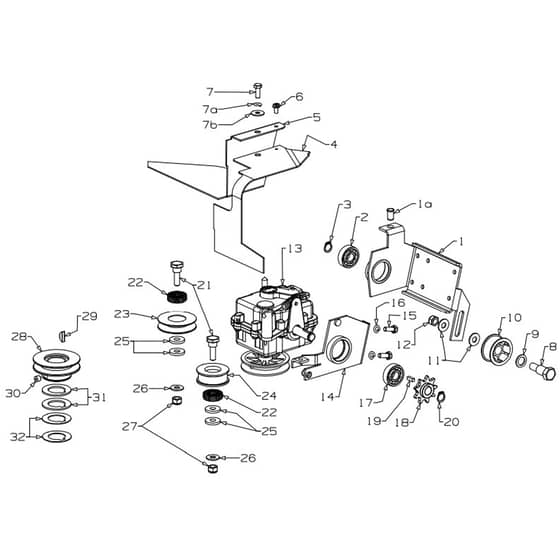

Masport 18 Petrol Rotarola - Gearbox Assembly Parts Diagram

Part Number: 457950

Model: S18 AL Rotarola SP

Engine Model: B&S Series 675EXi

Model Range: Oct 2015

Serial Number: > 7976596

Be the first to review this product

0 product questions

	Part No.	Details
1	MP957279 Available to backorder	Gearbox- Support Assy RH	£28.14 £23.45
1	MP501040 Available to backorder	(1a) Nut M6 Nutsert	£0.72 £0.60
2	MP501213 Available to backorder	Brg Ball 12x32x10 6201 2RS	£16.70 £13.92
3	MP503759 In stock	Circlip 12 Ext	£0.48 £0.40
6	MP503630 Available to backorder	Screw S.T 10 x .4	£0.90 £0.75
7	MP503223 Available to backorder	Screw Set M6x16 HT8.8 Hex	£1.06 £0.88

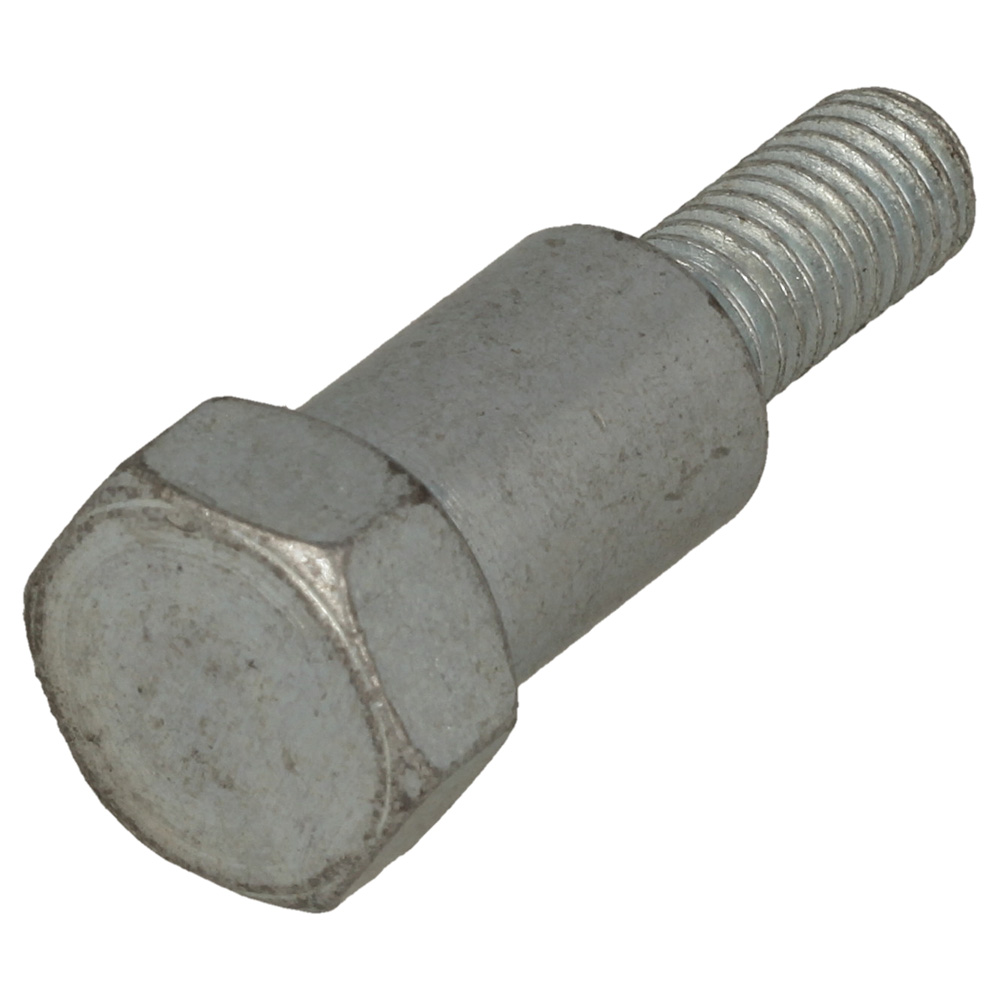

8	MP557300 Available to backorder	Stud - Tensioner Pulley	£6.94 £5.78
9	MP503301 Available to backorder	Washer. Flt 1.2 x 3.4 x 18G	£3.36 £2.80

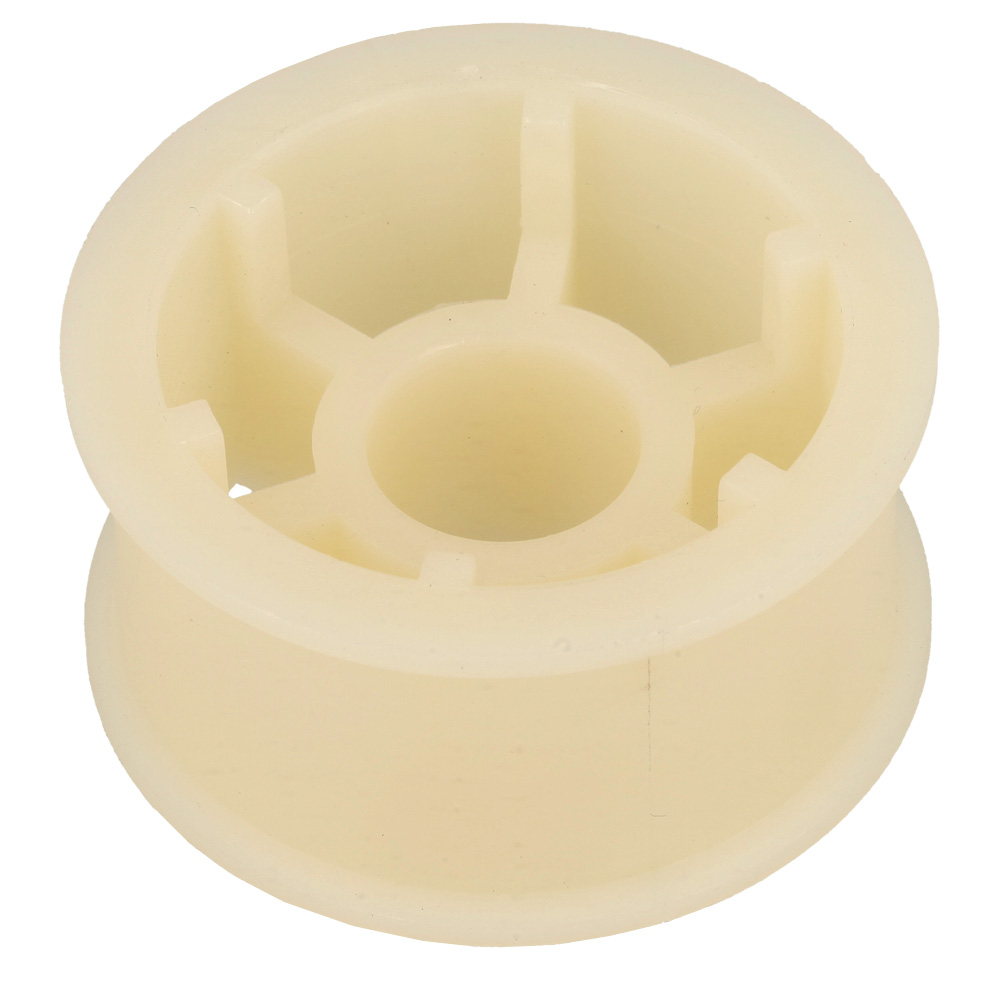

10	MP557067 Available to backorder	Pulley- Tensioner	£6.40 £5.33
11	MP501606 Available to backorder	Washer FLT 8 x 19 x 1.6	£0.36 £0.30
12	MP501793 Available to backorder	Nut M8 Hex Nylock 8thck	£1.86 £1.55
13	MP557268 Available to backorder	Gearbox- Rotarola	£112.80 £94.00
14	MP757281 Available to backorder	Support Assy- Gearbox LH	£32.22 £26.85
18	MP557306 In stock	Sprocket- 9T G.B Out	£44.62 £37.18
19	MP503873 Available to backorder	Key 4 x 4 x 12	£0.80 £0.67

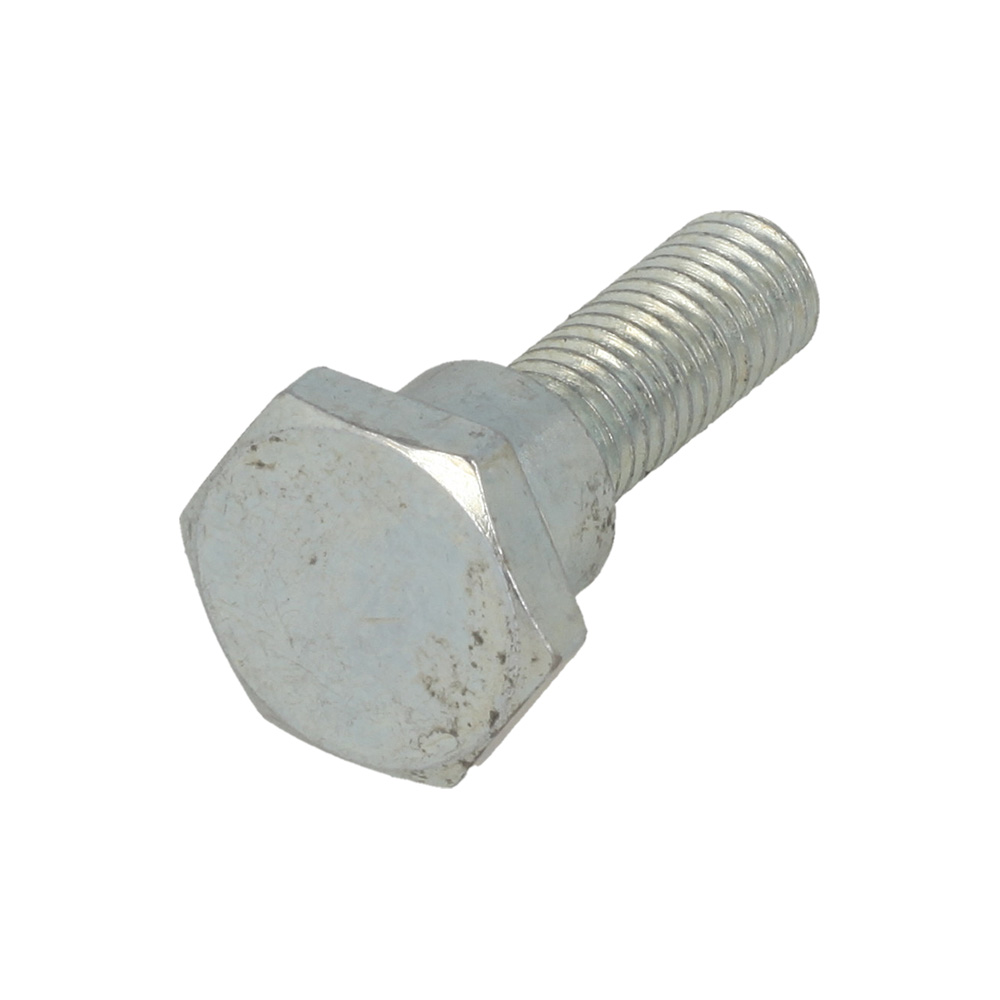

21	MP557317 Available to backorder	Stud- Idler Pulley	£6.00 £5.00
22	MP503901 In stock	Brg Ball 12x28x8 6001 2RSH	£18.78 £15.65
23	MP557316 Available to backorder	Pulley- V Idler	£25.24 £21.03

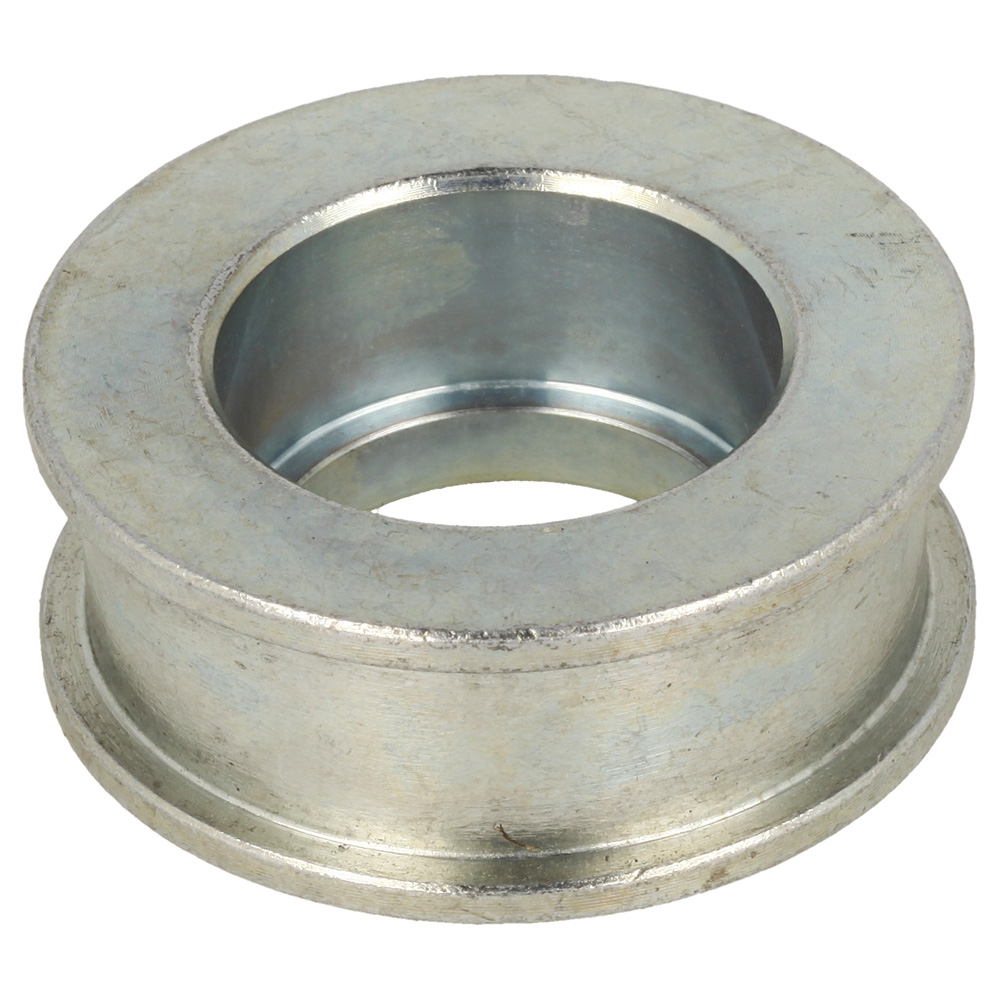

24	MP573382 Available to backorder	Pulley- Flat Idler	£20.96 £17.47
25	MP503872 Available to backorder	Washer Flt 8x20x3.0	£1.68 £1.40
28	MP568651 Available to backorder	Pulley- Eng 25 x 68 x 28.5	£31.14 £25.95
29	MP503363 Available to backorder	Key Woodruff 5.8x3.16x1.4	£0.44 £0.37
30	MP503386 Available to backorder	Screw Grb M8x8	£0.44 £0.37
31	MP569552 Available to backorder	Spacer- Pulley Eng 25 x 42 x 2	£3.52 £2.93
32	MP573024 Available to backorder	Spacer - Pulley Eng 25x42x1	£0.90 £0.75
