Masport 18 - 457950 - Oct 2015 > 7976596 - Deck Assembly

Description

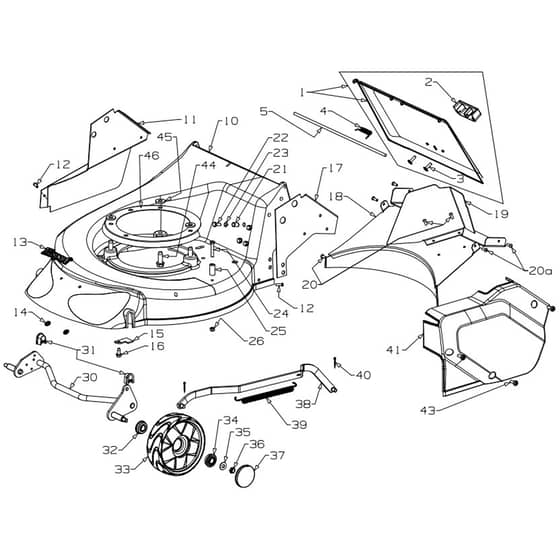

Masport 18 Petrol Rotarola - Deck Assembly Parts Diagram

Part Number: 457950

Model: S18 AL Rotarola SP

Engine Model: B&S Series 675EXi

Model Range: Oct 2015

Serial Number: > 7976596

	Part No.	Details
1	MP781477 Available to backorder	Flap Mower Steel "Black"	£34.86 £29.05
2	MP580602 Available to backorder	Handle- Flap	£2.44 £2.03
3	MP503650 Available to backorder	Screw. S.Tapping #12x11.16"	£0.86 £0.72

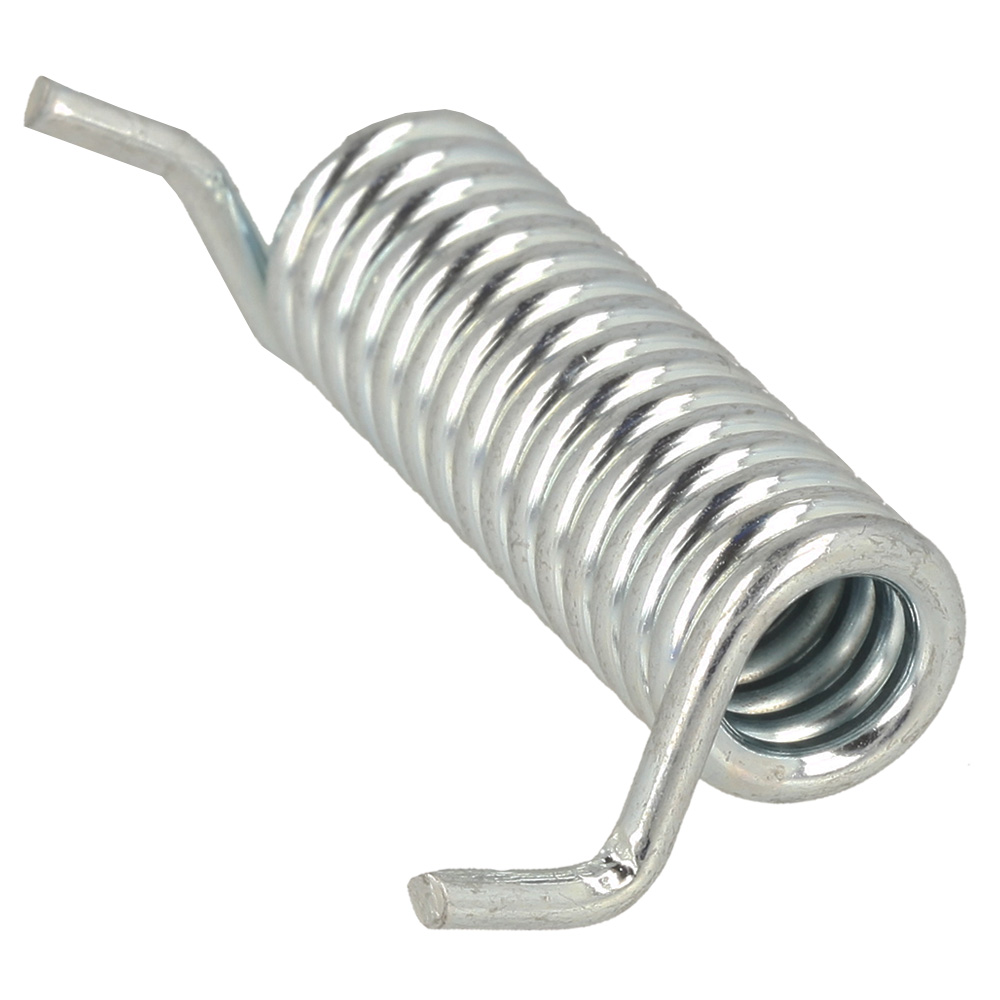

4	MP564275 Available to backorder	Spring- Flap STL 18".20"	£1.86 £1.55
5	MP581743 Available to backorder	Wire- Flap Pivot 6x347	£2.86 £2.38
10	MP779498 Available to backorder	Hsg Assy- Ali 18" RR SP TTNM	£270.12 £225.10
11	MP957311 Available to backorder	Cover- Side RH TTNM	£27.31 £22.76
13	MP567406 Available to backorder	Nameplate Masport B.W	£5.80 £4.83
14	MP503150 Available to backorder	Clip- Starlock 5 Dia	£0.48 £0.40
15	MP980564 Available to backorder	Plate- Retainer Front Axle	£0.83 £0.69
16	MP501599 Available to backorder	Screw S.T 1.4x5.8 Hex	£1.51 £1.26
17	MP957312 Available to backorder	Plate- Side LH	£17.59 £14.66

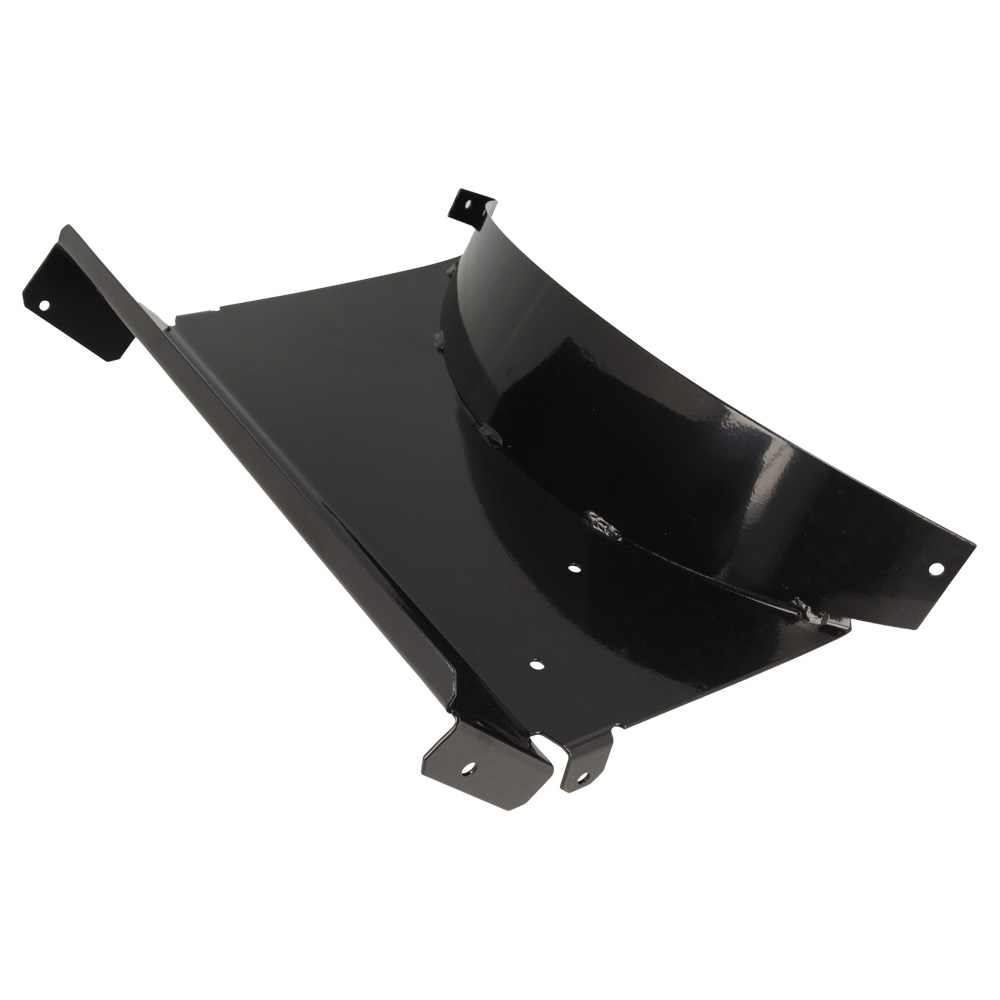

18	MP957270 Available to backorder	Ramp Assy Grass	£74.28 £61.90

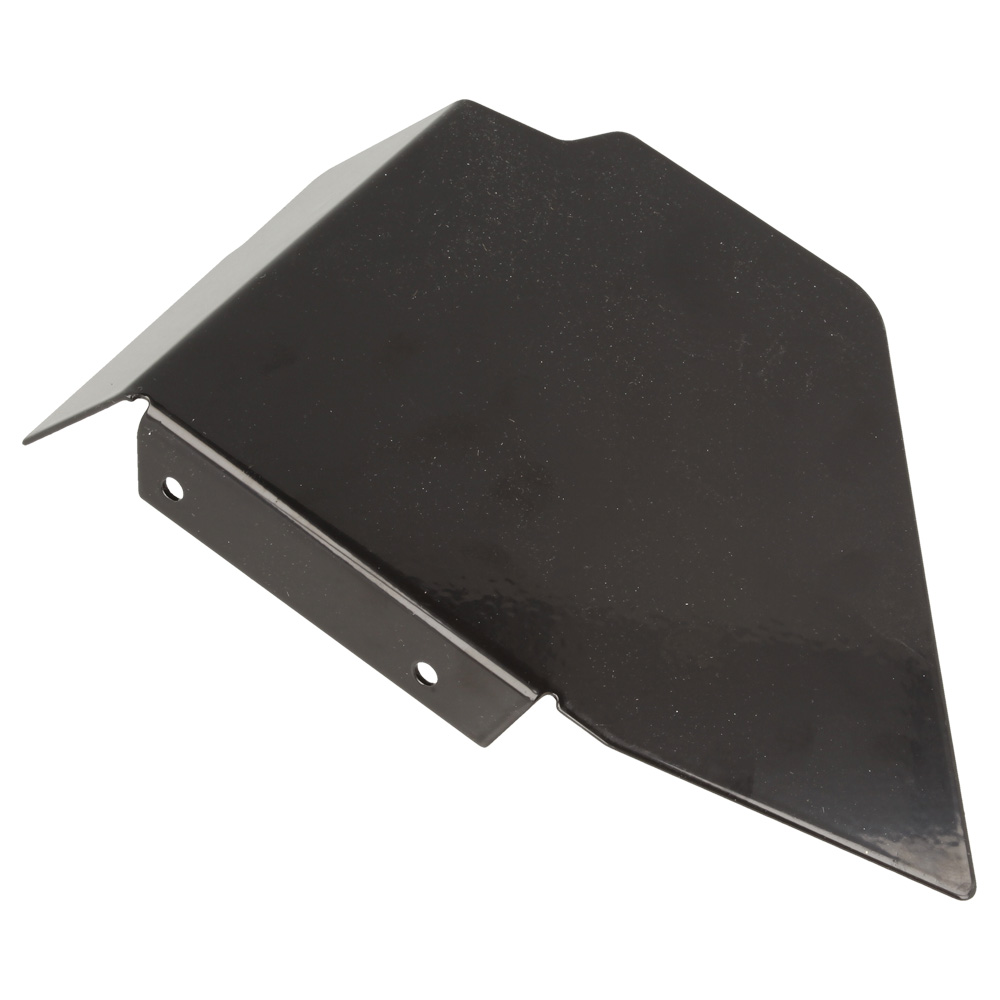

19	MP957273 Available to backorder	Cover- Chute Grass	£18.43 £15.36
21	MP501040 Available to backorder	Nut M6 Nutsert 9658-0619	£0.72 £0.60
22	MP503223 Available to backorder	Screw Set M6 x 16 HT 8.8	£1.12 £0.93
24	MP501815 Available to backorder	Screw Set M6 x 35	£0.34 £0.28
25	MP503874 Available to backorder	Bush X-Lube 1.4" x 1.2" x 1"	£0.86 £0.72
26	MP501764 Available to backorder	Nut M6 Hex Nylock x 6mm Thick	£0.31 £0.26

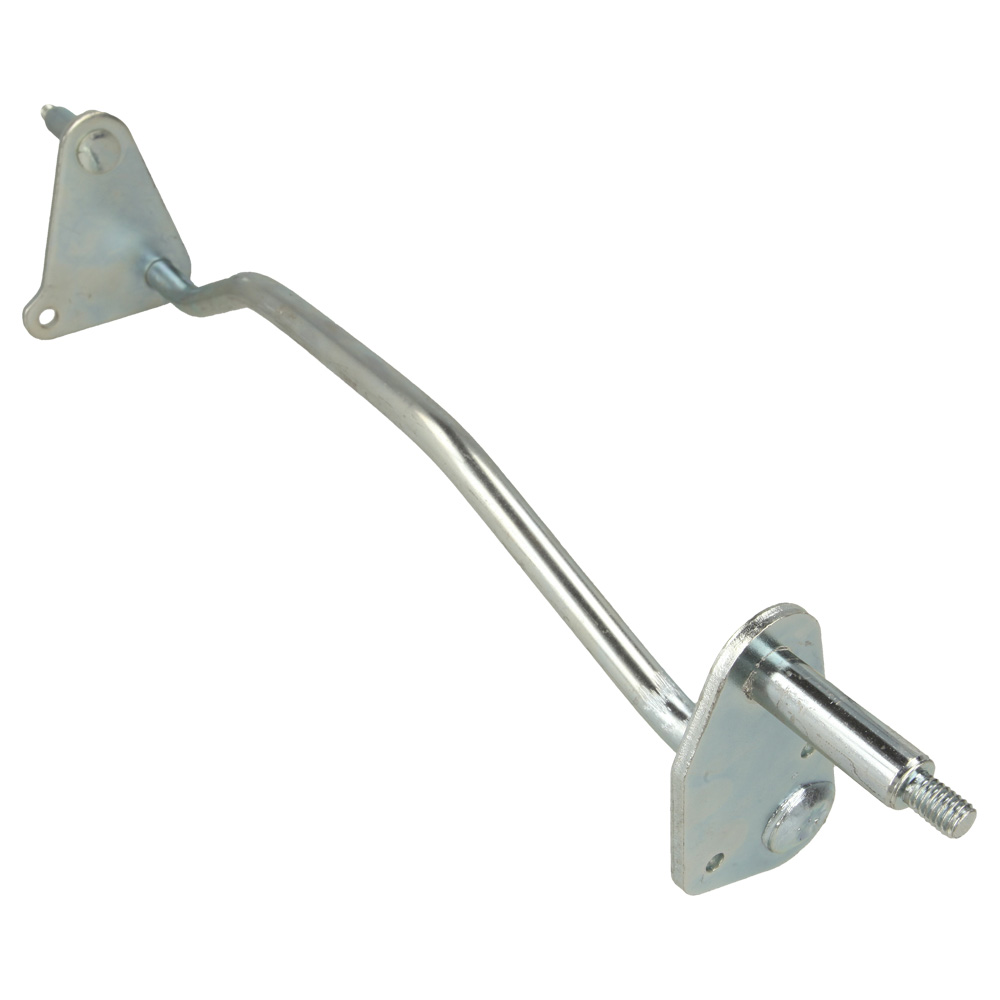

30	MP983246 Available to backorder	Axle Assy Front 150mm Thrd	£32.15 £26.79
31	MP580030 In stock	Bush- Pivot Axle	£0.76 £0.63
32	MP551212 Available to backorder	Bearing- Wheel Ball Type	£5.75 £4.79
33	MP579195 Available to backorder	Wheel Assy- 150mm Spkd Slv	£25.84 £21.53
35	MP501606 Available to backorder	Washer Flt 8x19x1.6	£0.37 £0.31
36	MP503831 Available to backorder	Nut M8 Hex Nyloc 6 Thck	£0.72 £0.60
37	MP579198 Available to backorder	Hub Cap Button Spkd Slv	£0.83 £0.69
38	MP957290 Available to backorder	Rod Assy Connecting R.R SP	£14.65 £12.21
39	MP580621 Available to backorder	Spring Counter Balance SP RR	£4.92 £4.10
40	MP501056 Available to backorder	Pin Cotter 2.3d x 16	£0.48 £0.40
41	MP557301 Available to backorder	Cover- Side LH 18" R.R	£21.04 £17.53
43	MP503331 Available to backorder	Screw Pan M6 x 16	£1.20 £1.00

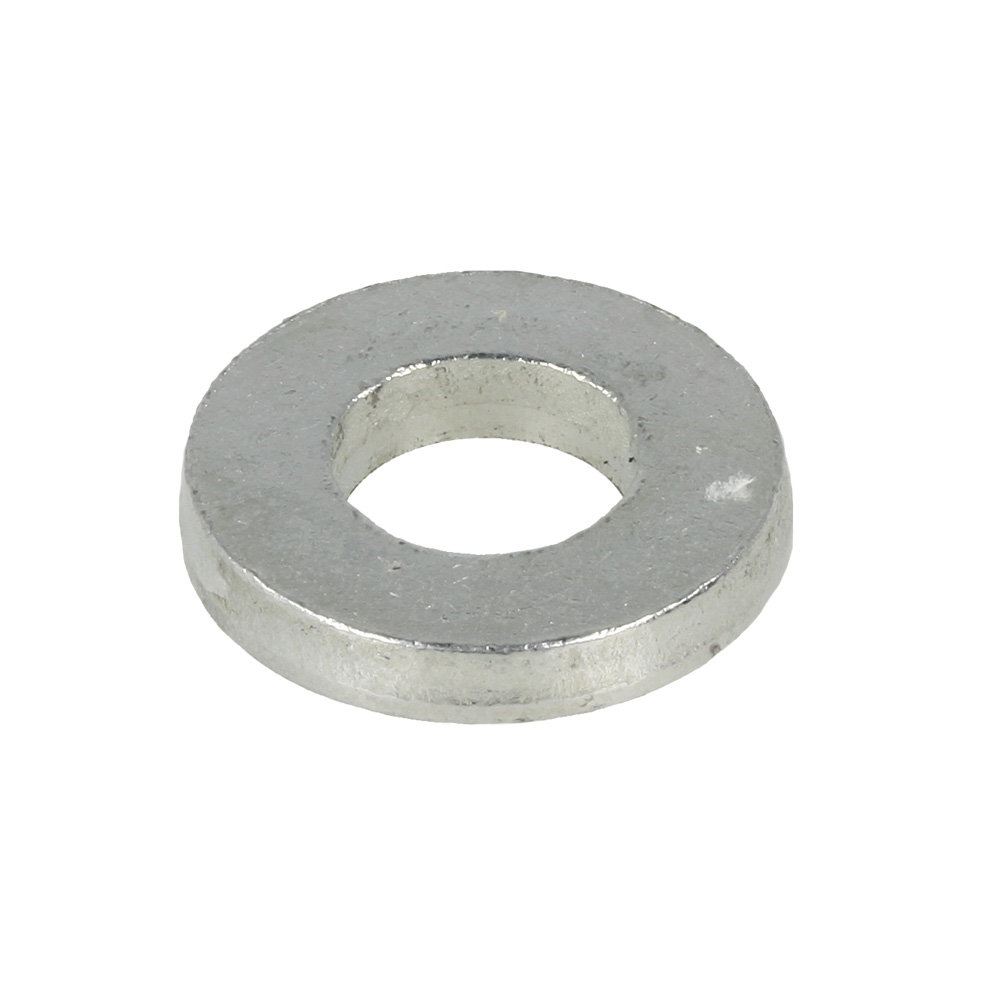

45	MP573585 Available to backorder	Spacer Blade Driver 22 x 4	£3.12 £2.60
46	MP569037 Available to backorder	Ring- Safety Black	£18.11 £15.09
