Masport 18 - 457950 - Oct 2015 > 7976596 - 460mm QuickCut Blade Assembly

Description

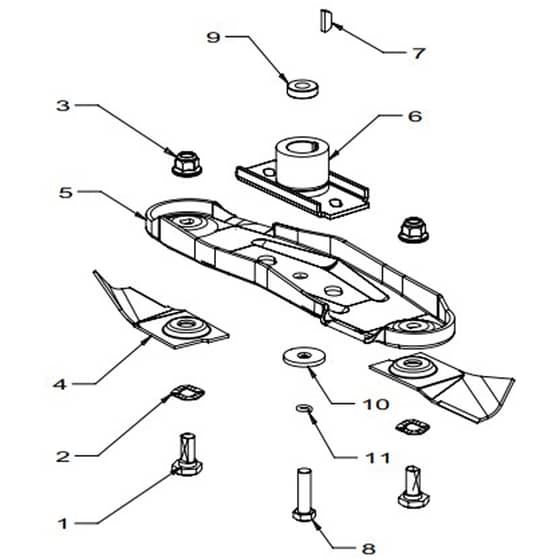

Masport 18 Petrol Rotarola - 460mm QuickCut Blade Assembly Parts Diagram

Part Number: 457950

Model: S18 AL Rotarola SP

Engine Model: B&S Series 675EXi

Model Range: Oct 2015

Serial Number: > 7976596

	Part No.	Details
1	MP581707 In stock	Bolt- Pivot M10x22	£2.41 £2.01
2	MP580693 In stock	Washer Wavy 13.4x24.2x5.1	£0.37 £0.31
3	MP503672 In stock	Nut M10 Hex Nyloc Flange	£0.36 £0.30
4	MP780658 Available to backorder	Blade- QuickCut 460mm	£17.70 £14.75
5	MP980653 Available to backorder	Carrier- Blade QuickCut	£31.19 £25.99
6	MP031640 Available to backorder	Driver Assy- 25 mm	£21.84 £18.20
7	MP503363 Available to backorder	Key- W.ruff 5.8x3.16x1.4	£0.41 £0.34
8	MP581610 In stock	Bolt	£2.11 £1.76
9	MP573585 Available to backorder	Spacer Blade Driver 22 x 4	£3.12 £2.60
10	MP503667 Available to backorder	Washer Flt 9.75x30x3.0	£1.14 £0.95
11	MP500204 Available to backorder	Washer Spring 3.8"	£0.31 £0.26
