Masport 18 - 457947 - Aug 2012 7659279 - Gearbox Assembly

Part No. 184579477659279gearbox-group
Masport 18 - 457947 - Aug 2012 7659279 - Gearbox Assembly
Masport 18 - 457947 - Aug 2012 7659279 - Gearbox Assembly

Description

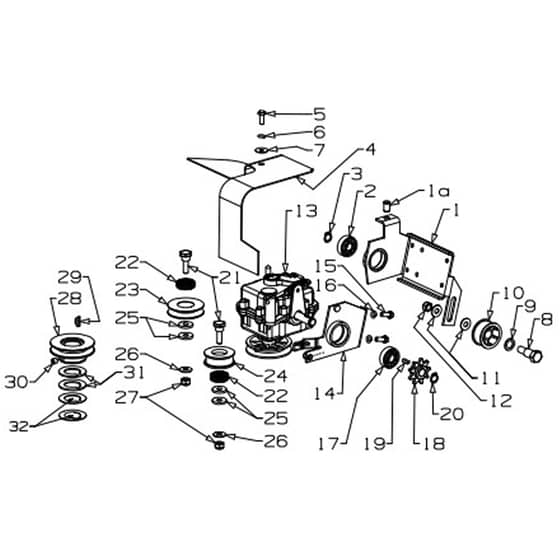

Masport 18 Petrol Rotarola - Gearbox Assembly Parts Diagram

Part Number: 457947

Model: Rotarola AL SP E/S

Engine Model: B&S Series XVS 675

Model Range: Aug 2012

Serial Number: 7659279

Ref. Img. Part No. Details
  1 Gearbox- Support Assy RH
Gearbox- Support Assy RH
MP957279
Available to backorder
Gearbox- Support Assy RH
£27.06 £22.55

  1 (1a) Nut M6 Nutsert
(1a) Nut M6 Nutsert
MP501040
Available to backorder
(1a) Nut M6 Nutsert
£0.72 £0.60

  2 Brg Ball 12x32x10 6201 2RS
Brg Ball 12x32x10 6201 2RS
MP501213
Available to backorder
Brg Ball 12x32x10 6201 2RS
£17.28 £14.40

  3 Circlip 12 Ext
Circlip 12 Ext
MP503759
In stock
Circlip 12 Ext
£0.32 £0.27

  4 Cover- Gearbox Ttnm
Cover- Gearbox Ttnm
MP957313
Available to backorder
Cover- Gearbox Ttnm
£22.16 £18.47

  5 Screw Set M6x16 HT8.8 Hex
Screw Set M6x16 HT8.8 Hex
MP503223
Available to backorder
Screw Set M6x16 HT8.8 Hex
£1.12 £0.93

  7 Washer Flt 8 x 19 x 1.6
Washer Flt 8 x 19 x 1.6
MP501606
Available to backorder
Washer Flt 8 x 19 x 1.6
£0.37 £0.31

  8 Stud - Tensioner Pulley
Stud - Tensioner Pulley
MP557300
Available to backorder
Stud - Tensioner Pulley
£6.66 £5.55

  9 Washer. Flt 1.2 x 3.4 x 18G
Washer. Flt 1.2 x 3.4 x 18G
MP503301
Available to backorder
Washer. Flt 1.2 x 3.4 x 18G
£3.23 £2.69

  10 Pulley- Tensioner
Pulley- Tensioner
MP557067
Available to backorder
Pulley- Tensioner
£6.62 £5.52

  12 Nut M8 Hex Nylock 8thck
Nut M8 Hex Nylock 8thck
MP501793
Available to backorder
Nut M8 Hex Nylock 8thck
£1.92 £1.60

  13 Gearbox- Rotarola
Gearbox- Rotarola
MP557268
In stock
Gearbox- Rotarola
£121.67 £101.39

  18 Sprocket- 9T G.B Out
Sprocket- 9T G.B Out
MP557306
In stock
Sprocket- 9T G.B Out
£42.91 £35.76

  19 Key 4 x 4 x 12
Key 4 x 4 x 12
MP503873
Available to backorder
Key 4 x 4 x 12
£0.79 £0.66

  21 Stud- Idler Pulley
Stud- Idler Pulley
MP557317
Available to backorder
Stud- Idler Pulley
£5.98 £4.98

  22 Brg Ball 12x28x8 6001 2RSH
Brg Ball 12x28x8 6001 2RSH
MP503901
In stock
Brg Ball 12x28x8 6001 2RSH
£20.12 £16.77

  23 Pulley- V Idler
Pulley- V Idler
MP557316
Available to backorder
Pulley- V Idler
£26.11 £21.76

  24 Pulley- Flat Idler
Pulley- Flat Idler
MP573382
Available to backorder
Pulley- Flat Idler
£21.68 £18.07

  25 Washer Flt 8x20x3.0
Washer Flt 8x20x3.0
MP503872
Available to backorder
Washer Flt 8x20x3.0
£1.74 £1.45

  28 Pulley- Eng 25 x 68 x 28.5
Pulley- Eng 25 x 68 x 28.5
MP568651
Available to backorder
Pulley- Eng 25 x 68 x 28.5
£29.00 £24.17

  29 Key Woodruff 5.8x3.16x1.4
Key Woodruff 5.8x3.16x1.4
MP503363
Available to backorder
Key Woodruff 5.8x3.16x1.4
£0.41 £0.34

  30 Screw Grb M8x8
Screw Grb M8x8
MP503386
Available to backorder
Screw Grb M8x8
£0.41 £0.34

  31 Spacer- Pulley Eng 25 x 42 x 2
Spacer- Pulley Eng 25 x 42 x 2
MP569552
Available to backorder
Spacer- Pulley Eng 25 x 42 x 2
£3.40 £2.83


Description

Masport 18 Petrol Rotarola - Gearbox Assembly Parts Diagram

Part Number: 457947

Model: Rotarola AL SP E/S

Engine Model: B&S Series XVS 675

Model Range: Aug 2012

Serial Number: 7659279
