Masport 18 - 457945 - Sept 2011 7494435 - 460mm QuickCut Blade Assembly

Description

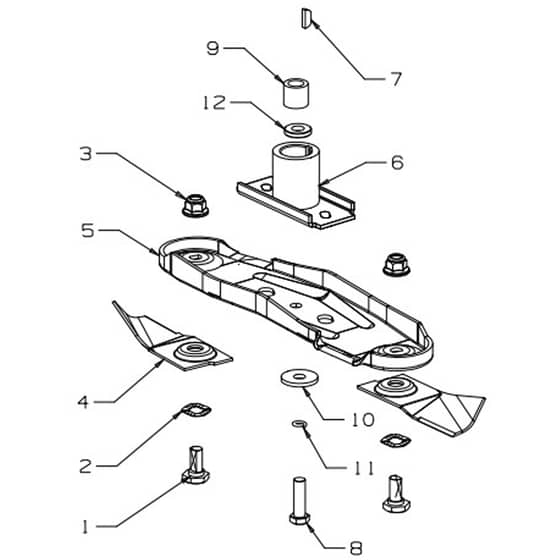

Masport 18 Petrol Rotarola - 460mm QuickCut Blade Assembly Parts Diagram

Part Number: 457945

Model: Rotarola AL SP

Engine Model: Honda GCV 160E

Model Range: Sept 2011

Serial Number: 7494435

	Part No.	Details
1	MP581707 In stock	Bolt- Pivot M10x22	£2.41 £2.01
2	MP580693 In stock	Washer Wavy 13.4x24.2x5.1	£0.37 £0.31
3	MP503672 In stock	Nut M10 Hex Nyloc Flange	£0.36 £0.30
4	MP780658 Available to backorder	Blade- QuickCut 460mm	£17.70 £14.75
5	MP980653 Available to backorder	Carrier- Blade QuickCut	£31.19 £25.99
6	MP569735 Available to backorder	Driver Assy- 25 mm	£23.34 £19.45
7	MP500636 Available to backorder	Key- W.ruff 5.8x5.32x1.4	£1.40 £1.17
9	MP981232 Available to backorder	Spacer Boss Blade adaptor	£2.52 £2.10
10	MP503667 Available to backorder	Washer Flt 9.75x30x3.0	£1.14 £0.95
11	MP500204 Available to backorder	Washer Spring 3.8"	£0.31 £0.26
12	MP573585 Available to backorder	Spacer - Blade Driver 22x4	£3.12 £2.60
