Masport 150ST - 465739 - Sept 2018 > 8393021 - Deck

Name: Masport 150ST - 465739 - Sept 2018 > 8393021 - Deck
SKU: 150st4657398393021deck-group
Price: 0.26 GBP
Availability: InStock

Part No. 150st4657398393021deck-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Masport 150ST - 465739 - Sept 2018 > 8393021 - Deck

Description

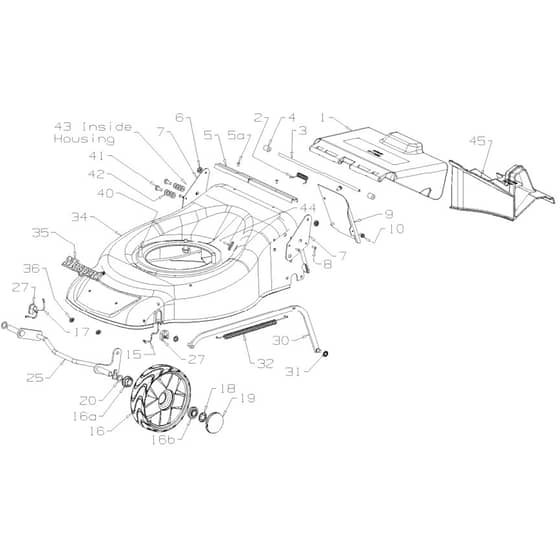

Masport 150ST Petrol Power Drive - Deck Parts Diagram

Part Number: 465739

Model: 150STL SP 3’n1 OPC 19

Engine Model: Loncin LC1P65FE-3 123cc

Model Range: Sept 2018

Serial Number: > 8393021

	Part No.	Details
1	MP564570 Available to backorder	Flap- Mower 16" Black	£18.66 £15.55
2	MP581349 Available to backorder	Spring-Flap 18" STL	£2.48 £2.07
3	MP564503 Available to backorder	Wire-Flap Pivot 335mm x 6mm	£4.28 £3.57
4	MP579733 Available to backorder	Spacer-Flap	£0.48 £0.40
6	MP503574 Available to backorder	Clip-Starlock 6 dia	£1.40 £1.17
7	MP564517 Available to backorder	Bracket- Flap S16 Fabric.Catcher	£2.03 £1.69
8	MP501303 Available to backorder	Rivet-Pop 4.0 Dia x 7.9 73AS5-5	£0.48 £0.40
10	MP503630 Available to backorder	Screw. S.Tapping 10x .4 Typ B	£0.86 £0.72
15	MP529674 In stock	Retainer- Axle Front "W"	£0.50 £0.42
16	MP579196 Available to backorder	Wheel Assy-175 BB Spoked Slvr	£29.75 £24.79
16	MP579694 Available to backorder	(16a) Bearing- Wheel Plastic	£0.72 £0.60
16	MP551212 Available to backorder	(16b) Bearing- Wheel Ball Type	£5.75 £4.79
18	MP503236 Available to backorder	Clip-Starlock 1.2"	£2.03 £1.69
19	MP579198 Available to backorder	Hub Cap- Button Spoked Silver	£0.83 £0.69
20	MP503301 Available to backorder	Washer Flat 1.2” x 3.4” x 18g	£3.23 £2.69
25	MP564515 Available to backorder	Axle Assy-Front S16- 7" Wheel	£14.59 £12.16
27	MP564499 Available to backorder	Bush- Pivot Axle Front S16	£0.41 £0.34
30	MP574173 Available to backorder	Rod Assy-Connecting S16 SP	£15.06 £12.55
31	MP501365 Available to backorder	Clip-Starlock 5.16"	£0.48 £0.40
32	MP581463 Available to backorder	Spring-Counter Balance	£7.09 £5.91
35	MP581240 In stock	Nameplate-MASPORT	£7.14 £5.95
36	MP503150 Available to backorder	Clip-Starlock 5 Dia	£0.48 £0.40
40	MP580453 Available to backorder	Screw. S.T 3.8 x 1-1.8" UNC Tri	£2.23 £1.86
41	MP503331 Available to backorder	Screw Pan M6 x 16	£1.20 £1.00
42	MP501703 Available to backorder	Washer Flat 6 x 14 x 1.2	£0.48 £0.40
43	MP501764 Available to backorder	Nut M6 Hex Nyloc x 6mm thick	£0.31 £0.26
44	MP502179 Available to backorder	Grommet- Clutch Cable 20x16x6	£1.14 £0.95

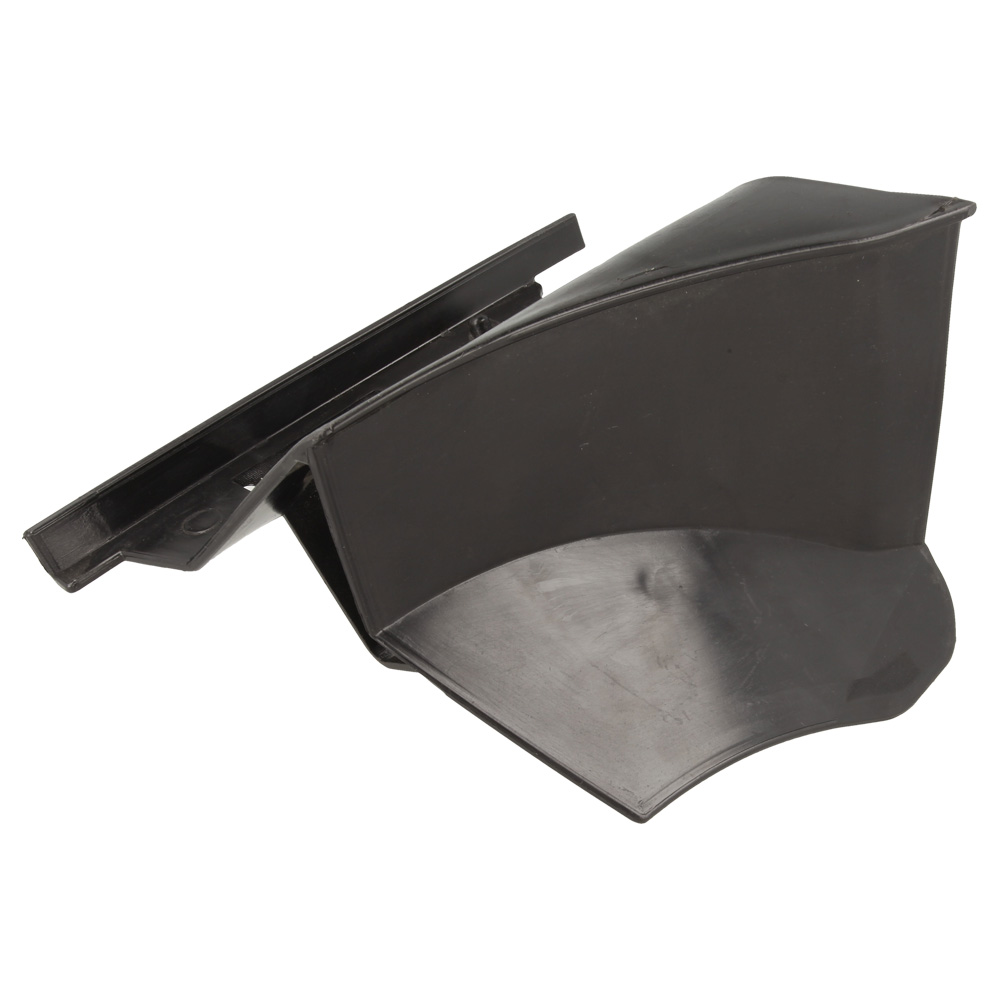

45	MP574188 Available to backorder	Insert- Mulching 16" ST.SP	£20.89 £17.41
