Masport 150ST - 464946 - Jan 2016 > 8013074 - Handle

Name: Masport 150ST - 464946 - Jan 2016 > 8013074 - Handle
SKU: 150st4649468013074handle-group
Price: 0.26 GBP
Availability: InStock

Part No. 150st4649468013074handle-group

Description

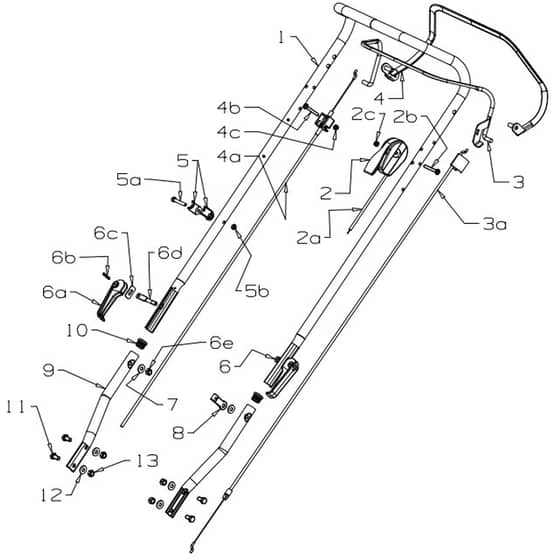

Masport 150ST Petrol Power Drive - Handle Parts Diagram

Part Number: 464946

Model: S16 150ST SP 3n1

Engine Model: B&S Series 300

Model Range: Jan 2016

Serial Number: > 8013074

	Part No.	Details
1	MP974429 Available to backorder	Handle-Upper Upt S16 SP Blk	£40.51 £33.76
2	MP583458 In stock	Throttle Ctrl & Cable Wescon	£19.93 £16.61
2	MP501764 Available to backorder	(2c) Nut M6 Hex Nyloc x 6mm thick	£0.31 £0.26
2	MP503604 Available to backorder	(2b) Screw Pan M6 x 45 Poz	£0.83 £0.69
3	MP581658 In stock	(3a) Cable- Engine OPC Push On	£36.19 £30.16
3	MP981740 Available to backorder	Bail Arm Assembly- OPC 16" Blk	£20.51 £17.09

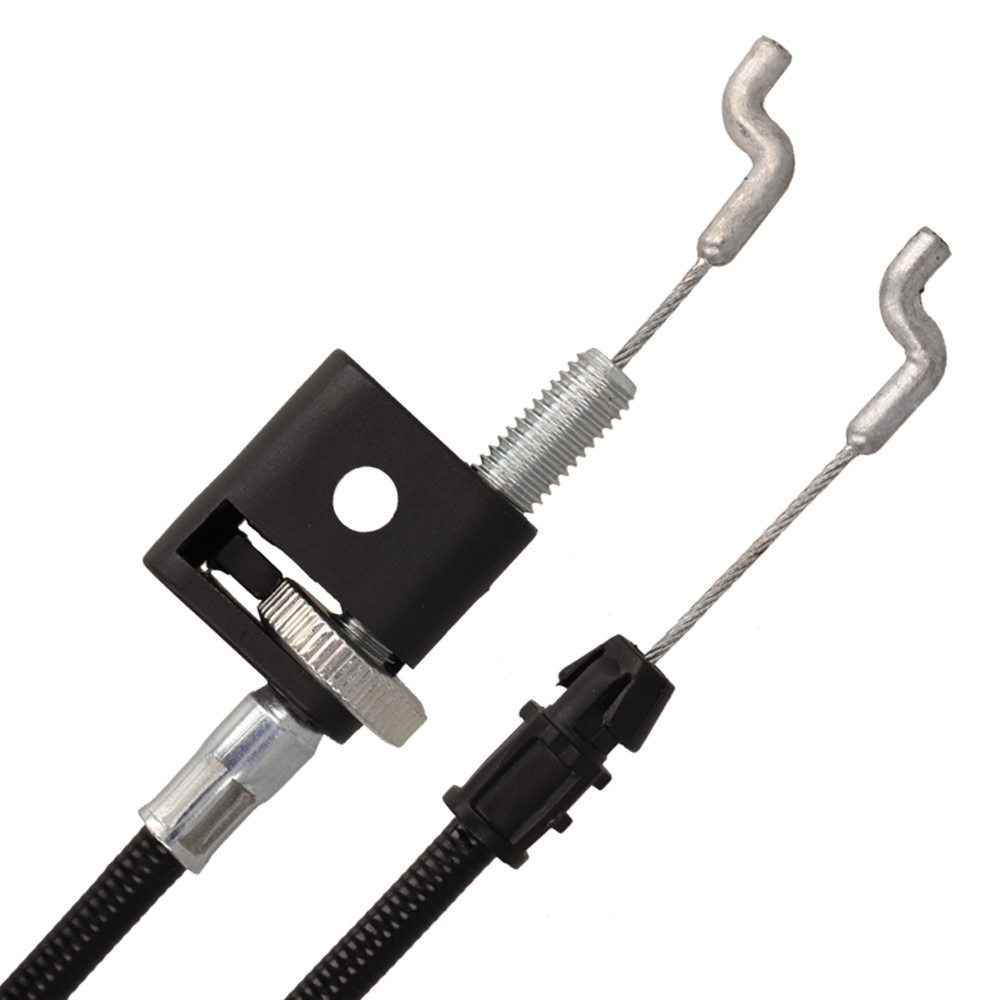

4	MP574214 In stock	(4a) Cable- Clutch Thumb Wheel	£21.72 £18.10
4	MP974175 Available to backorder	Bail Arm Assembly- SP 16" Blk	£25.06 £20.88
5	MP703856 Available to backorder	Comfort Start Kit	£19.06 £15.88
5	MP503794 Available to backorder	(5a) Screw Set M6 x 40	£0.31 £0.26
6	MP980456 In stock	(6a) Lever- Handle Locking	£11.56 £9.63
6	MP503369 Available to backorder	(6b) Pin Tension 5.0 x 22	£0.48 £0.40
6	MP501793 Available to backorder	(6e) Nut M8 Hex Nyloc x 8mm thick	£1.92 £1.60
6	MP016777 Available to backorder	(6c) Washer- Slipper S.S	£0.72 £0.60
6	MP779755 Available to backorder	Cam Lock Assy- MSV	£10.78 £8.98
7	MP501606 Available to backorder	Washer Flat 8 x 18 x 1.6	£0.37 £0.31
8	MP581527 Available to backorder	Retainer-Control Cable Handle	£0.72 £0.60
9	MP974436 Available to backorder	Handle-Lower Stub S16 Black	£16.61 £13.84
10	MP503319 Available to backorder	Plug-22mm Black Plastic	£0.72 £0.60
