Masport 150ST - 464923 - Sept 2015 > 7967070 - Handle 7967070 To :7981981

Description

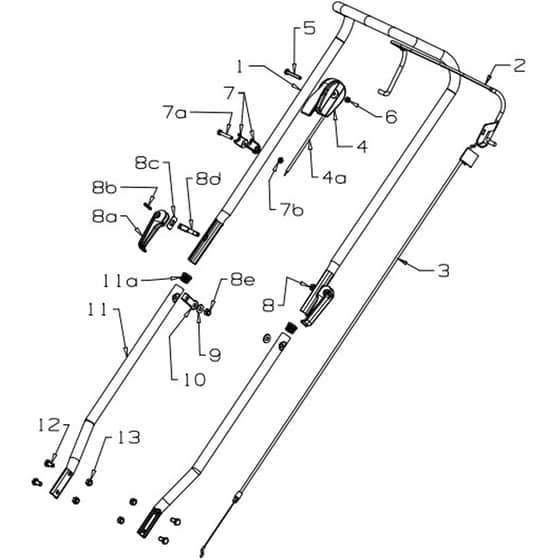

Masport 150ST Petrol Push Rotary Mower - Handle 7967070 To :7981981 Parts Diagram

Part Number: 464923

Model: S16 150ST 3'n1

Engine Model: B&S W16 Series 300

Model Range: Sept 2015

Serial Number: > 7967070

	Part No.	Details
1	MP964490 Available to backorder	Handle-Upper Upt S16 OPC Blk	£26.42 £22.02
2	MP974186 Available to backorder	Bail Arm assembly- OPC 16" Blk	£31.76 £26.47
3	MP581658 In stock	Cable- Engine OPC Push On	£36.19 £30.16
4	MP583458 In stock	(4.4a) Control-Throttle & Cable Wescon	£19.93 £16.61
5	MP503604 Available to backorder	Screw Pan M6 x 45 Poz	£0.83 £0.69
6	MP501764 Available to backorder	Nut M6 Hex Nyloc x 6mm thick	£0.31 £0.26
7	MP703856 Available to backorder	Comfort Start Kit	£19.06 £15.88
7	MP503794 Available to backorder	(7a) Screw Set M6 x 40	£0.31 £0.26
8	MP779755 Available to backorder	Cam Lock Assembly (1 per)	£10.78 £8.98
8	MP980456 In stock	(8a) Lever- Handle Locking	£11.56 £9.63
8	MP503369 Available to backorder	(8b) Pin Tension 5.0 x 22	£0.48 £0.40
8	MP016777 Available to backorder	(8c) Washer- Slipper S.S	£0.72 £0.60
8	MP501793 Available to backorder	(8e) Nut M8 Hex Nyloc x 8mm thick	£1.92 £1.60
9	MP501606 Available to backorder	Washer Flat 8 x 18 x 1.6	£0.37 £0.31
10	MP581527 Available to backorder	Retainer-Control Cable Handle	£0.72 £0.60
11	MP503319 Available to backorder	(11a) Plug-22mm Black Plastic	£0.72 £0.60
11	MP964491 Available to backorder	Handle-Lower Stub S16 Black	£14.54 £12.12
