Description

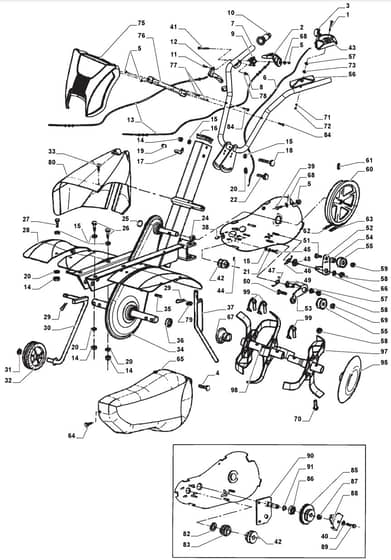

Mountfield MANOR 75-G Parts Diagram

Model Year - 2008-2010

Model Type - 75 G

Art.N - 217500043/MO8

Ref. Img. Part No. Details
  1 Screw
Screw
MO112819110/0 In stock
Screw
£1.75 £1.46

  2 Lever
Lever
MO118805164/0 Out of stock
Lever
£9.58 £7.98

  3 Throttle Lever
Throttle Lever
MO381007279/1 Out of stock
Throttle Lever
£1.49 £1.24

  5 Lock Nut
Lock Nut
MO112154510/0 In stock
Lock Nut
£1.63 £1.36

  6 Throttle Cable
Throttle Cable
MO1483-2181-01 Out of stock
Throttle Cable
£13.34 £11.12

  8 Nut
Nut
MO112154330/0 Out of stock
Nut
£1.49 £1.24

  12 Handle
Handle
MO118801224/0 Out of stock
Handle
£10.16 £8.47

  13 Cable
Cable
MO1483-2162-01 Out of stock
Cable
£20.00 £16.67

  14 Lock Nut
Lock Nut
MO112155000/0 In stock
Lock Nut
£1.63 £1.36

  16 Cap
Cap
MO1483-2166-01 Out of stock
Cap
£2.82 £2.35

  18 Screw
Screw
MO112691900/0 Out of stock
Screw
£1.74 £1.45

  19 Nut
Nut
MO1483-2191-01 Out of stock
Nut
£1.49 £1.24

  20 Washer
Washer
MO9699-0122-02 Out of stock
Washer
£1.49 £1.24

  21 Washer
Washer
MO9699-0028-02 Out of stock
Washer
£1.63 £1.36

  22 Screw
Screw
MO9959-0825-16 Out of stock
Screw
£1.49 £1.24

  24 Oil Seal
Oil Seal
MO1483-2187-01 Out of stock
Oil Seal
£5.28 £4.40

  25 Cap
Cap
MO1483-2186-01 Out of stock
Cap
£4.14 £3.45

  26 Screw
Screw
MO9997-0840-16 Out of stock
Screw
£1.63 £1.36

  27 Screw
Screw
MO9997-0820-16 Out of stock
Screw
£1.63 £1.36

  29 Elastic Pin
Elastic Pin
MO9598-0002-02 Out of stock
Elastic Pin
£1.49 £1.24

  30 Support
Support
MO1483-2168-01 Out of stock
Support
£29.52 £24.60

  31 Washer
Washer
MO1483-2195-01 Out of stock
Washer
£4.07 £3.39

  32 Support
Support
MO1483-2112-01 Out of stock
Support
£15.12 £12.60

  35 Cap
Cap
MO1483-2075-01 Out of stock
Cap
£3.53 £2.94

  36 Oil Seal
Oil Seal
MO1483-2070-01 Out of stock
Oil Seal
£7.66 £6.38

  37 Lever
Lever
MO1483-2167-01 Out of stock
Lever
£26.14 £21.78

  38 Nut
Nut
MO1483-2190-01 Out of stock
Nut
£1.56 £1.30

  39 Screw
Screw
MO112791200/1 Out of stock
Screw
£1.34 £1.12

  42 Pulley
Pulley
MO1483-2174-01 Out of stock
Pulley
£24.08 £20.07

  43 Accelerator
Accelerator
MO322981740/1 Out of stock
Accelerator
£1.63 £1.36

  47 Spring
Spring
MO1483-2157-01 Out of stock
Spring
£6.84 £5.70

  55 Pulley
Pulley
MO1483-2004-01 Out of stock
Pulley
£25.60 £21.33

  56 Spacer
Spacer
MO322171006/0 Out of stock
Spacer
£1.45 £1.21

  57 Washer
Washer
MO112521360/0 In stock
Washer
£1.63 £1.36

  58 Lock Nut
Lock Nut
MO112156602/0 In stock
Lock Nut
£1.49 £1.24

  60 Pulley
Pulley
MO1483-2150-01 Out of stock
Pulley
£60.95 £50.79

  61 Pin
Pin
MO9595-0277-01 Out of stock
Pin
£1.49 £1.24

  63 Belt
Belt
MO1483-2149-01 Out of stock
Belt
£43.43 £36.19

  64 Screw
Screw
MO9959-0616-16 Out of stock
Screw
£1.49 £1.24

  67 Dust Cover
Dust Cover
MO1483-2173-01 Out of stock
Dust Cover
£6.38 £5.32

  68 Flat Washer
Flat Washer
MO9699-0100-02 Out of stock
Flat Washer
£1.90 £1.58

  70 Screw
Screw
MO9997-1050-16 Out of stock
Screw
£2.44 £2.03

  71 Washer
Washer
MO112521320/0 Out of stock
Washer
£1.49 £1.24

  72 Nut
Nut
MO9799-0531-02 Out of stock
Nut
£1.49 £1.24

  73 Cup Spring
Cup Spring
MO112508100/0 Out of stock
Cup Spring
£1.49 £1.24

  78 Washer
Washer
MO112521330/0 Out of stock
Washer
£1.49 £1.24

  79 Washer
Washer
MO112521390/0 Out of stock
Washer
£1.75 £1.46

  84 Screw
Screw
MO112674700/0 Out of stock
Screw
£1.63 £1.36

  95 Disc
Disc
MO1483-2022-01 Out of stock
Disc
£37.93 £31.61

  97 Left Tine Assy
Left Tine Assy
MO1483-2170-01 Out of stock
Left Tine Assy
£60.72 £50.60

  97 Right Tine Assy
Right Tine Assy
MO1483-2169-01 Out of stock
Right Tine Assy
£59.40 £49.50

  98 Rotor Assy-Rh
Rotor Assy-Rh
MO1483-2023-01 Out of stock
Rotor Assy-Rh
£73.56 £61.30

  98 Rotor Assy-Lh
Rotor Assy-Lh
MO1483-2024-01 Out of stock
Rotor Assy-Lh
£73.56 £61.30

  99 Lock Pin
Lock Pin
MO1483-2196-01 Out of stock
Lock Pin
£3.00 £2.50
