MANOR 500 RG - 2008-2010 - 215010043/MO8 - Mountfield Tiller Tine Diagram

Description

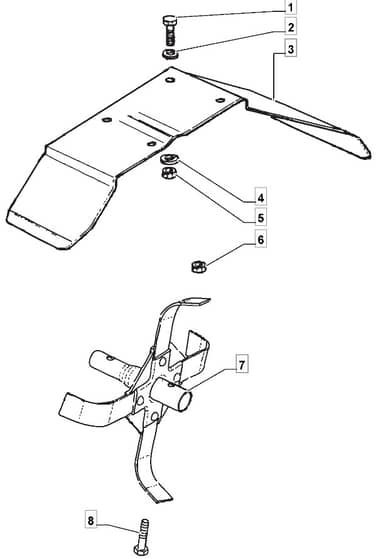

Mountfield MANOR 500 RG Parts Diagram

Model Year - 2008-2010

Model Type - 500 R G

Art.N - 215010043/MO8

	Part No.	Details
1	MO9997-0820-16 In stock	Screw	£1.55 £1.29
2	MO9699-0028-02 In stock	Washer	£1.55 £1.29
4	MO9699-0122-02 Available to backorder	Washer	£1.55 £1.29
5	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
6	MO112156602/0 In stock	Lock Nut	£1.39 £1.16
7	MO1483-2169-01 Available to backorder	Right Tine Assy	£65.09 £54.24
7	MO1483-2170-01 Available to backorder	Left Tine Assy	£66.50 £55.42
8	MO9997-1050-16 Available to backorder	Screw M6S M10 X 50	£2.53 £2.11
