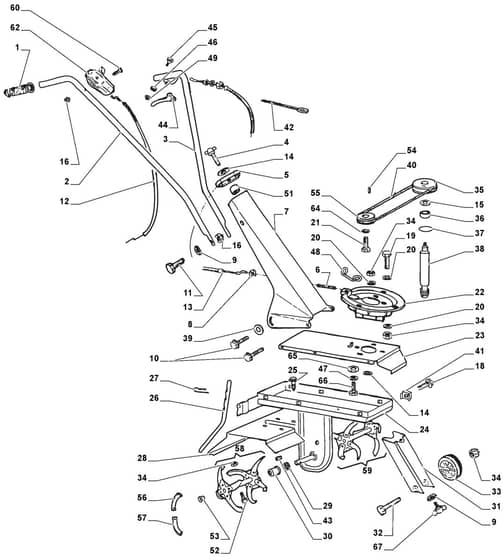

MANOR 360 G - 2008-2010 - 213600043/MO8 - Mountfield Tiller Main Assy Diagram

Name: MANOR 360 G - 2008-2010 - 213600043/MO8 - Mountfield Tiller Main Assy Diagram
SKU: manor_360_g_213600043_mo8_main_assy-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

MANOR 360 G - 2008-2010 - 213600043/MO8 - Mountfield Tiller Main Assy Diagram

Description

Mountfield MANOR 360 G Parts Diagram

Model Year - 2008-2010

Model Type - 360 G

Art.N - 213600043/MO8

Be the first to review this product

0 product questions

	Part No.	Details
4	MO1483-2077-01 Available to backorder	Screw	£10.56 £8.80
9	MO9699-0100-02 Available to backorder	Flat Washer	£1.97 £1.64
10	MO9959-0616-16 Available to backorder	Screw	£1.55 £1.29
11	MO112791500/0 Available to backorder	Screw	£1.49 £1.24
12	MO1483-2109-01 Available to backorder	Wire	£17.39 £14.49
13	MO1483-2126-01 Available to backorder	Wire	£49.26 £41.05
14	MO9699-0122-02 Available to backorder	Washer	£1.55 £1.29
16	MO112154510/0 In stock	Lock Nut	£1.55 £1.29
18	MO9959-0612-16 Available to backorder	Screw	£1.40 £1.17
19	MO9997-0840-16 Available to backorder	Screw	£1.55 £1.29
20	MO9699-0028-02 Available to backorder	Washer	£1.55 £1.29
21	MO9987-5225-16 Available to backorder	Screw	£1.97 £1.64
22	MO1483-2135-01 Available to backorder	Flange	£34.98 £29.15
27	MO9598-0003-02 Available to backorder	Spring Pin	£1.97 £1.64
29	MO1483-2069-01 Available to backorder	Oil Seal	£8.87 £7.39
30	MO1483-2012-01 Available to backorder	Dust Cover	£4.93 £4.11
32	MO9997-0855-12 In stock	Screw	£1.82 £1.52
34	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
35	MO1483-2028-01 Available to backorder	Pulley	£40.76 £33.97
36	MO1483-2071-01 Available to backorder	Ball Bearing	£24.19 £20.16
38	MO1483-2011-01 Available to backorder	Screw	£73.20 £61.00
39	MO112523050/0 In stock	Washer	£1.55 £1.29
40	MO1483-2137-01 Available to backorder	Belt	£8.77 £7.31
41	MO1134-3643-01 Available to backorder	Nut	£12.89 £10.74
42	MO9579-0003-00 Available to backorder	Cable Holder	£2.12 £1.77
43	MO1483-2075-01 Available to backorder	Cap	£3.67 £3.06
44	MO118801224/0 Available to backorder	Handle	£10.56 £8.80
46	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
49	MO112154330/0 In stock	Nut	£1.55 £1.29
51	MO1483-2108-01 Available to backorder	Spacer	£2.15 £1.79
52	MO112691100/0 Available to backorder	Screw	£1.55 £1.29
54	MO112139100/0 In stock	Key	£1.55 £1.29
55	MO1483-2136-01 Available to backorder	Pulley	£69.97 £58.31
56	MO1483-2013-01 Available to backorder	Right Tine	£7.57 £6.31
57	MO1483-2014-01 Available to backorder	Left Tine	£7.57 £6.31
59	MO1483-2131-01 Available to backorder	Left Tine Assy	£126.70 £105.58
62	MO1483-2143-02 Available to backorder	Accelerator	£13.24 £11.03
64	MO112521360/0 In stock	Washer	£1.55 £1.29
66	MO112793301/0 In stock	Screw	£1.55 £1.29
