Makita UR017G - Cordless Grass Trimmer - Power Tool Diagram

Description

Model No. UR017G

Cordless Grass Trimmer

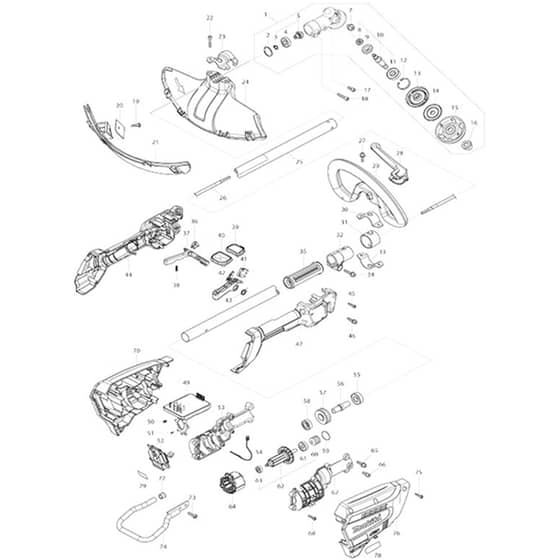

Power Tool Parts Diagrams

	Part No.	Details
1	MK126840-9 Available to backorder	Gear Case Assembly G (INC. 2 5 7 10 12-16)	£63.96 £53.30
4	MK210157-1 Available to backorder	Ball Bearing 609Zz	£1.79 £1.49
7	MK265590-2 Available to backorder	Hex. Head Bolt M8x10 R	£0.70 £0.58
11	MK211138-8 Available to backorder	Ball Bearing 6001Llu	£4.20 £3.50
16	MK252236-9 Available to backorder	Hex. Lock Nut M10-17	£2.83 £2.36
17	MK922216-6 Available to backorder	Hex. Socket Head Bolt M5x14 W	£0.70 £0.58
18	MK922241-7 Available to backorder	Hex. Socket Head Bolt M5x25 W (Alt.)	£0.89 £0.74
18	MK922242-5 Available to backorder	Hex. Socket Head Bolt M5x25	£0.48 £0.40
20	MK347115-5 Available to backorder	Cutter	£2.38 £1.98
21	MK140X35-4 Available to backorder	Protector U Extension 300-330 Complete	£7.44 £6.20
22	MK251513-6 Available to backorder	Hex. Socket Head Bolt M5x25	£0.48 £0.40
23	MK347107-4 Available to backorder	Protector Clamp 24	£2.24 £1.87
24	MK412969-0 Available to backorder	Protector U 330	£9.84 £8.20
25	MK819312-8 Available to backorder	Makita Logo Label (C10)	£0.70 £0.58
25	MK141N92-5 Available to backorder	Shaft Pipe Complete I	£47.16 £39.30
26	MK327B90-3 Available to backorder	Shaft	£20.52 £17.10
28	MK911128-8 In stock	Pan Head Screw M4x16 Wr (C10)	£0.54 £0.45
28	MK144315-6 Available to backorder	Barrier Complete	£5.64 £4.70
29	MK457267-5 Available to backorder	Loop Handle	£13.32 £11.10
29	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.52 £0.43
30	MK347113-9 Available to backorder	Upper Clamp 35	£1.22 £1.02
31	MK424942-8 Available to backorder	Damper	£1.63 £1.36
32	MK457269-1 Available to backorder	Pipe Holder 24	£1.79 £1.49
33	MK347114-7 Available to backorder	Lower Clamp 35	£1.73 £1.44
34	MK922244-1 Available to backorder	Hex. Socket Head Bolt M5x25 Wg	£0.48 £0.40
35	MK451601-1 Available to backorder	Spacer 24	£2.69 £2.24
36	MK632U36-3 Available to backorder	Switch Unit	£12.84 £10.70
37	MK459759-0 Available to backorder	Lock Off Lever	£1.66 £1.38
38	MK233101-1 Available to backorder	Compression Spring 4	£0.48 £0.40
40	MK819J26-9 Available to backorder	Switch Label (C10)	£2.56 £2.13
40	MK140W06-5 Available to backorder	Switch Circuit Complete G	£22.44 £18.70
41	MK632U35-5 Available to backorder	Switch Unit	£16.68 £13.90
42	MK413P50-6 Available to backorder	Switch Lever	£1.63 £1.36
43	MK233622-3 Available to backorder	Torsion Spring 12	£0.48 £0.40
44	MK183X78-3 Available to backorder	Grip Set (INC. 47)	£28.56 £23.80
45	MK266326-2 Available to backorder	Binding Head Tapping Screw 4x18 (Refs 068 \| 075)	£0.48 £0.40
46	MK922233-6 Available to backorder	Hex. Socket Head Bolt M5x20 Wr	£1.03 £0.86
49	MK620L56-5 Available to backorder	Controller	£205.20 £171.00
50	MK652069-6 Available to backorder	Flat Head Screw M3x6	£0.48 £0.40
51	MK266490-9 Available to backorder	Pan Head Tapping Screw 2x6	£0.48 £0.40
53	MK183X80-6 Available to backorder	Motor Housing Set (INC. 67)	£8.52 £7.10
53	MK931202-6 Available to backorder	Hex. Nut M5 (C10)	£0.48 £0.40
54	MK632R79-7 Available to backorder	Lead Unit	£1.15 £0.96
55	MK210244-6 Available to backorder	Ball Bearing 6001Zz	£2.56 £2.13
56	MK327719-9 Available to backorder	Spindle Hub	£3.72 £3.10
58	MK210243-8 Available to backorder	Ball Bearing 6901Zz	£1.63 £1.36
59	MK213925-1 Available to backorder	O-Ring 21	£0.48 £0.40
61	MK210236-5 Available to backorder	Ball Bearing 627Zz	£1.66 £1.38
62	MK519814-1 Available to backorder	Rotor Assembly (INC. 60 61 63)	£36.12 £30.10
63	MK210235-7 Available to backorder	Ball Bearing 625Zz	£1.32 £1.10
64	MK629340-3 Available to backorder	Stator	£14.04 £11.70
70	MK183Y16-1 Available to backorder	Housing Set (INC. 76)	£22.56 £18.80
70	MK8012U4-2 Available to backorder	xgt Logo Label (C20)	£0.48 £0.40
72	MK422230-7 Available to backorder	Cap	£0.48 £0.40
73	MK266420-0 Available to backorder	Binding Head Tapping Screw 5x20	£0.48 £0.40
74	MK347B26-6 Available to backorder	Battery Guard	£11.40 £9.50
901	MK807949-3 Available to backorder	Sound 94Db Label (E01)	£0.48 £0.40
901	MK122D94-0 Available to backorder	Band Assembly (A01)	£6.72 £5.60
902	MK198383-1 Available to backorder	Plastic Blade 255 Set Me (A02)	£35.64 £29.70
902	MK1911X4-8 Available to backorder	Protector U 330 Set (F02)	£22.20 £18.50
903	MK783013-3 Available to backorder	Box Driver 16-17 (A03)	£5.04 £4.20
904	MK783202-0 Available to backorder	Hex. Wrench 4 (A04)	£2.05 £1.71
905	MK831304-7 Available to backorder	Accessory Bag (A05)	£3.01 £2.51
916	MK198501-1 Available to backorder	Nylon Cord 2.4-15M Set (F16)	£17.88 £14.90
921	MK199450-5 Available to backorder	Grease Vessel Set (F21)	£16.20 £13.50
