Makita UR013G - Cordless Grass Trimmer - Power Tool Diagram

Description

Model No. UR013G

Cordless Grass Trimmer

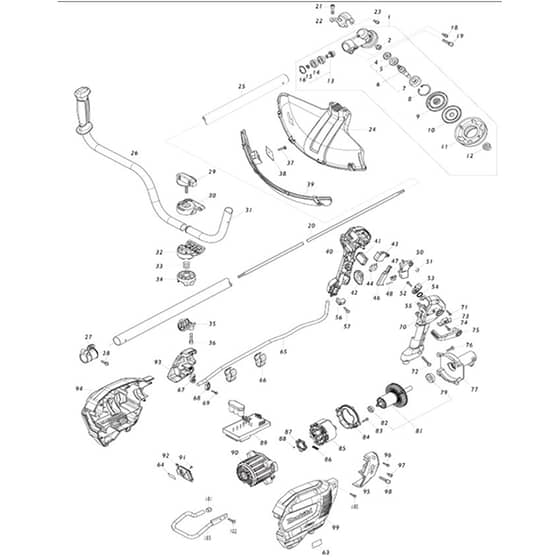

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK122D71-2 Available to backorder	Gear Case Assembly G (INC. 2 6 8-13 16)	£64.30 £53.58
2	MK265590-2 Available to backorder	Hex. Head Bolt M8x10 R	£0.58 £0.48
4	MK210030-5 Available to backorder	Ball Bearing 627Zz	£1.16 £0.97
7	MK211228-7 Available to backorder	Ball Bearing 6202Ddw	£9.40 £7.83
12	MK252236-9 Available to backorder	Hex. Lock Nut M10-17	£2.60 £2.17
14	MK210157-1 Available to backorder	Ball Bearing 609Zz	£1.64 £1.37
18	MK922216-6 Available to backorder	Hex. Socket Head Bolt M5x14 W	£0.58 £0.48
19	MK922353-6 Available to backorder	Hex. Socket Head Bolt M6x30 Wr	£0.86 £0.72
20	MK326205-7 Available to backorder	Shaft	£25.12 £20.93
21	MK266280-0 Available to backorder	Hex. Socket Head Bolt M6x25	£0.86 £0.72
22	MK347B13-5 Available to backorder	Protector Clamp 25G	£2.88 £2.40
24	MK413P07-7 Available to backorder	Protector U 450	£2.88 £2.40
25	MK819312-8 Available to backorder	Makita Logo Label (C10)	£0.58 £0.48
25	MK141N28-4 Available to backorder	Shaft Pipe Complete A	£41.92 £34.93
26	MK141D27-6 Available to backorder	Handle 22L Complete	£17.62 £14.68
27	MK141N34-9 Available to backorder	Hanger	£5.06 £4.22
27	MK931202-6 Available to backorder	Hex. Nut M5 (C10)	£0.48 £0.40
28	MK922228-9 Available to backorder	Hex. Socket Head Bolt M5x18 Wr (Alt.)	£0.58 £0.48
28	MK911233-1 Available to backorder	Pan Head Screw M5x20 Wr	£0.48 £0.40
29	MK162965-5 Available to backorder	Knob 57	£3.96 £3.30
30	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.47 £0.39
30	MK144313-0 Available to backorder	Upper Handle Holder Complete	£5.06 £4.22
31	MK327837-3 Available to backorder	Handle 22R	£5.18 £4.32
32	MK319517-5 Available to backorder	Lower Handle Holder	£4.78 £3.98
33	MK233309-7 Available to backorder	Compression Spring 16	£2.02 £1.68
34	MK312D92-4 Available to backorder	Upper Pipe Holder 25	£6.56 £5.47
35	MK312D93-2 Available to backorder	Lower Pipe Holder 25	£5.18 £4.32
36	MK922351-0 Available to backorder	Hex. Socket Head Bolt M6x30 W	£0.74 £0.62
38	MK347115-5 Available to backorder	Cutter	£2.18 £1.82
39	MK346696-6 Available to backorder	Hook (C10)	£0.74 £0.62
39	MK232284-4 Available to backorder	Leaf Spring (C20)	£0.58 £0.48
39	MK144316-4 Available to backorder	Protector U Extension 420-450 Complete	£6.70 £5.58
40	MK252180-0 Available to backorder	Hex. Lock Nut M5-8 (C10)	£0.54 £0.45
40	MK183X45-8 Available to backorder	Grip Set (INC. 70 *)	£16.92 £14.10
41	MK141N49-6 Available to backorder	Indication Circuit Complete E	£28.00 £23.33
42	MK141N45-4 Available to backorder	Switch Circuit Complete G	£21.44 £17.87
43	MK651492-2 Available to backorder	Switch C3Jr-1A-Paxd3	£21.02 £17.52
44	MK632U35-5 Available to backorder	Switch Unit	£16.10 £13.42
46	MK459146-3 Available to backorder	Lock Off Lever	£2.88 £2.40
47	MK632U36-3 Available to backorder	Switch Unit	£12.44 £10.37
48	MK233101-1 Available to backorder	Compression Spring 4	£0.48 £0.40
50	MK413N90-2 Available to backorder	Switch Lever	£1.64 £1.37
51	MK233622-3 Available to backorder	Torsion Spring 12	£0.48 £0.40
52	MK266326-2 Available to backorder	Binding Head Tapping Screw 4x18 (Refs 057 \| 069 \| 071 \| 074 \| 083 \| 096 \| 100)	£0.48 £0.40
53	MK413N92-8 Available to backorder	Link	£0.54 £0.45
54	MK213154-6 Available to backorder	O-Ring 14	£0.58 £0.48
55	MK253798-0 Available to backorder	Flat Washer 13	£0.48 £0.40
56	MK687260-7 Available to backorder	Strain Relief	£0.48 £0.40
65	MK699218-4 Available to backorder	Power Supply Cord Unit	£22.38 £18.65
66	MK457458-8 Available to backorder	Clamp	£0.96 £0.80
67	MK687051-6 Available to backorder	Strain Relief	£0.74 £0.62
68	MK687124-5 Available to backorder	Strain Relief	£0.48 £0.40
72	MK911258-5 Available to backorder	Pan Head Screw M5x35 Wr	£0.58 £0.48
73	MK413P02-7 Available to backorder	Guard	£0.54 £0.45
75	MK413N91-0 Available to backorder	Control Lever	£1.52 £1.27
76	MK266420-0 Available to backorder	Binding Head Tapping Screw 5x20	£0.48 £0.40
77	MK136862-1 Available to backorder	Pipe Bracket Assembly	£14.88 £12.40
77	MK263002-9 Available to backorder	Rubber Pin 4 (C10)	£0.48 £0.40
79	MK210244-6 Available to backorder	Ball Bearing 6001Zz	£2.34 £1.95
81	MK519794-1 Available to backorder	Rotor Assembly (INC. 79 82)	£98.16 £81.80
82	MK210062-2 Available to backorder	Ball Bearing 607Zz	£1.16 £0.97
84	MK413N96-0 Available to backorder	Baffle Plate	£2.06 £1.72
85	MK629B96-0 Available to backorder	Stator	£38.92 £32.43
86	MK652069-6 Available to backorder	Flat Head Screw M3x6	£0.48 £0.40
87	MK632R96-7 Available to backorder	Sensor Unit	£32.90 £27.42
88	MK652093-9 Available to backorder	Pan Head Screw M2x5	£0.48 £0.40
88	MK652119-7 Available to backorder	Pan Head Screw M2x6 (Alt.)	£0.48 £0.40
89	MK620K86-0 Available to backorder	Controller	£255.26 £212.72
90	MK413N73-2 Available to backorder	Motor Housing	£10.52 £8.77
91	MK652031-1 Available to backorder	Pan Head Screw M3x6	£0.48 £0.40
92	MK632T07-4 Available to backorder	Terminal Unit	£9.28 £7.73
93	MK183X42-4 Available to backorder	Housing Cover Set (INC. 95)	£10.52 £8.77
94	MK183X39-3 Available to backorder	Housing Set (INC. 99 *)	£40.28 £33.57
94	MK8025F3-0 Available to backorder	xgt Logo Label (C20)	£0.70 £0.58
97	MK922211-6 Available to backorder	Hex. Socket Head Bolt M5x12 W	£0.58 £0.48
101	MK422230-7 Available to backorder	Cap	£0.48 £0.40
103	MK327B36-9 Available to backorder	Battery Guard	£11.20 £9.33
901	MK199378-7 Available to backorder	Band Assembly Set (A01)	£102.10 £85.08
901	MK807950-8 Available to backorder	Sound 95Db Label (E01)	£0.54 £0.45
902	MK1911Y0-3 Available to backorder	Protector 225 Set Mg (F02)	£40.90 £34.08
902	MK199868-0 Available to backorder	Plastic Blade 305 Set Mg (A02)	£37.54 £31.28
903	MK1911Y1-1 Available to backorder	Protector Set Mg (F03)	£29.38 £24.48
906	MK782238-6 Available to backorder	Box Wrench 17 (A06)	£2.74 £2.28
907	MK783202-0 Available to backorder	Hex. Wrench 4 (A07)	£1.88 £1.57
907	MK199870-3 Available to backorder	Plastic Blade 305 Set Mg (F07)	£40.68 £33.90
908	MK783217-7 Available to backorder	Hex. Wrench 5 (A08)	£0.56 £0.47
910	MK412393-7 Available to backorder	Battery Cover (A10B)	£0.58 £0.48
917	MK831304-7 Available to backorder	Accessory Bag (A17)	£2.76 £2.30
