Makita UR012G - Cordless Grass Trimmer - Power Tool Diagram

Name: Makita UR012G - Cordless Grass Trimmer - Power Tool Diagram
SKU: ur012g_cordless_grass_trimmer_power_tool-group
Price: 0.39 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

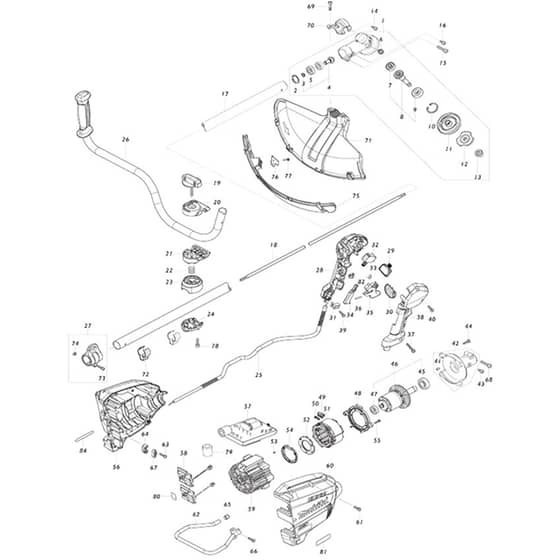

Makita UR012G - Cordless Grass Trimmer - Power Tool Diagram

Description

Model No. UR012G

Cordless Grass Trimmer

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK127238-3 Available to backorder	Gear Case Assembly G (INC. 2 4 6 8 10-13)	£44.92 £37.43
5	MK210067-2 Available to backorder	Ball Bearing 6000Zz	£1.32 £1.10
6	MK265590-2 Available to backorder	Hex. Head Bolt M8x10 R	£0.58 £0.48
7	MK210084-2 Available to backorder	Ball Bearing 629Zz	£1.60 £1.33
9	MK211137-0 Available to backorder	Ball Bearing 6201Llu	£4.62 £3.85
11	MK140J59-6 Available to backorder	Receive Washer Complete G	£7.80 £6.50
12	MK162567-7 Available to backorder	Clamp Washer Complete G	£6.16 £5.13
13	MK252236-9 Available to backorder	Hex. Lock Nut M10-17	£2.60 £2.17
14	MK922211-6 Available to backorder	Hex. Socket Head Bolt M5x12 W (Refs 016 \| 043)	£0.58 £0.48
15	MK922353-6 Available to backorder	Hex. Socket Head Bolt M6x30 Wr	£0.86 £0.72
17	MK141D74-7 Available to backorder	Shaft Pipe Complete A	£53.24 £44.37
17	MK819312-8 Available to backorder	Makita Logo Label (C10)	£0.58 £0.48
18	MK327845-4 Available to backorder	Shaft	£20.62 £17.18
19	MK168796-0 Available to backorder	Knob 57	£4.48 £3.73
20	MK144313-0 Available to backorder	Upper Handle Holder Complete	£5.06 £4.22
20	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.47 £0.39
21	MK319517-5 Available to backorder	Lower Handle Holder	£4.78 £3.98
22	MK233309-7 Available to backorder	Compression Spring 16	£2.02 £1.68
23	MK319799-9 Available to backorder	Pipe Holder	£5.06 £4.22
24	MK318422-3 Available to backorder	Pipe Clamp	£4.48 £3.73
25	MK699171-4 Available to backorder	Power Supply Cord Unit	£16.10 £13.42
26	MK140J61-9 Available to backorder	Handle 22 Complete	£20.20 £16.83
27	MK125558-9 Available to backorder	Hanger Assembly (INC. 73 74)	£5.78 £4.82
28	MK183T68-2 Available to backorder	Grip Set (INC. 38)	£19.54 £16.28
28	MK252180-0 Available to backorder	Hex. Lock Nut M5-8 (C10)	£0.54 £0.45
29	MK141D25-0 Available to backorder	Indication Circuit Complete E	£20.62 £17.18
30	MK140W06-5 Available to backorder	Switch Circuit Complete G	£21.72 £18.10
30	MK819J26-9 Available to backorder	Switch Label (C10)	£2.34 £1.95
31	MK687260-7 Available to backorder	Strain Relief	£0.48 £0.40
32	MK651492-2 Available to backorder	Switch C3Jr-1A-Paxd3	£21.02 £17.52
33	MK233540-5 Available to backorder	Torsion Spring 11	£0.48 £0.40
34	MK459146-3 Available to backorder	Lock Off Lever	£2.88 £2.40
35	MK459145-5 Available to backorder	Switch Lever	£3.28 £2.73
36	MK233101-1 Available to backorder	Compression Spring 4	£0.48 £0.40
37	MK911258-5 Available to backorder	Pan Head Screw M5x35 Wr	£0.58 £0.48
39	MK266326-2 Available to backorder	Binding Head Tapping Screw 4x18 (Refs 040 \| 055 \| 061 \| 063 \| 077)	£0.48 £0.40
42	MK136465-1 Available to backorder	Pipe Bracket Assembly (INC. 41)	£19.12 £15.93
44	MK266420-0 Available to backorder	Binding Head Tapping Screw 5x20	£0.48 £0.40
45	MK211275-8 Available to backorder	Ball Bearing 6003Ddw	£11.72 £9.77
46	MK519560-6 Available to backorder	Rotor Assembly	£184.54 £153.78
47	MK210059-1 Available to backorder	Ball Bearing 6000Ddw	£5.04 £4.20
48	MK459144-7 Available to backorder	Baffle Plate	£2.60 £2.17
49	MK632T09-0 Available to backorder	Lead Unit	£6.56 £5.47
50	MK652031-1 Available to backorder	Pan Head Screw M3x6	£0.48 £0.40
51	MK629A82-5 Available to backorder	Stator	£85.06 £70.88
52	MK620F36-5 Available to backorder	Controller B	£16.26 £13.55
53	MK266490-9 Available to backorder	Pan Head Tapping Screw 2x6	£0.48 £0.40
54	MK687B69-9 Available to backorder	Stopper	£2.06 £1.72
56	MK183T69-0 Available to backorder	Housing Set (INC. 60 *)	£40.28 £33.57
57	MK620F33-1 Available to backorder	Controller	£306.67 £255.56
58	MK632P49-4 Available to backorder	Terminal Unit	£10.64 £8.87
59	MK459143-9 Available to backorder	Motor Housing	£11.46 £9.55
62	MK347846-6 Available to backorder	Battery Guard	£11.74 £9.78
62	MK327A49-4 Available to backorder	Battery Guard <	£15.16 £12.63
64	MK687051-6 Available to backorder	Strain Relief	£0.74 £0.62
65	MK422230-7 Available to backorder	Cap	£0.48 £0.40
67	MK687052-4 Available to backorder	Strain Relief	£0.74 £0.62
69	MK266280-0 Available to backorder	Hex. Socket Head Bolt M6x25	£0.86 £0.72
70	MK347494-1 Available to backorder	Protector Clamp 28	£2.06 £1.72
71	MK459147-1 Available to backorder	Protector 450	£19.12 £15.93
72	MK455588-9 Available to backorder	Wire Clamp	£1.02 £0.85
73	MK266698-5 Available to backorder	Hex. Socket Head Bolt M5x20	£0.86 £0.72
74	MK264086-0 Available to backorder	Hex. Nut M5	£0.56 £0.47
75	MK141D72-1 Available to backorder	Protector Extension 480 Complete	£35.50 £29.58
76	MK347493-3 Available to backorder	Cutter	£1.52 £1.27
78	MK922341-3 Available to backorder	Hex. Socket Head Bolt M6x25 W	£0.74 £0.62
79	MK688140-0 Available to backorder	Line Filter	£4.48 £3.73
82	MK632G61-0 Available to backorder	Switch Unit	£13.44 £11.20
901	MK807950-8 Available to backorder	Sound 95Db Label < (E01-1)	£0.54 £0.45
901	MK196129-9 Available to backorder	Band Assembly Set (Alt.) (A01-1A)	£75.36 £62.80
901	MK807949-3 Available to backorder	Sound 94Db Label (E01)	£0.48 £0.40
903	MK199873-7 Available to backorder	Protector 225 Set Mg (F03)	£31.54 £26.28
903	MK195624-6 Available to backorder	Cutter Blade 305 Set (A03A)	£21.52 £17.93
904	MK199875-3 Available to backorder	Protector Set Mg (F04)	£27.90 £23.25
905	MK782238-6 Available to backorder	Box Wrench 17 (A05)	£2.74 £2.28
906	MK783202-0 Available to backorder	Hex. Wrench 4 (A06)	£1.88 £1.57
907	MK783217-7 Available to backorder	Hex. Wrench 5 (A07)	£0.56 £0.47
908	MK831304-7 Available to backorder	Accessory Bag (A08)	£2.76 £2.30
909	MK199378-7 Available to backorder	Band Assembly Set (F09)	£102.10 £85.08
910	MK199870-3 Available to backorder	Plastic Blade 305 Set Mg (C40)	£40.68 £33.90
910	MK199868-0 Available to backorder	Plastic Blade 305 Set Mg (A10)	£37.54 £31.28
