Makita UR007G - Cordless Grass Trimmer - Power Tool Diagram

Description

Model No. UR007G

Cordless Grass Trimmer

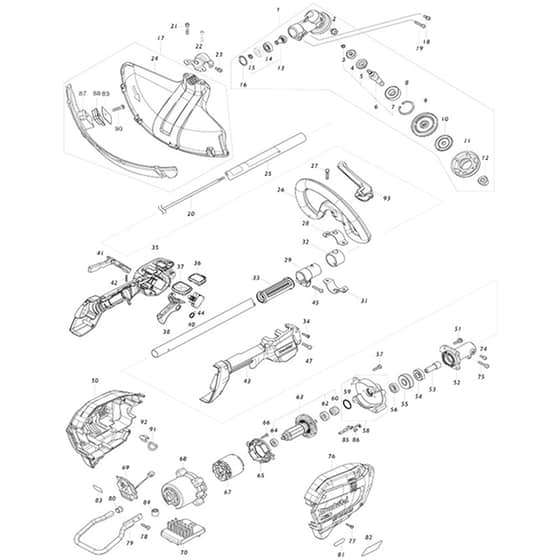

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK123853-1 Available to backorder	Gear Case Assembly Us (INC. 2 6 8-13 16)	£84.90 £70.75
2	MK265590-2 Available to backorder	Hex. Head Bolt M8x10 R	£0.58 £0.48
3	MK232350-7 Available to backorder	Ring Spring 6	£0.70 £0.58
4	MK210030-5 Available to backorder	Ball Bearing 627Zz	£1.16 £0.97
5	MK221484-1 Available to backorder	Spiral Bevel Gear 19	£26.62 £22.18
6	MK136233-2 Available to backorder	Cutter Shaft Assembly (INC. 3-5 7)	£58.42 £48.68
7	MK211228-7 Available to backorder	Ball Bearing 6202Ddw	£9.40 £7.83
8	MK257432-4 Available to backorder	Retaining Ring (Int) R-35	£1.10 £0.92
9	MK144312-2 Available to backorder	Receive Washer Complete	£20.38 £16.98
10	MK347104-0 Available to backorder	Clamp Washer Us	£3.86 £3.22
11	MK457274-8 Available to backorder	Cup Us	£4.52 £3.77
12	MK252236-9 Available to backorder	Hex. Lock Nut M10-17	£2.60 £2.17
13	MK136235-8 Available to backorder	Spiral Bevel Gear Assembly (INC. 14 15)	£30.18 £25.15
14	MK210049-4 Available to backorder	Ball Bearing 609Zz	£3.92 £3.27
15	MK257986-1 Available to backorder	Retaining Ring (Ext) S-9	£3.92 £3.27
16	MK257987-9 Available to backorder	Retaining Ring (Int) R-24	£1.16 £0.97
17	MK191B54-1 Available to backorder	Protector U 430 Set Mg (INC. 24 87-90)	£28.00 £23.33
18	MK922216-6 Available to backorder	Hex. Socket Head Bolt M5x14 W (Refs 023 \| 074)	£0.58 £0.48
19	MK922242-5 Available to backorder	Hex. Socket Head Bolt M5x25	£0.48 £0.40
19	MK922241-7 Available to backorder	Hex. Socket Head Bolt M5x25 W (Alt.)	£0.80 £0.67
20	MK327056-1 Available to backorder	Shaft	£6.52 £5.43
21	MK251513-6 Available to backorder	Hex. Socket Head Bolt M5x25	£0.48 £0.40
22	MK347107-4 Available to backorder	Protector Clamp 24	£2.06 £1.72
24	MK457271-4 Available to backorder	Protector U 450	£9.28 £7.73
25	MK819312-8 Available to backorder	Makita Logo Label (C10)	£0.58 £0.48
25	MK819J22-7 Available to backorder	Caution Label (C20)	£0.70 £0.58
25	MK140S82-5 Available to backorder	Shaft Pipe Complete I	£29.08 £24.23
26	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.47 £0.39
26	MK457267-5 Available to backorder	Loop Handle	£12.84 £10.70
28	MK347113-9 Available to backorder	Upper Clamp 35	£1.02 £0.85
29	MK457269-1 Available to backorder	Pipe Holder 24	£1.64 £1.37
31	MK347114-7 Available to backorder	Lower Clamp 35	£1.44 £1.20
32	MK424942-8 Available to backorder	Damper	£1.36 £1.13
33	MK451601-1 Available to backorder	Spacer 24	£2.46 £2.05
34	MK266326-2 Available to backorder	Binding Head Tapping Screw 4x18 (Refs 066 \| 077)	£0.48 £0.40
35	MK183S36-9 Available to backorder	Grip Set (INC. 43)	£20.62 £17.18
36	MK141D25-0 Available to backorder	Indication Circuit Complete E	£20.62 £17.18
37	MK819J26-9 Available to backorder	Switch Label (C10)	£2.34 £1.95
37	MK140W06-5 Available to backorder	Switch Circuit Complete G	£21.72 £18.10
38	MK459758-2 Available to backorder	Switch Lever	£1.78 £1.48
40	MK233622-3 Available to backorder	Torsion Spring 12	£0.48 £0.40
41	MK459759-0 Available to backorder	Lock Off Lever	£1.52 £1.27
42	MK233101-1 Available to backorder	Compression Spring 4	£0.48 £0.40
44	MK651492-2 Available to backorder	Switch C3Jr-1A-Paxd3	£21.02 £17.52
45	MK922244-1 Available to backorder	Hex. Socket Head Bolt M5x25 Wg	£0.48 £0.40
47	MK922233-6 Available to backorder	Hex. Socket Head Bolt M5x20 Wr	£0.86 £0.72
50	MK183R88-4 Available to backorder	Housing Set (INC. 76 *)	£17.20 £14.33
51	MK911233-1 Available to backorder	Pan Head Screw M5x20 Wr	£0.48 £0.40
52	MK263002-9 Available to backorder	Rubber Pin 4 (C10)	£0.48 £0.40
53	MK325811-5 Available to backorder	Spindle Hub	£19.64 £16.37
54	MK211131-2 Available to backorder	Ball Bearing 6001Ddw	£7.22 £6.02
56	MK211150-8 Available to backorder	Ball Bearing 6901Zz	£4.48 £3.73
57	MK266420-0 Available to backorder	Binding Head Tapping Screw 5x20	£0.48 £0.40
59	MK213961-7 Available to backorder	O-Ring 22	£0.48 £0.40
62	MK210005-4 Available to backorder	Ball Bearing 608Ddw	£7.80 £6.50
64	MK210062-2 Available to backorder	Ball Bearing 607Zz	£1.16 £0.97
65	MK459764-7 Available to backorder	Baffle Plate	£1.52 £1.27
69	MK632P49-4 Available to backorder	Terminal Unit	£10.64 £8.87
74	MK922211-6 Available to backorder	Hex. Socket Head Bolt M5x12 W	£0.58 £0.48
79	MK347752-5 Available to backorder	Battery Guard	£7.64 £6.37
80	MK422230-7 Available to backorder	Cap	£0.48 £0.40
81	MK8025F3-0 Available to backorder	xgt Logo Label	£0.70 £0.58
84	MK688163-8 Available to backorder	Line Filter	£1.32 £1.10
86	MK911102-6 Available to backorder	Pan Head Screw M4x6	£0.48 £0.40
87	MK232284-4 Available to backorder	Leaf Spring (C20)	£0.58 £0.48
87	MK144316-4 Available to backorder	Protector U Extension 420-450 Complete	£6.70 £5.58
87	MK346696-6 Available to backorder	Hook (C10)	£0.74 £0.62
88	MK459765-5 Available to backorder	Cutter Extension	£1.36 £1.13
89	MK347115-5 Available to backorder	Cutter	£2.18 £1.82
90	MK266459-3 Available to backorder	Binding Head Tapping Screw 5x25	£0.48 £0.40
93	MK144315-6 Available to backorder	Barrier Complete	£5.48 £4.57
93	MK911128-8 Available to backorder	Pan Head Screw M4x16 Wr (C10)	£0.47 £0.39
901	MK807811-2 Available to backorder	Sound 96Db Label (E01)	£2.02 £1.68
902	MK456640-6 Available to backorder	Spool Holder (C10)	£4.52 £3.77
902	MK191D90-9 Available to backorder	Trimmer Head 96-M10L Set (A02)	£17.98 £14.98
902	MK232289-4 Available to backorder	Compression Spring 15 (C20)	£0.48 £0.40
902	MK456642-2 Available to backorder	Spool (C40)	£4.32 £3.60
902	MK197993-1 Available to backorder	Nylon Cutting Head Assembly 95-M10L Set (A02)	£27.42 £22.85
903	MK126642-3 Available to backorder	Plastic Blade Assembly 255-M10L (A03)	£20.58 £17.15
904	MK144392-8 Available to backorder	Tool Cover 2T (A04)	£3.86 £3.22
905	MK198345-9 Available to backorder	Cutter Blade 255-2 Set Me (A05)	£15.04 £12.53
906	MK782238-6 Available to backorder	Box Wrench 17 (A06)	£2.74 £2.28
907	MK783202-0 Available to backorder	Hex. Wrench 4 (A07)	£1.88 £1.57
908	MK831304-7 Available to backorder	Accessory Bag (A08)	£2.76 £2.30
909	MK412393-7 Available to backorder	Battery Cover (A09)	£0.58 £0.48
911	MK191B26-6 Available to backorder	Battery Bl4040 Set (A11)	£313.75 £261.46
917	MK197472-9 Available to backorder	Nylon Cord 2.0-15M Set (F17)	£16.22 £13.52
919	MK197474-5 Available to backorder	Nylon Cord 2.0-160M Set (F19)	£116.56 £97.13
926	MK199868-0 Available to backorder	Plastic Blade 305 Set Mg (F26)	£37.54 £31.28
927	MK199870-3 Available to backorder	Plastic Blade 305 Set Mg (F27)	£40.68 £33.90
933	MK198501-1 Available to backorder	Nylon Cord 2.4-15M Set (F33)	£17.32 £14.43
939	MK199378-7 Available to backorder	Band Assembly Set (F39)	£102.10 £85.08
940	MK199450-5 Available to backorder	Grease Vessel Set (F40)	£14.80 £12.33
