Makita UN001G - 600mm Crdlss Pole Hdg Trimmer - Power Tool Diagram

Description

Model No. UN001G

600mm Crdlss Pole Hdg Trimmer

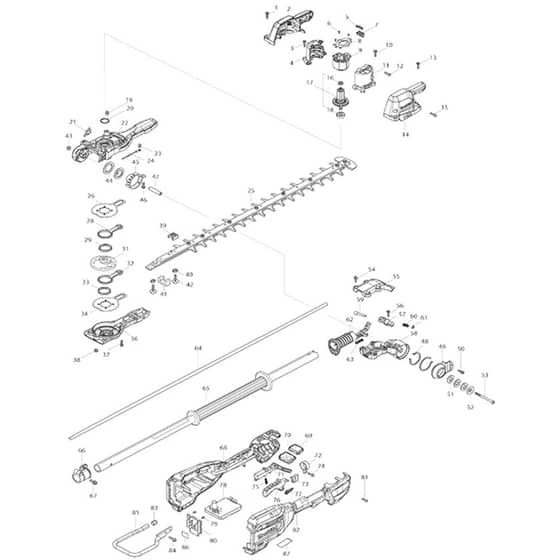

Power Tool Parts Diagrams

	Part No.	Details
1	MK911138-5 Available to backorder	P.H.Screw M4x20 With Wr (Refs 003 \| 010 \| 013 \| 056)	£0.48 £0.40
5	MK652069-6 Available to backorder	Flat Head Screw M3x6	£0.48 £0.40
6	MK266490-9 Available to backorder	Tapping Screw Pt 2x6	£0.48 £0.40
9	MK629A75-2 Available to backorder	Stator	£9.72 £8.10
12	MK266326-2 Available to backorder	Tapping Screw 4x18 (Refs 015 \| 074 \| 081)	£0.48 £0.40
16	MK210215-3 Available to backorder	Ball Bearing 695Zz	£1.49 £1.24
18	MK210005-4 Available to backorder	Ball Bearing 608Ddw	£8.04 £6.70
19	MK243107-1 Available to backorder	Grease Nipple	£1.90 £1.58
20	MK213961-7 Available to backorder	O Ring 22 (Alt.)	£0.48 £0.40
22	MK263002-9 Available to backorder	Rubber Pin 4 (C10)	£0.48 £0.40
22	MK263005-3 In stock	Rubber Pin 6 (C20)	£0.52 £0.43
23	MK652014-1 Available to backorder	Pan Head Screw M4x8	£0.48 £0.40
24	MK638A25-6 Available to backorder	Lead Unit	£0.98 £0.82
25	MK257859-8 Available to backorder	Sleeve 5 (C20)	£0.48 £0.40
25	MK1914E7-7 Available to backorder	Shear Blade 600R Set	£105.36 £87.80
25	MK188605-7 Available to backorder	Oil Vessel Set (C10)	£3.48 £2.90
26	MK347361-0 Available to backorder	Friction Plate	£0.98 £0.82
28	MK347662-6 Available to backorder	Connecting Rod	£6.48 £5.40
29	MK212229-8 Available to backorder	Needle Cage 315	£6.48 £5.40
31	MK210029-0 Available to backorder	Ball Bearing 608Zz (C10)	£1.39 £1.16
31	MK211499-6 Available to backorder	Ball Bearing 626Zz (C20)	£1.58 £1.32
37	MK922128-3 Available to backorder	Hex. Socket Head Bolt M4x16 (Refs 050 \| 054)	£0.89 £0.74
38	MK266559-9 Available to backorder	H.S.Button Head Bolt M6x4	£3.14 £2.62
41	MK443159-4 Available to backorder	Seal	£6.84 £5.70
42	MK265A89-3 Available to backorder	H.S.H.Bolt M5x25 With Wr	£0.65 £0.54
43	MK252286-4 Available to backorder	Collared Hex.Lock Nut M5-8	£0.48 £0.40
46	MK265487-5 Available to backorder	H.S. Button Head Bolt M5x16	£0.48 £0.40
47	MK257761-5 Available to backorder	Sleeve 6	£0.84 £0.70
53	MK922912-6 Available to backorder	Hex. Socket Head Bolt M5x65	£0.50 £0.42
60	MK231294-8 Available to backorder	Compression Spring 6	£0.89 £0.74
61	MK961011-9 Available to backorder	Stop Ring E-4	£0.48 £0.40
63	MK232299-1 Available to backorder	Compression Spring 5	£1.22 £1.02
66	MK168478-4 Available to backorder	Hanger	£6.00 £5.00
67	MK922228-9 Available to backorder	H.S.H.Bolt M5x18 With Wr	£0.70 £0.58
72	MK346248-3 Available to backorder	Clamp 24	£1.39 £1.16
75	MK233101-1 Available to backorder	Compression Spring 4	£0.48 £0.40
77	MK233612-6 Available to backorder	Torsion Spring 10	£3.01 £2.51
79	MK652031-1 Available to backorder	Pan Head Screw M3x6	£0.48 £0.40
83	MK422230-7 Available to backorder	Cap	£0.48 £0.40
84	MK266420-0 Available to backorder	Tapping Screw 5x20	£0.48 £0.40
901	MK122D94-0 Available to backorder	Band Assembly (A01)	£6.72 £5.60
901	MK1910T2-8 Available to backorder	Chip Receiver 600 Set (F01)	£51.48 £42.90
902	MK458414-1 Available to backorder	Blade Cover 600 (A02)	£34.32 £28.60
903	MK199450-5 Available to backorder	Grease Vessel Set (F03)	£16.20 £13.50
903	MK807950-8 Available to backorder	Sound 95Db Label (E03)	£0.65 £0.54
