Makita UH4050 - Hedge Trimmer 400mm - Power Tool Diagram

Description

Model No. UH4050

Hedge Trimmer 400mm

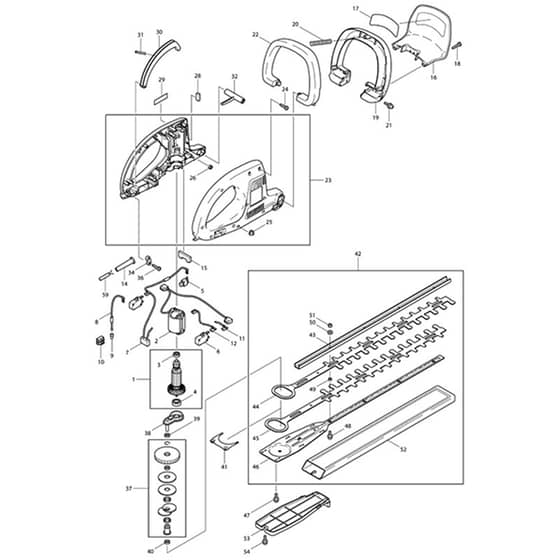

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
3	MK960101074 Available to backorder	Ball Bearing	£8.92 £7.43
3	MK211027-7 Available to backorder	Ball Bearing 627Zz (Alt.)	£3.46 £2.88
4	MK960101104 Available to backorder	Ball Bearing 6000Zz	£9.19 £7.66
4	MK211062-5 Available to backorder	Ball Bearing 6000Zz (Alt.)	£4.34 £3.62
6	MK651948-5 Available to backorder	Switch (Alt.)	£26.20 £21.83
6	MK970001210 Available to backorder	Switch	£5.94 £4.95
8	MK970800631 Available to backorder	Reactance Coil B	£2.26 £1.88
9	MK970201170 Available to backorder	Endconnector	£0.56 £0.47
10	MK654531-7 Available to backorder	Terminal Block 2P (Alt.)	£2.02 £1.68
10	MK970201220 Available to backorder	Screw Wire Connector	£0.72 £0.60
11	MK970311250 Available to backorder	Connecting Cable	£2.14 £1.78
12	MK970311280 Available to backorder	Connecting Cable	£4.09 £3.41
14	MK204152010 Available to backorder	Cord Guard	£0.54 £0.45
15	MK222111030 Available to backorder	Gasket	£1.57 £1.31
18	MK913540205 Available to backorder	Screw M4x20	£0.72 £0.60
19	MK221310111 Available to backorder	Tubular Handle	£8.48 £7.07
20	MK233157-4 Available to backorder	Compression Spring 9 (Alt.)	£0.74 £0.62
20	MK221145110 Available to backorder	Puressure Spring	£0.72 £0.60
21	MK917005250 Available to backorder	Screw M5x25	£0.72 £0.60
21	MK911243-8 Available to backorder	Pan Head Screw M5x25 (Alt.)	£0.48 £0.40
22	MK221144110 Available to backorder	Front Grip Switch	£2.26 £1.88
23	MK222110610 Available to backorder	Case Cpl. Blue	£30.37 £25.31
26	MK920205000 Available to backorder	Hex. Nut M5	£0.48 £0.40
29	MK980114296 Available to backorder	Label	£0.70 £0.58
29	MK819063-3 Available to backorder	Makita Label (Alt.)	£1.16 £0.97
30	MK221144120 Available to backorder	Rear Grip Switch	£0.85 £0.71
31	MK221145120 Available to backorder	Pressure Spring	£0.72 £0.60
31	MK233156-6 Available to backorder	Compression Spring 5 (Alt.)	£0.58 £0.48
34	MK203152050 Available to backorder	Traction Relief	£0.58 £0.48
36	MK266101-6 Available to backorder	Tapping Screw Bind Pt3.5x16	£0.48 £0.40
36	MK915635164 Available to backorder	Self-Cutting Screw M3.5x16	£0.58 £0.48
38	MK222211010 Available to backorder	Gear Plate With Axle	£10.32 £8.60
39	MK221229180 Available to backorder	Washer	£1.00 £0.83
41	MK222233610 Available to backorder	Plate	£1.69 £1.41
42	MK222230610 Available to backorder	Shear Blade Assy 40Cm	£88.00 £73.33
43	MK222233410 Available to backorder	Bar 40Cm	£8.62 £7.18
44	MK222233210 Available to backorder	Shear Plate A 40Cm	£36.72 £30.60
45	MK222233310 Available to backorder	Shear Plate B 40Cm	£27.11 £22.59
47	MK265088-9 Available to backorder	Pan Head Screw M5x18 (Alt.)	£0.48 £0.40
47	MK222233170 Available to backorder	Screw M5x18	£0.48 £0.40
48	MK222233160 Available to backorder	Screw M5x16	£1.40 £1.17
48	MK911223-4 Available to backorder	Pan Head Screw M5x16 (Alt.)	£0.48 £0.40
49	MK222233150 Available to backorder	Distance Plate	£1.69 £1.41
50	MK924405520 Available to backorder	Washer	£0.56 £0.47
51	MK221233170 Available to backorder	Hexagonal Nut M5	£1.99 £1.66
51	MK252103-8 Available to backorder	Hex. Lock Nut M5-8 (Alt.)	£0.48 £0.40
59	MK970102200 Available to backorder	Cable With Plug	£2.34 £1.95
