Makita UC3530A - Chain Saw 350mm - Power Tool 02 Diagram

Name: Makita UC3530A - Chain Saw 350mm - Power Tool 02 Diagram
SKU: uc3530a_chain_saw_350mm_power_tool_02-group
Price: 0.4 GBP
Availability: InStock

Part No. uc3530a_chain_saw_350mm_power_tool_02-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Makita UC3530A - Chain Saw 350mm - Power Tool 02 Diagram

Description

Model No. UC3530A

Chain Saw 350mm

Power Tool 02 Parts Diagrams

	Part No.	Details
32	MK154870-0 Available to backorder	Tank Cap Complete	£3.12 £2.60
34	MK142002-1 Available to backorder	Oil Pump Complete <	£2.21 £1.84
35	MK213039-6 Available to backorder	O Ring 6 (Alt.)	£0.48 £0.40
36	MK421959-2 Available to backorder	Sponge Seal	£0.89 £0.74
37	MK419407-3 Available to backorder	Oil Tank	£6.48 £5.40
38	MK416274-7 Available to backorder	Cap	£0.48 £0.40
39	MK231975-4 Available to backorder	Spring	£0.48 £0.40
40	MK421958-4 Available to backorder	Oil Tube	£1.74 £1.45
41	MK419408-1 Available to backorder	Gear Housing	£13.92 £11.60
42	MK419413-8 Available to backorder	Rod	£1.03 £0.86
43	MK233174-4 Available to backorder	Compression Spring 6	£0.70 £0.58
44	MK451130-4 Available to backorder	Front Hand Guard	£6.24 £5.20
45	MK158044-5 Available to backorder	Link Plate Complete	£6.48 £5.40
46	MK234005-0 Available to backorder	Compression Spring 9	£1.39 £1.16
48	MK211012-0 Available to backorder	Ball Bearing 606Zz	£13.32 £11.10
49	MK450230-7 Available to backorder	Crank	£1.03 £0.86
50	MK417405-1 Available to backorder	Cam	£0.48 £0.40
51	MK259034-2 Available to backorder	Retaining Ring E Type 10	£0.70 £0.58
52	MK266044-2 Available to backorder	Tapping Screw 5x60 S	£2.38 £1.98
52	MK266095-5 Available to backorder	Tapping Screw 5x55	£1.03 £0.86
53	MK266173-1 Available to backorder	Tapping Screw 5x30 (Refs 058 \| 064)	£0.89 £0.74
54	MK226741-2 Available to backorder	Straight Bevel Gear 43	£4.20 £3.50
55	MK324662-3 Available to backorder	Spindle	£15.96 £13.30
56	MK211107-9 Available to backorder	Ball Bearing 6201Zz	£8.64 £7.20
57	MK455487-5 Available to backorder	Front Handle S	£14.64 £12.20
59	MK921452-1 Available to backorder	Hex. Bolt M8x30	£0.89 £0.74
60	MK318013-0 Available to backorder	Bearing Housing	£9.84 £8.20
63	MK345651-5 Available to backorder	Spike Bumper	£1.03 £0.86
65	MK168426-3 Available to backorder	Brake Band	£5.28 £4.40
66	MK191V91-5 Available to backorder	Sprocket 7 Set	£20.88 £17.40
66	MK267195-4 Available to backorder	Flat Washer 4	£1.39 £1.16
67	MK266026-4 Available to backorder	Tapping Screw Bind Ct 4x12	£0.48 £0.40
68	MK123886-6 Available to backorder	Brake Drum Assembly (Alt.)	£27.36 £22.80
69	MK253215-0 Available to backorder	Flat Washer 8	£0.48 £0.40
70	MK259033-4 Available to backorder	Retaining Ring E Type 6	£0.48 £0.40
71	MK266007-8 Available to backorder	Tapping Screw Bind Pt 3x10	£0.48 £0.40
72	MK419241-1 Available to backorder	Cover	£0.70 £0.58
73	MK227496-2 Available to backorder	Straight Bevel Gear 14	£3.60 £3.00
74	MK227495-4 Available to backorder	Straight Bevel Gear 14	£4.32 £3.60
75	MK154869-5 Available to backorder	Sprocket Cover Complete	£8.64 £7.20
76	MK419233-0 Available to backorder	Dial 40	£0.70 £0.58
77	MK253874-0 Available to backorder	Flat Washer 4	£0.48 £0.40
78	MK915106-0 Available to backorder	Binding Head Screw M4x8	£0.48 £0.40
79	MK233033-2 Available to backorder	Compression Spring 4	£0.89 £0.74
80	MK216008-6 Available to backorder	Steel Ball 4	£0.48 £0.40
81	MK154763-1 Available to backorder	Lever Complete	£1.39 £1.16
82	MK951122-8 Available to backorder	Spring Pin 4-28	£0.70 £0.58
83	MK453061-3 Available to backorder	Cup Washer 20 (Alt.)	£0.48 £0.40
84	MK317977-5 Available to backorder	Lever Holder	£1.03 £0.86
85	MK231025-5 Available to backorder	Compression Spring 8	£0.48 £0.40
86	MK252168-0 Available to backorder	Hex. Nut M8-13	£0.89 £0.74
87	MK324621-7 Available to backorder	Adjust Pin	£0.70 £0.58
88	MK324620-9 Available to backorder	Adjust Screw	£0.70 £0.58
90	MK188859-6 Available to backorder	Lever Complete Set	£3.48 £2.90
91	MK187573-1 Available to backorder	Oil Pump Complete Set <	£3.48 £2.90
91	MK188929-1 Available to backorder	Oil Pump Complete Set	£3.72 £3.10
901	MK419559-0 Available to backorder	Chain Protection Cover 330 (A01)	£5.64 £4.70
902	MK158024-1 Available to backorder	Hook Complete (A02)	£1.03 £0.86

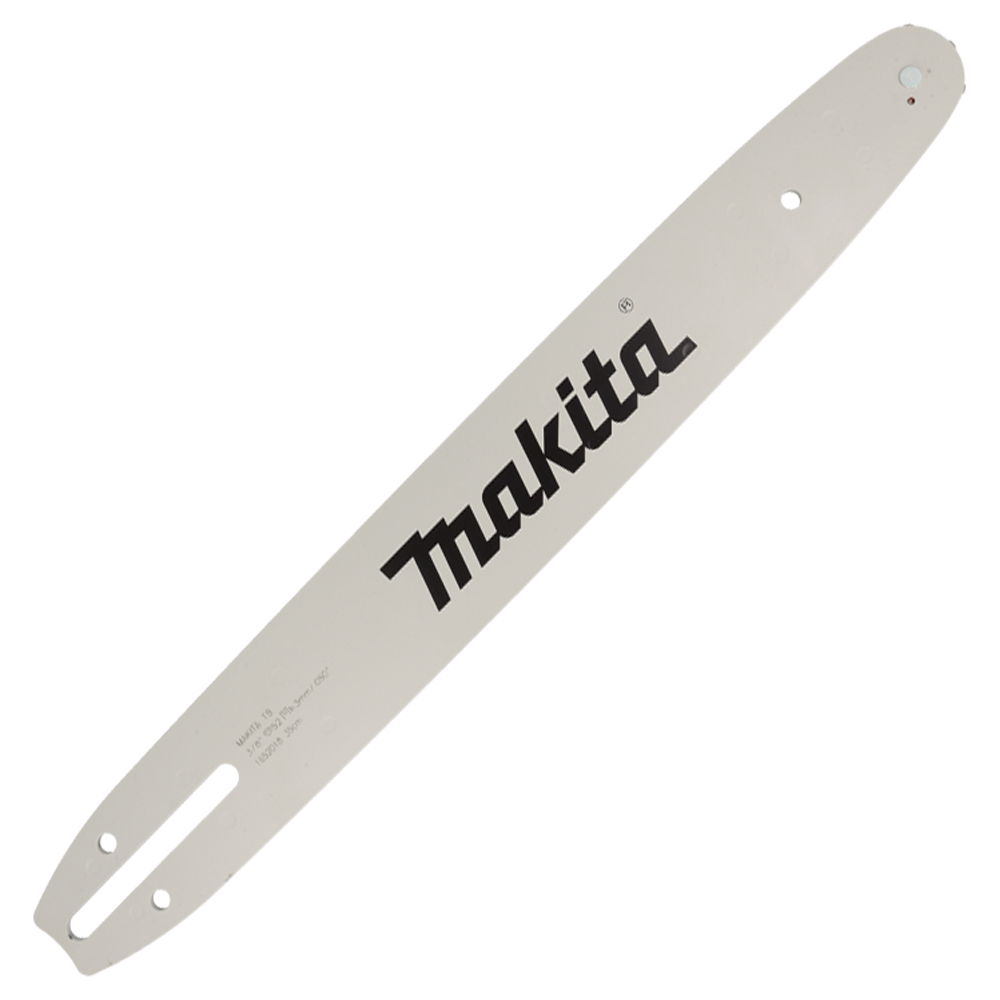

903	MK165201-8 Available to backorder	Guide Bar 14 (A03)	£16.08 £13.40
904	MK195089-2 Available to backorder	Chain Edger Set (A04)	£13.92 £11.60
904	MKD-70948 Available to backorder	File Holder Set 4.0mm(5/32") (Alt.) (A04-1)	£11.16 £9.30
904	MK837010-2 Available to backorder	Oil Absorbent Sheet (A04)	£2.24 £1.87
905	OR91PX052E In stock	Chain 14"	£14.80 £12.33
906	MK195093-1 Available to backorder	Chain Oil Set (A06)	£8.16 £6.80
907	MK819393-2 Available to backorder	Makita Logo Label (A07)	£0.48 £0.40
908	MK823311-4 Available to backorder	Metal Case (A08)	£76.08 £63.40
