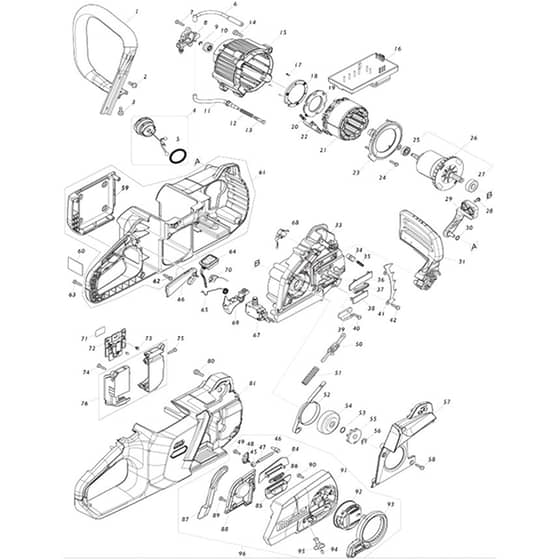

Makita UC014G - 300mm Cordless Chain Saw - Power Tool Diagram

Description

Model No. UC014G

300mm Cordless Chain Saw

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK327932-9 Available to backorder	Front Handle	£35.50 £29.58
2	MK911218-7 In stock	Pan Head Screw M5x14 Wr	£0.48 £0.40
4	MK122A77-2 Available to backorder	Tank Cap Assembly (INC. 5)	£12.16 £10.13
5	MK213080-9 Available to backorder	O-Ring 29.5	£0.96 £0.80
5	MK213A30-0 Available to backorder	O-Ring 29.5 (Alt.)	£0.48 £0.40
6	MK422835-3 Available to backorder	Oil Tube 3-117	£1.52 £1.27
7	MK266326-2 Available to backorder	Binding Head Tapping Screw 4x18 (Refs 024 \| 062 \| 063 \| 074 \| 075)	£0.48 £0.40
8	MK142857-4 Available to backorder	Oil Pump Complete	£22.98 £19.15
9	MK961011-9 Available to backorder	Stop Ring (Ext) E-4	£0.48 £0.40
10	MK226884-0 Available to backorder	Worm Gear	£1.24 £1.03
11	MK422836-1 Available to backorder	Oil Tube 3-108	£1.64 £1.37
12	MK231975-4 Available to backorder	Spring	£0.48 £0.40
13	MK452666-6 Available to backorder	Nipple	£0.54 £0.45
14	MK911228-4 Available to backorder	Pan Head Screw M5x18 Wr	£1.64 £1.37
15	MK413C89-1 Available to backorder	Motor Housing	£20.08 £16.73
16	MK620H71-5 Available to backorder	Controller	£215.96 £179.97
17	MK266490-9 Available to backorder	Pan Head Tapping Screw 2x6	£0.48 £0.40
18	MK687B69-9 Available to backorder	Stopper	£2.06 £1.72
19	MK620H75-7 Available to backorder	Controller B	£19.92 £16.60
20	MK652031-1 Available to backorder	Pan Head Screw M3x6	£0.48 £0.40
21	MK629B00-9 Available to backorder	Stator	£83.42 £69.52
22	MK632T19-7 Available to backorder	Lead Unit	£12.98 £10.82
23	MK413C90-6 Available to backorder	Baffle Plate	£2.34 £1.95
25	MK210016-9 Available to backorder	Ball Bearing 698Zz	£10.84 £9.03
26	MK519732-3 Available to backorder	Rotor Assembly (INC. 25 27 *)	£136.50 £113.75
27	MK210059-1 Available to backorder	Ball Bearing 6000Ddw	£5.04 £4.20
28	MK911118-1 Available to backorder	Pan Head Screw M4x12 Wr	£0.48 £0.40
29	MK413C92-2 Available to backorder	Front Hand Guard Retainer	£3.00 £2.50
30	MK213594-8 Available to backorder	O-Ring 7	£0.48 £0.40
31	MK141J69-6 Available to backorder	Front Hand Guard Complete	£9.82 £8.18
31	MK8050E6-6 Available to backorder	Caution Label (C10)	£0.48 £0.40
33	MK263002-9 Available to backorder	Rubber Pin 4 (C10)	£0.48 £0.40
33	MK136612-4 Available to backorder	Housing Base Assembly	£89.28 £74.40
34	MK313398-9 Available to backorder	Hand Guard Guide	£0.48 £0.40
35	MK234210-9 Available to backorder	Compression Spring 3	£0.48 £0.40
36	MK413D07-5 Available to backorder	Guard A	£1.10 £0.92
37	MK422834-5 Available to backorder	Grommet A	£0.48 £0.40
38	MK413D08-3 Available to backorder	Guard B	£1.10 £0.92
39	MK347924-2 Available to backorder	Chain Catcher	£0.82 £0.68
40	MK266034-5 Available to backorder	Binding Head Tapping Screw 4x16 (Refs 042 \| 058)	£0.48 £0.40
41	MK347925-0 Available to backorder	Spike Bumper	£1.36 £1.13
45	MK227496-2 Available to backorder	Straight Bevel Gear 14	£3.46 £2.88
46	MK326310-0 Available to backorder	Adjust Pin	£1.16 £0.97
47	MK327958-1 Available to backorder	Adjust Screw	£1.78 £1.48
48	MK413F29-7 Available to backorder	Cover	£1.64 £1.37
49	MK266427-6 Available to backorder	Binding Head Tapping Screw 4x12 (Refs 089 \| 090)	£0.48 £0.40
50	MK141E60-4 Available to backorder	Link Plate Complete	£4.78 £3.98
51	MK232452-9 Available to backorder	Compression Spring 7	£0.74 £0.62
52	MK347922-6 Available to backorder	Brake Band Complete	£4.92 £4.10
53	MK213060-5 Available to backorder	O-Ring 10	£0.48 £0.40
54	MK162979-4 Available to backorder	Brake Drum	£7.80 £6.50
55	MK191V91-5 Available to backorder	Sprocket 7 Set	£20.20 £16.83
56	MK961013-5 Available to backorder	Stop Ring (Ext) E-7	£0.47 £0.39
57	MK413C95-6 Available to backorder	Brake Cover	£3.82 £3.18
59	MK413C88-3 Available to backorder	Battery Cover	£7.24 £6.03
60	MK8117K6-0 Available to backorder	Name Plate Uc014G	£0.48 £0.40
61	MK136689-9 Available to backorder	Housing L Assembly (INC. 59 62 *)	£35.50 £29.58
64	MK810D46-0 Available to backorder	Switch Label (C10)	£4.10 £3.42
64	MK620J22-0 Available to backorder	Switch Circuit Complete	£18.02 £15.02
65	MK232733-1 Available to backorder	Torsion Spring 10	£0.48 £0.40
66	MK413C94-8 Available to backorder	Catch Lever	£1.64 £1.37
67	MK650024-2 Available to backorder	Switch C3Jr-4B-Pand4-1	£33.30 £27.75
68	MK632T50-3 Available to backorder	Switch Unit	£16.52 £13.77
69	MK413C93-0 Available to backorder	Switch Lever	£1.52 £1.27
70	MK632L49-0 Available to backorder	Switch Unit	£13.66 £11.38
72	MK632T07-4 Available to backorder	Terminal Unit	£9.28 £7.73
76	MK183V16-3 Available to backorder	Terminal Box Set	£4.52 £3.77
76	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.47 £0.39
81	MK8025F3-0 Available to backorder	xgt Logo Label (C10)	£0.70 £0.58
81	MK136674-2 Available to backorder	Housing R Assembly	£51.74 £43.12
84	MK413F27-1 Available to backorder	Guard C	£2.06 £1.72
85	MK413F28-9 Available to backorder	Guard D	£2.06 £1.72
86	MK422833-7 Available to backorder	Grommet	£0.48 £0.40
87	MK422832-9 Available to backorder	Chip Guide	£1.10 £0.92
88	MK413F26-3 Available to backorder	Inner Cover	£2.60 £2.17
91	MK413F24-7 Available to backorder	Sprocket Cover	£12.16 £10.13
92	MK142235-8 Available to backorder	Nut Complete	£5.06 £4.22
93	MK413F25-5 Available to backorder	Nut Cover	£3.42 £2.85
95	MK142665-3 Available to backorder	Drive Gear Complete	£4.78 £3.98
96	MK183W23-2 Available to backorder	Sprocket Cover Set (INC. 45-49 84-95)	£38.36 £31.97
901	MK8050E9-0 Available to backorder	Sound Label (E01)	£0.48 £0.40
902	MK419288-5 Available to backorder	Chain Cover (A02)	£3.86 £3.22
905	MK782023-7 Available to backorder	Wrench 13-16 (A05)	£4.54 £3.78
907	MK412393-7 Available to backorder	Battery Cover (A07B)	£0.58 £0.48
917	MK195093-1 Available to backorder	Chain Oil Set (F17)	£7.88 £6.57
918	MK198457-8 Available to backorder	File Set (F18)	£19.38 £16.15
918	MKD-70948 Available to backorder	File Holder Set 4.0mm(5/32") (Alt.) (F18-1)	£10.84 £9.03
