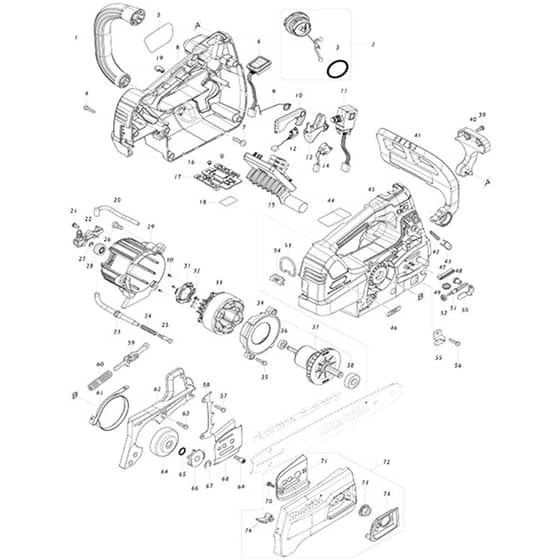

Makita UC004G - 350mm Cordless Chain Saw - Power Tool Diagram

Description

Model No. UC004G

350mm Cordless Chain Saw

Power Tool Parts Diagrams

	Part No.	Details
1	MK413979-0 Available to backorder	Front Handle	£4.08 £3.40
2	MK122A77-2 Available to backorder	Tank Cap Assembly (INC. 3)	£12.60 £10.50
3	MK213080-9 Available to backorder	O-Ring 29.5	£1.15 £0.96
3	MK213A30-0 Available to backorder	O-Ring 29.5 (Alt.)	£0.48 £0.40
4	MK266326-2 Available to backorder	Binding Head Tapping Screw 4x18 (Refs 035 \| 056 \| 057 \| 063)	£0.48 £0.40
5	MK810R17-1 Available to backorder	Model No. Label Duc353 (Alt.)	£0.48 £0.40
6	MK810D46-0 Available to backorder	Switch Label (C10)	£4.20 £3.50
6	MK141G07-0 Available to backorder	Switch Circuit Complete	£15.96 £13.30
7	MK266420-0 Available to backorder	Binding Head Tapping Screw 5x20	£0.48 £0.40
8	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.52 £0.43
8	MK183U56-5 Available to backorder	Housing Set (INC. 19 45 *)	£45.48 £37.90
9	MK232713-7 Available to backorder	Torsion Spring 10	£0.48 £0.40
10	MK413987-1 Available to backorder	Catch Lever	£0.98 £0.82
11	MK650011-1 Available to backorder	Switch C3Jr-4Bm-Pand3	£22.92 £19.10
12	MK632L49-0 Available to backorder	Switch Unit	£14.16 £11.80
13	MK459282-5 Available to backorder	Switch Lever	£1.32 £1.10
14	MK632L48-2 Available to backorder	Switch Unit	£20.52 £17.10
15	MK688131-1 Available to backorder	Line Filter (C10)	£0.70 £0.58
15	MK620F70-5 Available to backorder	Controller	£190.80 £159.00
16	MK652031-1 Available to backorder	Pan Head Screw M3x6	£0.48 £0.40
17	MK632S63-8 Available to backorder	Terminal Unit	£7.68 £6.40
19	MK422467-6 Available to backorder	Cap	£0.98 £0.82
20	MK422764-0 Available to backorder	Oil Tube 3-85	£1.63 £1.36
21	MK911113-1 Available to backorder	Pan Head Screw M4x10 Wr	£0.48 £0.40
22	MK142156-4 Available to backorder	Oil Pump Complete	£28.80 £24.00
23	MK422765-8 Available to backorder	Oil Tube 3-109	£1.49 £1.24
24	MK231975-4 Available to backorder	Spring	£0.48 £0.40
25	MK452666-6 Available to backorder	Nipple	£0.65 £0.54
26	MK911218-7 In stock	Pan Head Screw M5x14 Wr	£0.52 £0.43
27	MK961011-9 Available to backorder	Stop Ring (Ext) E-4	£0.48 £0.40
28	MK226884-0 Available to backorder	Worm Gear	£1.49 £1.24
29	MK413904-1 Available to backorder	Motor Housing	£5.52 £4.60
30	MK652119-7 Available to backorder	Pan Head Screw M2x6 (Alt.)	£0.48 £0.40
30	MK652093-9 Available to backorder	Pan Head Screw M2x5	£0.48 £0.40
31	MK620F73-9 Available to backorder	Sensor Unit	£30.24 £25.20
32	MK652069-6 Available to backorder	Flat Head Screw M3x6	£0.48 £0.40
33	MK629A85-9 Available to backorder	Stator	£22.56 £18.80
34	MK413980-5 Available to backorder	Baffle Plate	£1.66 £1.38
36	MK210026-6 Available to backorder	Ball Bearing 696Zz	£3.60 £3.00
37	MK519710-3 Available to backorder	Rotor Assembly (INC. 36 38)	£48.72 £40.60
38	MK210059-1 Available to backorder	Ball Bearing 6000Ddw	£5.16 £4.30
39	MK911118-1 Available to backorder	Pan Head Screw M4x12 Wr	£0.48 £0.40
40	MK413907-5 Available to backorder	Front Hand Guard Retainer	£2.10 £1.75
41	MK141E58-1 Available to backorder	Front Hand Guard Complete	£7.44 £6.20
42	MK232714-5 Available to backorder	Compression Spring 3	£0.48 £0.40
43	MK313212-9 Available to backorder	Hand Guard Guide	£0.70 £0.58
46	MK8012U4-2 Available to backorder	xgt Logo Label	£0.48 £0.40
47	MK422466-8 Available to backorder	Grommet	£0.98 £0.82
48	MK227620-7 Available to backorder	Drive Gear	£1.58 £1.32
49	MK227634-6 Available to backorder	Straight Bevel Gear 14	£3.84 £3.20
50	MK347517-5 Available to backorder	Tension Slide	£2.27 £1.89
51	MK327317-9 Available to backorder	Adjust Screw	£3.17 £2.64
52	MK227496-2 Available to backorder	Straight Bevel Gear 14	£3.60 £3.00
53	MK281222-3 Available to backorder	Hook	£0.65 £0.54
54	MK347514-1 Available to backorder	Hook Support	£0.84 £0.70
55	MK347516-7 Available to backorder	Chain Catcher	£1.32 £1.10
58	MK346809-9 Available to backorder	Spike Bumper	£1.32 £1.10
59	MK141E60-4 Available to backorder	Link Plate Complete	£4.92 £4.10
60	MK232452-9 Available to backorder	Compression Spring 7	£0.89 £0.74
61	MK347864-4 Available to backorder	Brake Band	£3.72 £3.10
62	MK413981-3 Available to backorder	Housing R Cover	£3.12 £2.60
64	MK162979-4 Available to backorder	Brake Drum	£8.04 £6.70
65	MK213060-5 Available to backorder	O-Ring 10	£0.48 £0.40
66	MK191V90-7 Available to backorder	Sprocket 6 Set	£8.16 £6.80
66	MK191V91-5 Available to backorder	Sprocket 7 Set	£20.88 £17.40
67	MK961013-5 Available to backorder	Stop Ring (Ext) E-7	£0.48 £0.40
68	MK347533-7 Available to backorder	Guide Plate L	£1.49 £1.24
69	MK266905-6 Available to backorder	Hexalobular Socket Head Bolt M5x12	£0.84 £0.70
70	MK266007-8 Available to backorder	Binding Head Tapping Screw 3x10	£0.48 £0.40
71	MK347534-5 Available to backorder	Guide Plate R	£1.73 £1.44
72	MK136573-8 Available to backorder	Sprocket Cover Assembly (INC. 70 71 73 74 76)	£14.52 £12.10
73	MK162494-8 Available to backorder	Flange Nut Complete	£5.28 £4.40
76	MK422310-9 Available to backorder	Chip Guide	£0.84 £0.70
77	MK324616-0 Available to backorder	Hose Clamp	£1.58 £1.32
901	MK191G16-9 In stock	Guide Bar 14 Set (A01)	£14.42 £12.02
901	MK191T87-4 Available to backorder	Guide Bar 14 Set (A01)	£17.64 £14.70
904	OR90PX052E In stock	Chain 14"	£15.86 £13.22
902	MK191G24-0 Available to backorder	Guide Bar 14 Set (F02)	£20.76 £17.30
902	MK419288-5 Available to backorder	Chain Cover (A02)	£3.96 £3.30
904	OR91PX052E In stock	Chain 14"	£14.80 £12.33
905	MK782023-7 Available to backorder	Wrench 13-16 (A05)	£4.68 £3.90
906	MK195093-1 Available to backorder	Chain Oil Set (F06)	£8.16 £6.80
907	MKD-70954 Available to backorder	File Holder Set 4.5mm(11/64") (Alt.) (F07-1)	£11.16 £9.30
907	MK412393-7 Available to backorder	Battery Cover (A07)	£0.70 £0.58
909	MK191B26-6 Available to backorder	Battery Bl4040 Set (A09)	£263.54 £219.62
911	MKD-70948 Available to backorder	File Holder Set 4.0mm(5/32") (Alt.) (F11-1)	£11.16 £9.30
911	MK198457-8 Available to backorder	File Set (F11)	£20.04 £16.70
948	MK199897-3 Available to backorder	Oil Vessel Set (F48)	£6.36 £5.30
