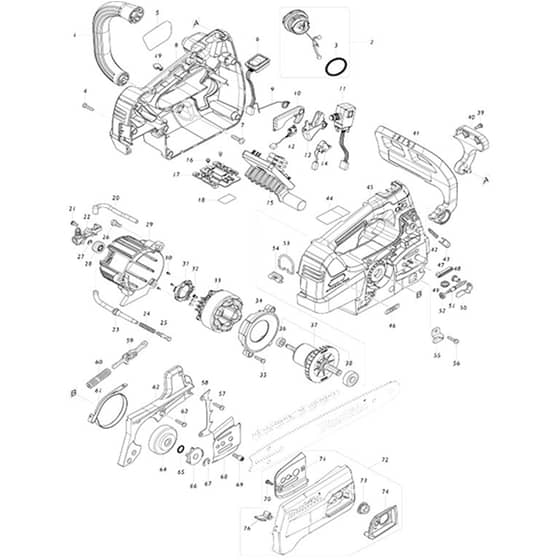

Makita UC002G - Cordless Chain Saw 115mm - Power Tool Diagram

Description

Model No. UC002G

Cordless Chain Saw 115mm

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK413979-0 Available to backorder	Front Handle	£3.96 £3.30
2	MK122A77-2 Available to backorder	Tank Cap Assembly (INC. 3)	£12.16 £10.13
3	MK213A30-0 Available to backorder	O-Ring 29.5 (Alt.)	£0.48 £0.40
3	MK213080-9 Available to backorder	O-Ring 29.5	£0.96 £0.80
4	MK266326-2 Available to backorder	Binding Head Tapping Screw 4x18 (Refs 035 \| 056 \| 057 \| 063)	£0.48 £0.40
5	MK810R17-1 Available to backorder	Model No. Label Duc353 (Alt.)	£0.48 £0.40
6	MK810D46-0 Available to backorder	Switch Label (C10)	£4.10 £3.42
6	MK141G07-0 Available to backorder	Switch Circuit Complete	£15.44 £12.87
7	MK266420-0 Available to backorder	Binding Head Tapping Screw 5x20	£0.48 £0.40
8	MK183U56-5 Available to backorder	Housing Set (INC. 19 45 *)	£43.96 £36.63
8	MK263005-3 In stock	Rubber Pin 6 (C10)	£0.47 £0.39
9	MK232713-7 Available to backorder	Torsion Spring 10	£0.48 £0.40
10	MK413987-1 Available to backorder	Catch Lever	£0.82 £0.68
11	MK650011-1 Available to backorder	Switch C3Jr-4Bm-Pand3	£22.12 £18.43
12	MK632L49-0 Available to backorder	Switch Unit	£13.66 £11.38
13	MK459282-5 Available to backorder	Switch Lever	£1.10 £0.92
14	MK632L48-2 Available to backorder	Switch Unit	£19.80 £16.50
15	MK688131-1 Available to backorder	Line Filter (C10)	£0.58 £0.48
15	MK620F70-5 Available to backorder	Controller	£198.74 £165.62
16	MK652031-1 Available to backorder	Pan Head Screw M3x6	£0.48 £0.40
17	MK632S63-8 Available to backorder	Terminal Unit	£7.38 £6.15
19	MK422467-6 Available to backorder	Cap	£0.82 £0.68
20	MK422764-0 Available to backorder	Oil Tube 3-85	£1.36 £1.13
21	MK911113-1 Available to backorder	Pan Head Screw M4x10 Wr	£0.48 £0.40
22	MK142156-4 Available to backorder	Oil Pump Complete	£27.88 £23.23
23	MK422765-8 Available to backorder	Oil Tube 3-109	£1.24 £1.03
24	MK231975-4 Available to backorder	Spring	£0.48 £0.40
25	MK452666-6 Available to backorder	Nipple	£0.54 £0.45
26	MK911218-7 In stock	Pan Head Screw M5x14 Wr	£0.48 £0.40
27	MK961011-9 Available to backorder	Stop Ring (Ext) E-4	£0.48 £0.40
28	MK226884-0 Available to backorder	Worm Gear	£1.24 £1.03
29	MK413904-1 Available to backorder	Motor Housing	£5.34 £4.45
30	MK652119-7 Available to backorder	Pan Head Screw M2x6 (Alt.)	£0.48 £0.40
30	MK652093-9 Available to backorder	Pan Head Screw M2x5	£0.48 £0.40
31	MK620F73-9 Available to backorder	Sensor Unit	£29.22 £24.35
32	MK652069-6 Available to backorder	Flat Head Screw M3x6	£0.48 £0.40
33	MK629A85-9 Available to backorder	Stator	£21.84 £18.20
34	MK413980-5 Available to backorder	Baffle Plate	£1.52 £1.27
36	MK210026-6 Available to backorder	Ball Bearing 696Zz	£3.46 £2.88
37	MK519710-3 Available to backorder	Rotor Assembly (INC. 36 38)	£47.10 £39.25
38	MK210059-1 Available to backorder	Ball Bearing 6000Ddw	£5.04 £4.20
39	MK911118-1 Available to backorder	Pan Head Screw M4x12 Wr	£0.48 £0.40
40	MK413907-5 Available to backorder	Front Hand Guard Retainer	£1.92 £1.60
41	MK141E58-1 Available to backorder	Front Hand Guard Complete	£7.24 £6.03
42	MK232714-5 Available to backorder	Compression Spring 3	£0.48 £0.40
43	MK313212-9 Available to backorder	Hand Guard Guide	£0.58 £0.48
46	MK8012U4-2 Available to backorder	xgt Logo Label	£0.48 £0.40
47	MK422466-8 Available to backorder	Grommet	£0.82 £0.68
48	MK227620-7 Available to backorder	Drive Gear	£1.44 £1.20
49	MK227634-6 Available to backorder	Straight Bevel Gear 14	£3.76 £3.13
50	MK347517-5 Available to backorder	Tension Slide	£2.08 £1.73
51	MK327317-9 Available to backorder	Adjust Screw	£2.90 £2.42
52	MK227496-2 Available to backorder	Straight Bevel Gear 14	£3.46 £2.88
53	MK281222-3 Available to backorder	Hook	£0.54 £0.45
54	MK347514-1 Available to backorder	Hook Support	£0.70 £0.58
55	MK347516-7 Available to backorder	Chain Catcher	£1.10 £0.92
58	MK346809-9 Available to backorder	Spike Bumper	£1.10 £0.92
59	MK141E60-4 Available to backorder	Link Plate Complete	£4.78 £3.98
60	MK232452-9 Available to backorder	Compression Spring 7	£0.74 £0.62
61	MK347864-4 Available to backorder	Brake Band	£3.54 £2.95
62	MK413981-3 Available to backorder	Housing R Cover	£3.00 £2.50
64	MK162979-4 Available to backorder	Brake Drum	£7.80 £6.50
65	MK213060-5 Available to backorder	O-Ring 10	£0.48 £0.40
66	MK191V90-7 Available to backorder	Sprocket 6 Set	£7.92 £6.60
67	MK961013-5 Available to backorder	Stop Ring (Ext) E-7	£0.47 £0.39
68	MK347533-7 Available to backorder	Guide Plate L	£1.24 £1.03
69	MK266905-6 Available to backorder	Hexalobular Socket Head Bolt M5x12	£0.70 £0.58
70	MK266007-8 Available to backorder	Binding Head Tapping Screw 3x10	£0.48 £0.40
71	MK347534-5 Available to backorder	Guide Plate R	£1.57 £1.31
72	MK136573-8 Available to backorder	Sprocket Cover Assembly (INC. 70 71 73 74 76)	£14.08 £11.73
73	MK162494-8 Available to backorder	Flange Nut Complete	£5.06 £4.22
76	MK422310-9 Available to backorder	Chip Guide	£0.70 £0.58
77	MK324616-0 Available to backorder	Hose Clamp	£1.32 £1.10

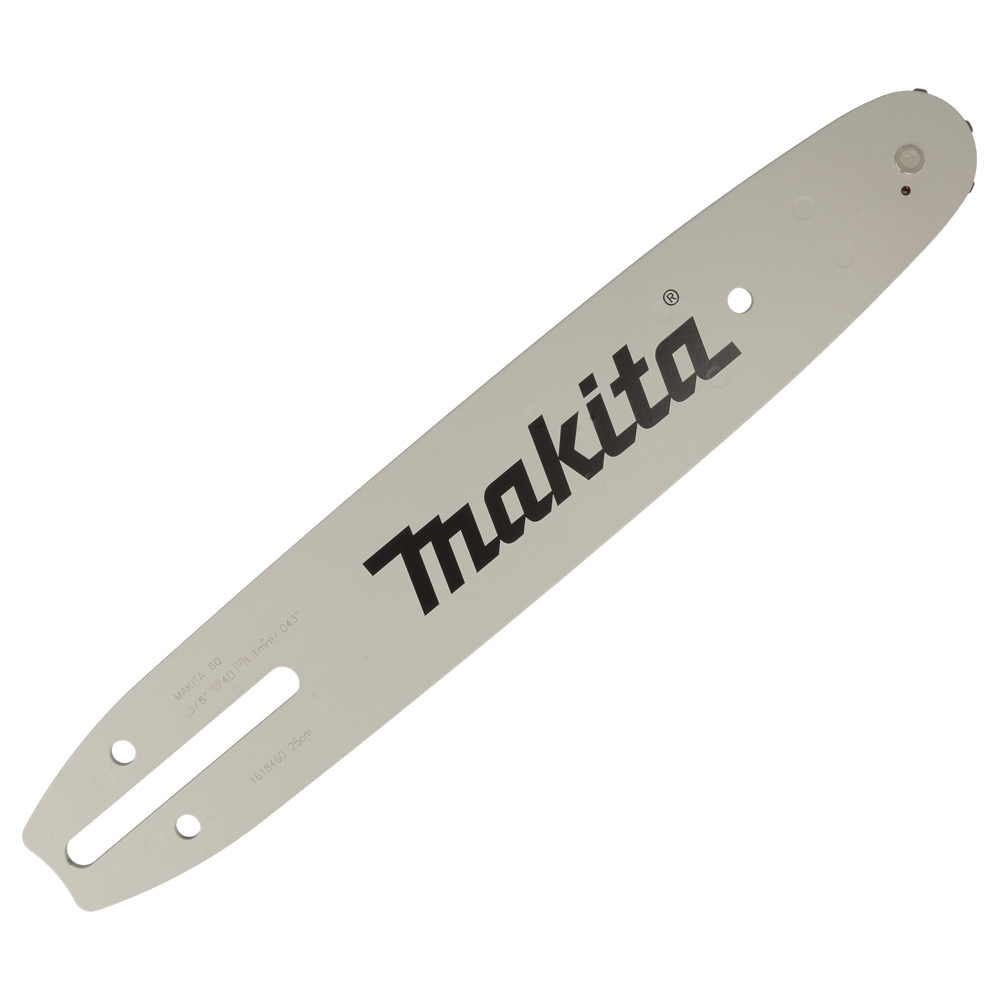

901	MK191G14-3 Available to backorder	Guide Bar 10 Set (A01)	£13.88 £11.57
902	MK458501-6 Available to backorder	Guide Bar Case (A02)	£6.82 £5.68
903	MK199897-3 Available to backorder	Oil Vessel Set (A03)	£6.12 £5.10
905	MK782023-7 Available to backorder	Wrench 13-16 (A05)	£4.54 £3.78
906	MK195093-1 Available to backorder	Chain Oil Set (F06)	£7.88 £6.57
907	MKD-70954 Available to backorder	File Holder Set 4.5mm(11/64") (Alt.) (F07-1)	£10.84 £9.03
907	MK412393-7 Available to backorder	Battery Cover (A07B)	£0.58 £0.48
908	MK196205-9 Available to backorder	Saw Chain Set (F08)	£29.46 £24.55
909	MKD-70948 Available to backorder	File Holder Set 4.0mm(5/32") (Alt.) (F09-1)	£10.84 £9.03
909	MK191B26-6 Available to backorder	Battery Bl4040 Set (A09B)	£313.75 £261.46
909	MK198457-8 Available to backorder	File Set (F09)	£19.38 £16.15
