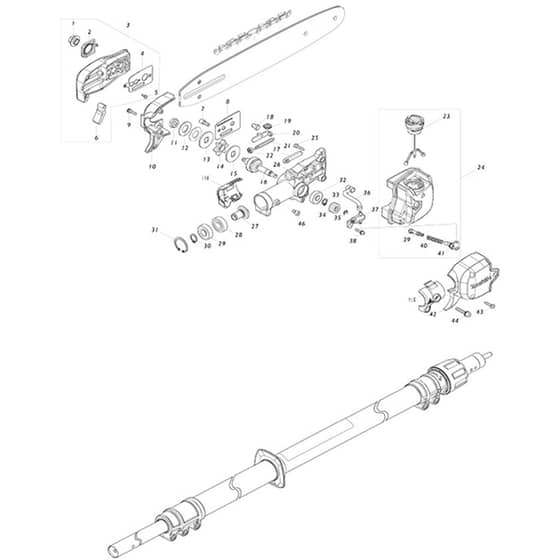

Makita UA004G - 300mm Cordless Pole Saw - Power Tool 01 Diagram

Description

Model No. UA004G

300mm Cordless Pole Saw

Power Tool 01 Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK162494-8 Available to backorder	Flange Nut Complete	£5.06 £4.22
2	MK412638-3 Available to backorder	Nut Cover	£2.06 £1.72
3	MK136373-6 Available to backorder	Sprocket Cover Assembly (INC. 1 2 4-6)	£20.74 £17.28
4	MK347707-0 Available to backorder	Guide Plate L	£1.36 £1.13
5	MK265954-0 Available to backorder	Binding Head Tapping Screw 3x8	£0.48 £0.40
7	MK266905-6 Available to backorder	Hexalobular Socket Head Bolt M5x12	£0.70 £0.58
8	MK347708-8 Available to backorder	Guide Plate R	£0.54 £0.45
9	MK911128-8 Available to backorder	Pan Head Screw M4x16 Wr	£0.47 £0.39
10	MK183P83-2 Available to backorder	Gear Case Housing Set (INC. 42)	£7.38 £6.15
11	MK252291-1 Available to backorder	Hex. Nut M6	£0.82 £0.68
12	MK232626-2 Available to backorder	Coned Disc Spring 14	£0.70 £0.58
13	MK347705-4 Available to backorder	Lock Washer 12	£0.96 £0.80
14	MK226992-7 Available to backorder	Sprocket 6	£3.96 £3.30
16	MK140V32-8 Available to backorder	Spindle Complete	£12.70 £10.58
17	MK422602-6 Available to backorder	Grommet	£0.82 £0.68
18	MK227620-7 Available to backorder	Drive Gear	£1.44 £1.20
19	MK227634-6 Available to backorder	Straight Bevel Gear 14	£3.76 £3.13

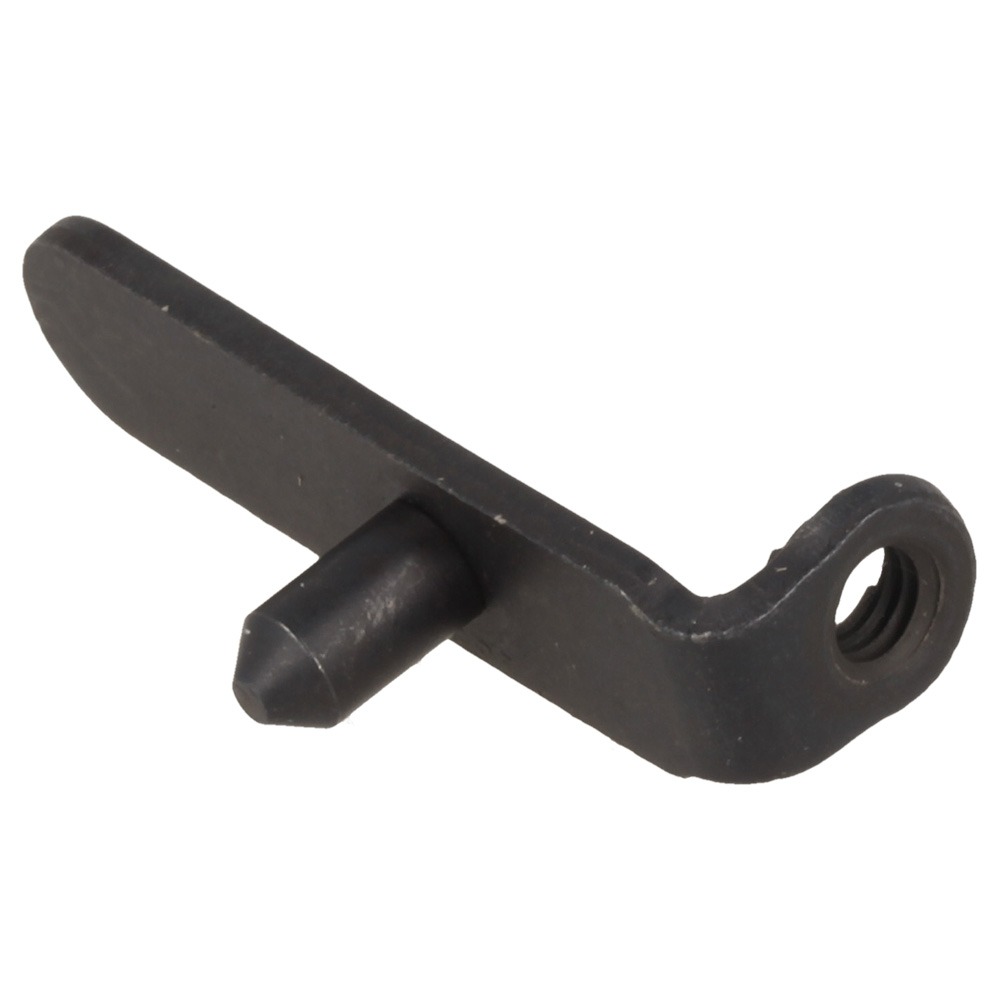

20	MK347706-2 Available to backorder	Tension Slide	£2.27 £1.89
21	MK327606-2 Available to backorder	Adjust Screw	£0.96 £0.80
22	MK227496-2 Available to backorder	Straight Bevel Gear 14	£3.46 £2.88
23	MK213894-6 Available to backorder	O-Ring 25 (C10)	£2.18 £1.82
23	MK126832-8 Available to backorder	Tank Cap Assembly	£21.84 £18.20
23	MK213A11-4 Available to backorder	O-Ring 25 (Alt.) (C11)	£0.48 £0.40
24	MK137016-3 Available to backorder	Oil Tank Assembly < (INC. 23 39-41)	£40.40 £33.67
24	MK136372-8 Available to backorder	Oil Tank Assembly (INC. 23 39-41 *)	£41.76 £34.80
25	MK266326-2 Available to backorder	Binding Head Tapping Screw 4x18	£0.48 £0.40
26	MK213437-4 Available to backorder	O-Ring 28 (C10)	£0.58 £0.48
26	MK136301-1 Available to backorder	Gear Case Assembly	£26.36 £21.97
26	MK137017-1 Available to backorder	Gear Case Assembly <	£23.36 £19.47
27	MK226995-1 Available to backorder	Spiral Bevel Gear 18	£4.92 £4.10
28	MK211131-2 Available to backorder	Ball Bearing 6001Ddw	£7.22 £6.02
29	MK211148-5 Available to backorder	Ball Bearing 6001Zz	£5.48 £4.57
30	MK961052-5 Available to backorder	Retaining Ring (Ext) S-12	£0.48 £0.40
31	MK962106-1 Available to backorder	Retaining Ring (Int) R-28	£1.32 £1.10
32	MK211491-2 Available to backorder	Ball Bearing 609Ddw	£2.60 £2.17
33	MK961005-4 Available to backorder	Retaining Ring (Ext) S-9	£0.48 £0.40
34	MK226884-0 Available to backorder	Worm Gear	£1.24 £1.03
35	MK961011-9 Available to backorder	Stop Ring (Ext) E-4	£0.48 £0.40
36	MK422600-0 Available to backorder	Oil Tube 3-70	£2.18 £1.82
37	MK141N25-0 Available to backorder	Oil Pump Complete (Alt.)	£10.38 £8.65
37	MK140U04-7 Available to backorder	Oil Pump Complete	£14.34 £11.95
39	MK452666-6 Available to backorder	Nipple	£0.54 £0.45
40	MK231975-4 Available to backorder	Spring	£0.48 £0.40
41	MK422601-8 Available to backorder	Oil Tube 3-14	£1.64 £1.37
44	MK922243-3 Available to backorder	Hex. Socket Head Bolt M5x25 Wr	£0.58 £0.48
115	MK183R91-5 Available to backorder	Gear Case Cover Set (INC. 116)	£2.60 £2.17
