Makita TM3000C - Multi Tool - Power Tool Diagram

Name: Makita TM3000C - Multi Tool - Power Tool Diagram
SKU: tm3000c_multi_tool_power_tool-group
Price: 0.4 GBP
Availability: InStock

Part No. tm3000c_multi_tool_power_tool-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Makita TM3000C - Multi Tool - Power Tool Diagram

Description

Model No. TM3000C

Multi Tool

Power Tool Parts Diagrams

	Part No.	Details
1	MK266429-2 Available to backorder	Binding Head Tapping Screw 3x16	£0.48 £0.40
2	MK187373-9 Available to backorder	Head Cover Set (INC. 7)	£8.40 £7.00
3	MK142399-8 Available to backorder	Crank Housing Complete <	£57.24 £47.70
4	MK424511-5 Available to backorder	Crank Housing Cap B	£0.48 £0.40
5	MK424510-7 Available to backorder	Crank Housing Cap A	£0.70 £0.58
6	MK266424-2 Available to backorder	Binding Head Tapping Screw 4x20	£0.48 £0.40

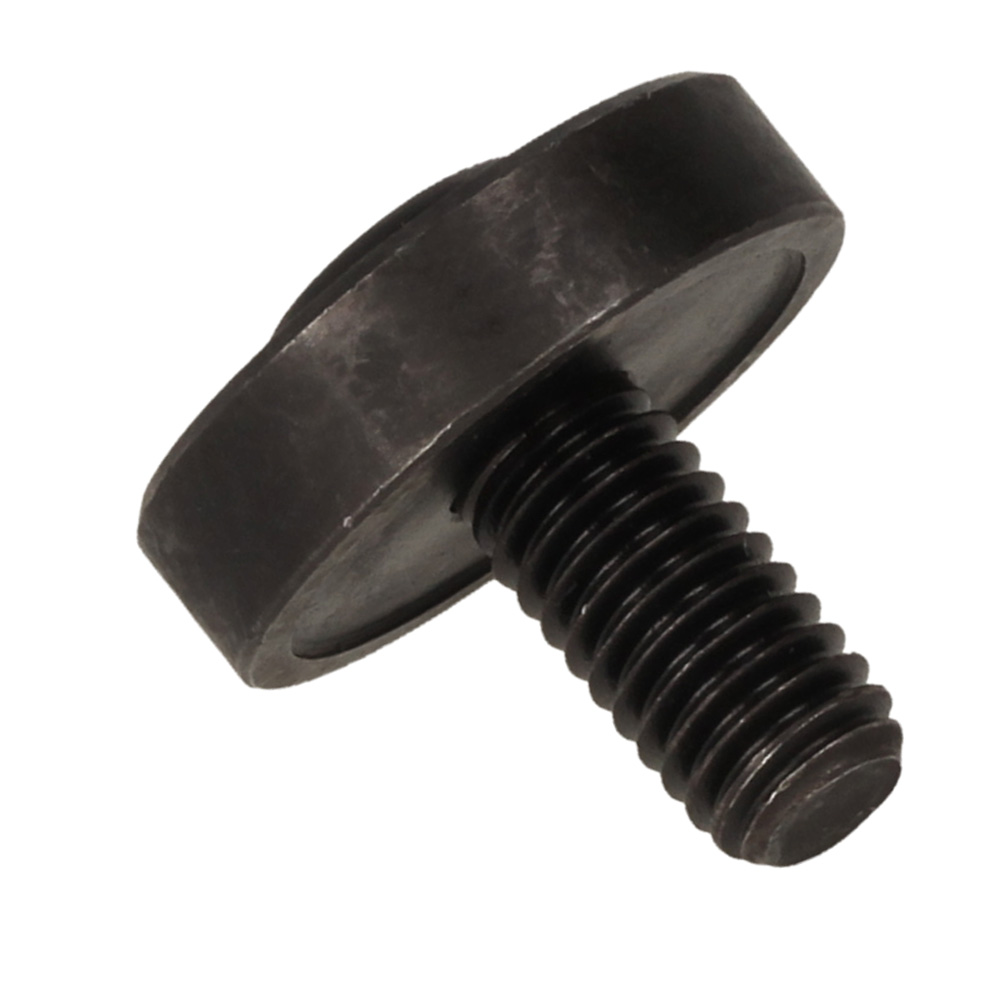

8	MK265674-6 In stock	Hex. Socket Head Bolt M6x14 S	£1.80 £1.50
10	MK213021-5 Available to backorder	O-Ring 5	£0.48 £0.40
11	MK213479-8 Available to backorder	O-Ring 33	£0.89 £0.74
12	MK326199-6 Available to backorder	Bearing Box	£5.52 £4.60
13	MK961003-8 Available to backorder	Retaining Ring (Ext) S-7	£0.48 £0.40
14	MK211392-4 Available to backorder	Sphere Bearing 706	£39.72 £33.10
15	MK253133-2 Available to backorder	Flat Washer 7	£0.48 £0.40
16	MK313245-4 Available to backorder	Balancer	£1.03 £0.86
17	MK210194-5 Available to backorder	Ball Bearing 629Ddw (Alt.)	£1.94 £1.62
17	MK211092-6 Available to backorder	Ball Bearing 629Ddw	£8.28 £6.90
18	MK285857-2 Available to backorder	Bearing Retainer	£1.22 £1.02
19	MK240140-4 Available to backorder	Fan 46	£1.39 £1.16
20	MK510480-7 Available to backorder	Armature Assembly 220-240V (Alt.) (INC. 19 21-26)	£30.12 £25.10
20	MK517683-4 Available to backorder	Armature Assembly 220-240V (INC. 19 21-26 *)	£39.72 £33.10
21	MK681636-0 Available to backorder	Insulation Washer	£2.21 £1.84
22	MK267426-1 Available to backorder	Flat Washer 7	£0.48 £0.40
23	MK210193-7 Available to backorder	Ball Bearing 627Ddw (Alt.)	£1.63 £1.36
23	MK210023-2 Available to backorder	Ball Bearing 627Ddw	£3.48 £2.90
24	MK267756-0 Available to backorder	Wave Washer 6	£0.48 £0.40
25	MK688174-3 Available to backorder	Magnet Sleeve	£4.32 £3.60
25	MK688117-5 Available to backorder	Magnet Sleeve (Alt.)	£2.83 £2.36
26	MK259039-2 Available to backorder	Self Lock 6	£0.48 £0.40
27	MK453828-9 Available to backorder	Baffle Plate	£0.89 £0.74
28	MK266415-3 Available to backorder	Binding Head Tapping Screw 4x55	£0.48 £0.40
29	MK623558-8 Available to backorder	Field 220-240V	£29.64 £24.70
30	MK453823-9 Available to backorder	Motor Housing	£15.48 £12.90
31	MK453761-5 Available to backorder	Switch Knob	£0.48 £0.40
32	MK453825-5 Available to backorder	Switch Lever	£1.22 £1.02
33	MK234263-8 Available to backorder	Compression Spring 5	£0.48 £0.40
34	MK651609-7 Available to backorder	Switch Ss106A-7-1	£11.40 £9.50
35	MK643839-4 Available to backorder	Brush Holder 6x9	£1.90 £1.58
36	MK266492-5 Available to backorder	Binding Head Tapping Screw 3x8	£0.48 £0.40

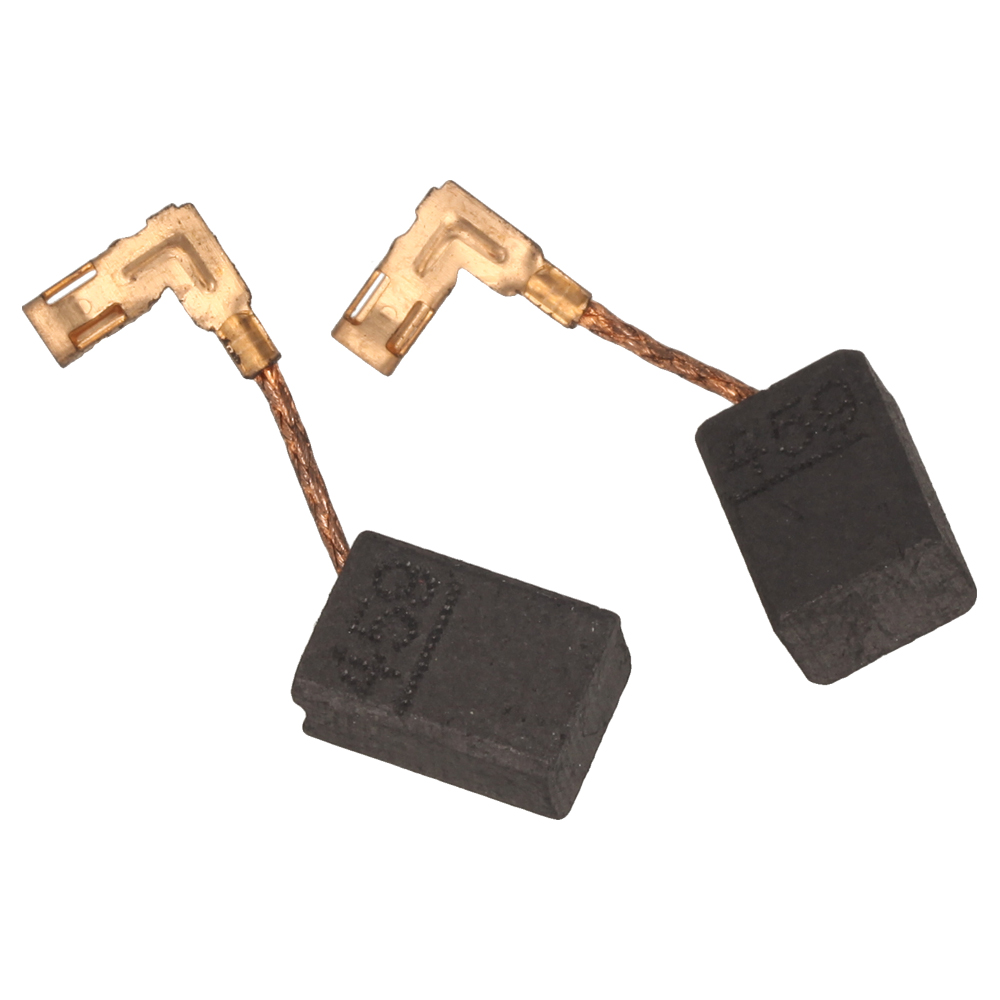

37	MK195026-6 In stock	Carbon Brush Set Cb-459 (Alt.)	£2.94 £2.45
38	MK654532-5 Available to backorder	Terminal Block 1P	£3.60 £3.00
40	MK266326-2 Available to backorder	Binding Head Tapping Screw 4x18	£0.48 £0.40
42	MK682569-2 Available to backorder	Cord Guard 8-85	£0.70 £0.58
43	MK897303-9 Available to backorder	Name Plate Tm3000C	£1.03 £0.86
44	MK620149-6 Available to backorder	Controller	£66.00 £55.00
45	MK453824-7 Available to backorder	Rear Cover	£4.92 £4.10
901	MK410047-0 Available to backorder	Wrench Holder 5.6 (A01)	£1.03 £0.86
902	MK783203-8 Available to backorder	Hex. Wrench 5 (A02)	£0.86 £0.72
902	MK783217-7 Available to backorder	Hex. Wrench 5 (Alt.) (A02-1)	£0.67 £0.56
903	MK454247-2 Available to backorder	Pin 4 (A03)	£0.48 £0.40
904	MK453974-8 Available to backorder	Latch (C10)	£2.18 £1.82
904	MK452137-3 Available to backorder	Handle (C20)	£2.05 £1.71
904	MK162315-4 Available to backorder	Latch (C10)	£2.56 £2.13
904	MK821538-0 Available to backorder	Tool Box (A04C) (Refs A22B \| A22D)	£7.32 £6.10
904	MK821550-0 Available to backorder	Connector Plastic Case (Type 2) (A04D) (Refs A04 \| A05 \| A05C)	£56.16 £46.80
904	MK821596-6 Available to backorder	Plastic Case < (A04-1B)	£29.28 £24.40
905	MK837673-4 Available to backorder	Inner Tray (A05D)	£11.52 £9.60
905	MK800F14-3 Available to backorder	Plastic Case Label Tm3000Cx3 (A05B)	£0.48 £0.40
906	MK422362-0 Available to backorder	Felt Ring 47 (C60)	£1.63 £1.36
906	MK196022-7 Available to backorder	Dust Attachment Set (A06)	£5.04 £4.20
906	MK443177-2 Available to backorder	Felt Ring 37 (C10)	£1.39 £1.16
906	MK453832-8 Available to backorder	Joint (C30)	£1.74 £1.45
906	MK199618-3 Available to backorder	Dust Attachment Set < (A06-1)	£7.92 £6.60
906	MK459362-7 Available to backorder	Spacer (C70)	£0.98 £0.82
906	MK453834-4 Available to backorder	Dust Nozzle A (C40)	£1.92 £1.60
906	MK453829-7 Available to backorder	Dust Collecting Attachment (C20)	£0.89 £0.74
906	MK453835-2 Available to backorder	Nozzle Band A (C50)	£1.13 £0.94
908	MKB-21325 Available to backorder	Segment Saw Blade 85 Tma006 (A08B) (Refs A08 \| A08D)	£26.40 £22.00
908	MKB-64799 Available to backorder	Starlock Segmentsaw 85 Tma045 (A08-2)	£22.92 £19.10
909	MKB-64836 Available to backorder	Starlock Segmentsaw 85 Tma049 (A09-2)	£20.88 £17.40
909	MKB-21331 Available to backorder	Segment Saw Blade 85 Tma007 (A09B) (Refs A09 \| A09D)	£24.12 £20.10
910	MKB-64814 Available to backorder	Starlock Cutsaw 32 Tma047Bim (A10-2)	£24.12 £20.10
911	MKB-21369 Available to backorder	Plunge Cut Saw Blade 32 Tm (A11B) (Refs A11 \| A11D)	£24.12 £20.10
911	MKB-64870 Available to backorder	Starlock Cutsaw 32 Tma053 (A11-2)	£20.88 £17.40
912	MKB-21381 Available to backorder	Plunge Cut Saw Blade 32 Tm (A12B) (Refs A12 \| A12D)	£14.88 £12.40
912	MKB-64858 Available to backorder	Starlock Cutsaw 32 Tma051 (A12-2)	£12.96 £10.80
913	MKB-21428 Available to backorder	Plunge Cut Saw Blade 20 Tm (A13B) (Refs A13 \| A13D)	£12.12 £10.10
913	MKB-64923 Available to backorder	Starlock Cutsaw 20 Tma058 (A13-2)	£10.44 £8.70
914	MKB-64917 Available to backorder	Starlock Cutsaw 10 Tma057 (A14-2)	£9.96 £8.30
914	MKB-21434 Available to backorder	Plunge Cut Saw Blade 10 Tm (A14B) (Refs A14 \| A14D)	£11.52 £9.60
915	MKB-21456 Available to backorder	Scraper 52 Flexible Tma019 (A15B) (Refs A15 \| A15D)	£13.80 £11.50
915	MKB-64995 Available to backorder	Starlock Scraperflexible Tma66 (A15-2)	£12.00 £10.00
916	MKB-65028 Available to backorder	Starlock Segmentsaw 85 Tma069 (A16-2)	£28.80 £24.00
916	MKB-21490 Available to backorder	Hm Seg Saw Blade 85 Tma023 (A16B) (Refs A16 \| A16D)	£33.36 £27.80
917	MKB-65040 Available to backorder	Starlock Segmentsaw 70 Tma071 (A17-2)	£28.80 £24.00
917	MKB-21509 Available to backorder	Hm Seg Saw Blade 65 Tma024 (A17B) (Refs A17 \| A17D)	£33.36 £27.80
918	MKB-21624 Available to backorder	Abrasivepaper Delta Red 60 (A18B)	£3.36 £2.80
919	MKB-22947 Available to backorder	Abrasivepaper Delta Red 100 (A19B)	£3.36 £2.80
920	MKB-22953 Available to backorder	Abrasivepaper Delta Red 150 (A20B)	£3.36 £2.80
921	MKB-65115 Available to backorder	Starlock Sanding Pad 93 Tma078 (A21-2)	£12.12 £10.10
921	MKB-46202 Available to backorder	Sanding Pad < (A21-1)	£13.92 £11.60
