Makita SP6000 - Plunge Cut Circular Saw - Power Tool Diagram

Description

Model No. SP6000

Plunge Cut Circular Saw

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK210013-5 Available to backorder	Ball Bearing 698Vv	£6.52 £5.43
2	MK681634-4 Available to backorder	Insulation Washer	£1.16 £0.97
3	MK513678-5 Available to backorder	Armature Assembly 220-240V (INC. 1 2 4-6 *)	£114.68 £95.57
4	MK240091-1 Available to backorder	Fan 60	£17.20 £14.33
5	MK345767-6 Available to backorder	Drum	£7.80 £6.50
6	MK210216-1 Available to backorder	Ball Bearing 6001Ddw >	£2.18 £1.82
6	MK211131-2 Available to backorder	Ball Bearing 6001Ddw	£7.22 £6.02
7	MK345742-2 Available to backorder	Shaft Lock	£7.66 £6.38
8	MK265011-4 Available to backorder	Binding Head Shoulder Screw M5	£1.74 £1.45
9	MK158096-6 Available to backorder	Shoe Complete	£11.72 £9.77
10	MK233480-7 Available to backorder	Compression Spring 7	£0.74 £0.62
11	MK286275-7 Available to backorder	Cap	£0.58 £0.48
11	MK286039-9 Available to backorder	Cap <	£0.58 £0.48
12	MK233084-5 Available to backorder	Compression Spring 6	£0.48 £0.40
13	MK286040-4 Available to backorder	Cap <	£0.74 £0.62
14	MK144586-5 Available to backorder	Gear Housing Complete (Alt.)	£53.02 £44.18
14	MK158092-4 Available to backorder	Gear Housing Complete	£95.04 £79.20
14	MK263002-9 Available to backorder	Rubber Pin 4 (C10)	£0.48 £0.40
15	MK326960-1 Available to backorder	Pin 8 S	£2.18 £1.82
15	MK327B66-0 Available to backorder	Pin 8 (Alt.)	£2.18 £1.82
16	MK324708-5 Available to backorder	Stopper Pin 8	£4.20 £3.50
17	MK265907-9 Available to backorder	Hex. Socket Head Bolt M5x10 S	£0.74 £0.62
17	MK265913-4 Available to backorder	Hex. Socket Head Bolt M5x8	£0.74 £0.62
18	MK213512-6 Available to backorder	O-Ring 39	£2.18 £1.82
19	MK211021-9 Available to backorder	Ball Bearing 607Llb	£7.80 £6.50
20	MK961052-5 Available to backorder	Retaining Ring (Ext) S-12	£0.48 £0.40
21	MK226637-7 Available to backorder	Helical Gear 39	£11.72 £9.77
22	MK257010-0 Available to backorder	Ring 12	£0.58 £0.48
23	MK318088-9 Available to backorder	Bearing Box	£7.66 £6.38
24	MK211129-9 Available to backorder	Ball Bearing 6201Ddw	£9.40 £7.83
25	MK324707-7 Available to backorder	Spindle	£22.98 £19.15
26	MK285689-7 Available to backorder	Bearing Retainer 55	£1.74 £1.45
27	MK911221-8 Available to backorder	Pan Head Screw M5x16 W	£0.48 £0.40
28	MK419620-3 Available to backorder	Dust Nozzle	£1.74 £1.45
29	MK213460-9 Available to backorder	O-Ring 35	£2.02 £1.68
30	MK233479-2 Available to backorder	Compression Spring 11	£1.60 £1.33
31	MK419624-5 Available to backorder	Spring Holder	£2.32 £1.93
32	MK158095-8 Available to backorder	Lever 20 Complete	£2.42 £2.02
32	MK144867-7 Available to backorder	Lever 20 Complete <	£0.96 £0.80
33	MK213021-5 Available to backorder	O-Ring 5	£0.48 £0.40
34	MK324710-8 Available to backorder	Pin 8	£2.18 £1.82
35	MK266007-8 Available to backorder	Binding Head Tapping Screw 3x10	£0.48 £0.40
36	MK253821-1 Available to backorder	Flat Washer 3	£0.48 £0.40
37	MK419625-3 Available to backorder	Depth Guide	£9.89 £8.24
37	MK457756-0 Available to backorder	Depth Guide (Alt.)	£2.60 £2.17
38	MK231665-9 Available to backorder	Torsion Spring 7	£0.58 £0.48
39	MK419630-0 Available to backorder	Lock Lever	£2.46 £2.05
40	MK251867-1 Available to backorder	Thumb Screw M5x30	£0.74 £0.62
41	MK941101-4 Available to backorder	Flat Washer 5	£0.48 £0.40
42	MK419623-7 Available to backorder	Stopper Block	£3.34 £2.78
43	MK266034-5 Available to backorder	Binding Head Tapping Screw 4x16 (Refs 045 \| 054)	£0.48 £0.40
44	MK345744-8 Available to backorder	Nut Plate	£2.18 £1.82
46	MK419632-6 Available to backorder	Pointer	£1.44 £1.20
47	MK233025-1 Available to backorder	Compression Spring 2 (C10)	£0.58 £0.48
47	MK347392-9 Available to backorder	Plate (Alt.) (C21)	£0.48 £0.40
47	MK140D56-6 Available to backorder	Blade Case Complete (Alt.)	£72.12 £60.10
47	MK253874-0 Available to backorder	Flat Washer 4 (C20)	£0.48 £0.40
47	MK286277-3 Available to backorder	Cap 14 (C40)	£1.99 £1.66
47	MK286041-2 Available to backorder	Cap 14 < (C41)	£0.70 £0.58
47	MK259008-3 Available to backorder	Push Nut 4 (C30)	£0.48 £0.40
47	MK345747-2 Available to backorder	Spacer Plate (C50)	£4.20 £3.50
48	MK266053-1 Available to backorder	Binding Head Tapping Screw 4x35	£0.58 £0.48
48	MK265B69-5 Available to backorder	Binding Head Tapping Screw 4x35	£0.48 £0.40
48	MK266351-3 Available to backorder	Binding Head Tapping Screw 4x35	£0.48 £0.40
49	MK253010-8 Available to backorder	Flat Washer 6	£0.48 £0.40
50	MK224406-0 Available to backorder	Inner Flange 35	£14.32 £11.93
50	MK224593-5 Available to backorder	Inner Flange 35 (Alt.)	£1.88 £1.57
51	MK224409-4 In stock	Outer Flange 35 (Alt.)	£2.18 £1.82
51	MK224405-2 Available to backorder	Outer Flange 35	£13.74 £11.45
52	MK266403-0 Available to backorder	Hex. Socket Head Bolt M6x20	£2.46 £2.05
53	MK319709-6 Available to backorder	Blade Case Cover S	£49.14 £40.95
53	MK318084-7 Available to backorder	Blade Case Cover	£55.22 £46.02
55	MK188197-6 Available to backorder	Handle Set (INC. 102)	£37.56 £31.30
56	MK265776-8 Available to backorder	Thumb Screw M6x26	£1.16 £0.97
57	MK253111-2 Available to backorder	Flat Washer 6	£0.48 £0.40
58	MK419596-4 Available to backorder	Rear Angular Guide	£6.94 £5.78
59	MK318179-6 Available to backorder	Base S	£88.00 £73.33
60	MK265995-6 Available to backorder	Binding Head Tapping Screw 4x18 (Refs 068 \| 089 \| 099)	£0.48 £0.40
61	MK324731-0 Available to backorder	Stopper Pin	£6.22 £5.18
62	MK252157-5 Available to backorder	Square Nut M6	£0.48 £0.40
63	MK266085-8 Available to backorder	Hex. Socket Set Screw (Flat Point) M6x10	£0.48 £0.40
63	MK266225-8 Available to backorder	Hex. Socket Set Screw (Flat Point) M6x8	£0.58 £0.48
64	MK419595-6 Available to backorder	Front Angular Guide	£9.12 £7.60
64	MK413A11-6 Available to backorder	Front Angular Guide <	£5.74 £4.78
65	MK457963-5 Available to backorder	Dial 22 <	£0.58 £0.48
65	MK419571-0 Available to backorder	Dial 22	£0.72 £0.60
66	MK961017-7 Available to backorder	Stop Ring (Ext) E-3	£0.48 £0.40
71	MK912112-6 In stock	Countersunk Head Screw M4x10	£0.48 £0.40
72	MK345748-0 Available to backorder	Lock Washer	£2.60 £2.17
73	MK231316-4 Available to backorder	Compression Spring 7	£0.58 £0.48
73	MK231240-1 Available to backorder	Compression Spring 7 (Alt.)	£0.48 £0.40
74	MK265701-9 In stock	Thumb Screw M6x14	£2.02 £1.68

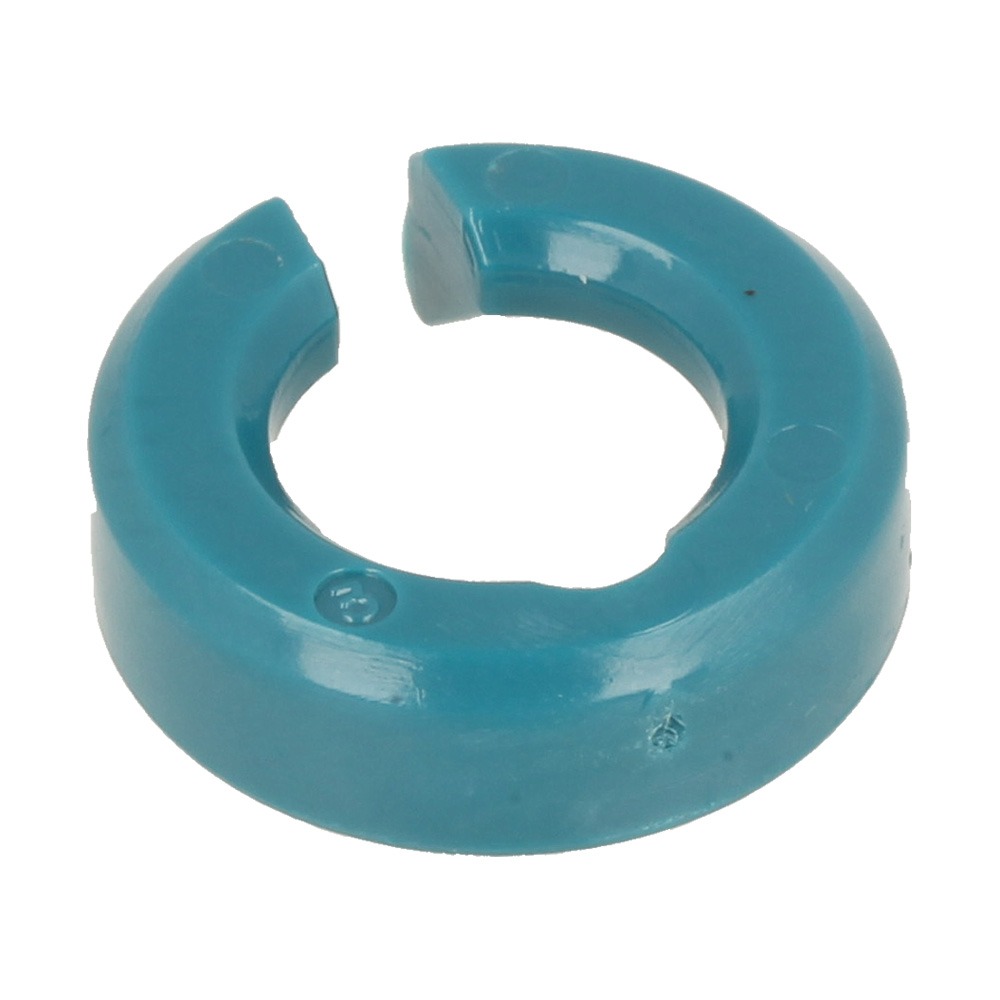

75	MK419627-9 In stock	Holder	£1.60 £1.33
76	MK265775-0 Available to backorder	Thumb Screw M4x3	£0.86 £0.72
77	MK345977-5 Available to backorder	Plate <	£0.48 £0.40
77	MK267070-4 Available to backorder	Flat Washer 10	£0.58 £0.48
78	MK253932-2 Available to backorder	Wave Washer 10	£0.48 £0.40
79	MK419621-1 Available to backorder	Slide Lever	£1.74 £1.45
79	MK458092-7 Available to backorder	Slide Lever <	£1.36 £1.13
84	MK922232-8 Available to backorder	Hex. Socket Head Bolt M5x20	£0.48 £0.40
85	MK324709-3 Available to backorder	Lock Pin 8	£5.48 £4.57
86	MK233267-7 Available to backorder	Compression Spring 7	£1.32 £1.10
87	MK419631-8 Available to backorder	Lock Plate	£2.60 £2.17
88	MK687052-4 Available to backorder	Strain Relief	£0.74 £0.62
90	MK631729-3 Available to backorder	Controller	£104.86 £87.38
91	MK213261-5 Available to backorder	O-Ring 17	£1.74 £1.45
92	MK418905-4 Available to backorder	Dial	£0.86 £0.72
93	MK645185-1 Available to backorder	Noise Suppressor	£0.74 £0.62
94	MK419622-9 Available to backorder	Switch Lever	£3.04 £2.53
95	MK651922-3 Available to backorder	Switch Tg71B	£14.30 £11.92
96	MK345745-6 Available to backorder	Link Plate	£3.34 £2.78
97	MK419629-5 Available to backorder	Lock Off Button	£2.18 £1.82
98	MK233089-5 Available to backorder	Compression Spring 12	£0.54 £0.45
100	MK911273-9 Available to backorder	Pan Head Screw M5x50 Wr	£0.70 £0.58
101	MK862913-1 Available to backorder	Name Plate Sp6000	£0.85 £0.71
103	MK665890-4 Available to backorder	Power Supply Cord 1.0-2-4.0	£10.52 £8.77
104	MK682574-9 Available to backorder	Cord Guard 10 (Alt.)	£1.16 £0.97
104	MK682540-6 Available to backorder	Cord Guard 9.3-90	£1.32 £1.10
105	MK419626-1 Available to backorder	Baffle Plate	£1.16 £0.97
106	MK266044-2 Available to backorder	Binding Head Tapping Screw 5x60	£2.18 £1.82
107	MK654485-8 Available to backorder	Non-Insulated Splice (Alt.) (C21)	£0.48 £0.40
107	MK654020-2 Available to backorder	Ring Terminal 36L (C10)	£0.74 £0.62
107	MK525743-8 Available to backorder	Field Assembly 220-240V	£45.94 £38.28
107	MK654501-6 Available to backorder	Non-Insulated Splice P-1.25 (C20)	£0.48 £0.40
108	MK158094-0 Available to backorder	Motor Housing Complete	£42.62 £35.52
108	MK643708-9 Available to backorder	Brush Holder 5-11 (C10)	£2.18 £1.82
110	MK194996-6 Available to backorder	Carbon Brush Set Cb-303 (Alt.)	£3.92 £3.27
111	MK643750-0 Available to backorder	Holder Cap 7-11	£1.32 £1.10
112	MK267781-1 Available to backorder	Wave Washer 7	£1.74 £1.45
113	MK231372-4 Available to backorder	Compression Spring 5	£0.48 £0.40
115	MK421479-6 Available to backorder	Rubber Ring 19	£6.22 £5.18
116	MK424047-4 Available to backorder	Packing	£0.74 £0.62
117	MK424050-5 Available to backorder	Sponge	£0.58 £0.48
118	MK443137-4 Available to backorder	Felt	£0.58 £0.48
121	MK911013-5 Available to backorder	Pan Head Screw M3x10 Wr	£0.48 £0.40
122	MK213045-1 Available to backorder	O-Ring 6	£0.48 £0.40
901	MKB-57336 Available to backorder	Tct Blade165x20x56Twood/Mdf Db (A01-1)	£71.00 £59.17
902	MK413102-7 Available to backorder	Seat 3000 (C10)	£12.68 £10.57
902	MK783217-7 Available to backorder	Hex. Wrench 5 (Alt.) (A02-1)	£0.56 £0.47
902	MK423362-3 Available to backorder	Rubber Sheet 3000 (C30)	£13.76 £11.47
902	MK423360-7 Available to backorder	Position Sheet 3000 (C20)	£9.28 £7.73
902	MK819212-2 Available to backorder	Makita Logo Label (C40)	£0.48 £0.40
902	MK783203-8 Available to backorder	Hex. Wrench 5 (A02)	£0.72 £0.60
903	MK165447-6 Available to backorder	Sub Base (A03A)	£24.54 £20.45
903	MK423361-5 Available to backorder	Rubber Sheet 1400 (C30)	£8.66 £7.22
903	MK453471-4 Available to backorder	Handle (C10)	£40.16 £33.47
903	MK194368-5 Available to backorder	Guide Rail 1400 Set (F03)	£78.76 £65.63
903	MK423359-2 Available to backorder	Position Sheet 1400 (C20)	£6.22 £5.18
903	MK453974-8 Available to backorder	Latch (C10)	£2.00 £1.67
903	MK453472-2 Available to backorder	Latch (C20)	£10.12 £8.43
903	MK821552-6 Available to backorder	Connector Plastic Case (Type 4) (A03C)	£74.82 £62.35
903	MK413101-9 Available to backorder	Seat 1400 (C10)	£2.32 £1.93
906	MK194416-0 Available to backorder	Sheet 10000 Set (F06)	£39.90 £33.25
907	MK194417-8 Available to backorder	Rubber Sheet 10000 Set (F07)	£58.88 £49.07
907	MK838390-9 Available to backorder	Inner Tray < (A07-2C)	£11.16 £9.30
908	MK194385-5 Available to backorder	Clamp Set (F08)	£37.00 £30.83
909	MK196664-7 Available to backorder	Bevel Guide Set (Alt.) (F09-1)	£44.48 £37.07
915	MK198885-7 Available to backorder	Guide Rail Connector Set (F15)	£22.50 £18.75
917	MK199140-0 Available to backorder	Guide Rail 1000 Set (F17)	£53.02 £44.18
918	MK199141-8 Available to backorder	Guide Rail 1500 Set (F18)	£104.38 £86.98
919	MK199826-6 Available to backorder	Ratchet Clamp Set (F19)	£83.52 £69.60
927	MK1913J9-2 Available to backorder	Limit Stop Set (F27)	£5.92 £4.93
928	MK1913K7-3 Available to backorder	Parallel Guide Set (mm) (F28)	£105.48 £87.90
949	MK1913K5-7 Available to backorder	Push Clamp Set (G49)	£45.22 £37.68
