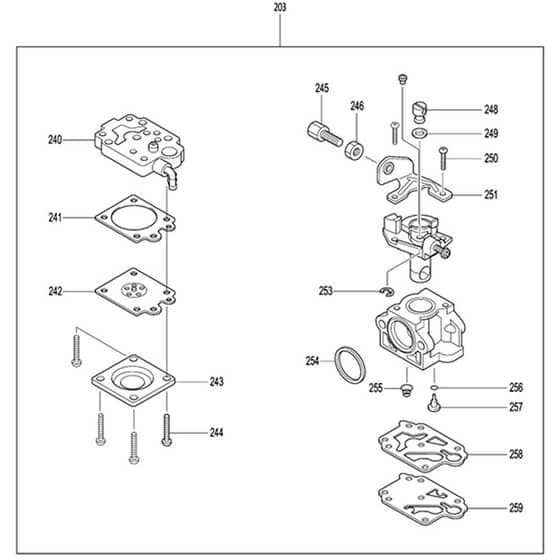

Makita SP-7650.4R - Petrol Mist Blower - Power Tool 09 Diagram

Description

Model No. SP-7650.4R

Petrol Mist Blower

Power Tool 09 Parts Diagrams

	Part No.	Details
203	MK168725-3 Available to backorder	Carburetor	£95.88 £79.90
204	MK282027-4 Available to backorder	Hose Clamp 6	£1.94 £1.62
205	MK412134-1 Available to backorder	Tube 3-210	£2.10 £1.75
206	MK454190-5 Available to backorder	Corrugate Tube 160	£1.49 £1.24
207	MK412121-0 Available to backorder	Tube 3-130	£0.89 £0.74
208	MK412123-6 Available to backorder	Tube 10-110	£4.20 £3.50
209	MK168398-2 In stock	Primer Pump	£7.67 £6.39
210	MK412112-1 Available to backorder	Tube 3-60	£0.89 £0.74
211	MK452952-5 Available to backorder	Hose Joint	£1.90 £1.58
212	MK422096-5 Available to backorder	Tube 3-25	£1.58 £1.32
213	MK412122-8 Available to backorder	Tube 3-240	£2.69 £2.24
214	MK412124-4 Available to backorder	Tube 10-220	£6.00 £5.00
215	MK346582-1 Available to backorder	Plate 31	£5.88 £4.90
216	MK458165-6 Available to backorder	Choke Lever S	£4.20 £3.50
217	MK814P65-0 Available to backorder	Serial No. Label	£0.98 £0.82
218	MK126149-9 Available to backorder	Cleaner Plate Assembly	£37.68 £31.40
219	MK453501-1 Available to backorder	Air Cleaner Plate	£13.08 £10.90
220	MK424316-3 Available to backorder	Check Valve	£3.84 £3.20
221	MK162325-1 Available to backorder	Separator Gasket	£0.98 £0.82
222	MK352013-0 Available to backorder	Separator Net	£7.80 £6.50
223	MK162322-7 Available to backorder	Separator Stopper	£5.04 £4.20

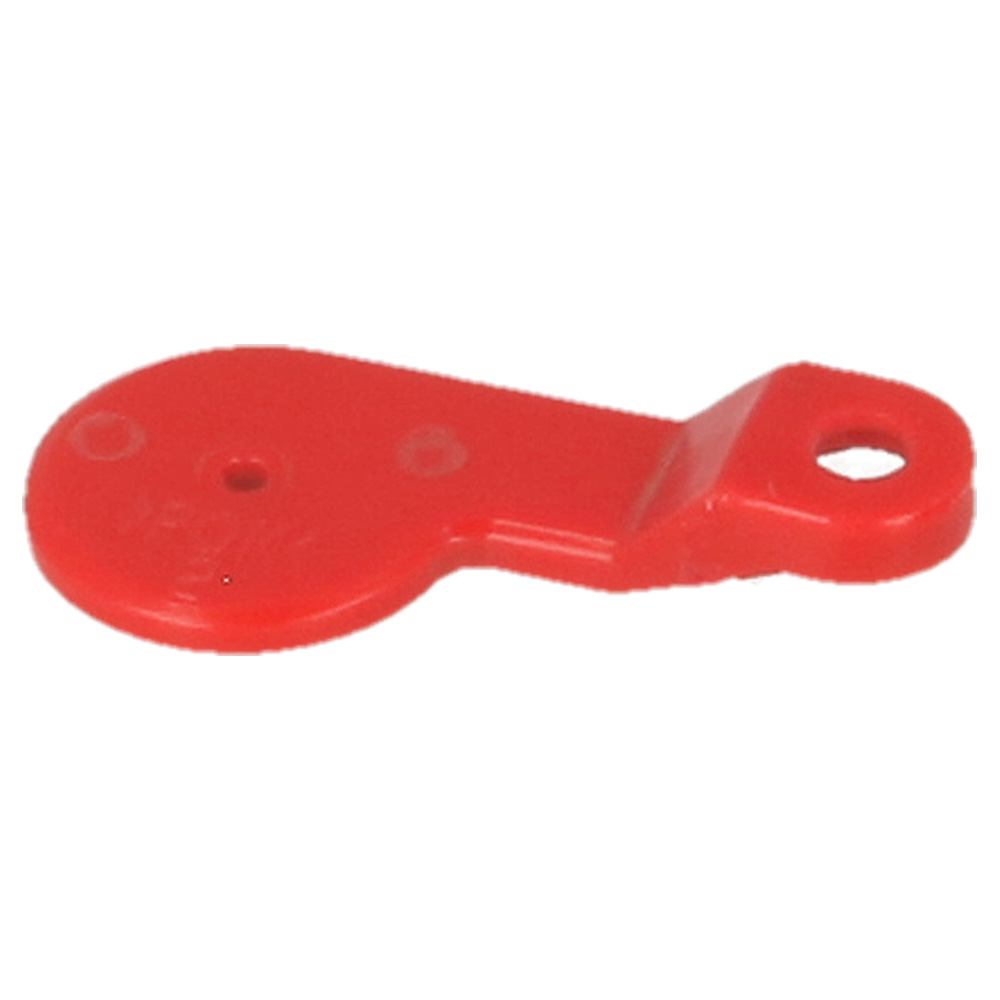

225	MK458166-4 Available to backorder	Choke Plate <	£1.03 £0.86
226	MK266427-6 Available to backorder	Tapping Screw 4x12	£0.48 £0.40
227	MK911243-8 Available to backorder	Pan Head Screw M5x25	£0.48 £0.40
228	MK911293-3 Available to backorder	Pan Head Screw M5x70	£1.32 £1.10
229	MK442181-8 Available to backorder	Air Cleaner Element	£19.72 £16.43
230	MK898350-3 Available to backorder	Indication Label (C10)	£0.48 £0.40
230	MK141525-6 Available to backorder	Air Cleaner Cover	£12.24 £10.20
232	MK424105-6 Available to backorder	Plug Cap	£1.22 £1.02
233	MK324891-8 Available to backorder	Plug Cap Spring	£0.70 £0.58
234	MK922138-0 Available to backorder	H.S.H.Bolt M4x20 With Wr (Alt.)	£3.01 £2.51
235	MK638784-6 Available to backorder	Wire	£2.24 £1.87
236	MK638710-5 Available to backorder	Lead Wire	£1.39 £1.16
237	MK161837-1 Available to backorder	Ignition Coil (Alt.)	£24.72 £20.60
238	MK5977001020 Available to backorder	Flywheel Compl	£78.72 £65.60
238	MK319170-7 Available to backorder	Flywheel (Alt.)	£14.04 £11.70
239	MK264054-3 Available to backorder	Flange Nut M10	£0.48 £0.40
240	MKWJ00014070 Available to backorder	Inlet Screen (C11)	£1.74 £1.45
240	MK141672-3 Available to backorder	Pump Body Assembly	£34.80 £29.00
241	MK442183-4 Available to backorder	Metering Diaphragm Gasket	£3.60 £3.00
242	MKWJ00095586 Available to backorder	Metering Diaphragm	£10.92 £9.10
243	MKWJ00021158 Available to backorder	Metering Diaphragm Cover	£2.21 £1.84
244	MKWJ00096325 Available to backorder	Screw	£2.38 £1.98
245	MK266795-7 Available to backorder	Adjust Screw	£4.08 £3.40
246	MK264065-8 Available to backorder	Cable Adjust Nut M6	£0.48 £0.40
248	MK325922-6 Available to backorder	Swivel	£5.28 £4.40
249	MK413140-9 Available to backorder	Washer	£1.90 £1.58
250	MK266704-6 Available to backorder	Pan Head Screw M3x10	£1.49 £1.24
251	MK346491-4 Available to backorder	Bracket Cable	£9.60 £8.00
253	MK257964-1 Available to backorder	Stop Ring E-3	£2.83 £2.36
254	MK424444-4 Available to backorder	Packing Ring	£2.38 £1.98
255	MK234183-6 Available to backorder	Conical Compression Spring	£3.12 £2.60
256	MK213538-8 Available to backorder	O Ring 2 (Alt.)	£3.48 £2.90
257	MK326243-9 Available to backorder	Jet	£9.00 £7.50
258	MK442155-9 Available to backorder	Pump Gasket	£3.01 £2.51
261	MK424361-8 Available to backorder	Starter Knob	£3.84 £3.20
262	MK424360-0 Available to backorder	Rope Stopper	£1.58 £1.32
263	MK423467-9 Available to backorder	Sponge 12	£0.98 £0.82
270	MK266326-2 Available to backorder	Tapping Screw 4x18	£0.48 £0.40
271	MK183A32-9 Available to backorder	Lever Case Set	£96.84 £80.70
272	MK168843-7 Available to backorder	Control Cable	£5.52 £4.60
273	MK231469-9 Available to backorder	Compression Spring 4	£0.48 £0.40
274	MK455648-7 Available to backorder	Throttle Lever	£13.44 £11.20
275	MK252126-6 Available to backorder	Hex. Lock Nut M4-7	£1.03 £0.86
276	MK232264-0 Available to backorder	Leaf Spring	£0.48 £0.40
277	MK455651-8 Available to backorder	Throttle Link	£6.84 £5.70
278	MK455649-5 Available to backorder	Lock Off Lever	£13.44 £11.20
279	MK233541-3 Available to backorder	Torsion Spring 7	£0.48 £0.40
281	MK455652-6 Available to backorder	Stopper	£6.72 £5.60
282	MK638642-6 Available to backorder	Switch Unit	£12.84 £10.70
283	MK632C07-2 Available to backorder	Lead Unit	£12.24 £10.20
284	MK266935-7 Available to backorder	Hex Socket Head Bolt M4x20	£0.48 £0.40
285	MK455653-4 Available to backorder	Cable Holder	£10.32 £8.60
286	MK457250-2 Available to backorder	Adjuster S	£7.92 £6.60
288	MK265762-9 Available to backorder	Thumb Screw M5x30	£0.89 £0.74
289	MK455650-0 Available to backorder	Lever 43	£7.32 £6.10
290	MK253903-9 Available to backorder	Wave Washer 6	£0.48 £0.40
291	MK267010-2 Available to backorder	Flat Washer 5	£0.48 £0.40
293	MK456235-5 Available to backorder	Corrugate Tube	£3.96 £3.30
294	MK424760-4 Available to backorder	Blind Packing	£1.49 £1.24
295	MK456173-1 Available to backorder	Strainer Case	£5.64 £4.70
296	MK453559-0 Available to backorder	Joint Strainer	£7.80 £6.50
297	MK266429-2 Available to backorder	Tapping Screw 3x16	£0.48 £0.40
298	MK453616-4 Available to backorder	Cap Hose	£2.69 £2.24
901	MK197056-3 Available to backorder	Hose Clamp Set (B01)	£13.80 £11.50
901	MK163319-9 Available to backorder	Hand Strap (A01)	£1.39 £1.16
901	MK812D40-8 Available to backorder	Sound 113Db Label (E01)	£0.48 £0.40
902	MK197070-9 Available to backorder	O Ring Set (Alt.) (B02)	£5.28 £4.40
902	MK782237-8 Available to backorder	Box Wrench (A02)	£3.36 £2.80
903	MK783019-1 Available to backorder	Driver (A03)	£1.61 £1.34
904	MK195615-7 Available to backorder	Oil Bottle Set (A04)	£8.52 £7.10
906	MK282025-8 Available to backorder	Hose Clamp 100 (A06)	£3.60 £3.00
907	MK412115-5 Available to backorder	Flexible Pipe (A07)	£19.44 £16.20
910	MK456182-0 Available to backorder	Tube 10-250 (A10)	£4.80 £4.00
912	MK455634-8 Available to backorder	Flat Pipe (A12)	£12.72 £10.60
