Makita SP-7650.4R - Petrol Mist Blower - Power Tool 08 Diagram

Description

Model No. SP-7650.4R

Petrol Mist Blower

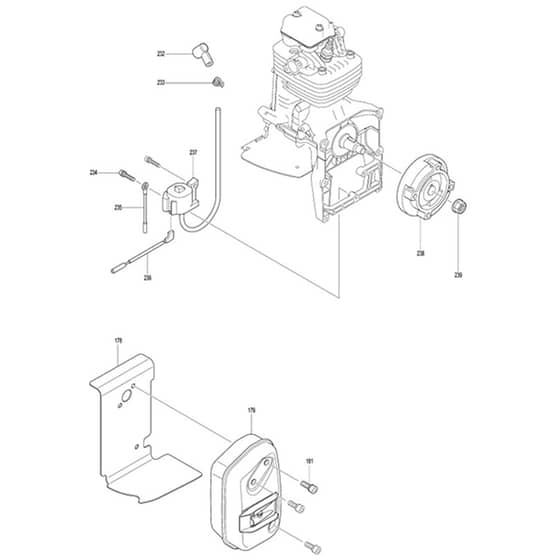

Power Tool 08 Parts Diagrams

	Part No.	Details
178	MK346682-7 Available to backorder	Muffler Gasket	£3.84 £3.20
179	MK168807-1 Available to backorder	Exhaust Muffler (Alt.)	£14.52 £12.10
179	MK5973001003 Available to backorder	Muffler Exhaust	£40.08 £33.40
181	MK266771-1 Available to backorder	Socket Head Bolt M6x18	£2.53 £2.11
186	MK161599-1 Available to backorder	Pulley (Alt.)	£3.24 £2.70
186	MK5975500000 Available to backorder	Pulley	£9.48 £7.90
187	MK266585-8 Available to backorder	Tapping Screw 5x12	£1.90 £1.58
188	MK424516-5 Available to backorder	Collar	£1.90 £1.58
189	MK326200-7 Available to backorder	Swing Arm	£1.90 £1.58
190	MK234257-3 Available to backorder	Friction Spring	£3.48 £2.90
193	MK444043-6 Available to backorder	Starter Rope	£7.20 £6.00
194	MK441075-4 Available to backorder	Reel	£7.80 £6.50
195	MKSG00000014 Available to backorder	Spiral Spring (Alt.)	£8.04 £6.70
196	MK141649-8 Available to backorder	Starter Case Complete	£27.36 £22.80
197	MK5233504200 Available to backorder	Carburetor Gasket	£1.90 £1.58
198	MK423438-6 Available to backorder	Carburetor Gasket	£3.48 £2.90
199	MK266749-4 Available to backorder	Hex. S.H.B. M5x25 With Wr	£3.48 £2.90
200	MK141670-7 Available to backorder	Insulator Compl	£12.96 £10.80
201	MK162333-2 Available to backorder	Insulator Gasket	£3.01 £2.51
203	MK168725-3 Available to backorder	Carburetor	£95.88 £79.90
204	MK282027-4 Available to backorder	Hose Clamp 6	£1.94 £1.62
205	MK412134-1 Available to backorder	Tube 3-210	£2.10 £1.75
206	MK454190-5 Available to backorder	Corrugate Tube 160	£1.49 £1.24
207	MK412121-0 Available to backorder	Tube 3-130	£0.89 £0.74
208	MK412123-6 Available to backorder	Tube 10-110	£4.20 £3.50
209	MK168398-2 In stock	Primer Pump	£7.67 £6.39
210	MK412112-1 Available to backorder	Tube 3-60	£0.89 £0.74
211	MK452952-5 Available to backorder	Hose Joint	£1.90 £1.58
212	MK422096-5 Available to backorder	Tube 3-25	£1.58 £1.32
213	MK412122-8 Available to backorder	Tube 3-240	£2.69 £2.24
214	MK412124-4 Available to backorder	Tube 10-220	£6.00 £5.00
215	MK346582-1 Available to backorder	Plate 31	£5.88 £4.90
216	MK458165-6 Available to backorder	Choke Lever S	£4.20 £3.50
217	MK814P65-0 Available to backorder	Serial No. Label	£0.98 £0.82
218	MK126149-9 Available to backorder	Cleaner Plate Assembly	£37.68 £31.40
219	MK453501-1 Available to backorder	Air Cleaner Plate	£13.08 £10.90
220	MK424316-3 Available to backorder	Check Valve	£3.84 £3.20
221	MK162325-1 Available to backorder	Separator Gasket	£0.98 £0.82
222	MK352013-0 Available to backorder	Separator Net	£7.80 £6.50
223	MK162322-7 Available to backorder	Separator Stopper	£5.04 £4.20
225	MK458166-4 Available to backorder	Choke Plate <	£1.03 £0.86
226	MK266427-6 Available to backorder	Tapping Screw 4x12	£0.48 £0.40
227	MK911243-8 Available to backorder	Pan Head Screw M5x25	£0.48 £0.40
228	MK911293-3 Available to backorder	Pan Head Screw M5x70	£1.32 £1.10
229	MK442181-8 Available to backorder	Air Cleaner Element	£19.72 £16.43
230	MK898350-3 Available to backorder	Indication Label (C10)	£0.48 £0.40
230	MK141525-6 Available to backorder	Air Cleaner Cover	£12.24 £10.20
232	MK424105-6 Available to backorder	Plug Cap	£1.22 £1.02
233	MK324891-8 Available to backorder	Plug Cap Spring	£0.70 £0.58
234	MK922138-0 Available to backorder	H.S.H.Bolt M4x20 With Wr (Alt.)	£3.01 £2.51
235	MK638784-6 Available to backorder	Wire	£2.24 £1.87
236	MK638710-5 Available to backorder	Lead Wire	£1.39 £1.16
237	MK161837-1 Available to backorder	Ignition Coil (Alt.)	£24.72 £20.60
238	MK319170-7 Available to backorder	Flywheel (Alt.)	£14.04 £11.70
238	MK5977001020 Available to backorder	Flywheel Compl	£78.72 £65.60
239	MK264054-3 Available to backorder	Flange Nut M10	£0.48 £0.40
