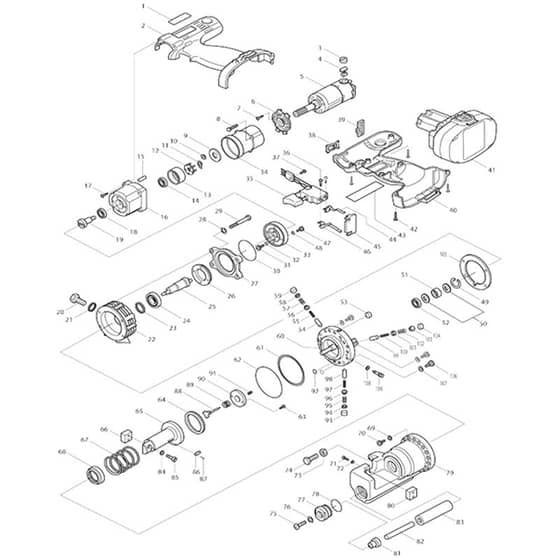

Makita SC190D - Cordless Steel Rod Cutter - Power Tool Diagram

Description

Model No. SC190D

Cordless Steel Rod Cutter

Power Tool Parts Diagrams

	Part No.	Details
2	MK183032-3 Available to backorder	Housing Set (INC. 40)	£19.44 £16.20
3	MK643954-4 In stock	Holder Cap	£1.39 £1.16
4	MK191971-3 In stock	Carbon Brush Set	£5.72 £4.77
5	MK629743-1 Available to backorder	Dc Motor (INC. 3 4)	£63.36 £52.80
6	MK317069-0 Available to backorder	Motor Bracket	£2.21 £1.84
7	MK266134-1 Available to backorder	Pan Head Tapping Screw 4x8	£0.48 £0.40
8	MK911017-7 Available to backorder	Pan Head Screw M3x12	£0.48 £0.40
9	MK267187-3 Available to backorder	Flat Washer 16	£0.70 £0.58
10	MK226368-8 Available to backorder	Spur Gear 14	£0.70 £0.58
11	MK961004-6 Available to backorder	Retaining Ring (Ext) S-8	£0.48 £0.40
12	MK152594-2 Available to backorder	Carrier Complete	£2.21 £1.84
13	MK226397-1 Available to backorder	Internal Gear 45	£2.83 £2.36
14	MK211136-2 Available to backorder	Ball Bearing 6801Llb	£6.24 £5.20
15	MK256054-7 Available to backorder	Pin 4	£0.48 £0.40
16	MK317324-0 Available to backorder	Gear Case B	£56.64 £47.20
17	MK265999-8 Available to backorder	Binding Head Tapping Screw 4x25	£0.48 £0.40
19	MK323970-9 Available to backorder	Spindle	£21.12 £17.60
21	MKSC00000489 Available to backorder	Seal Washer (Alt.)	£5.40 £4.50
23	MKSC00000054 Available to backorder	Oil Seal	£14.16 £11.80
24	MKSC00000050 Available to backorder	Ball Bearing 6002Ru	£19.44 £16.20
25	MKSC03501390 Available to backorder	Eccentric Shaft	£116.64 £97.20
26	MKSC03251400 Available to backorder	Thrust Fixing Flange	£84.84 £70.70
27	MKSC03221700 Available to backorder	Motor Flange	£87.84 £73.20
28	MK941152-7 Available to backorder	Flat Washer 6	£0.48 £0.40
29	MK922382-9 Available to backorder	Hex. Socket Head Bolt M6x60	£1.73 £1.44
31	MK922127-5 Available to backorder	Hex. Socket Head Bolt M4x16	£0.48 £0.40
32	MK941052-1 Available to backorder	Flat Washer 4	£0.48 £0.40
33	MKSC03222300 Available to backorder	Motor Mounting Flange	£87.84 £73.20
34	MK416628-8 Available to backorder	Gear Case A	£1.90 £1.58
35	MK651968-9 Available to backorder	Switch C3La-2A	£45.72 £38.10
36	MK652038-7 Available to backorder	Pan Head Screw M3x8	£0.48 £0.40
37	MK911006-2 Available to backorder	Pan Head Screw M3x8 W	£0.48 £0.40
38	MK417151-6 Available to backorder	Cover	£10.56 £8.80
39	MK417150-8 Available to backorder	Lock Lever	£7.20 £6.00
41	MK192827-3 Available to backorder	Battery 1822 Set	£124.32 £103.60
42	MK266130-9 Available to backorder	Binding Head Tapping Screw 3x16	£0.48 £0.40
44	MK654168-0 Available to backorder	Spring Terminal (+)	£3.48 £2.90
45	MK687085-9 Available to backorder	Holder	£0.89 £0.74
46	MK654169-8 Available to backorder	Spring Terminal (-)	£2.83 £2.36
49	MKSC07411020 Available to backorder	Retaining Ring Rtw-26	£3.12 £2.60
50	MKSC00000019 Available to backorder	Needle Bearing Supporter	£4.44 £3.70
51	MKSC00000048 Available to backorder	Needle Bearing	£63.36 £52.80
52	MKSC00000049 Available to backorder	Ball Bearing 608	£32.52 £27.10
53	MKSC00000020 Available to backorder	Magnet	£4.20 £3.50
54	MKSC00000015 Available to backorder	Piston (Refs 098 \| 099)	£47.04 £39.20
55	MKSC00000022 Available to backorder	Piston Return Spring (Refs 097 \| 100)	£4.20 £3.50
56	MKSC00000464 Available to backorder	Check Valve #T43445 (Alt.) (Refs 096 \| 101)	£26.16 £21.80
57	MKSC00000021 Available to backorder	Check Valve Spring (Refs 095 \| 102)	£3.12 £2.60
58	MKSC00000018 Available to backorder	Spring Supporter (Refs 094 \| 103)	£7.20 £6.00
59	MKSC00000076 Available to backorder	Urethan Packing (Refs 093 \| 104)	£7.32 £6.10
61	MKSC06503260 Available to backorder	Back Up Ring G70	£14.28 £11.90
62	MKSC06505350 Available to backorder	O Ring For Cylinder G70 (Alt.)	£8.28 £6.90
63	MK922102-1 Available to backorder	Hex. Socket Head Bolt M4x6	£0.48 £0.40
64	MKSC00000096 Available to backorder	Rod Packing	£48.96 £40.80
65	MKSC03112300 Available to backorder	Cutter Rod	£330.20 £275.17
67	MKSC04000050 Available to backorder	Return Spring For Cutter Rod	£69.48 £57.90
68	MKSC06503510 Available to backorder	Dust Seal	£37.80 £31.50
69	MKSC07620040 Available to backorder	Washer Hw8	£1.58 £1.32
70	MK922441-9 Available to backorder	Hex. Socket Head Bolt M8x25 W	£0.48 £0.40
71	MKSC00000057 Available to backorder	Hex. Socket Head Bolt 6x18	£2.21 £1.84
72	MK941151-9 Available to backorder	Flat Washer 6	£0.48 £0.40
73	MK931601-2 Available to backorder	Hex. Nut M12	£1.73 £1.44
74	MKSC00000134 Available to backorder	Hold Bolt	£30.60 £25.50
75	MKSC00000034 Available to backorder	Special Pan Head Screw M8x20	£8.64 £7.20
76	MK942201-3 Available to backorder	Spring Washer 8	£0.48 £0.40
77	MKSC03507010 Available to backorder	Bushing Holder	£94.32 £78.60
78	MKSC06505320 Available to backorder	O Ring P26 (Alt.)	£10.56 £8.80
81	MKSC03507000 Available to backorder	Bushing	£40.92 £34.10
83	MKSC09004910 Available to backorder	Oil Leveler Sack	£21.96 £18.30
84	MK941101-4 Available to backorder	Flat Washer 5	£0.48 £0.40
85	MKSC00000098 Available to backorder	Hex. Socket Head Bolt 5x15	£2.21 £1.84
86	MKSC03700020 Available to backorder	Key (Alt.)	£8.64 £7.20
87	MKSC00000070 Available to backorder	Spring Pin 2.5x10	£1.73 £1.44
88	MKSC03500310 Available to backorder	Release Valve	£94.32 £78.60
89	MKSC00000032 Available to backorder	Valve Return Spring	£5.64 £4.70
90	MKSC00000481 Available to backorder	Stopper Plate #45423	£38.88 £32.40
91	MKSC00000023 Available to backorder	Release Valve Spring	£5.40 £4.50
92	MKSC06505010 Available to backorder	O Ring P6 (Alt.)	£2.69 £2.24
105	MKSC04601470 Available to backorder	Liner B	£6.24 £5.20
107	MK941202-8 Available to backorder	Flat Washer 8	£0.48 £0.40
108	MKSC06505300 Available to backorder	O Ring S4 (Alt.)	£2.69 £2.24
109	MKSC03501420 Available to backorder	Return Valve	£21.12 £17.60
901	MK414938-7 Available to backorder	Battery Cover (A01)	£0.48 £0.40
902	MK783201-2 Available to backorder	Hex. Wrench 3 (A02)	£1.49 £1.24
903	MK783202-0 Available to backorder	Hex. Wrench 4 (A03)	£2.05 £1.71
904	MK783203-8 Available to backorder	Hex. Wrench 5 (A04)	£0.86 £0.72
905	MK783204-6 Available to backorder	Hex. Wrench 6 (A05)	£2.00 £1.67
906	MK781212-1 Available to backorder	Wrench 17-19 (A06)	£15.48 £12.90
907	MKSC09009190 Available to backorder	Plastic Case Set (Alt.) (A07-1)	£242.04 £201.70
908	MKSC00000106 Available to backorder	Hydraulic Oil Iso46 35Cc (A08)	£9.36 £7.80
