Makita SA5040C - 125mm Angle Sander - Power Tool Diagram

Description

Model No. SA5040C

125mm Angle Sander

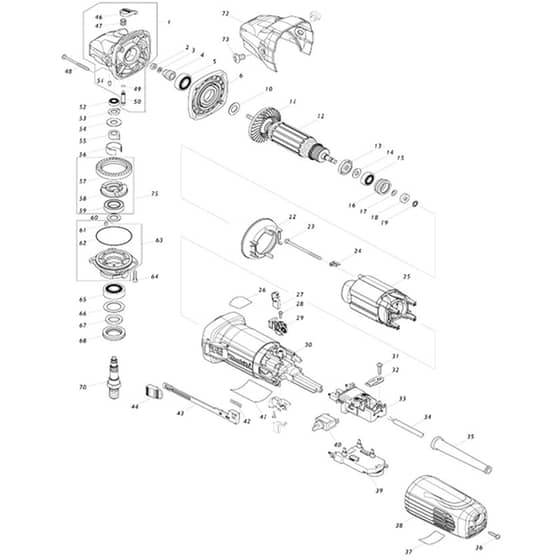

Power Tool Parts Diagrams

	Part No.	Details
1	MK136013-6 Available to backorder	Gear Housing Assembly < (INC. 46 47 49-51)	£18.60 £15.50
2	MK252137-1 Available to backorder	Hex. Nut M5-8	£0.48 £0.40
3	MK267034-8 Available to backorder	Flat Washer 5	£0.89 £0.74
4	MK227595-0 Available to backorder	Spiral Bevel Gear 7	£10.20 £8.50
5	MK211142-7 Available to backorder	Ball Bearing 6001Llb	£5.88 £4.90
6	MK318835-8 Available to backorder	Gear Housing Cover	£6.24 £5.20
6	MK141981-0 Available to backorder	Gear Housing Cover Complete <	£14.04 £11.70
10	MK253084-9 Available to backorder	Flat Washer 12	£0.70 £0.58
11	MK240134-9 Available to backorder	Fan 60	£2.05 £1.71
12	MK515383-0 Available to backorder	Armature Assembly 220-240V (INC. 11 13-15)	£76.20 £63.50
13	MK681656-4 Available to backorder	Insulation Washer	£0.70 £0.58
14	MK253823-7 Available to backorder	Flat Washer 7	£0.48 £0.40
15	MK210027-4 Available to backorder	Ball Bearing 627Ddw	£3.12 £2.60
16	MK422750-1 Available to backorder	Labyrinth Rubber Ring 22 <	£4.68 £3.90
17	MK267756-0 Available to backorder	Wave Washer 6	£0.48 £0.40
18	MK688117-5 Available to backorder	Magnet Sleeve	£2.83 £2.36
19	MK259039-2 Available to backorder	Self Lock 6	£0.48 £0.40
22	MK453367-9 Available to backorder	Baffle Plate	£1.22 £1.02
23	MK266258-3 Available to backorder	Binding Head Tapping Screw 4x70	£1.22 £1.02
24	MK344871-8 Available to backorder	Retainer	£0.89 £0.74
25	MK626653-3 Available to backorder	Field 220-240V	£39.72 £33.10
26	MK898443-6 Available to backorder	Sjs2 Mark Label	£0.48 £0.40
27	MK191978-9 In stock	Carbon Brush Set Cb-318	£10.81 £9.01
28	MK266007-8 Available to backorder	Binding Head Tapping Screw 3x10	£0.48 £0.40
29	MK643770-4 Available to backorder	Brush Holder <	£1.74 £1.45
29	MK643769-9 Available to backorder	Brush Holder	£1.74 £1.45
30	MK453366-1 Available to backorder	Motor Housing	£8.28 £6.90
31	MK265B67-9 Available to backorder	Binding Head Tapping Screw 4x18	£0.48 £0.40
31	MK266326-2 Available to backorder	Binding Head Tapping Screw 4x18	£0.48 £0.40
32	MK687169-3 Available to backorder	Strain Relief	£0.48 £0.40
33	MK632K98-1 Available to backorder	Switch Block <	£14.28 £11.90
34	MK695034-2 Available to backorder	Power Supply Cord 1.0-2-4.0	£17.76 £14.80
35	MK682559-5 Available to backorder	Cord Guard 8	£1.03 £0.86
37	MK898446-0 Available to backorder	Operation Label	£1.03 £0.86
38	MK453365-3 Available to backorder	Rear Cover C	£3.01 £2.51
39	MK620734-5 Available to backorder	Controller <	£70.44 £58.70
39	MK620G02-8 Available to backorder	Controller <	£89.52 £74.60
39	MK620127-6 Available to backorder	Controller	£97.44 £81.20
40	MK651418-4 Available to backorder	Switch St115A-40	£9.48 £7.90
41	MK897116-8 Available to backorder	Name Plate Sa5040C	£1.22 £1.02
42	MK233071-4 Available to backorder	Compression Spring 4	£0.48 £0.40
43	MK453847-5 Available to backorder	Switch Lever	£1.22 £1.02
44	MK453368-7 Available to backorder	Switch Knob	£0.70 £0.58
46	MK453369-5 Available to backorder	Pin Cap	£0.70 £0.58
47	MK234057-1 Available to backorder	Compression Spring 8	£0.48 £0.40
48	MK265B70-0 Available to backorder	Binding Head Tapping Screw 4x30	£0.48 £0.40
48	MK266361-0 Available to backorder	Binding Head Tapping Screw 4x30	£0.48 £0.40
49	MK213032-0 Available to backorder	O-Ring 4	£0.70 £0.58
50	MK256535-1 Available to backorder	Shoulder Pin 6	£1.03 £0.86
51	MK263002-9 Available to backorder	Rubber Pin 4	£0.48 £0.40
52	MK210006-2 Available to backorder	Ball Bearing 696Zz	£3.12 £2.60
53	MK961005-4 Available to backorder	Retaining Ring (Ext) S-9	£0.48 £0.40
54	MK253180-3 Available to backorder	Flat Washer 10	£0.70 £0.58
55	MK310577-0 Available to backorder	Joint Sleeve <	£2.05 £1.71
55	MK310683-1 Available to backorder	Joint Sleeve <	£3.60 £3.00
55	MK310508-9 Available to backorder	Joint Sleeve	£2.21 £1.84
56	MK346556-2 Available to backorder	C Type Plate	£2.83 £2.36
57	MK227596-8 Available to backorder	Spiral Bevel Gear 37	£8.04 £6.70
58	MK313228-4 Available to backorder	Coupling	£7.80 £6.50
59	MK210302-8 Available to backorder	Ball Bearing 6903Zz	£14.52 £12.10
60	MK253744-3 Available to backorder	Flat Washer 12	£0.70 £0.58
62	MK213641-5 Available to backorder	O-Ring 51	£0.48 £0.40
63	MK136012-8 Available to backorder	Bearing Box Assembly < (INC. 61.62 *)	£5.28 £4.40
63	MK318837-4 Available to backorder	Bearing Box	£4.44 £3.70
64	MK265490-6 Available to backorder	Hex. Socket Head Bolt M4x16	£0.48 £0.40
65	MK211129-9 Available to backorder	Ball Bearing 6201Ddw	£9.72 £8.10
66	MK267279-8 Available to backorder	Flat Washer 21	£0.48 £0.40
67	MK443124-3 Available to backorder	Felt Ring 17	£0.70 £0.58
68	MK285854-8 Available to backorder	Bearing Retainer 20-33	£1.73 £1.44
70	MK326130-2 Available to backorder	Spindle	£7.68 £6.40
72	MK453378-4 Available to backorder	Head Cover	£12.12 £10.10
73	MK265083-9 Available to backorder	Flat Head Screw M8x11	£1.39 £1.16
75	MK135559-9 Available to backorder	Coupling Assembly (INC. 57-59)	£46.44 £38.70
76	MK804Y42-4 Available to backorder	Clear Label	£0.48 £0.40
901	MK153489-2 In stock	Grip 36 Complete (A01)	£1.73 £1.44
902	MK743060-6 Available to backorder	Pad 125 (A02)	£19.92 £16.60
