Makita RT0700C - Trimmer - Power Tool Diagram

Description

Model No. RT0700C

Trimmer

Power Tool Parts Diagrams

	Part No.	Details
1	MK413E90-8 Available to backorder	Top Cover S	£3.48 £2.90
1	MK452465-6 Available to backorder	Top Cover	£2.83 £2.36
2	MK869668-9 Available to backorder	Name Plate Rt0700C	£1.03 £0.86
3	MK620040-8 Available to backorder	Controller	£35.52 £29.60
4	MK265B67-9 Available to backorder	Binding Head Tapping Screw 4x18	£0.48 £0.40
4	MK266326-2 Available to backorder	Binding Head Tapping Screw 4x18	£0.48 £0.40
5	MK687124-5 Available to backorder	Strain Relief	£0.48 £0.40
6	MK654542-2 Available to backorder	Terminal Block 2P	£3.01 £2.51
7	MK695034-2 Available to backorder	Power Supply Cord 1.0-2-4.0	£17.76 £14.80
8	MK682502-4 Available to backorder	Cord Guard 8-85 (Alt.)	£1.58 £1.32
8	MK682569-2 Available to backorder	Cord Guard 8-85	£0.70 £0.58
10	MK646133-3 Available to backorder	Choke Coil	£2.69 £2.24
11	MK643550-8 Available to backorder	Holder Cap 5-8	£0.70 £0.58
12	MK195010-1 Available to backorder	Carbon Brush Set Cb-411 (Alt.)	£3.24 £2.70
13	MK643858-0 Available to backorder	Brush Holder 6x9 (Alt.) (C11)	£1.73 £1.44
13	MK141N79-7 Available to backorder	Bracket Complete S	£11.28 £9.40
13	MK140736-0 Available to backorder	Bracket Complete	£10.20 £8.50
13	MK643455-2 Available to backorder	Brush Holder 6x9 (C10)	£1.74 £1.45
14	MK651527-9 Available to backorder	Switch	£3.48 £2.90
15	MK593769-8 Available to backorder	Field Assembly 240V <	£16.92 £14.10
15	MK654100-4 Available to backorder	Ring Terminal (C10)	£0.70 £0.58
15	MK654501-6 Available to backorder	Non-Insulated Splice P-1.25 (C20)	£0.48 £0.40
15	MK654485-8 Available to backorder	Non-Insulated Splice (Alt.) (C21)	£0.48 £0.40
15	MK633769-7 Available to backorder	Field 240V	£21.12 £17.60
16	MK266340-8 Available to backorder	Binding Head Tapping Screw 4x65	£0.48 £0.40
17	MK259039-2 Available to backorder	Self Lock 6	£0.48 £0.40
18	MK688117-5 Available to backorder	Magnet Sleeve (Alt.)	£2.83 £2.36
18	MK688174-3 Available to backorder	Magnet Sleeve	£4.32 £3.60
19	MK253332-6 Available to backorder	Thin Washer 6	£0.70 £0.58
20	MK267756-0 Available to backorder	Wave Washer 6	£0.48 £0.40
21	MK210023-2 Available to backorder	Ball Bearing 627Ddw	£3.48 £2.90
22	MK681668-7 Available to backorder	Resin Washer	£0.70 £0.58
23	MK515844-0 Available to backorder	Armature Assembly 240V (INC. 17-22 24-26 *)	£44.04 £36.70
24	MK240125-0 Available to backorder	Fan 55	£1.73 £1.44
25	MK961057-5 Available to backorder	Retaining Ring (Ext) S-17	£0.48 £0.40
26	MK210301-0 Available to backorder	Ball Bearing 6003Ddw	£6.48 £5.40
27	MK253906-3 Available to backorder	Wave Washer 26	£0.48 £0.40
28	MK140735-2 Available to backorder	Outer Housing Complete	£32.16 £26.80
29	MK266560-4 Available to backorder	Binding Head Tapping Screw 4x40	£0.48 £0.40
30	MK452468-0 Available to backorder	Push Button	£0.70 £0.58
31	MK233127-3 Available to backorder	Compression Spring 7	£0.70 £0.58
32	MK256437-1 Available to backorder	Shoulder Pin 4	£1.58 £1.32
33	MK763636-3 Available to backorder	Collet Cone 6	£15.72 £13.10
34	MK763615-1 Available to backorder	Collet Nut	£3.72 £3.10
35	MK265763-7 Available to backorder	Thumb Screw M6x25	£0.70 £0.58
36	MK253428-3 Available to backorder	Spring Washer 6 (Alt.)	£0.48 £0.40
37	MK941151-9 Available to backorder	Flat Washer 6 (Refs 039 \| C80)	£0.48 £0.40
38	MK142403-3 Available to backorder	Trimmer Base Complete <	£30.48 £25.40
38	MK140739-4 Available to backorder	Trimmer Base Complete	£31.44 £26.20
40	MK265792-0 Available to backorder	Thumb Screw M5x35	£2.21 £1.84
41	MK227262-7 Available to backorder	Spur Gear 16	£1.22 £1.02
42	MK346392-6 Available to backorder	Cam Plate	£0.70 £0.58
43	MK163524-8 Available to backorder	Lock Lever Complete	£3.72 £3.10
44	MK424396-9 Available to backorder	Rubber Cap	£0.70 £0.58
45	MK941101-4 Available to backorder	Flat Washer 5	£0.48 £0.40
46	MK252103-8 Available to backorder	Hex. Lock Nut M5-8	£0.48 £0.40
47	MK454842-8 In stock	Base Protector <	£3.48 £2.90

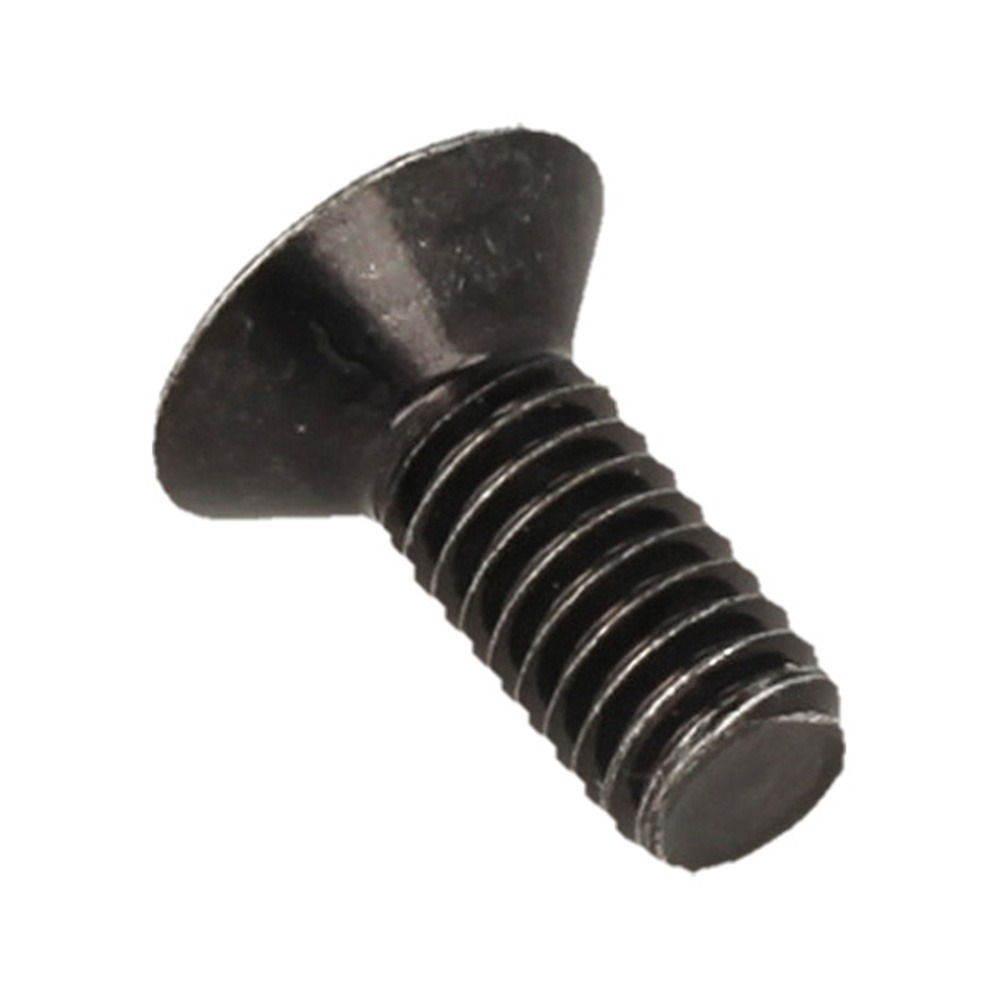

48	MK912112-6 In stock	Countersunk Head Screw M4x10	£0.54 £0.45
901	MK122965-7 Available to backorder	Straight Guide Assembly (A01)	£6.24 £5.20
901	MK252649-4 Available to backorder	Thumb Nut M6 (C10)	£0.70 £0.58
901	MK346382-9 Available to backorder	Guide Plate (C30)	£2.00 £1.67
901	MK266339-3 Available to backorder	Flat Head Square Neck Bolt M6x20 (C20)	£0.48 £0.40
902	MK213022-3 Available to backorder	O-Ring 3 (C10)	£0.48 £0.40
902	MK194733-8 Available to backorder	Dust Nozzle Set (A02)	£3.84 £3.20
902	MK265774-2 Available to backorder	Thumb Screw M4x19 (C10)	£3.12 £2.60
902	MK195559-1 Available to backorder	Dust Nozzle Set (A02)	£5.04 £4.20
903	MK343577-5 Available to backorder	Templet Guide 10 (A03)	£4.68 £3.90
904	MK763618-5 Available to backorder	Collet Cone 8 (A04)	£4.56 £3.80
905	MK781011-1 Available to backorder	Wrench 22 (A05) (Refs A06 \| A06D)	£4.56 £3.80
906	MK781039-9 Available to backorder	Wrench 13 (A06)	£1.78 £1.48
907	MK453974-8 Available to backorder	Latch (C10)	£2.18 £1.82
907	MK821552-6 Available to backorder	Connector Plastic Case (Type 4) (A07C) (Refs A07 \| A14)	£77.40 £64.50
908	MK837247-1 Available to backorder	Tray (A08C) (Refs A15 \| A16E)	£11.52 £9.60
908	MK344364-5 Available to backorder	Templet Guide 16 (A08)	£14.28 £11.90
909	MK265135-6 Available to backorder	Countersunk Head Screw M4x10 (C20)	£0.48 £0.40
909	MK341136-9 Available to backorder	Hook (C70)	£0.89 £0.74
909	MK801E81-5 Available to backorder	Indication Label Rt0700Cj (A09C)	£0.50 £0.42
909	MK251471-6 Available to backorder	Slotted Flat Head Shoulder Screw M5 (C10)	£0.70 £0.58
909	MK317788-8 Available to backorder	Guide Holder (C50)	£1.90 £1.58
909	MK265764-5 Available to backorder	Thumb Screw M6 (C40)	£0.89 £0.74
909	MK324378-0 Available to backorder	Roller 11 (C60)	£0.89 £0.74
909	MK122703-7 Available to backorder	Trimmer Guide Assembly (A09)	£16.32 £13.60
910	MK801E82-3 Available to backorder	Plastic Case Label Rt0700Cj (A10C)	£0.48 £0.40
910	MK195563-0 Available to backorder	Plunge Base Set (A10) (Refs A10D \| G23)	£78.36 £65.30
911	MK198987-9 Available to backorder	Tilt Base Set < (A11-2)	£54.60 £45.50
912	MK153489-2 In stock	Grip 36 Complete (A12)	£1.73 £1.44
913	MK195564-8 Available to backorder	Guide Holder Set (A13)	£7.80 £6.50
913	MK256850-3 Available to backorder	Rod 8 (C20)	£1.03 £0.86
914	MK831327-5 Available to backorder	Tool Bag (A14B)	£65.64 £54.70
915	MK222171-5 Available to backorder	Pulley 12-23.1 (C10)	£30.84 £25.70
915	MK195562-2 Available to backorder	Offset Base Set (A15E)	£135.48 £112.90
915	MK318685-1 Available to backorder	Grip Attachment (C20)	£6.00 £5.00
916	MK801N88-5 Available to backorder	Indication Label Rt0700Cx5J (A16F)	£0.50 £0.42
917	MK801N89-3 Available to backorder	Plastic Case Label Rt0700Cx5J (A17F)	£0.48 £0.40
924	MK194368-5 Available to backorder	Guide Rail 1400 Set (F24)	£81.48 £67.90
925	MK194385-5 Available to backorder	Clamp Set (F25)	£39.12 £32.60
926	MK194416-0 Available to backorder	Sheet 10000 Set (F26)	£41.28 £34.40
927	MK194417-8 Available to backorder	Rubber Sheet 10000 Set (F27)	£60.96 £50.80
930	MK196664-7 Available to backorder	Bevel Guide Set (Alt.) (F30-1)	£45.96 £38.30
931	MK194579-2 Available to backorder	Guide Rail Adapter Set (F31)	£60.12 £50.10
934	MK199140-0 Available to backorder	Guide Rail 1000 Set (G34)	£54.84 £45.70
935	MK199141-8 Available to backorder	Guide Rail 1500 Set (G35)	£100.20 £83.50
939	MK195137-7 Available to backorder	Rod 8 Set (F39)	£6.96 £5.80
949	MK1913K5-7 Available to backorder	Push Clamp Set (G49)	£46.80 £39.00
