Makita RP1803 - Router - Power Tool Diagram

Name: Makita RP1803 - Router - Power Tool Diagram
SKU: rp1803_router_power_tool-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

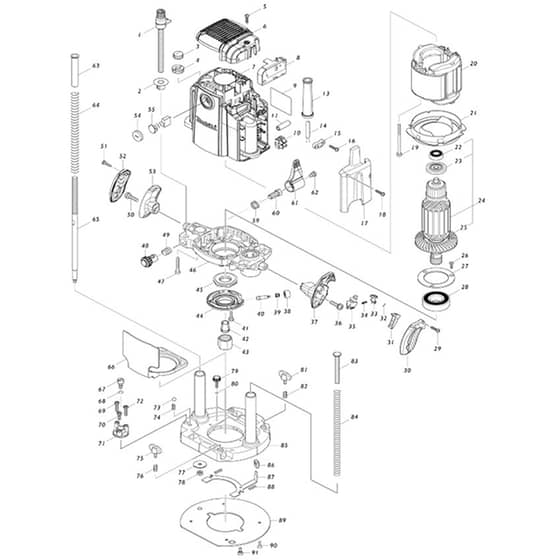

Makita RP1803 - Router - Power Tool Diagram

Description

Model No. RP1803

Router

Power Tool Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
1	MK125542-4 Available to backorder	Thumb Screw M10x115 Assembly	£19.20 £16.00
2	MK450946-4 Available to backorder	Pointer	£1.14 £0.95
3	MK252643-6 Available to backorder	Thumb Nut M10	£1.14 £0.95
4	MK410129-8 Available to backorder	Nylon Nut M10	£0.74 £0.62
5	MK265995-6 Available to backorder	Binding Head Tapping Screw 4x18 (Refs 016 \| 018 \| 029 \| 051)	£0.48 £0.40
6	MK413B15-4 Available to backorder	Rear Cover	£11.34 £9.45
7	MK158976-6 Available to backorder	Motor Housing Complete	£120.02 £100.02
7	MK638649-2 Available to backorder	Support Unit (C20)	£24.72 £20.60
7	MK816923-0 Available to backorder	Scale Plate (C30)	£3.00 £2.50
7	MK643707-1 Available to backorder	Brush Holder 7-18 (C10)	£5.06 £4.22
8	MK620H04-0 Available to backorder	Controller	£51.06 £42.55
10	MK654531-7 Available to backorder	Terminal Block	£2.02 £1.68
11	MK688165-4 Available to backorder	Line Filter	£0.86 £0.72
13	MK682505-8 Available to backorder	Cord Guard 10	£1.32 £1.10
14	MK665890-4 Available to backorder	Power Supply Cord 1.0-2-4.0	£10.52 £8.77
15	MK687052-4 Available to backorder	Strain Relief	£0.74 £0.62
17	MK450949-8 Available to backorder	Cover	£1.69 £1.41
19	MK266059-9 Available to backorder	Binding Head Tapping Screw 5x75	£1.32 £1.10
20	MK636058-9 Available to backorder	Field 220V	£38.64 £32.20
21	MK450944-8 Available to backorder	Baffle Plate	£1.69 £1.41
22	MK211092-6 Available to backorder	Ball Bearing 629Ddw	£7.96 £6.63
23	MK681671-8 Available to backorder	Insulation Washer	£1.40 £1.17
25	MK240112-9 Available to backorder	Fan 80	£12.29 £10.24
26	MK251295-0 Available to backorder	Countersunk Head Screw M4x14	£0.48 £0.40
27	MK285731-4 Available to backorder	Bearing Retainer 60	£3.26 £2.72
28	MK211380-1 Available to backorder	Ball Bearing 6205Ddw	£13.14 £10.95
30	MK450937-5 Available to backorder	Grip Cover R	£7.49 £6.24
31	MK450940-6 Available to backorder	Switch Lever	£1.69 £1.41
32	MK233024-3 Available to backorder	Compression Spring 4	£0.48 £0.40
33	MK450941-4 Available to backorder	Lock Off Button	£1.57 £1.31
34	MK231372-4 Available to backorder	Compression Spring 5	£0.48 £0.40
35	MK651430-4 Available to backorder	Switch	£14.88 £12.40
36	MK911343-4 Available to backorder	Pan Head Screw M6x25 Wr	£0.74 £0.62
37	MK450936-7 Available to backorder	Grip R	£10.16 £8.47
38	MK450942-2 Available to backorder	Push Button	£1.14 £0.95
39	MK233072-2 Available to backorder	Compression Spring 8	£0.48 £0.40
40	MK268234-3 Available to backorder	Collar Hd. Pin 6	£2.98 £2.48
41	MK911133-5 Available to backorder	Pan Head Screw M4x18 Wr	£0.48 £0.40
42	MK763628-2 Available to backorder	Collet Cone 12	£34.34 £28.62
43	MK763674-5 Available to backorder	Collet Nut	£7.34 £6.12
44	MK318382-9 Available to backorder	Retainer Cover	£11.74 £9.78
45	MK285849-1 Available to backorder	Retainer	£3.95 £3.29
46	MK158971-6 Available to backorder	Motor Bracket Complete	£39.25 £32.71
47	MK266012-5 Available to backorder	Binding Head Tapping Screw 5x35	£0.74 £0.62
48	MK153476-1 Available to backorder	Half Nut Complete	£8.06 £6.72
49	MK231231-2 Available to backorder	Compression Spring 12	£0.48 £0.40
52	MK450939-1 Available to backorder	Grip Cover L	£7.06 £5.88
53	MK450938-3 Available to backorder	Grip L	£10.74 £8.95
54	MK643700-5 Available to backorder	Holder Cap 7-18	£0.86 £0.72
55	MK194991-6 In stock	Carbon Brush Set Cb203 (Alt.)	£4.56 £3.80
59	MK233538-2 Available to backorder	Torsion Spring 15	£0.72 £0.60
60	MK266015-9 Available to backorder	Set Bolt M10	£7.96 £6.63
60	MK265C75-6 Available to backorder	Set Bolt M10 (Alt.)	£2.88 £2.40
61	MK450950-3 Available to backorder	Lock Lever	£1.69 £1.41
62	MK911213-7 Available to backorder	Pan Head Screw M5x12 Wr	£0.48 £0.40
63	MK450943-0 Available to backorder	Silent Pole	£1.40 £1.17
64	MK234106-4 Available to backorder	Compression Spring 13	£2.26 £1.88
65	MK325652-9 Available to backorder	Screw M10	£11.44 £9.53
66	MK450953-7 Available to backorder	Chip Deflector	£4.94 £4.12
67	MK251467-7 Available to backorder	Slotted Flat Head Shoulder Screw M6x14.5	£2.42 £2.02
68	MK213030-4 Available to backorder	O-Ring 8	£0.48 £0.40
69	MK265587-1 Available to backorder	Hex. Head Bolt M5x20	£0.86 £0.72
70	MK265586-3 Available to backorder	Hex. Head Bolt M5x14	£0.86 £0.72
71	MK315931-3 Available to backorder	Stopper	£4.94 £4.12
73	MK216009-4 Available to backorder	Steel Ball 7.1	£0.48 £0.40
74	MK231419-4 Available to backorder	Compression Spring 5	£0.74 £0.62
75	MK265720-5 Available to backorder	Thumb Screw M5x14	£1.44 £1.20
76	MK231240-1 Available to backorder	Compression Spring 7	£0.48 £0.40
77	MK253783-3 Available to backorder	Flat Washer 6	£0.58 £0.48
78	MK931303-0 Available to backorder	Hex. Nut M6	£0.48 £0.40
79	MK265774-2 Available to backorder	Thumb Screw M4x19	£3.04 £2.53
80	MK213022-3 Available to backorder	O-Ring 3	£0.48 £0.40
83	MK417252-0 Available to backorder	Pole	£2.14 £1.78
84	MK234105-6 Available to backorder	Compression Spring 11	£2.54 £2.12
85	MK158973-2 Available to backorder	Base Complete	£71.17 £59.31
86	MK424176-3 Available to backorder	Cap 14	£0.72 £0.60
87	MK346032-6 Available to backorder	Lock Plate	£4.51 £3.76
88	MK233105-3 Available to backorder	Compression Spring 4	£0.48 £0.40
89	MK450951-1 Available to backorder	Base Plate	£33.60 £28.00
90	MK912112-6 In stock	Countersunk Head Screw M4x10	£0.48 £0.40
91	MK266016-7 Available to backorder	Set Bolt M5x10	£4.62 £3.85
901	MK199140-0 Available to backorder	Guide Rail 1000 Set (F01)	£53.02 £44.18
901	MK265754-8 Available to backorder	Thumb Screw M6x12 (C10)	£0.58 £0.48
901	MK941151-9 Available to backorder	Flat Washer 6 (C30)	£0.48 £0.40
901	MK122700-3 Available to backorder	Guide Holder Assembly (A01)	£17.16 £14.30
901	MK265758-0 Available to backorder	Thumb Screw M10x45 (C20)	£1.92 £1.60
902	MK199141-8 Available to backorder	Guide Rail 1500 Set (F02)	£104.38 £86.98
903	MK194368-5 Available to backorder	Guide Rail 1400 Set (F03)	£78.76 £65.63
903	MK763801-4 Available to backorder	Collet Sleeve 6 (A03)	£8.88 £7.40
904	MK763804-8 Available to backorder	Collet Sleeve 8.0 (A04)	£8.60 £7.17
906	MK194416-0 Available to backorder	Sheet 10000 Set (F06)	£39.90 £33.25
906	MK941152-7 Available to backorder	Flat Washer 6 (A06A)	£0.48 £0.40
907	MK342428-9 Available to backorder	Straight Guide (A07)	£13.76 £11.47
907	MK194417-8 Available to backorder	Rubber Sheet 10000 Set (F07)	£58.88 £49.07
908	MK344364-5 Available to backorder	Templet Guide 16 (A08B)	£13.76 £11.47
909	MK122850-4 Available to backorder	Dust Nozzle Assembly (A09)	£8.05 £6.71
949	MK1913K5-7 Available to backorder	Push Clamp Set (G49)	£45.22 £37.68
969	MK194934-8 Available to backorder	Dust Nozzle Set (F69)	£8.74 £7.28
