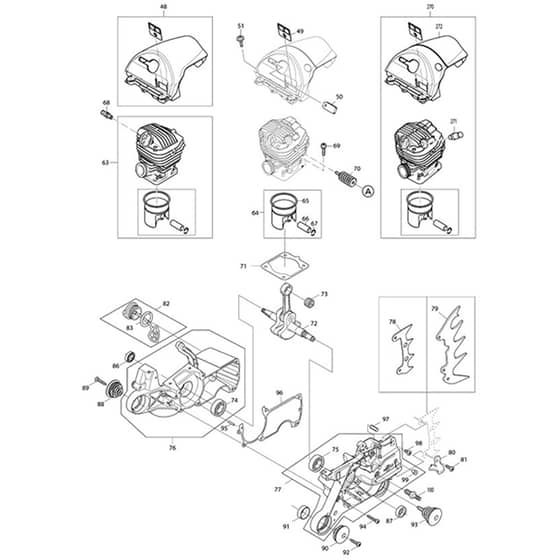

Makita PS-6400 - Engine Chain Saw - Power Tool 03 Diagram

Description

Model No. PS-6400

Engine Chain Saw

Power Tool 03 Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
49	MK038118140 Available to backorder	Anti Icing Plate	£2.18 £1.82
50	MK424751-5 Available to backorder	Cable Guide (Alt.)	£1.36 £1.13
51	MK917105205 Available to backorder	H.L. Socket Head Bolt M5x20	£1.36 £1.13
54	MK130118070 Available to backorder	Steelclip	£0.96 £0.80
54	MK347071-9 Available to backorder	Clamp (Alt.)	£0.70 £0.58
55	MK038174200 Available to backorder	Muffler Assy	£81.90 £68.25
57	MK915035120 Available to backorder	Screw	£1.40 £1.17
58	MK038174811 Available to backorder	Muffler Gasket	£1.10 £0.92
59	MK038174023 Available to backorder	Heat Insulation Plate	£1.36 £1.13
60	MK325939-9 Available to backorder	Connecting Link (Alt.)	£0.58 £0.48
61	MK266943-8 Available to backorder	H.L. Socket Head Bolt M5x40	£0.74 £0.62
62	MK908405205 Available to backorder	H.L Socket Head Bolt M5x20	£0.54 £0.45
63	MK040130023 Available to backorder	Cylinder Piston For Decomp Vr1	£267.12 £222.60
64	MK325132035 Available to backorder	Piston Piston Ring & Pin Set	£163.51 £136.26

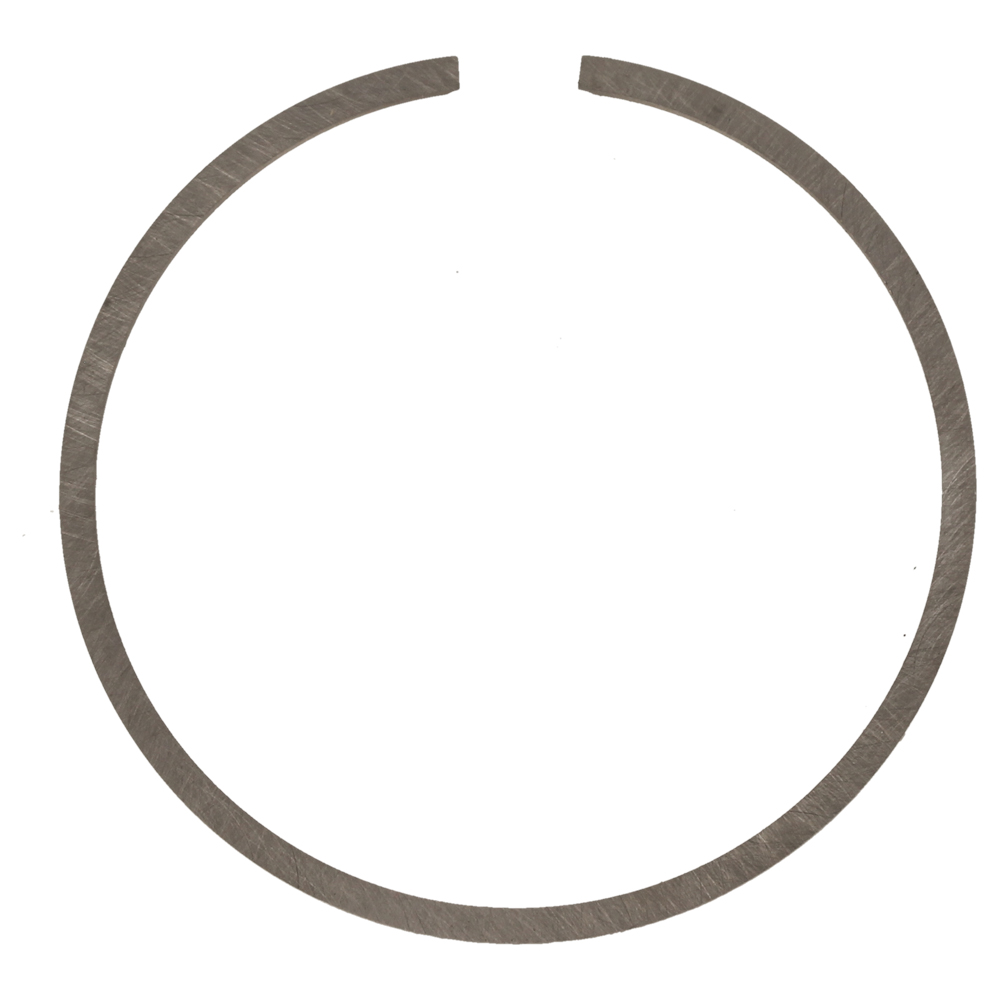

65	MK257384-9 Available to backorder	Piston Ring D47 (Alt.)	£20.96 £17.47
66	MK119132030 Available to backorder	Piston Pin	£15.44 £12.87
66	MK257840-9 Available to backorder	Piston Pin (Alt.)	£0.48 £0.40
67	MK038132080 Available to backorder	Circlip 12	£1.52 £1.27
67	MK234359-5 Available to backorder	Circlip 12 (Alt.)	£0.74 £0.62
69	MK266473-9 Available to backorder	H.L. Socket Head Bolt M5x23	£0.86 £0.72
70	MK181114401 Available to backorder	Damping Spring Cpl.	£25.54 £21.28
71	MK346873-0 Available to backorder	Gasket (Alt.)	£1.60 £1.33
72	MK038120100 Available to backorder	Crankshaft Cpl.	£265.36 £221.13
72	MK144975-4 Available to backorder	Crankshaft Cpl. (Alt.)	£87.90 £73.25
73	MK212133-1 In stock	Piston Pin Bearing 12x16x13	Was £7.40 £6.17 Special Price £3.59 £2.99
74	MK211154-0 Available to backorder	Ball Bearing 6202	£5.78 £4.82
75	MK960102179 Available to backorder	Ball Bearing 6203	£14.28 £11.90
80	MK038111171 Available to backorder	Chain Catch	£5.06 £4.22
81	MK266472-1 Available to backorder	Torx Socket Head Bolt M5x20	£1.44 £1.20
82	MK010114050 Available to backorder	Tank Cap Assy	£5.88 £4.90
83	MK963228030 Available to backorder	O-Ring 28	£1.24 £1.03
84	MK038310070 Available to backorder	Spring Limiter	£17.74 £14.78
86	MK213814-0 Available to backorder	Radial Ring	£2.53 £2.11
88	MK038114130 Available to backorder	Spring Cpl.With Cap	£12.84 £10.70
89	MK913455204 Available to backorder	H.L.Tapping Screw 5.5x20	£0.54 £0.45
91	MK038114191 Available to backorder	Pot	£7.64 £6.37
93	MK038114141 Available to backorder	Spring Cpl.With Cap	£17.74 £14.78
94	MK908005305 Available to backorder	H.L. Socket Head Bolt M5x30	£0.54 £0.45
95	MK258038-1 Available to backorder	Clamping Pin (Alt.)	£0.48 £0.40
95	MK936430160 Available to backorder	Pin 3x16	£0.70 £0.58
96	MK038111043 Available to backorder	Crankcase Gasket	£8.20 £6.83
97	MK934660250 Available to backorder	Spring Pin 6x24	£0.58 £0.48
98	MK266477-1 Available to backorder	H.L. C.S. Head Screw M5x12 (Alt.)	£0.48 £0.40
98	MK908005125 Available to backorder	H.L. Socket Head Bolt M5x12	£0.48 £0.40
99	MK010245030 Available to backorder	Vent Valve	£4.52 £3.77
99	MK168504-9 Available to backorder	Vent Valve (Alt.)	£2.32 £1.93
271	MK038118180 Available to backorder	Decompression Valve	£22.38 £18.65
272	MK038118050 Available to backorder	Engine Hood Black	£40.28 £33.57
