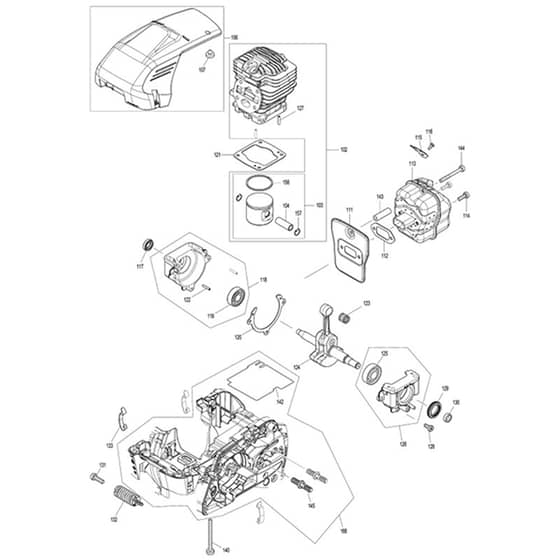

Makita PS-550 - Petrol Chain Saw - Power Tool 05 Diagram

Description

Model No. PS-550

Petrol Chain Saw

Power Tool 05 Parts Diagrams

	Part No.	Details
103	MK131132100 Available to backorder	Piston Complete	£57.60 £48.00
106	MK131118600 Available to backorder	Hood Set	£20.28 £16.90
107	MK424878-1 Available to backorder	Buffer (Alt.)	£0.84 £0.70
107	MK965402360 Available to backorder	Rubber Buffer	£0.98 £0.82
108	MK131213050 Available to backorder	Hand Guard Guide	£18.36 £15.30
110	MK326676-8 Available to backorder	Bush 10	£2.53 £2.11
111	MK131174090 Available to backorder	Cooling Plate	£2.38 £1.98
112	MK346876-4 Available to backorder	Muffler Gasket (Alt.)	£1.03 £0.86
113	MK131174100 Available to backorder	Muffler Complete	£41.88 £34.90
114	MK266605-8 Available to backorder	H.L. Socket Head Bolt M5x16	£0.52 £0.43
115	MK131174040 Available to backorder	Spark Arrester	£2.10 £1.75
116	MK914535105 Available to backorder	Self Tapping Screw 3.5x9.5	£1.58 £1.32
117	MK213141-5 Available to backorder	Oil Seal 12 (Alt.)	£4.46 £3.72
118	MK131111100 Available to backorder	Crankcase Ms Complete	£41.28 £34.40
119	MK211494-6 Available to backorder	Ball Bearing 6201 (Alt.)	£34.32 £28.60
120	MK131111060 Available to backorder	Crankcase Gasket	£4.68 £3.90
121	MK131131020 Available to backorder	Cylinder-Base Gasket	£3.84 £3.20
122	MK258038-1 Available to backorder	Clamping Pin (Alt.)	£0.48 £0.40
122	MK936430160 Available to backorder	Pin 3x16	£0.84 £0.70
123	MK212164-0 Available to backorder	Needle Cage (Alt.)	£6.86 £5.72
123	MK962210111 Available to backorder	Needle Cage	£6.48 £5.40
124	MK131120100 Available to backorder	Crankshaft Complete	£106.68 £88.90
125	MK211154-0 Available to backorder	Ball Bearing 6202 (Alt.)	£6.00 £5.00
126	MK131111111 Available to backorder	Crankcase Cs Complete	£44.52 £37.10
128	MK908705165 Available to backorder	Hl Socket Head Bolt M5x16	£0.98 £0.82
129	MK962900160 Available to backorder	Oil Seal 20	£18.24 £15.20
130	MK326658-0 Available to backorder	Sleeve 15	£2.56 £2.13
131	MK266479-7 Available to backorder	H.L. Socket Head Bolt M6x20	£0.84 £0.70
131	MK908006205 Available to backorder	H.L. Socket Head Bolt M6x20	£0.84 £0.70
132	MK143754-7 Available to backorder	Damping Spring Assembly	£9.24 £7.70
133	MK347071-9 Available to backorder	Clamp (Alt.)	£0.84 £0.70
133	MK130118070 Available to backorder	Steelclip	£1.15 £0.96
134	MK424806-6 Available to backorder	Intake Manifold Damper	£0.98 £0.82
135	MK313212-9 Available to backorder	Hand Guard Guide	£0.70 £0.58
136	MK234093-7 Available to backorder	Compression Spring 3 (Alt.)	£0.70 £0.58
137	MK456613-9 Available to backorder	Spacer	£1.32 £1.10
139	MK181111230 Available to backorder	Rubber Buffer	£3.72 £3.10
140	MK914105656 Available to backorder	H.L. Socket Head Bolt M5x65	£1.94 £1.62
141	MK195762-4 Available to backorder	Air Valve Set (Alt.)	£2.38 £1.98
142	MK131111080 Available to backorder	Heat Protection Foil	£4.68 £3.90
143	MK327008-2 Available to backorder	Sleeve 5	£1.32 £1.10
144	MK908605505 Available to backorder	H.L Socket Head Bolt M5x50	£1.15 £0.96
145	MK905708215 Available to backorder	Bolt	£2.69 £2.24
146	MK267821-5 Available to backorder	Spring Washer 5 (Alt.)	£0.48 £0.40
147	MK181164010 In stock	Starter Grip	£4.80 £4.00
151	MK140587-1 In stock	Rewind Spring Complete (Alt.)	£13.31 £11.09
152	MK452224-8 Available to backorder	Cable Drum (Alt.)	£24.48 £20.40
153	MK234193-3 Available to backorder	Spring Easy Start (Alt.)	£7.18 £5.98
154	MK181163090 Available to backorder	Starter Wheel	£3.96 £3.30
154	MK452227-2 Available to backorder	Driver Easy Start (Alt.)	£7.68 £6.40
155	MK266616-3 Available to backorder	Screw (Alt.)	£1.90 £1.58
156	MK181132080 Available to backorder	Piston Ring 45mm	£23.16 £19.30
157	MK234390-1 Available to backorder	Circlip 11 (Alt.)	£2.69 £2.24
158	MK181166100 Available to backorder	Starter Ratchet Cp (2Pcs Each)	£9.24 £7.70
162	MK181224090 Available to backorder	Flat Washer 10	£0.65 £0.54
163	MK026224010 Available to backorder	Rim Sprocket 3/8" Sm7-7	£6.84 £5.70
163	MK181224040 Available to backorder	Rim Sprocket .325" Sm7-7	£11.76 £9.80
164	MK181114202 Available to backorder	Tank Cap Cpl.	£2.10 £1.75
164	MK213080-9 Available to backorder	O Ring 29.5 (Alt.) (C10)	£1.15 £0.96
165	MK268335-7 Available to backorder	Pin 3 (Alt.)	£0.48 £0.40
