Description

Model No. PLM5600

Petrol Lawn Mower

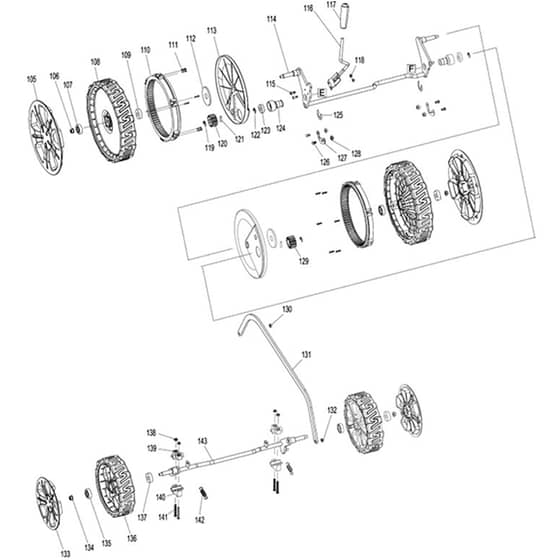

Power Tool 03 Parts Diagrams

Ref. Img. Part No. Details
  105 Wheel Cover 10 Inch
Wheel Cover 10 Inch
MK671001322
Available to backorder
Wheel Cover 10 Inch
£13.14 £10.95

  106 Hex.Flange Lock Nut M8
Hex.Flange Lock Nut M8
MKDA00000537
Available to backorder
Hex.Flange Lock Nut M8
£0.70 £0.58

  107 Ball Bearing 6201Zz (Refs 109 | 135 | 137)
Ball Bearing 6201Zz (Refs 109 | 135 | 137)
MKDA00000538
Available to backorder
Ball Bearing 6201Zz (Refs 109 | 135 | 137)
£3.92 £3.27

  108 Wheel Assy 11 Inch
Wheel Assy 11 Inch
MK671002021
Available to backorder
Wheel Assy 11 Inch
£48.02 £40.02

  110 Internal Gear
Internal Gear
MK671200010
Available to backorder
Internal Gear
£16.82 £14.02

  111 Tapping Screw St4x16
Tapping Screw St4x16
MKDA00000603
Available to backorder
Tapping Screw St4x16
£0.48 £0.40

  112 Washer
Washer
MK671007065
Available to backorder
Washer
£3.54 £2.95

  113 Dust-Proof Wheel Cover
Dust-Proof Wheel Cover
MK671251800
Available to backorder
Dust-Proof Wheel Cover
£10.03 £8.36

  114 Rear Axle
Rear Axle
MK671002296
Available to backorder
Rear Axle
£105.91 £88.26

  115 Pan. Head Screw M6x14
Pan. Head Screw M6x14
MK671002030
Available to backorder
Pan. Head Screw M6x14
£2.34 £1.95

  116 Height Adjuster Handle
Height Adjuster Handle
MKDA00000879
Available to backorder
Height Adjuster Handle
£4.92 £4.10

  117 Height Adjustment Knob
Height Adjustment Knob
MKDA00001058
Available to backorder
Height Adjustment Knob
£4.20 £3.50

  118 Nylon Insert Hex.Lock Nut M6 (Refs 130 | 132 | 138)
Nylon Insert Hex.Lock Nut M6 (Refs 130 | 132 | 138)
MKDA00000549
Available to backorder
Nylon Insert Hex.Lock Nut M6 (Refs 130 | 132 | 138)
£0.54 £0.45

  119 Stop Ring E-12
Stop Ring E-12
MKDA00000604
Available to backorder
Stop Ring E-12
£0.58 £0.48

  121 Column Pin 5x21.5
Column Pin 5x21.5
MKDA00000597
Available to backorder
Column Pin 5x21.5
£0.58 £0.48

  123 Ball Bearing R8Zz
Ball Bearing R8Zz
MKDA00001029
Available to backorder
Ball Bearing R8Zz
£3.54 £2.95

  124 Drive Shaft Bearing Case
Drive Shaft Bearing Case
MKDA00000610
Available to backorder
Drive Shaft Bearing Case
£4.52 £3.77

  125 Stop Ring E-19
Stop Ring E-19
MKDA00000612
Available to backorder
Stop Ring E-19
£0.70 £0.58

  126 Truss Head Screw M6x12
Truss Head Screw M6x12
MK671002019
Available to backorder
Truss Head Screw M6x12
£1.36 £1.13

  127 Bearing Case Retainer
Bearing Case Retainer
MKDA00000542
Available to backorder
Bearing Case Retainer
£0.96 £0.80

  128 Hex.Flange Lock Nut M6
Hex.Flange Lock Nut M6
MKDA00000543
Available to backorder
Hex.Flange Lock Nut M6
£0.54 £0.45

  129 Spur Gear 14 Left
Spur Gear 14 Left
MKDA00000605
Available to backorder
Spur Gear 14 Left
£4.94 £4.12

  131 Link Rod
Link Rod
MK671002292
Available to backorder
Link Rod
£14.69 £12.24

  133 Wheel Cover 7 Inch
Wheel Cover 7 Inch
MKDA00000536
Available to backorder
Wheel Cover 7 Inch
£3.34 £2.78

  136 Wheel Assy 8 Inch
Wheel Assy 8 Inch
MK671020160
Available to backorder
Wheel Assy 8 Inch
£27.84 £23.20

  139 Front Axle Retainer
Front Axle Retainer
MK671445001
Available to backorder
Front Axle Retainer
£2.46 £2.05

  140 Front Axle Mount
Front Axle Mount
MK671076001
Available to backorder
Front Axle Mount
£3.40 £2.83

  141 Hex. Bolt M6x65
Hex. Bolt M6x65
MK671006002
Available to backorder
Hex. Bolt M6x65
£1.57 £1.31

  142 Height Adjust Tension Spring
Height Adjust Tension Spring
MK671011087
Available to backorder
Height Adjust Tension Spring
£2.26 £1.88

  143 Front Axle
Front Axle
MK671002295
Available to backorder
Front Axle
£88.97 £74.14
