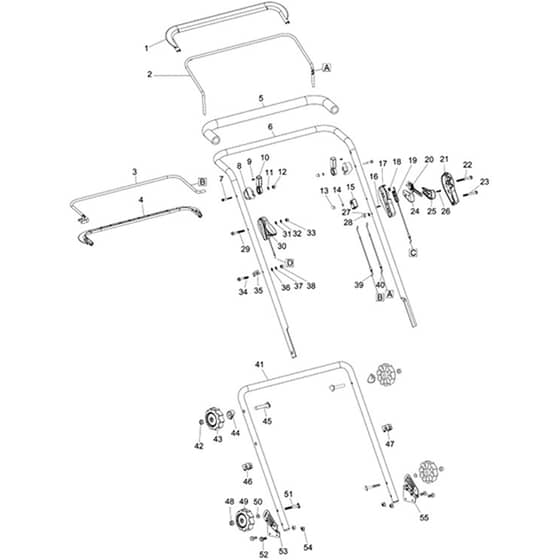

Makita PLM5600 - Petrol Lawn Mower - Power Tool 01 Diagram

Description

Model No. PLM5600

Petrol Lawn Mower

Power Tool 01 Parts Diagrams

	Part No.	Details
1	MK671020120 Available to backorder	Lever Sheath Red	£31.08 £25.90
2	MK671002293 Available to backorder	Engine Clutch Lever	£12.00 £10.00
3	MK671002294 Available to backorder	Self Drive Control Lever	£11.40 £9.50
4	MK671020110 Available to backorder	Lever Sheath Black	£27.00 £22.50
5	MKDA00000580 Available to backorder	Handle Sheath	£7.68 £6.40
6	MK671001868 Available to backorder	Upper Handle Bar Assy	£44.88 £37.40
7	MK671006029 Available to backorder	Hex. Flange Bolt M6x45	£1.58 £1.32
8	MK671990001 Available to backorder	Engine Clutch Lever Bracket	£2.53 £2.11
9	MK671002025 Available to backorder	Pan. Head Screw M4x8	£1.63 £1.36
10	MK671989001 Available to backorder	Engine Clutch Lever End Cap	£2.53 £2.11
11	MK671007070 Available to backorder	Flat Washer 6	£1.49 £1.24
12	MKDA00000575 Available to backorder	Hex.Cap Nut M6 (Refs 013 \| 028 \| 033 \| 038)	£0.89 £0.74
14	MKDA00000574 Available to backorder	Flat Washer 6 (Refs 027 \| 031 \| 036)	£0.65 £0.54
15	MKDA00000573 Available to backorder	Outer Wire Stopper	£1.03 £0.86
16	MKDA00000826 Available to backorder	Self-Tapping Screw St4x12	£0.48 £0.40
17	MK671827001 Available to backorder	Speed Control Box Upper Cover	£3.72 £3.10
18	MKDA00000549 Available to backorder	Nylon Insert Hex.Lock Nut M6	£0.65 £0.54
19	MK671001243 Available to backorder	Drive Speed Adjust Wire Assy	£49.56 £41.30
20	MK671002279 Available to backorder	Drive Speed Adjust Lever	£4.68 £3.90
21	MK671828001 Available to backorder	Speed Control Box Lower Cover	£3.96 £3.30
22	MKDA00000572 Available to backorder	Hex.Flange Bolt M6x55	£1.22 £1.02
23	MK671006082 Available to backorder	Hex. Flange Bolt M6x50	£1.74 £1.45
24	MKDA00000870 Available to backorder	Drive Speed Adjust Grip Lower	£1.22 £1.02
25	MKDA00000869 Available to backorder	Drive Speed Adjust Grip Upper	£1.22 £1.02
26	MKDA00000873 Available to backorder	Tapping Screw St4.2x15	£0.70 £0.58
30	MK671106202 Available to backorder	Throttle Control Box Assy	£44.16 £36.80
32	MKDA00000576 Available to backorder	Spring Washer 6	£0.70 £0.58
34	MKDA00000577 Available to backorder	Hex.Flange Bolt M6x35	£0.98 £0.82
35	MKDA00000579 Available to backorder	Starter Grip Hook	£2.38 £1.98
39	MK671001242 Available to backorder	Self Drive Control Wire Assy	£52.44 £43.70
40	MK671001241 Available to backorder	Engine Clutch Wire	£49.56 £41.30
41	MK671001869 Available to backorder	Lower Handle Pole	£51.96 £43.30
42	MKDA00000563 Available to backorder	Hexagon Nut M8	£0.70 £0.58
43	MKDA00000564 Available to backorder	Knob	£1.39 £1.16
44	MKDA00000924 Available to backorder	Plastic Saddle Washer 8	£1.03 £0.86
45	MKDA00000569 Available to backorder	Saddle Head Bolt M8x58	£2.38 £1.98
46	MKDA00001170 Available to backorder	Cable Clip	£1.49 £1.24
50	MK671007007 Available to backorder	Flat Washer 8	£1.73 £1.44
51	MKDA00000880 Available to backorder	Saddle Head Bolt M8x35	£1.58 £1.32
52	MKDA00000562 Available to backorder	Hex.Flange Bolt M8x16	£0.84 £0.70
53	MK671018280 Available to backorder	Right Handle Bracket	£14.64 £12.20
54	MKDA00000537 Available to backorder	Hex.Flange Lock Nut M8	£0.84 £0.70
55	MK671018260 Available to backorder	Left Handle Bracket Blue	£14.64 £12.20
