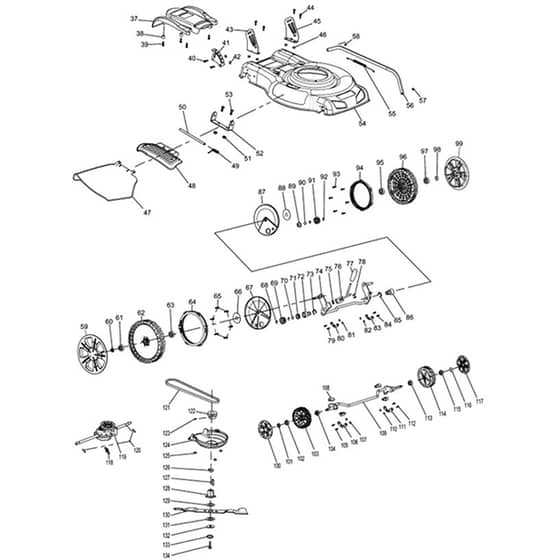

Makita PLM5121N2 - Petrol Lawn Mower - Power Tool 02 Diagram

Description

Model No. PLM5121N2

Petrol Lawn Mower

Power Tool 02 Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
36	MKDA00000584 Available to backorder	Wrench Handle	£1.64 £1.37
37	MK671689001 Available to backorder	Gear Box Protecting Cover	£44.89 £37.41
38	MK671314001 Available to backorder	Cover Fixing Cap	£1.28 £1.07
39	MKDA00000614 Available to backorder	Tapping Screw St4.8x19	£0.82 £0.68
40	MKDA00000562 Available to backorder	Hex.Flange Bolt M8x16	£0.70 £0.58
41	MK671001710 Available to backorder	Height Adjuster Stop Plate	£13.72 £11.43
42	MKDA00000537 Available to backorder	Hex.Flange Lock Nut M8 (Refs 046 \| 060 \| 098 \| 101 \| 116 \| 125)	£0.70 £0.58
43	MKDA00000588 Available to backorder	Right Handle Bracket	£10.16 £8.47
45	MKDA00000587 Available to backorder	Left Handle Bracket Blue	£10.16 £8.47
47	MKDA00000560 Available to backorder	Side Discharge Protecting	£14.96 £12.47
48	MKDA00000559 Available to backorder	Side Discharge Flap Cover	£6.79 £5.66
49	MKDA00000556 Available to backorder	Side Flap Torsion Spring	£1.64 £1.37
50	MKDA00000558 Available to backorder	Side Discharge Flap Hinge Rod	£0.96 £0.80
51	MKDA00000543 Available to backorder	Hex.Flange Lock Nut M6 (Refs 081 \| 082 \| 107 \| 110)	£0.54 £0.45
52	MKDA00000555 Available to backorder	Side Flap Hinge Plate	£1.64 £1.37
53	MKDA00000552 Available to backorder	Truss Head Screw M6x16	£1.02 £0.85
54	MK671015250 Available to backorder	Deck(Makita Blue)	£288.20 £240.17
55	MKDA00000546 Available to backorder	Connection Rod Spring	£2.46 £2.05
56	MK671001813 Available to backorder	Connection Rod	£24.00 £20.00
57	MKDA00000549 Available to backorder	Nylon Insert Hex.Lock Nut M6 (Refs 058 \| 075)	£0.54 £0.45
59	MK671001322 Available to backorder	Wheel Cover 10 Inch	£13.14 £10.95
61	MKDA00000538 Available to backorder	Ball Bearing 6201Zz (Refs 063 \| 095 \| 097 \| 102 \| 104 \| 113 \| 115)	£3.92 £3.27
62	MK671002021 Available to backorder	Wheel Assy 11 Inch	£48.02 £40.02
64	MK671200010 Available to backorder	Internal Gear	£16.82 £14.02
65	MKDA00000603 Available to backorder	Tapping Screw St4x16	£0.48 £0.40
66	MK671007065 Available to backorder	Washer	£3.54 £2.95
67	MK671251800 Available to backorder	Dust-Proof Wheel Cover	£10.03 £8.36
68	MKDA00000604 Available to backorder	Stop Ring E-12	£0.58 £0.48
69	MKDA00001091 Available to backorder	Spur Gear 14 Right	£5.20 £4.33
70	MK671007059 Available to backorder	Flat Washer	£1.28 £1.07
71	MKDA00001029 Available to backorder	Ball Bearing R8Zz	£3.54 £2.95
72	MKDA00000610 Available to backorder	Drive Shaft Bearing Case	£4.52 £3.77
73	MKDA00000612 Available to backorder	Stop Ring E-19	£0.70 £0.58
74	MK671001812 Available to backorder	Rear Wheel Axis Ss'y	£97.60 £81.33
76	MK671001707 Available to backorder	Handle	£5.34 £4.45
77	MKDA00001058 Available to backorder	Height Adjustment Knob	£4.20 £3.50
78	MK671002030 Available to backorder	Pan. Head Screw M6x14	£2.34 £1.95
79	MK671002019 Available to backorder	Truss Head Screw M6x12 (Refs 084 \| 105 \| 112)	£1.36 £1.13
80	MKDA00000542 Available to backorder	Bearing Case Retainer (Refs 083 \| 106 \| 111)	£0.96 £0.80
91	MKDA00001090 Available to backorder	Spur Gear 14 Left	£5.20 £4.33
100	MKDA00000536 Available to backorder	Wheel Cover 7 Inch	£3.34 £2.78
103	MK671020160 Available to backorder	Wheel Assy 8 Inch	£27.84 £23.20
108	MKDA00000545 Available to backorder	Axle Mount	£0.82 £0.68
109	MK671001811 Available to backorder	Front Axle	£60.86 £50.72
118	MK671011173 Available to backorder	Gear Box Spring	£7.06 £5.88
119	MK671502015 Available to backorder	Gear Box	£154.80 £129.00
120	MKDA00000597 Available to backorder	Column Pin 5x21.5	£0.58 £0.48
121	MK671020380 Available to backorder	Triangle Belt	£20.77 £17.31
122	MKDA00000599 Available to backorder	Driving Wheel	£10.64 £8.87
123	MKDA00000598 Available to backorder	H.S.Set Screw (Flat Point) M6x8	£0.54 £0.45
124	MKDA00000594 Available to backorder	Belt Protecting Cover	£6.98 £5.82
126	MK671319001 Available to backorder	Blade Lining Sheath	£1.69 £1.41
127	MKDA00000535 Available to backorder	Hight Adjust Support Spring	£0.85 £0.71
128	MK671002049 Available to backorder	Blade Support	£35.17 £29.31
129	MKDA00000533 Available to backorder	Nylon Flat Washer 32	£1.14 £0.95
130	MKDA00000944 Available to backorder	Blade 51	£45.25 £37.71
131	MKDA00000531 Available to backorder	Nylon Cup Washer 32	£1.14 £0.95
132	MKDA00000530 Available to backorder	Outer Frange	£2.69 £2.24
133	MKDA00000529 Available to backorder	Dish Spring Washer 10	£2.54 £2.12
134	MK671006141 Available to backorder	Blade Tighten Bolt 3/8-24	£10.88 £9.07
