Model No. PLM5113N2

Petrol Lawn Mower

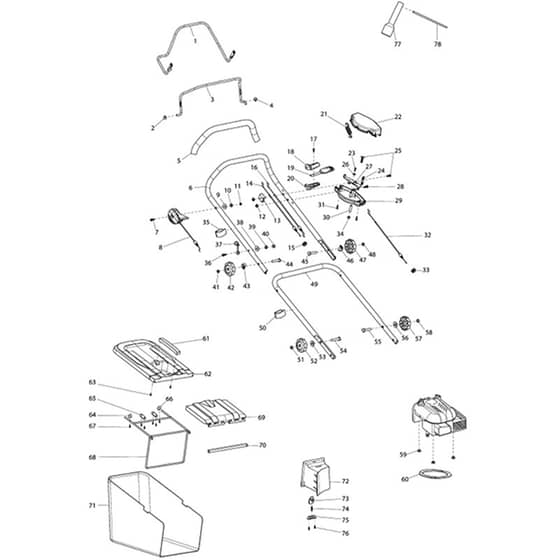

Power Tool 01 Parts Diagrams

	Part No.	Details
1	MKDA00000964 Available to backorder	Self Drive Control Lever	£9.84 £8.20
2	MK671001524 Available to backorder	Saddle Washer 8	£2.05 £1.71
3	MKDA00000961 Available to backorder	Engine Clutch Lever	£8.64 £7.20
5	MK671001029 Available to backorder	Handle Sheath	£6.96 £5.80
6	MKDA00000963 Available to backorder	Upper Handle Bar	£33.00 £27.50
7	MK671006082 Available to backorder	Hex. Flange Bolt M6x50	£1.74 £1.45
8	MKDA00001160 Available to backorder	Throttle Handle Ass'y	£7.32 £6.10
9	MKDA00000574 Available to backorder	Flat Washer 6	£0.65 £0.54
10	MKDA00000576 Available to backorder	Spring Washer 6	£0.70 £0.58
11	MKDA00000575 Available to backorder	Hex.Cap Nut M6	£0.89 £0.74
12	MKDA00000543 Available to backorder	Hex.Flange Lock Nut M6	£0.65 £0.54
13	MKDA00000573 Available to backorder	Outer Wire Stopper	£1.03 £0.86
14	MKDA00000977 Available to backorder	Self Drive Control Wire Assy	£8.40 £7.00
15	MK671800104 Available to backorder	Grommet	£0.84 £0.70
16	MKDA00001173 Available to backorder	Frameout Cord Ass'y	£7.92 £6.60
17	MKDA00000873 Available to backorder	Tapping Screw St4.2x15	£0.70 £0.58
18	MKDA00000869 Available to backorder	Drive Speed Adjust Grip Upper	£1.22 £1.02
19	MKDA00000972 Available to backorder	Drive Speed Adjust Lever	£3.72 £3.10
20	MKDA00000870 Available to backorder	Drive Speed Adjust Grip Lower	£1.22 £1.02
21	MK671011123 Available to backorder	Extention Spring	£1.79 £1.49
22	MK671470002 Available to backorder	Speed Adjustment Box (Upper)	£6.36 £5.30
23	MKDA00000603 Available to backorder	Tapping Screw St4x16	£0.48 £0.40
24	MK671001511 Available to backorder	Outer Wire Stopper Plate	£2.05 £1.71
25	MK671006063 Available to backorder	Hex.Bolt M6x40	£2.05 £1.71
26	MK671002075 Available to backorder	Flat Washer 4	£1.63 £1.36
27	MK671001514 Available to backorder	Drive Speed Adjust Lever Mount	£3.48 £2.90
28	MKDA00000577 Available to backorder	Hex.Flange Bolt M6x35	£0.98 £0.82
29	MK671470001 Available to backorder	Speed Adjustment Box (Lower)	£6.36 £5.30
30	MK671001513 Available to backorder	Sheath	£2.05 £1.71
31	MK671010630 Available to backorder	Tapping Screw St4.2x25	£0.89 £0.74
32	MK671001191 Available to backorder	Drive Speed Adjust Wire Assy	£8.52 £7.10
35	MK671611001 Available to backorder	Cable Clip	£1.49 £1.24
37	MKDA00000579 Available to backorder	Starter Grip Hook	£2.38 £1.98
41	MKDA00000563 Available to backorder	Hexagon Nut M8 (Refs 048 \| 051 \| 058)	£0.70 £0.58
42	MKDA00000564 Available to backorder	Knob (Refs 047 \| 052 \| 057)	£1.39 £1.16
43	MKDA00000924 Available to backorder	Plastic Saddle Washer 8	£1.03 £0.86
44	MKDA00000569 Available to backorder	Saddle Head Bolt M8x58	£2.38 £1.98
49	MK671001606 Available to backorder	Lower Handle Bar	£26.52 £22.10
53	MK671007007 Available to backorder	Flat Washer 8	£1.73 £1.44
54	MKDA00000880 Available to backorder	Saddle Head Bolt M8x35	£1.58 £1.32
59	MKDA00000537 Available to backorder	Hex.Flange Lock Nut M8	£0.84 £0.70
60	MK671144701 Available to backorder	Engine Mount Rubber Ring	£4.68 £3.90
61	MK671454001 Available to backorder	Grass Catcher Handle	£5.64 £4.70
62	MK671521001 Available to backorder	Grass Catcher Upper Board	£49.44 £41.20
64	MKDA00000025 Available to backorder	Washer 5	£0.89 £0.74
65	MKDA00000335 Available to backorder	Retainer Plate	£0.48 £0.40
67	MKDA00000888 Available to backorder	Tapping Screw St5x12	£0.70 £0.58
68	MK671001443 Available to backorder	Grass Catcher Frame	£57.60 £48.00
69	MK671468001 Available to backorder	Rear Flap	£49.56 £41.30
70	MK671001353 Available to backorder	Grass Catcher Frame Sheath	£2.69 £2.24
71	MK671144401 Available to backorder	Grass Catcher Cloth Set	£38.40 £32.00

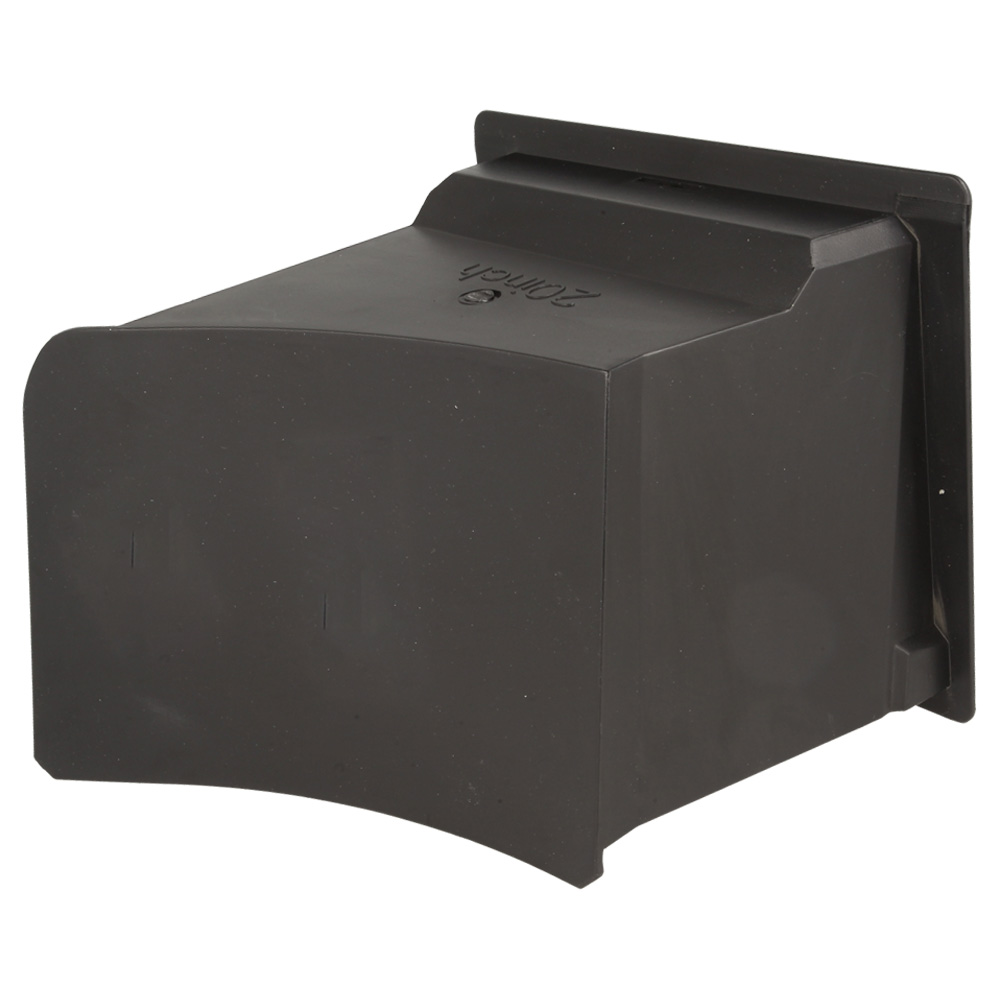

72	MK671509001 Available to backorder	Mulching Plug Box	£29.16 £24.30
73	MK671316004 Available to backorder	Locking Button	£1.63 £1.36
74	MK671011005 Available to backorder	Compression Spring	£1.63 £1.36
75	MK671317001 Available to backorder	Pressing Board Of Locking	£1.49 £1.24
77	MKDA00000583 Available to backorder	Box Wrench 16mm	£3.96 £3.30
78	MKDA00000584 Available to backorder	Wrench Handle	£1.79 £1.49
