Model No. PLM4631N2

Petrol Lawn Mower

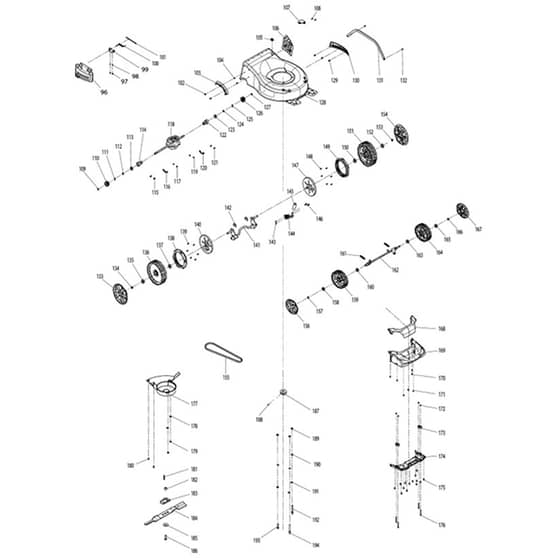

Power Tool 02 Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
96	MK671929001 Available to backorder	Side Discharge Flap Cover	£11.74 £9.78
97	MK671002010 Available to backorder	Pan.Hed Screw M5x12	£1.36 £1.13
98	MKDA00000198 Available to backorder	Spring Washer 5 (Alt.)	£0.48 £0.40
98	MK671080040 Available to backorder	Spring Washer 5	£1.14 £0.95
99	MK671001571 Available to backorder	Side Flap Hinge Plate	£4.52 £3.77
100	MK671011205 Available to backorder	Side Flap Torsion Spring	£4.10 £3.42
101	MK671001019 Available to backorder	Side Discharge Flap Hinge Rod	£4.52 £3.77
102	MKDA00000552 Available to backorder	Truss Head Screw M6x16	£1.02 £0.85
103	MKDA00000606 Available to backorder	Rear Wheel Dust-Proof Cover (Refs 140 \| 147)	£2.18 £1.82
104	MKDA00000549 Available to backorder	Nylon Insert Hex.Lock Nut M6 (Refs 132 \| 143 \| 172)	£0.54 £0.45
105	MK671800104 Available to backorder	Grommet	£0.70 £0.58
106	MK671085001 Available to backorder	Grass Outlet Slope Board	£5.18 £4.32
107	MK671002577 Available to backorder	Gear Box Mount	£4.10 £3.42
108	MKDA00000553 Available to backorder	Hex. Flange Bolt M6x12	£0.54 £0.45
109	MKDA00000604 Available to backorder	Stop Ring E-12 (Refs 112 \| 124 \| 127)	£0.58 £0.48
110	MKDA00001091 Available to backorder	Spur Gear 14 Right	£5.20 £4.33
111	MKDA00000597 Available to backorder	Column Pin 5x21.5	£0.58 £0.48
113	MKDA00001029 Available to backorder	Ball Bearing R8Zz	£3.54 £2.95
114	MK671002085 Available to backorder	Drive Shaft Bearing Case	£6.98 £5.82
115	MK671002019 Available to backorder	Truss Head Screw M6x12	£1.36 £1.13
116	MKDA00000542 Available to backorder	Axle Retainer	£0.96 £0.80
117	MKDA00000543 Available to backorder	Hex.Flange Lock Nut M6	£0.54 £0.45
118	MK671502038 Available to backorder	Gear Assy For Self Driving	£103.20 £86.00
122	MKDA00000610 Available to backorder	Drive Shaft Bearing Case	£4.52 £3.77
126	MKDA00001090 Available to backorder	Spur Gear 14 Left	£5.20 £4.33
128	MK671001820 Available to backorder	Deck Blue	£340.46 £283.72
129	MK671010310 Available to backorder	Tapping Screw St4.2x8	£1.92 £1.60
130	MK671928001 Available to backorder	Side Protector Left Side	£4.52 £3.77
131	MKDA00001166 Available to backorder	Link Rod	£13.66 £11.38
133	MK671030150 Available to backorder	Wheel Cover 7 Inch	£5.88 £4.90
134	MKDA00000537 Available to backorder	Hex.Flange Lock Nut M8 (Refs 153 \| 157 \| 166 \| 189)	£0.70 £0.58
135	MKDA00000538 Available to backorder	Ball Bearing 6201Zz (Refs 137 \| 150 \| 152 \| 158 \| 160 \| 163 \| 165)	£3.92 £3.27
136	MK671020300 Available to backorder	Wheel Assy 8 Inch	£30.79 £25.66
138	MKDA00000602 Available to backorder	Internal Gear	£8.06 £6.72
139	MKDA00000603 Available to backorder	Tapping Screw St4x16	£0.48 £0.40
141	MK671002367 Available to backorder	Rear Axle	£100.20 £83.50
142	MKDA00000612 Available to backorder	Stop Ring E-19	£0.70 £0.58
144	MKDA00000834 Available to backorder	Height Adjustment Lever Assy	£8.66 £7.22
145	MKDA00001058 Available to backorder	Height Adjustment Knob	£4.20 £3.50
146	MK671002041 Available to backorder	Truss Head Stepped Screw M6x17	£1.52 £1.27
155	MK671001273 Available to backorder	Z28V Belt 10mmx6mm L 710mm	£11.20 £9.33
156	MK671003014 Available to backorder	Wheel Cover 6.5 Inch	£5.46 £4.55
159	MK671020150 Available to backorder	Wheel Assy 7 Inch	£23.90 £19.92
161	MK671011230 Available to backorder	Height Adjust Tension Spring	£3.42 £2.85
162	MK671002362 Available to backorder	Front Axle	£90.52 £75.43
168	MK671925001 Available to backorder	Front Cover	£8.20 £6.83
169	MK671003041 Available to backorder	Front Axle Housing Upper	£44.21 £36.84
170	MKDA00000826 Available to backorder	Self-Tapping Screw St4x12 (Refs 171 \| 175)	£0.48 £0.40
173	MK671445001 Available to backorder	Front Axle Retainer	£2.46 £2.05
174	MK671927001 Available to backorder	Front Axle Housing Lower	£16.92 £14.10
176	MK671006119 Available to backorder	Hex. Frange Bolt M6x60	£1.36 £1.13
177	MK671996001 Available to backorder	Belt Protecting Cover	£16.92 £14.10
178	MK671007007 Available to backorder	Flat Washer 8	£1.36 £1.13
179	MK671005008 Available to backorder	Nylon Insert Hex.Lock Nut M8	£1.36 £1.13
180	MK671001037 Available to backorder	Truss Head Tapping Screw 5x16	£1.24 £1.03
181	MKDA00000535 Available to backorder	Hight Adjust Support Spring	£0.85 £0.71
182	MK671002093 Available to backorder	Blade Spaser Sleeve	£1.84 £1.53
183	MKDA00000857 Available to backorder	Inner Frange	£13.00 £10.83
184	MKDA00001274 Available to backorder	Blade 46 <	£23.10 £19.25
184	MK671014610 Available to backorder	Blade 46	£43.94 £36.62
185	MKDA00000529 Available to backorder	Dish Spring Washer 10	£2.54 £2.12
186	MKDA00000528 Available to backorder	Blade Tighten Bolt 3/8-24	£1.84 £1.53
187	MK671004038 Available to backorder	V Pulley	£14.20 £11.83
188	MKDA00000598 Available to backorder	H.S.Set Screw (Flat Point) M6x8	£0.54 £0.45
190	MKDA00000832 Available to backorder	Spring Washer 8	£0.58 £0.48
192	MKDA00000617 Available to backorder	Special Hex.Bolt M8x35/M8x17	£1.52 £1.27
193	MKDA00000586 Available to backorder	Hex. Bolt M8x35	£1.24 £1.03
