Makita PLM4622N2 - Petrol Lawn Mower - Power Tool 02 Diagram

Description

Model No. PLM4622N2

Petrol Lawn Mower

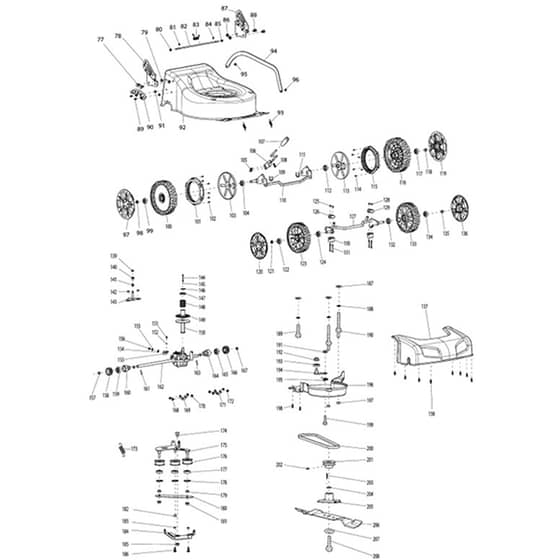

Power Tool 02 Parts Diagrams

Be the first to review this product

0 product questions

	Part No.	Details
77	MKDA00000562 Available to backorder	Hex.Flange Bolt M8x16 (Refs 088 \| 156)	£0.70 £0.58
78	MK671001180 Available to backorder	Right Handle Bracket	£27.74 £23.12
79	MKDA00000537 Available to backorder	Hex.Flange Lock Nut M8 (Refs 086 \| 098 \| 118 \| 121 \| 135 \| 181 \| 185 \| 192)	£0.70 £0.58
80	MKDA00000543 Available to backorder	Hex.Flange Lock Nut M6 (Refs 085 \| 091 \| 139 \| 170 \| 191)	£0.54 £0.45
81	MK671009017 Available to backorder	Stop Ring E-6	£1.44 £1.20
82	MK671001518 Available to backorder	Rear Flap Hinge Rod	£7.22 £6.02
83	MK671011101 Available to backorder	Rear Flap Torsion Spring	£2.18 £1.82
87	MK671001179 Available to backorder	Left Handle Bracket Blue	£27.74 £23.12
89	MK671002019 Available to backorder	Truss Head Screw M6x12 (Refs 168 \| 172 \| 186)	£1.36 £1.13
90	MKDA00000787 Available to backorder	Height Adjuster Stop Plate	£4.34 £3.62
92	MK671001529 Available to backorder	Deck Blue	£350.63 £292.19
93	MK671011125 Available to backorder	Height Adjust Tension Spring	£2.34 £1.95
94	MKDA00001154 Available to backorder	Link Rod	£13.10 £10.92
95	MKDA00000549 Available to backorder	Nylon Insert Hex.Lock Nut M6 (Refs 096 \| 108 \| 125 \| 128 \| 183)	£0.54 £0.45
97	MKDA00000536 Available to backorder	Wheel Cover 7 Inch	£3.34 £2.78
99	MKDA00000538 Available to backorder	Ball Bearing 6201Zz (Refs 104 \| 112 \| 117 \| 122 \| 124 \| 132 \| 134)	£3.92 £3.27
100	MK671020300 Available to backorder	Wheel Assy 8 Inch	£30.79 £25.66
101	MKDA00000602 Available to backorder	Internal Gear	£8.06 £6.72
102	MKDA00000603 Available to backorder	Tapping Screw St4x16	£0.48 £0.40
103	MKDA00000606 Available to backorder	Rear Wheel Dust-Proof Cover	£2.18 £1.82
105	MK671002030 Available to backorder	Pan. Head Screw M6x14	£2.34 £1.95
106	MKDA00001174 Available to backorder	Handle	£5.34 £4.45
107	MKDA00001058 Available to backorder	Height Adjustment Knob	£4.20 £3.50
109	MKDA00000612 Available to backorder	Stop Ring E-19	£0.70 £0.58
110	MKDA00001176 Available to backorder	Rear Wheel Axis Ass'y	£27.84 £23.20
120	MK671001176 Available to backorder	Wheel Cover 6.5 Inch	£11.06 £9.22
123	MK671020150 Available to backorder	Wheel Assy 7 Inch	£23.90 £19.92
126	MK671445001 Available to backorder	Front Axle Retainer	£2.46 £2.05
127	MK671001786 Available to backorder	Front Axle	£57.88 £48.23
130	MK671418001 Available to backorder	Front Axle Mount	£3.04 £2.53
131	MK671002028 Available to backorder	Pan.Hed Screw M6x45	£1.36 £1.13
137	MK671659001 Available to backorder	Front Axle Cover	£44.78 £37.32
138	MKDA00000911 Available to backorder	Tapping Screw St4.2x10	£0.58 £0.48
140	MK671002038 Available to backorder	Shaft Sheath	£1.52 £1.27
141	MK671011156 Available to backorder	Spring	£1.52 £1.27
142	MK671005011 Available to backorder	Nylon Insert Hex.Lock Nut M5	£1.36 £1.13
143	MK671001717 Available to backorder	Gear Box Mount Flat	£5.60 £4.67
144	MK671006123 Available to backorder	Hex. Bolt M5x55 Lh	£1.40 £1.17
145	MKDA00000198 Available to backorder	Spring Washer 5	£0.48 £0.40
146	MK671009020 Available to backorder	Retaining Ring S-19	£4.94 £4.12
147	MK671001457 Available to backorder	Cup Washer	£1.14 £0.95
148	MK671011122 Available to backorder	Variable Speed Pulley Spring	£3.83 £3.19
149	MK671010540 Available to backorder	Variable Speed Pulley Upper	£23.15 £19.29
150	MK671001082 Available to backorder	Variable Speed Pulley Lower	£13.52 £11.27
151	MKDA00000788 Available to backorder	Height Adjustment Plate	£3.83 £3.19
152	MKDA00001029 Available to backorder	Ball Bearing R8Zz (Refs 159 \| 165)	£3.54 £2.95
153	MKDA00000604 Available to backorder	Stop Ring E-12 (Refs 157 \| 167)	£0.58 £0.48
154	MKDA00001157 Available to backorder	Cable Hook	£2.06 £1.72
155	MKDA00000586 Available to backorder	Hex. Bolt M8x35	£1.24 £1.03
158	MKDA00001091 Available to backorder	Spur Gear 14 Right	£5.20 £4.33
160	MKDA00000610 Available to backorder	Drive Shaft Bearing Case	£4.52 £3.77
161	MKDA00000597 Available to backorder	Column Pin 5x21.5	£0.58 £0.48
162	MK671502017 Available to backorder	Gear Assy For Self Driving	£112.90 £94.08
166	MKDA00001090 Available to backorder	Spur Gear 14 Left x	£5.20 £4.33
169	MKDA00000542 Available to backorder	Axle Retainer	£0.96 £0.80
173	MK671011021 Available to backorder	Spring	£1.40 £1.17
174	MK671003042 Available to backorder	Stepped Bolt M8	£3.83 £3.19
175	MK671001455 Available to backorder	Speed Control Belt Tensioner	£18.35 £15.29
176	MK671001056 Available to backorder	Belt Tensioner Pulley	£23.15 £19.29
177	MK671004015 Available to backorder	Ball Bearing 6001Zz	£13.43 £11.19
178	MK671009021 Available to backorder	Retaining Ring R-28	£1.40 £1.17
179	MKDA00000563 Available to backorder	Hexagon Nut M8	£0.58 £0.48
180	MK671001533 Available to backorder	Belt Tensioner Brace Plate	£1.28 £1.07
182	MK671005008 Available to backorder	Nylon Insert Hex.Lock Nut M8	£1.36 £1.13
184	MKDA00000971 Available to backorder	Belt Tensioner Base	£12.29 £10.24
187	MK671007007 Available to backorder	Flat Washer 8	£1.36 £1.13
188	MKDA00000832 Available to backorder	Spring Washer 8	£0.58 £0.48
190	MKDA00000617 Available to backorder	Special Hex.Bolt M8x35 M8x17	£1.52 £1.27
194	MKDA00000974 Available to backorder	Idler Bracket	£2.69 £2.24
195	MK671011136 Available to backorder	Torsion Spring	£2.42 £2.02
196	MK671658001 Available to backorder	Belt Protecting Cover	£17.74 £14.78
198	MK671001037 Available to backorder	Truss Head Tapping Screw 5x16	£1.24 £1.03
199	MK671006066 Available to backorder	Hex. Bolt M6x25	£2.42 £2.02

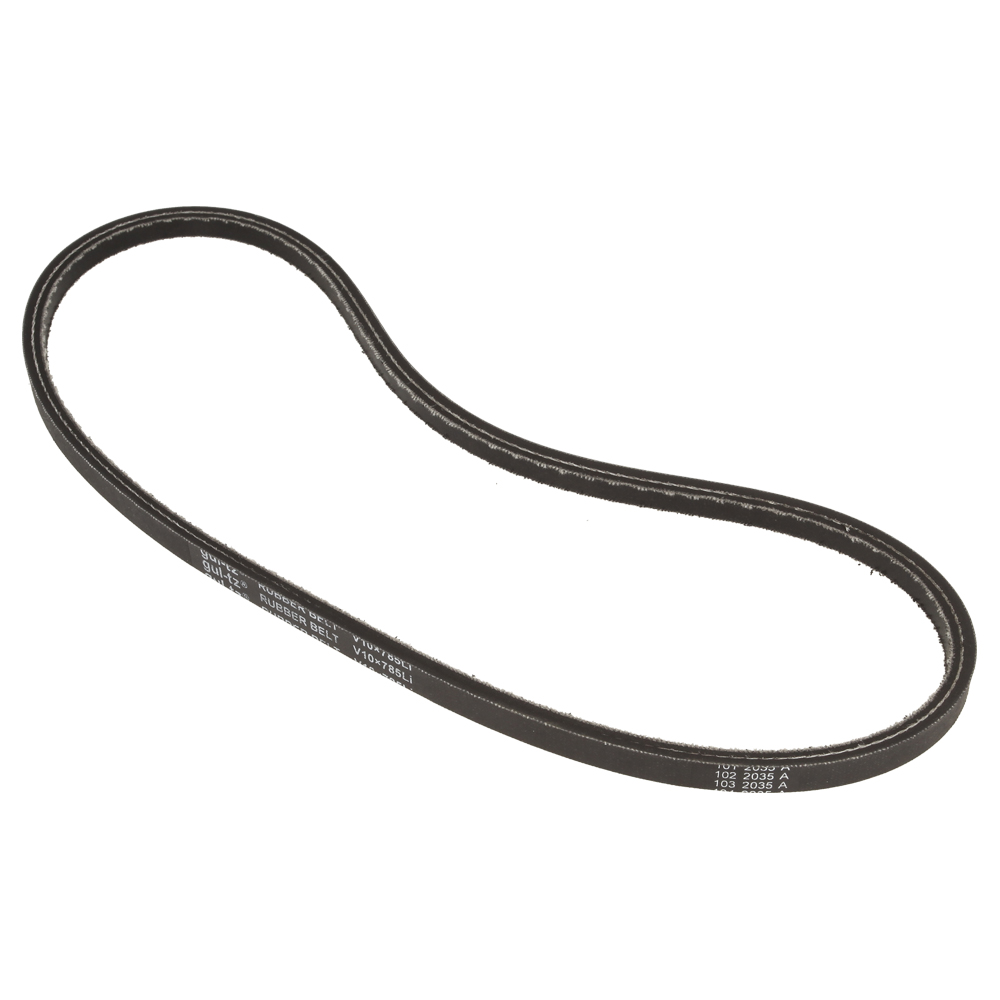

200	MK671020282 Available to backorder	V Belt 10mmx6mm L 785mm	£17.74 £14.78
201	MK671401201 Available to backorder	V Pulley	£11.00 £9.17
202	MKDA00000598 Available to backorder	H.S.Set Screw (Flat Point) M6x8	£0.54 £0.45
203	MKDA00000535 Available to backorder	Height Adjust Support	£0.85 £0.71
204	MK671002092 Available to backorder	Blade Support Bush	£1.99 £1.66
205	MK671015252 Available to backorder	Inner Frange	£27.95 £23.29
206	MKDA00001274 Available to backorder	Blade 46 <	£23.10 £19.25
206	MK671001451 Available to backorder	Blade 46	£36.49 £30.41
207	MKDA00000529 Available to backorder	Dish Spring Washer 10	£2.54 £2.12
208	MK671006065 Available to backorder	Blade Tighten Bolt 3/8-24	£19.20 £16.00
