Makita PLM4622N2 - Petrol Lawn Mower - Power Tool 01 Diagram

Description

Model No. PLM4622N2

Petrol Lawn Mower

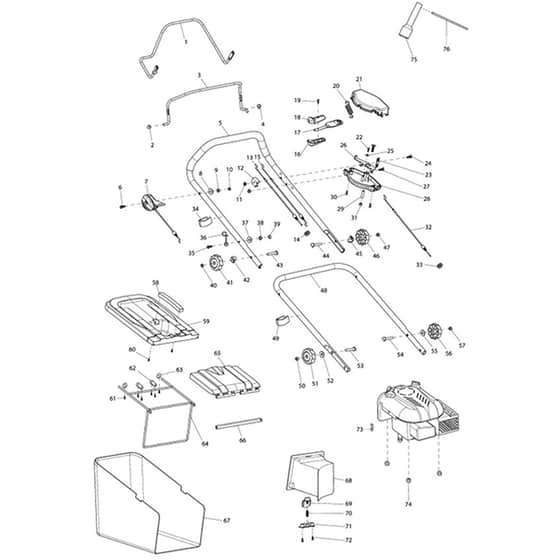

Power Tool 01 Parts Diagrams

	Part No.	Details
1	MKDA00000964 Available to backorder	Self Drive Control Lever	£9.84 £8.20
2	MK671001524 Available to backorder	Saddle Washer 8	£2.05 £1.71
3	MKDA00000961 Available to backorder	Engine Clutch Lever	£8.64 £7.20
5	MK671002002 Available to backorder	Upper Handle Assy	£73.56 £61.30
6	MK671006082 Available to backorder	Hex. Flange Bolt M6x50	£1.74 £1.45
7	MKDA00001158 Available to backorder	Throttle Handle Ass'y	£10.80 £9.00
8	MKDA00000574 Available to backorder	Flat Washer 6	£0.65 £0.54
9	MKDA00000576 Available to backorder	Spring Washer 6	£0.70 £0.58
10	MKDA00000575 Available to backorder	Hex.Cap Nut M6	£0.89 £0.74
11	MKDA00000543 Available to backorder	Hex.Flange Lock Nut M6	£0.65 £0.54
12	MKDA00000573 Available to backorder	Outer Wire Stopper	£1.03 £0.86
13	MKDA00000977 Available to backorder	Self Drive Control Wire Assy	£8.40 £7.00
14	MK671800104 Available to backorder	Grommet	£0.84 £0.70
15	MKDA00001155 Available to backorder	Frameout Cord Assy	£8.28 £6.90
16	MKDA00000870 Available to backorder	Drive Speed Adjust Grip Lower	£1.22 £1.02
17	MKDA00000972 Available to backorder	Drive Speed Adjust Lever	£3.72 £3.10
18	MKDA00000869 Available to backorder	Drive Speed Adjust Grip Upper	£1.22 £1.02
19	MKDA00000873 Available to backorder	Tapping Screw St4.2x15	£0.70 £0.58
20	MK671011123 Available to backorder	Extention Spring	£1.79 £1.49
21	MK671470002 Available to backorder	Speed Adjustment Box (Upper)	£6.36 £5.30
22	MKDA00000603 Available to backorder	Tapping Screw St4x16	£0.48 £0.40
23	MK671001511 Available to backorder	Outer Wire Stopper Plate	£2.05 £1.71
24	MK671006063 Available to backorder	Hex.Bolt M6x40	£2.05 £1.71
25	MK671002075 Available to backorder	Flat Washer 4	£1.63 £1.36
26	MK671001514 Available to backorder	Drive Speed Adjust Lever Mount	£3.48 £2.90
27	MKDA00000577 Available to backorder	Hex.Flange Bolt M6x35	£0.98 £0.82
28	MK671470001 Available to backorder	Speed Adjustment Box (Lower)	£6.36 £5.30
29	MK671001513 Available to backorder	Sheath	£2.05 £1.71
30	MK671010630 Available to backorder	Tapping Screw St4.2x25	£0.89 £0.74
32	MK671011162 Available to backorder	Drive Speed Adjust Wire Assy	£51.24 £42.70
34	MK671611001 Available to backorder	Cable Clip	£1.49 £1.24
36	MKDA00000579 Available to backorder	Starter Grip Hook	£2.38 £1.98
40	MKDA00000563 Available to backorder	Hexagon Nut M8 (Refs 047 \| 050 \| 057)	£0.70 £0.58
41	MKDA00000564 Available to backorder	Knob (Refs 046 \| 051 \| 056)	£1.39 £1.16
42	MKDA00000924 Available to backorder	Plastic Saddle Washer 8	£1.03 £0.86
43	MKDA00000569 Available to backorder	Saddle Head Bolt M8x58	£2.38 £1.98
48	MK671001606 Available to backorder	Lower Handle Bar	£26.52 £22.10
52	MK671007007 Available to backorder	Flat Washer 8	£1.73 £1.44
53	MKDA00000880 Available to backorder	Saddle Head Bolt M8x35	£1.58 £1.32
58	MK671454001 Available to backorder	Grass Catcher Handle	£5.64 £4.70
59	MK671467001 Available to backorder	Grass Catcher Upper Board	£43.20 £36.00
61	MKDA00000888 Available to backorder	Tapping Screw St5x12	£0.70 £0.58
62	MKDA00000335 Available to backorder	Retainer Plate	£0.48 £0.40
63	MKDA00000025 Available to backorder	Washer 5	£0.89 £0.74
64	MK671001443 Available to backorder	Grass Catcher Frame	£57.60 £48.00
65	MK671468001 Available to backorder	Rear Flap	£49.56 £41.30
66	MK671001353 Available to backorder	Grass Catcher Frame Sheath	£2.69 £2.24
67	MK671001418 Available to backorder	Grass Catcher Cloth Set	£116.04 £96.70
68	MK671660001 Available to backorder	Mulching Plug Box	£28.56 £23.80
69	MK671316004 Available to backorder	Locking Button	£1.63 £1.36
70	MK671011005 Available to backorder	Compression Spring	£1.63 £1.36
71	MK671317001 Available to backorder	Pressing Board Of Locking	£1.49 £1.24
73	MKDA00001157 Available to backorder	Cable Hook	£2.24 £1.87
74	MKDA00000537 Available to backorder	Hex.Flange Lock Nut M8	£0.84 £0.70
75	MKDA00000583 Available to backorder	Box Wrench 16mm	£3.96 £3.30
76	MKDA00000584 Available to backorder	Wrench Handle	£1.79 £1.49
