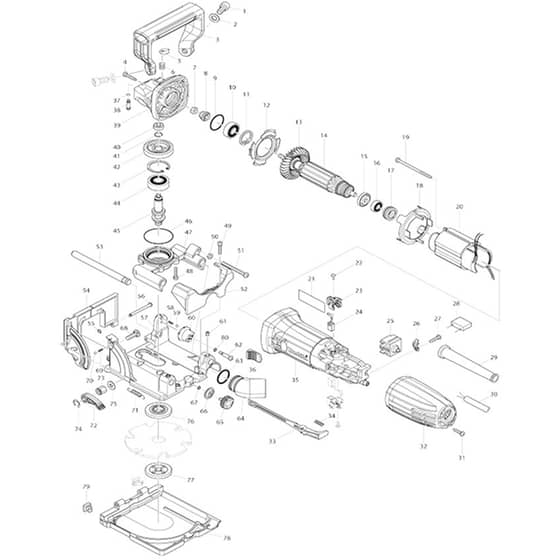

Makita PJ7000 - Plate Joiner - Power Tool Diagram

Description

Model No. PJ7000

Plate Joiner

Power Tool Parts Diagrams

	Part No.	Details
1	MK922422-3 Available to backorder	Hex. Socket Head Bolt M8x16	£0.70 £0.58
2	MK941202-8 Available to backorder	Flat Washer 8	£0.48 £0.40
3	MK453218-6 Available to backorder	Grip	£3.48 £2.90
4	MK266324-6 Available to backorder	Tapping Screw 4x22	£0.48 £0.40
5	MK417771-6 In stock	Pin Cap	£0.52 £0.43
6	MK234057-1 Available to backorder	Compression Spring 8	£0.48 £0.40
7	MK252186-8 Available to backorder	Hex. Nut M6	£0.48 £0.40
8	MK227545-5 Available to backorder	Spiral Bevel Gear 10	£3.12 £2.60
9	MK213445-5 Available to backorder	O-Ring 26	£0.48 £0.40
10	MK211092-6 Available to backorder	Ball Bearing 629Ddw	£8.28 £6.90
12	MK413126-3 Available to backorder	Guide Plate	£0.89 £0.74
13	MK240139-9 Available to backorder	Fan 56 (Alt.)	£1.03 £0.86
14	MK517649-4 Available to backorder	Armature Ass'y 240V (INC. 13 15 16)	£21.12 £17.60
15	MK681636-0 Available to backorder	Insulation Washer	£2.21 £1.84
16	MK210034-7 In stock	Ball Bearing 607Llb	£1.73 £1.44
17	MK421868-5 Available to backorder	Labyrinth Rubber Ring 19	£1.39 £1.16
18	MK450796-7 Available to backorder	Baffle Plate	£0.70 £0.58
19	MK266325-4 Available to backorder	Tapping Screw 4x70	£0.48 £0.40
21	MK896483-8 Available to backorder	Pj7000 Name Plate	£0.89 £0.74
22	MK266492-5 Available to backorder	Tapping Screw 3x8	£0.48 £0.40
23	MK643839-4 Available to backorder	Brush Holder 6x9	£1.90 £1.58
24	MK195026-6 In stock	Carbon Brush Set Cb-459 (Alt.)	£2.94 £2.45
25	MK650621-4 Available to backorder	Switch Ps10	£2.38 £1.98
27	MK265A48-7 Available to backorder	Tapping Screw 4x18 (Alt.)	£0.48 £0.40
27	MK266326-2 Available to backorder	Tapping Screw 4x18	£0.48 £0.40
28	MK638739-1 Available to backorder	Capacitor Unit	£2.69 £2.24
29	MK682502-4 Available to backorder	Cord Guard 8-85	£1.58 £1.32
30	MK695034-2 Available to backorder	Power Supply Cord 1.0-2-4.0	£17.76 £14.80
32	MK450794-1 Available to backorder	Rear Cover	£3.48 £2.90
33	MK450797-5 Available to backorder	Switch Lever	£0.70 £0.58
34	MK233121-5 Available to backorder	Compression Spring 4	£0.48 £0.40
35	MK450795-9 Available to backorder	Motor Housing	£8.04 £6.70
36	MK419566-3 Available to backorder	Switch Knob	£0.48 £0.40
37	MK213032-0 Available to backorder	O Ring 4 (Alt.)	£0.70 £0.58
38	MK256510-7 Available to backorder	Shoulder Pin 4	£0.89 £0.74
39	MK263002-9 Available to backorder	Rubber Pin 4 (C10)	£0.48 £0.40
39	MK141327-0 Available to backorder	Gear Housing Complete	£10.80 £9.00
40	MK210033-9 Available to backorder	Ball Bearing 696Zz	£1.73 £1.44
41	MK233950-6 Available to backorder	Ring Spring 11	£1.03 £0.86
42	MK227546-3 Available to backorder	Spiral Bevel Gear 37	£6.72 £5.60
43	MK962151-6 Available to backorder	Retaining Ring R-32	£0.70 £0.58
44	MK211129-9 Available to backorder	Ball Bearing 6201Ddw	£9.72 £8.10
45	MK326120-5 Available to backorder	Spindle	£5.52 £4.60
46	MK213561-3 Available to backorder	O Ring 42 (Alt.)	£1.03 £0.86
47	MK318811-2 Available to backorder	Bearing Box	£19.44 £16.20
48	MK911136-9 Available to backorder	Pan Head Screw M4x20	£0.48 £0.40
50	MK931203-4 Available to backorder	Hex. Nut M5	£0.48 £0.40
51	MK266741-0 Available to backorder	Pan Head Screw M5x50	£0.48 £0.40
52	MK453406-5 Available to backorder	Base Cover	£1.58 £1.32
53	MK326145-9 Available to backorder	Rod 10	£2.38 £1.98
54	MK141247-8 Available to backorder	Fence Complete	£15.24 £12.70
54	MK890236-7 Available to backorder	Scale Plate (C10)	£1.03 £0.86
55	MK961017-7 Available to backorder	Stop Ring E-3	£0.48 £0.40
56	MK256689-4 Available to backorder	Pin 4	£2.69 £2.24
57	MK318813-8 Available to backorder	Base	£29.64 £24.70
58	MK231282-5 Available to backorder	Compression Spring 2.4	£0.48 £0.40
59	MK216001-0 Available to backorder	Steel Ball 3.5	£0.48 £0.40
60	MK318814-6 Available to backorder	Stopper	£6.72 £5.60
61	MK266264-8 Available to backorder	H.S.Set Screw (Flat Point) M5x6	£0.89 £0.74
62	MK266738-9 Available to backorder	+Pan Head Screw M4	£0.70 £0.58
63	MK213008-7 Available to backorder	O Ring 22.4 (Alt.)	£0.89 £0.74
64	MK415252-4 Available to backorder	Dust Nozzle	£2.83 £2.36
65	MK265785-7 Available to backorder	Thumb Screw M5x10	£1.03 £0.86
66	MK232131-9 Available to backorder	Leaf Spring	£2.53 £2.11
67	MK213023-1 Available to backorder	O Ring 4 (Alt.)	£0.48 £0.40
68	MK266737-1 Available to backorder	Flat Head Sq. Neck Bolt M6x20	£0.48 £0.40
71	MK231795-6 Available to backorder	Tension Spring 8	£2.21 £1.84
72	MK272263-0 Available to backorder	Lever 40	£3.01 £2.51
73	MK252159-1 Available to backorder	Hex. Nut M6	£2.38 £1.98
74	MK961014-3 Available to backorder	Stop Ring E-8	£0.48 £0.40
75	MK253804-1 Available to backorder	Flat Washer 6	£0.48 £0.40
76	MK224280-6 Available to backorder	Inner Flange 40	£8.88 £7.40
77	MK224505-8 Available to backorder	Lock Nut 10-40	£8.04 £6.70
78	MK318845-5 Available to backorder	Blade Cover	£26.16 £21.80
79	MK424479-5 Available to backorder	Rubber Spike	£0.48 £0.40
901	MK123149-0 Available to backorder	Angle Guide Assembly (A01)	£28.80 £24.00
902	MK410602-8 Available to backorder	Fastener (C10)	£0.70 £0.58
902	MK123150-5 Available to backorder	Dust Bag Assembly (A02)	£7.32 £6.10
903	MK415579-2 Available to backorder	Set Plate 4 (A03)	£6.24 £5.20
904	MKB-20644 Available to backorder	Cutter 100mmx6T (A04)	£56.04 £46.70
905	MK782401-1 Available to backorder	Lock Nut Wrench 20 (A05)	£4.92 £4.10
906	MK163455-1 Available to backorder	Latch (C10)	£1.74 £1.45
906	MK453974-8 Available to backorder	Latch (C10)	£2.18 £1.82
906	MK821509-7 Available to backorder	Plastic Carrying Case (A06)	£41.40 £34.50
906	MK821551-8 Available to backorder	Connector Plastic Case (A06)	£64.68 £53.90
907	MK890459-7 Available to backorder	Pj7000 Plastic Case Label (A07)	£0.48 £0.40
907	MK837661-1 Available to backorder	Inner Tray (A07)	£11.52 £9.60
