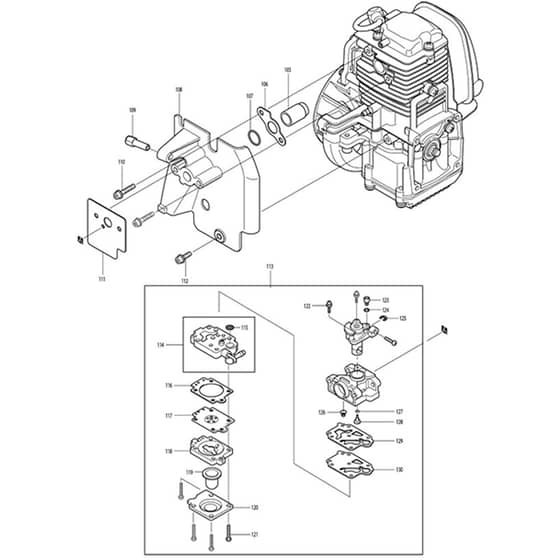

Makita PB-252.4 - Engine Blower - Power Tool 06 Diagram

Description

Model No. PB-252.4

Engine Blower

Power Tool 06 Parts Diagrams

	Part No.	Details
105	MK324961-3 Available to backorder	Intake Pipe	£1.73 £1.44
106	MK413120-5 Available to backorder	Insulator Gasket	£0.70 £0.58
107	MK213078-6 Available to backorder	O-Ring 10	£0.48 £0.40
108	MK125916-9 Available to backorder	Insulator Assy	£8.88 £7.40
109	MK325934-9 Available to backorder	Adjust Screw (Alt.)	£1.22 £1.02
110	MK922228-9 Available to backorder	H.S.H.Bolt M5x18 With Wr	£0.70 £0.58
111	MK413138-6 Available to backorder	Carburetor Gasket	£1.74 £1.45
112	MK922213-2 Available to backorder	H.S.H.Bolt M5x12 With Wr	£0.70 £0.58
113	MK168641-9 In stock	Carburetor	£64.88 £54.07
114	MK140808-1 Available to backorder	Body Pump Assy	£25.44 £21.20
115	MKWJ00014070 Available to backorder	Inlet Screen (Alt.)	£1.74 £1.45
116	MK442154-1 Available to backorder	Metering Diaphragm Gasket	£3.48 £2.90
117	MKWJ00095586 Available to backorder	Metering Diaphragm	£10.92 £9.10
118	MK140438-8 Available to backorder	Air Purge Body	£2.21 £1.84
119	MK424314-7 Available to backorder	Primer Pump	£4.44 £3.70
120	MK346270-0 Available to backorder	Primer Pump Cover	£4.68 £3.90
121	MK266582-4 Available to backorder	Tapping Screw 3x24	£1.90 £1.58
122	MKWJ00096364 Available to backorder	Screw M3x8 With Washer (Alt.)	£2.38 £1.98
122	MK266581-6 Available to backorder	Pan Head Screw M3x8	£1.90 £1.58
123	MK325922-6 Available to backorder	Swivel	£5.28 £4.40
124	MK413140-9 Available to backorder	Washer	£1.90 £1.58
125	MK257964-1 Available to backorder	Stop Ring E-3	£2.83 £2.36
126	MK234183-6 Available to backorder	Conical Compression Spring	£3.12 £2.60
127	MK213538-8 Available to backorder	O Ring 2 (Alt.)	£3.48 £2.90
128	MK326027-5 Available to backorder	Jet	£8.04 £6.70
129	MK442155-9 Available to backorder	Pump Gasket	£3.01 £2.51
