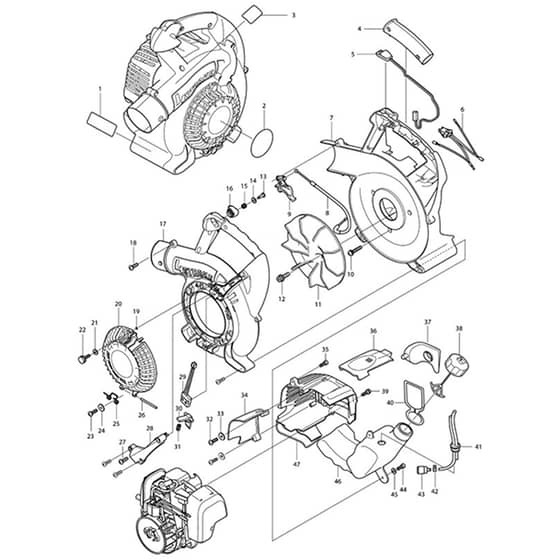

Makita PB-252.4 - Engine Blower - Power Tool 01 Diagram

Description

Model No. PB-252.4

Engine Blower

Power Tool 01 Parts Diagrams

	Part No.	Details
1	MK892460-8 Available to backorder	Caution Label	£3.84 £3.20
2	MK814975-5 Available to backorder	Bhx2500 Serial No.Label	£1.32 £1.10
2	MK892427-6 Available to backorder	Pb252.4 Model No.Label <	£1.79 £1.49
3	MK810450-9 Available to backorder	Caution Label	£1.66 £1.38
4	MK273665-3 Available to backorder	Grip	£6.12 £5.10

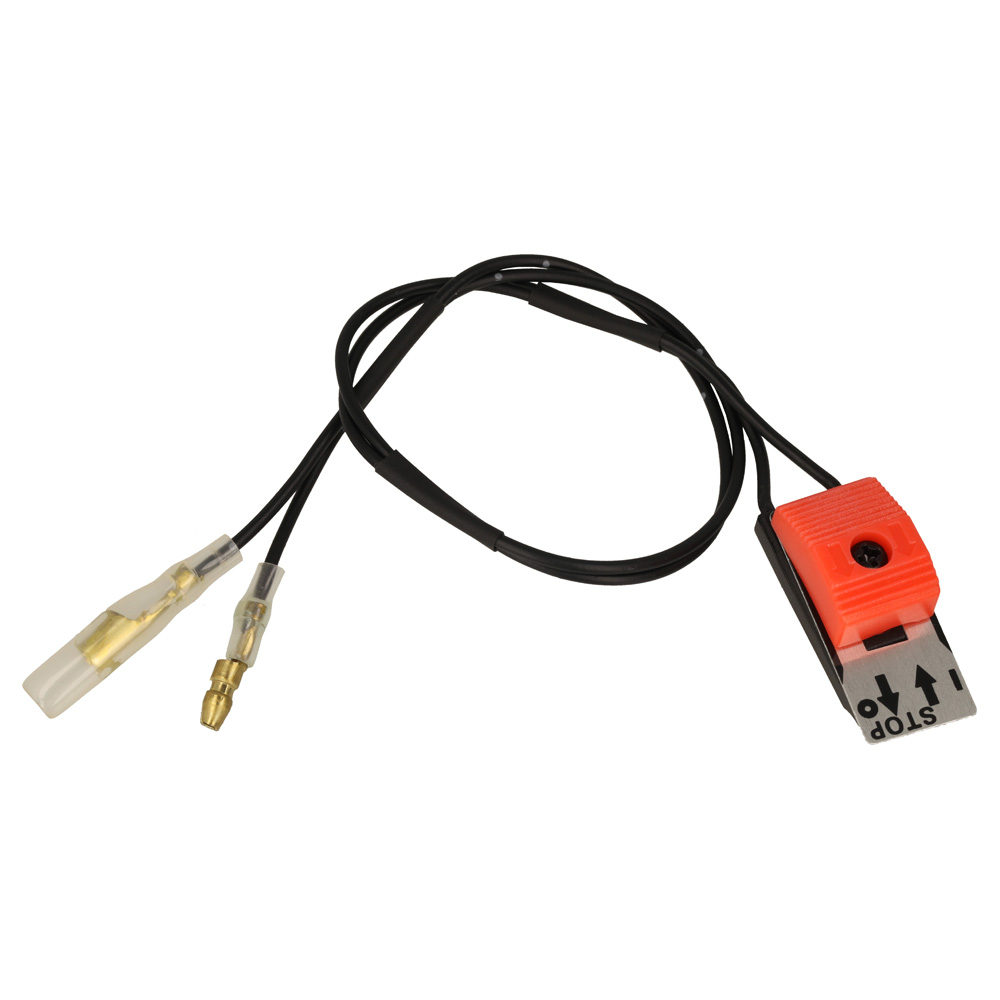

5	MK638640-0 Available to backorder	Switch Complete	£5.28 £4.40
6	MK638758-7 Available to backorder	Lead Unit	£11.40 £9.50
7	MK450958-7 Available to backorder	Volute Case R	£72.00 £60.00
7	MK455202-7 Available to backorder	Volute Case R S	£23.04 £19.20
8	MK168518-8 Available to backorder	Control Cable	£6.00 £5.00
9	MK452607-2 Available to backorder	Throttle Lever	£6.36 £5.30
9	MK456960-8 Available to backorder	Throttle Lever S	£4.08 £3.40
10	MK922253-0 Available to backorder	H.S.H.Bolt M5x30 With Wr <	£1.39 £1.16
10	MK911253-5 Available to backorder	Pan Head Screw M5x30	£0.70 £0.58

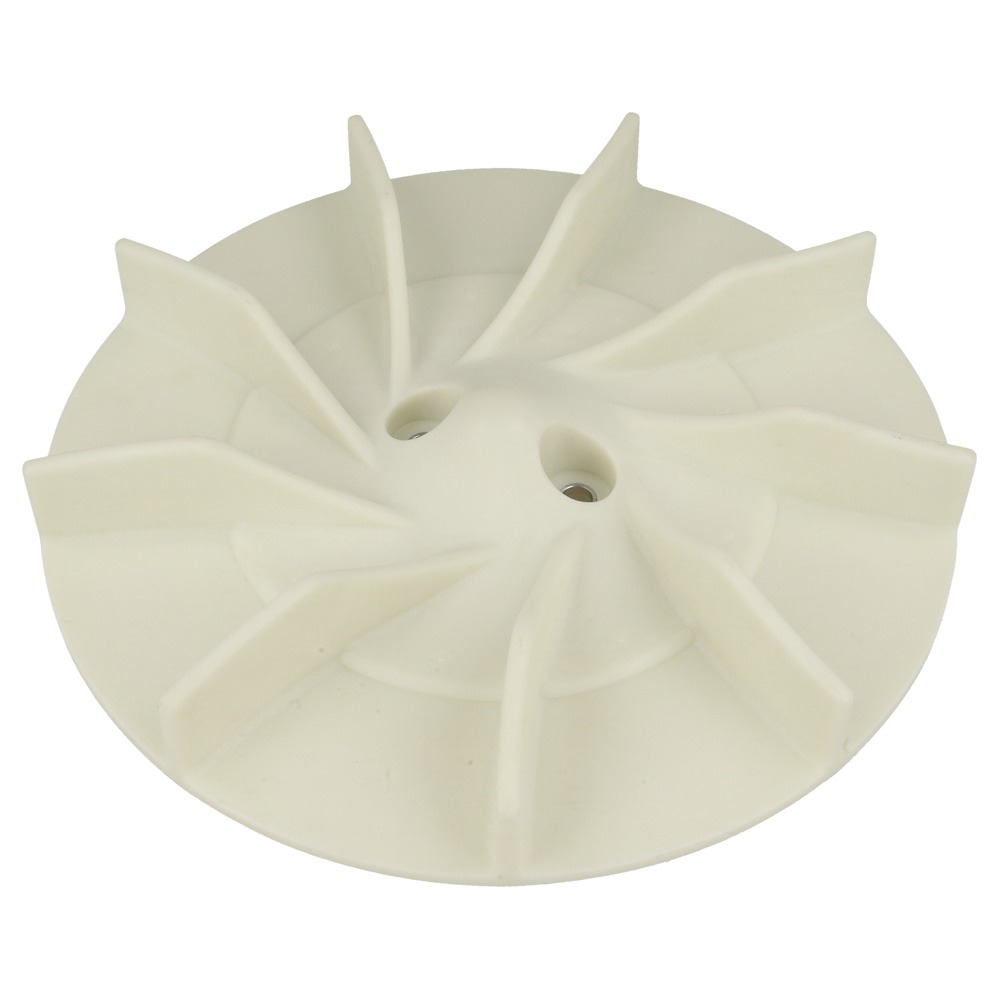

11	MK240113-7 Available to backorder	Fan 180	£14.76 £12.30
12	MK265A06-3 Available to backorder	Hex.Socket Head Bolt M6x20	£1.94 £1.62

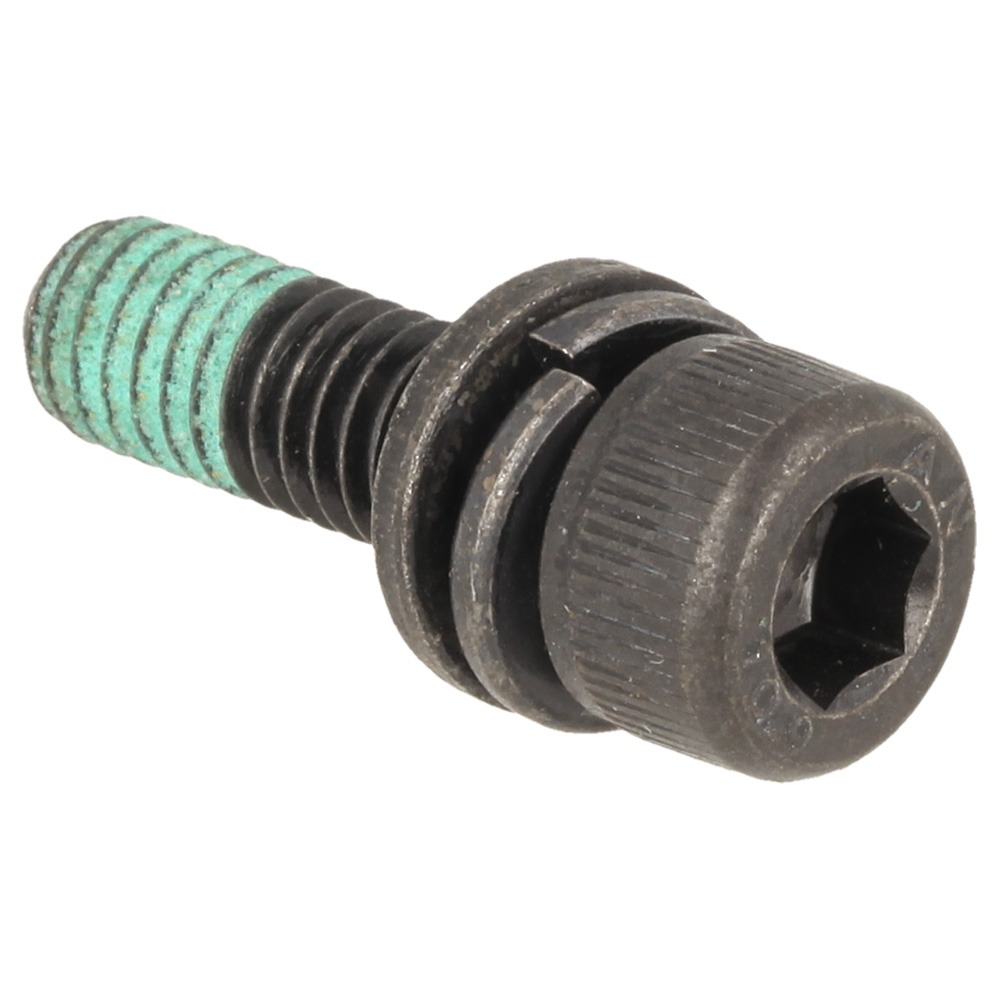

12	MK265584-7 Available to backorder	Hex Socket Head Bolt M6x20	£1.39 £1.16
13	MK265878-0 Available to backorder	Tapping Screw Bt 5x16 (Refs 018 \| 023 \| 027 \| 032 \| 035 \| 044)	£0.48 £0.40
13	MK265995-6 Available to backorder	Tapping Screw 4x18 (Alt.)	£0.48 £0.40
13	MK265A48-7 Available to backorder	Tapping Screw 4x18 <	£0.48 £0.40
14	MK253874-0 Available to backorder	Flat Washer 4	£0.48 £0.40
15	MK231025-5 Available to backorder	Compression Spring 8	£0.48 £0.40
16	MK452608-0 Available to backorder	Lock Button	£5.64 £4.70
17	MK123708-0 Available to backorder	Volute Case L Assembly S	£22.68 £18.90
19	MK213022-3 Available to backorder	O Ring 3 (Alt.)	£0.48 £0.40
20	MK452604-8 Available to backorder	Protector	£14.88 £12.40
21	MK424180-2 Available to backorder	Gasket	£0.70 £0.58
22	MK265782-3 Available to backorder	Thumb Screw M4	£1.74 £1.45
24	MK267394-8 Available to backorder	Flat Washer 5	£0.70 £0.58
25	MK233536-6 Available to backorder	Torsion Spring 5	£1.73 £1.44
26	MK268230-1 Available to backorder	Rod 4	£0.98 £0.82
28	MK452606-4 Available to backorder	Switch Cover	£6.72 £5.60
29	MK638759-5 Available to backorder	Switch Unit	£20.28 £16.90
30	MK452609-8 Available to backorder	Switch Lever	£4.32 £3.60
31	MK233133-8 Available to backorder	Compression Spring 4	£0.89 £0.74
33	MK941051-3 Available to backorder	Flat Washer 4	£0.48 £0.40
34	MK452605-6 Available to backorder	Inner Cover	£18.48 £15.40

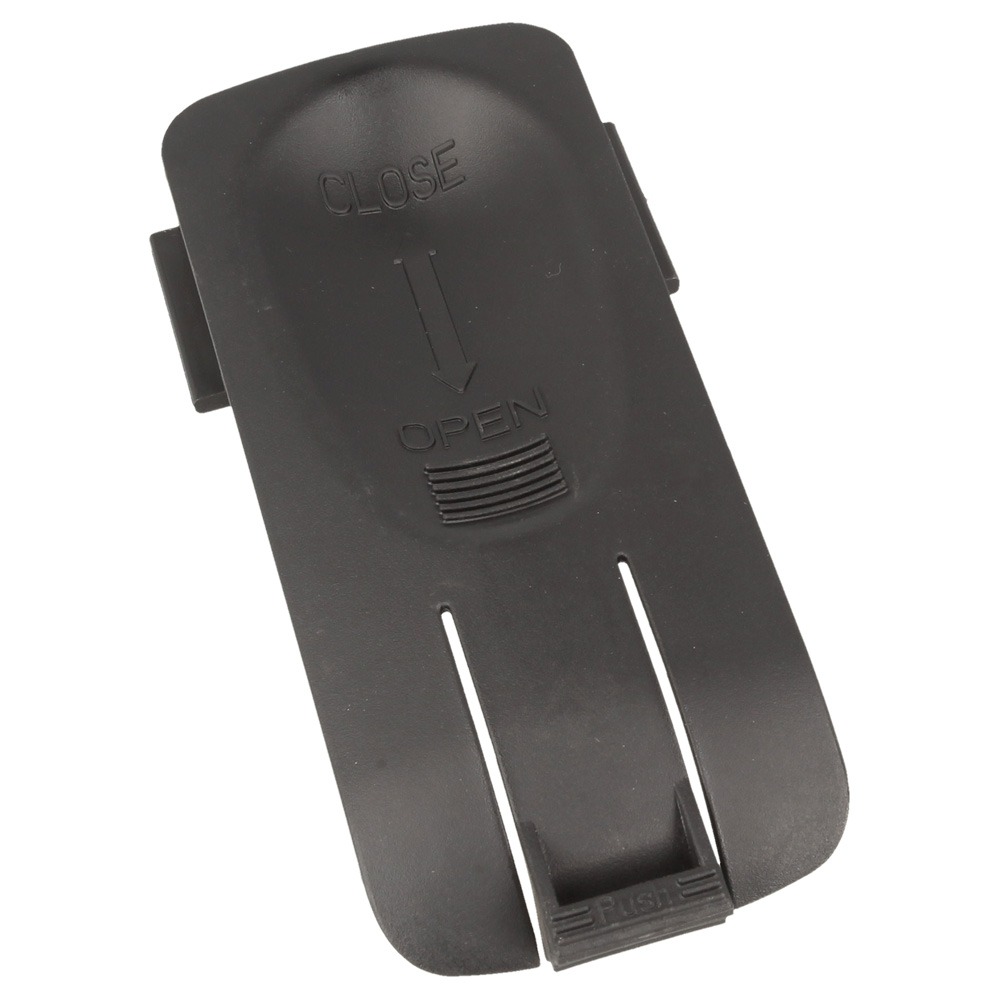

36	MK450964-2 Available to backorder	Plug Cover	£1.90 £1.58

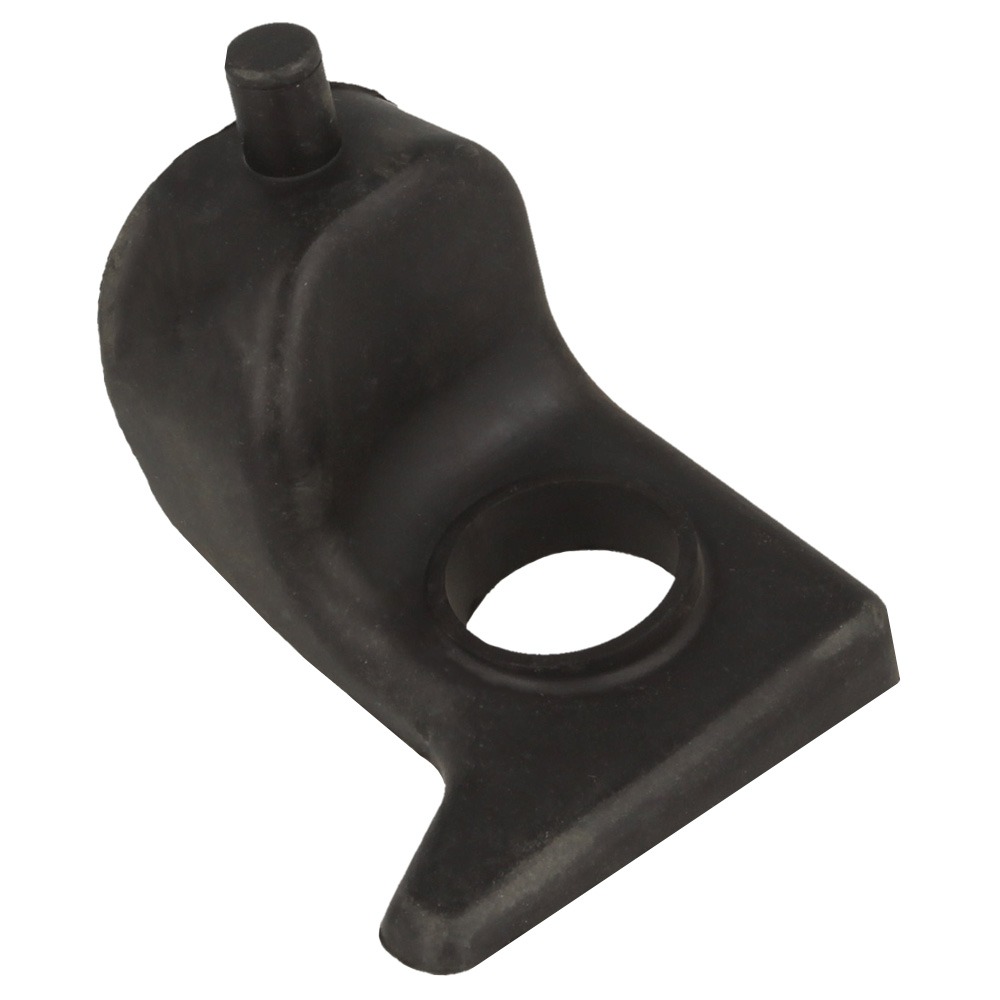

37	MK424395-1 Available to backorder	Oil Guard	£7.80 £6.50
38	MK125472-9 Available to backorder	Fuel Tank Cap Assembly	£7.20 £6.00
38	MK127108-6 Available to backorder	Fuel Tank Cap Assembly (Alt.)	£9.60 £8.00
39	MK911526-6 Available to backorder	P.H.Screw M4x16 With Wrm <	£0.70 £0.58

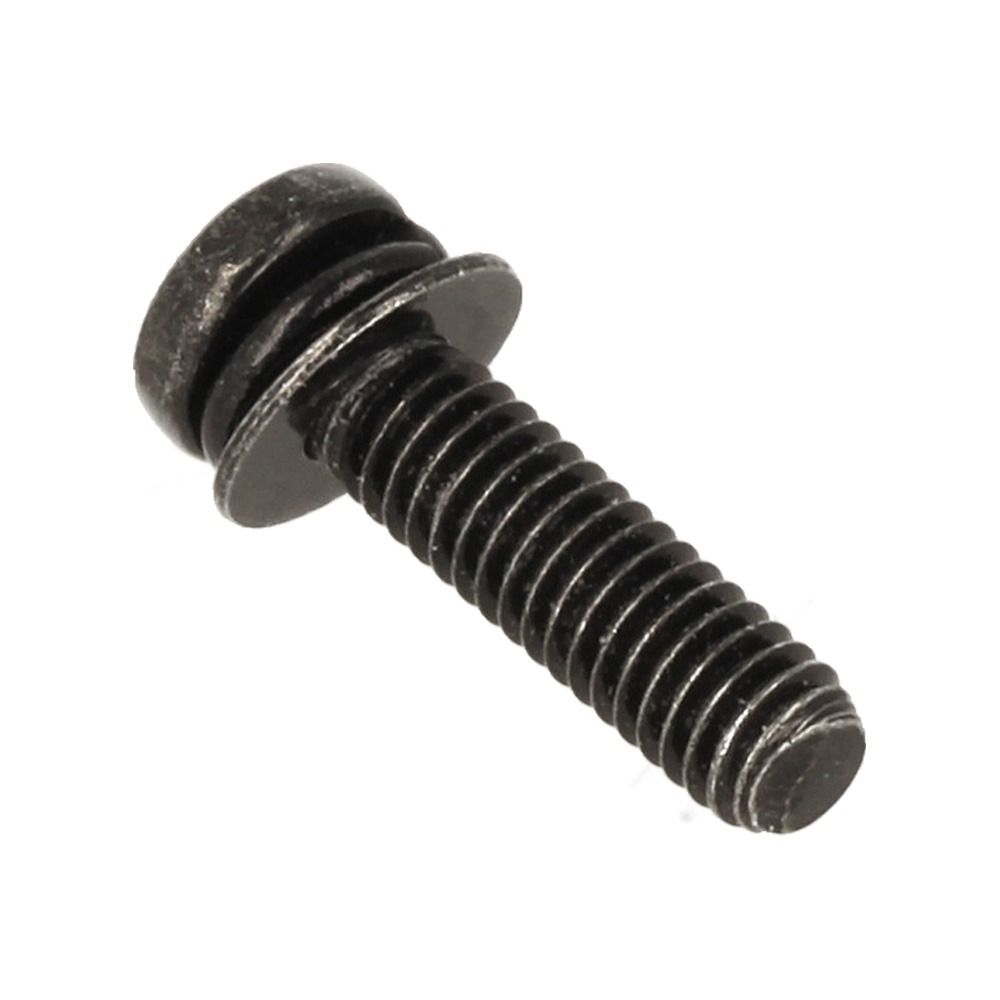

39	MK911128-8 In stock	P.H.Screw M4x16 With Wr	£0.54 £0.45
40	MK810455-9 Available to backorder	Caution Plate	£1.39 £1.16
41	MK158911-4 Available to backorder	Tube Complete	£4.92 £4.10
42	MK345920-4 Available to backorder	Hose Clamp	£0.70 £0.58

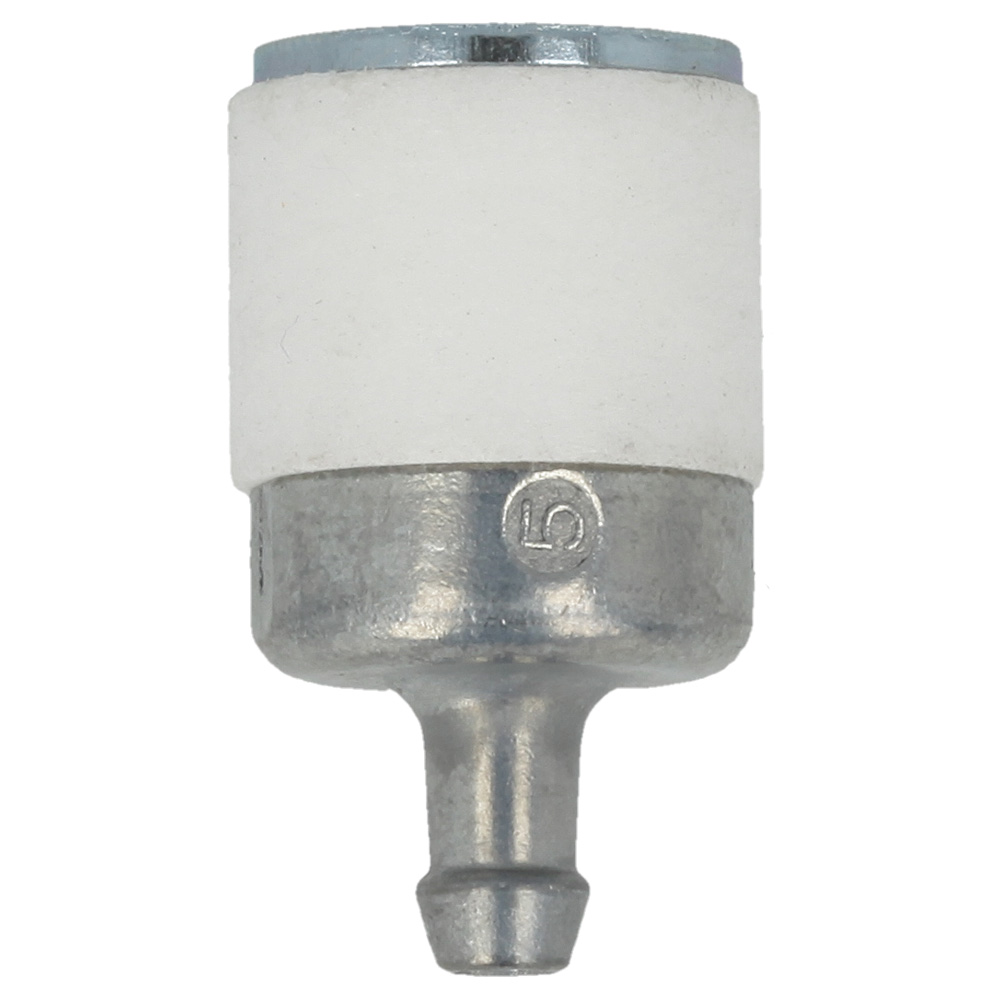

43	MK163447-0 In stock	Fuel Filter	£2.64 £2.20
46	MK6653500000 Available to backorder	Fuel Tank (Alt.)	£24.72 £20.60
46	MK450988-8 Available to backorder	Fuel Tank	£9.24 £7.70
47	MK452671-3 Available to backorder	Engine Cover	£12.12 £10.10
